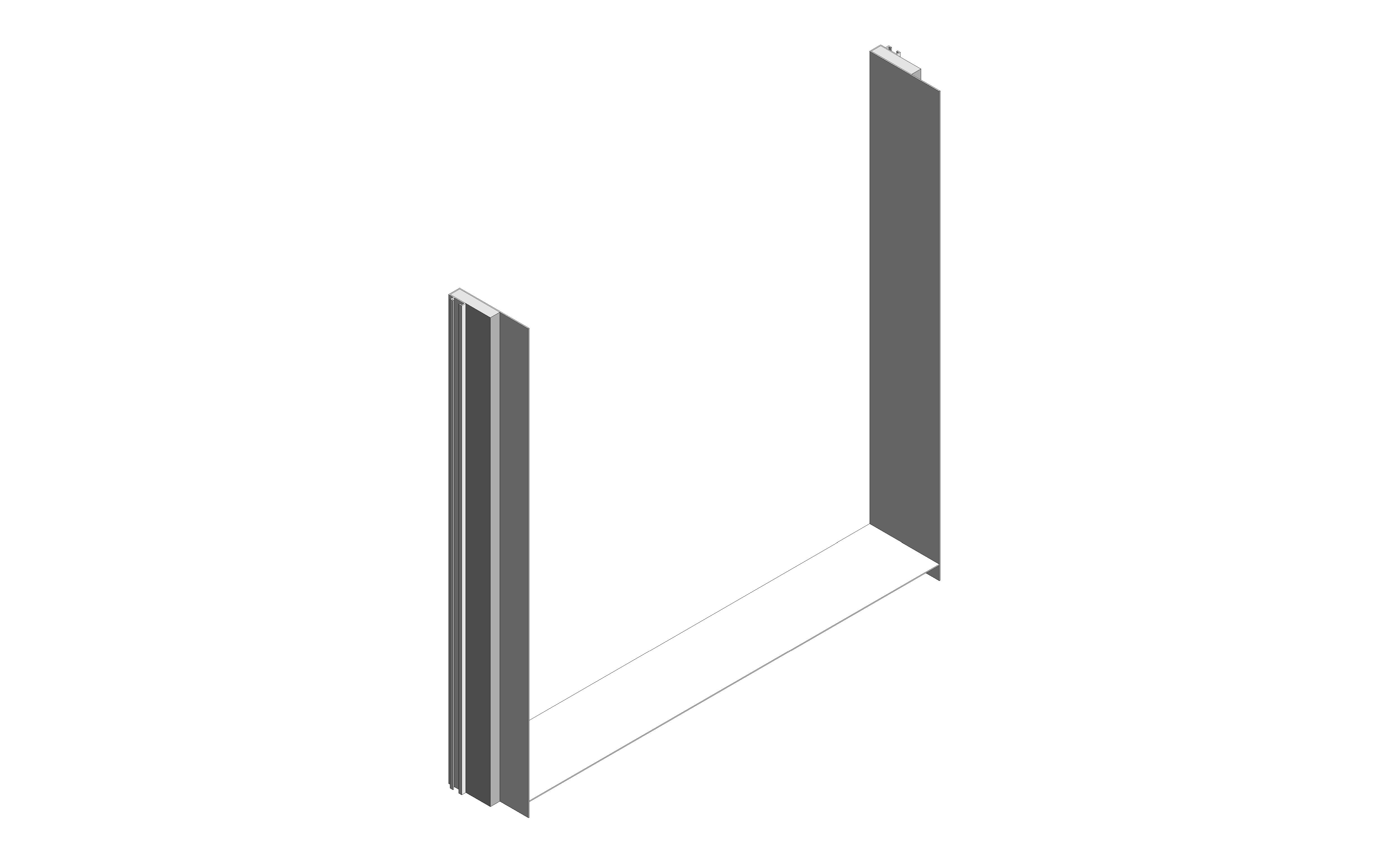

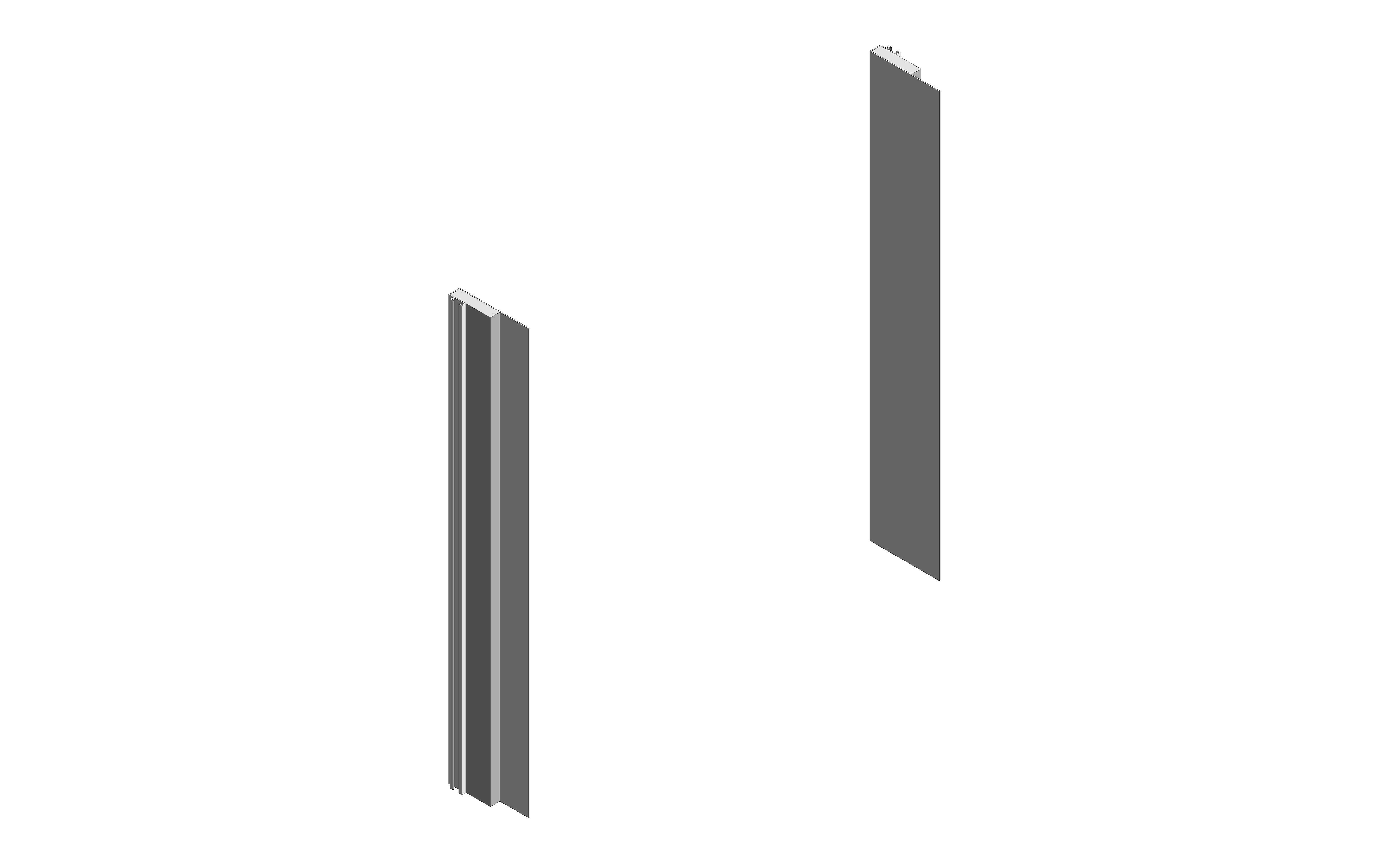

Fire Rated Cavity Closer

by Dacatie Green Building Solutions

Download Add to collection

Description

Cavity fire barriers key benefits:

Cavity fire barrier offer performances up of up to 60 minutes fire resistance
Fire separation is maintained throughout the life of the building
Effective edge sealing for party walls
Compact product range – push fit product
Green product - Zero Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) of less than 5.

Object Data

1 Revision

Last Updated

02/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/product/48ccbabd-3f33-4fc6-a96b-b1b714e8b351/document/18c74c3e-df83-42fd-ac52-62836ca7a506/download
Accessibility Performancen/a
Assembly CodeB2010
Asset TypeFixed
BIM Object NameDacatie_CavityCloser_FireRatedCavityCloser_SFR60
Cavity Width100.00 mm
Classification NameUniclass2015
Classification ValuePr_25_57_21_12
Code Performancen/a
Colorplastic – colour may variable
Constituentsn/a
Created Byinfo@dacatie.co.uk
Created On2019-04-29 T09:00:00
Depth125.00 mm
DescriptionOne hour fire-rated cavity closer which can fit cavity widths 50-100mm
Documentation Certificateswww.quantumprofilesystems.com/en/brands/dacatie
Documentation Installation Guidewww.quantumprofilesystems.com/en/brands/dacatie
Documentation Literaturewww.bimstore.co/product/48ccbabd-3f33-4fc6-a96b-b1b714e8b351/document/395185b9-b2d8-48e6-85e5-b6a5be48a7df/download
Documentation Maintenancewww.quantumprofilesystems.com/en/brands/dacatie
Documentation Technicalwww.quantumprofilesystems.com/en/brands/dacatie
Duration UnitYears
Expected Life0
FeaturesOne hour fire-rated cavity closer
Finishplastic – colour may variable
Frame MaterialDacatie - Plastic - White
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeNOTDEFINED
Insulation Length98.00 mm
Insulation MaterialDacatie - Insulation
Insulation Width25.00 mm
KeynoteF30/180
ManufacturerDacatie
Manufacturer NameDacatie
MaterialPVCu with polythene and encapulated mineral wool insulation
ModelSFR60
Model NumberFire-rated cavity closer
Model ReferenceSFR60
NBS DescriptionCavity closer and damp proof course supports
NBS Object NameDacatie; Cavity closer and damp proof course supports
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth125.00 mm
Nominal Height1000.00 mm
Nominal Length1000.00 mm
Production Year2019
Referenced StandardISO 9001:2008, BBA Certificate, Part L Compliance 2010, Robust Detail BR262, ISO14001:2008
Replacement Costn/a
Shapen/a
Sill Offset27.00 mm
Sizen/a
Spare Partsn/a
Structural Opening Height1000.00 mm
Structural Opening Width1000.00 mm
Type CommentsFire-rated cavity closer
Type NameSFR60
URLwww.quantumprofilesystems.com/en/brands/dacatie
Visibility Constraint1
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@dacatie.co.uk
Warranty Guarantor Partsinfo@dacatie.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
