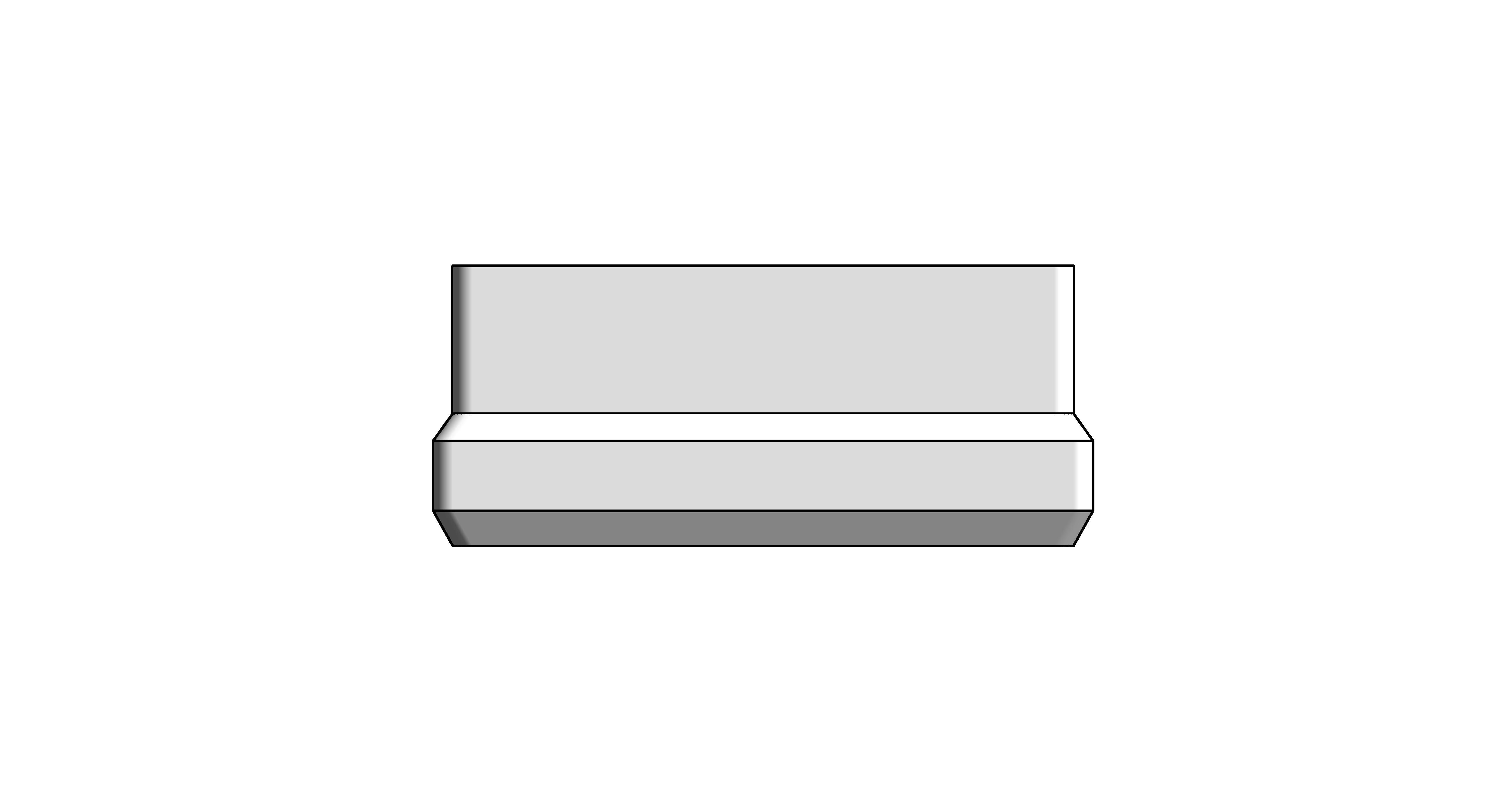

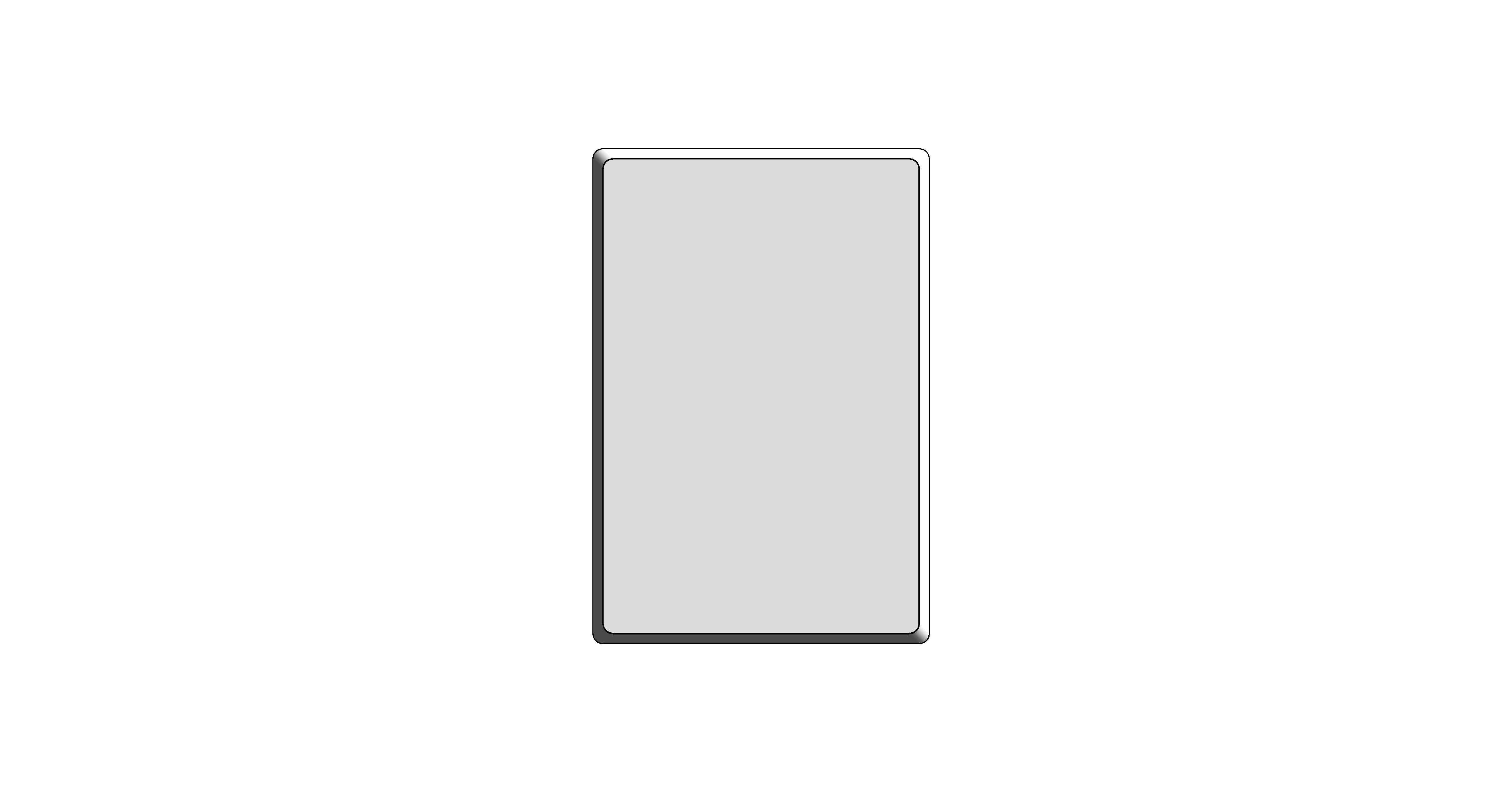

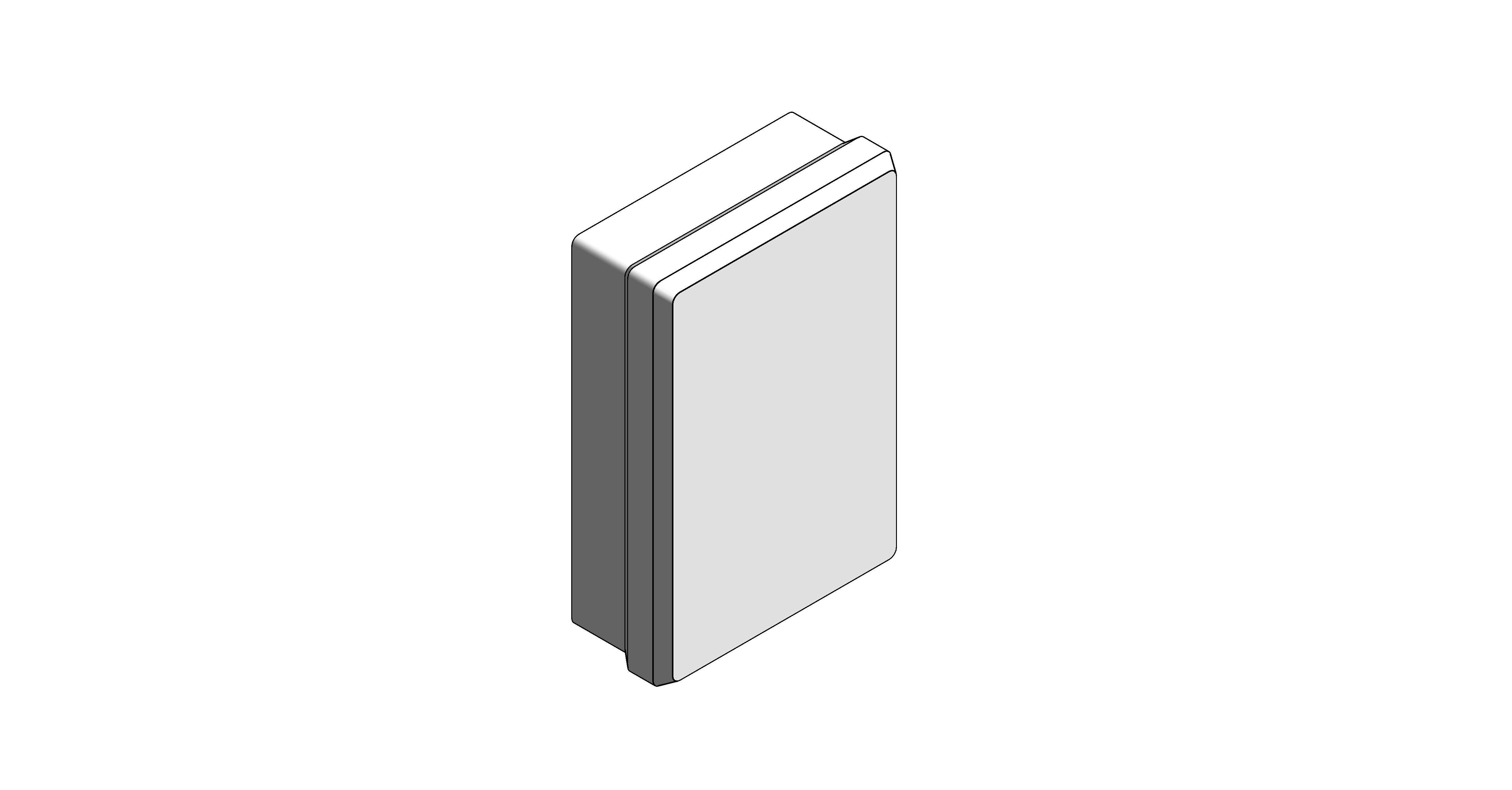

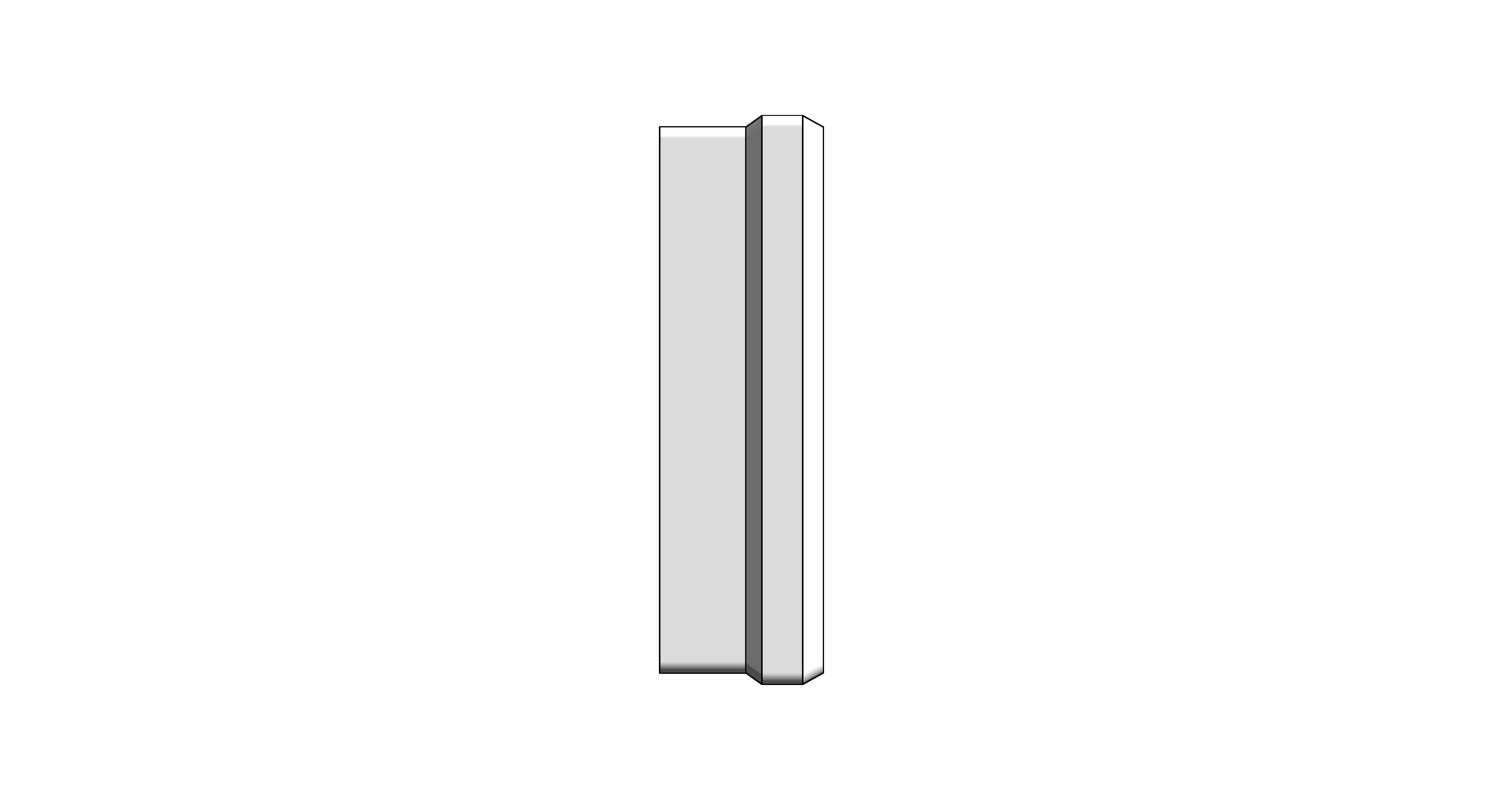

The Flamefast Transmitter range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity. With three 0-10V outputs, an on board relay and the ability to select between Analogue or Thermistor temperature output, our transmitter range is one of the most versatile units available. With the optional signature Flamefast traffic light display, the sensor can provide a clear, bold indication of the air quality in the monitored space. This cost effective sensor range is ideal for any application, including natural and demand controlled ventilation as well as for integrating with our range of gas safety systems.

_AuthorMichael Griffiths
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bygassafety@flamefast.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeE10
Asset TypeFixed
BIM Object NameFlamefast_SpecialityEquipment_Co2_Temp_RH_Transmitter_TR
Classification NameUniclass2015
Classification ValuePr_75_50_76
Clearance Bottom150 mm
Clearance Front150 mm
Clearance Left5 mm
Clearance Right5 mm
Clearance Top5 mm
Code Performancen/a
ColorWhite
Constituentsn/a
Created Bygassafety@flamefast.co.uk
Created On22.03.2018 T09:00:00
Default Elevation1500 mm
DescriptionThe Flamefast Transmitter range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity. With three 0-10V outputs, an on board relay and the ability to select between Analogue or Thermistor temperature output, our transmitter range is one of the most versatile units available.
Documentation Certificateswww.flamefast-gas-safety.co.uk
Documentation Installation Guidewww.flamefast-gas-safety.co.uk
Documentation Literaturewww.bimstore.co/products/flamefast-tr-transmitter-range/document/product-literature
Documentation Maintenancewww.flamefast-gas-safety.co.uk
Documentation Technicalwww.flamefast-gas-safety.co.uk
Duration UnitYears
Expected Life0
FeaturesThe Flamefast Transmitter range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity. With three 0-10V outputs, an on board relay and the ability to select between Analogue or Thermistor temperature output, our transmitter range is one of the most versatile units available.
Finishn/a
Graden/a
Ifc Export AsGasDetector
Ifc Export TypeIfcAlarmType
KeynoteW
ManufacturerFlamefast
Manufacturer NameFlamefast (UK) Ltd
MaterialCasing - ABS Plastic
ModelTR
Model NumberTR
Model ReferenceTransmitter Range (TR)
NBS DescriptionSensors and detectors
NBS Noten/a
NBS Object NameFlamefast - Sensors and detectors
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth36 mm
Nominal Height125 mm
Nominal Width85 mm
Production Year2020
Referenced StandardBS6173:2009 & IGEM/UP/19
Replacement Costn/a
ShapeRectangular
Size85 x 125 x 36
Spare Partsgassafety@flamefast.co.uk
Type CommentsTransmitter Range (TR)
URLwww.flamefast-gas-safety.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborgassafety@flamefast.co.uk
Warranty Guarantor Partsgassafety@flamefast.co.uk
