Framing Anchor MFABL

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/framing-anchor-mfabl/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeB10
• Asset TypeFixed

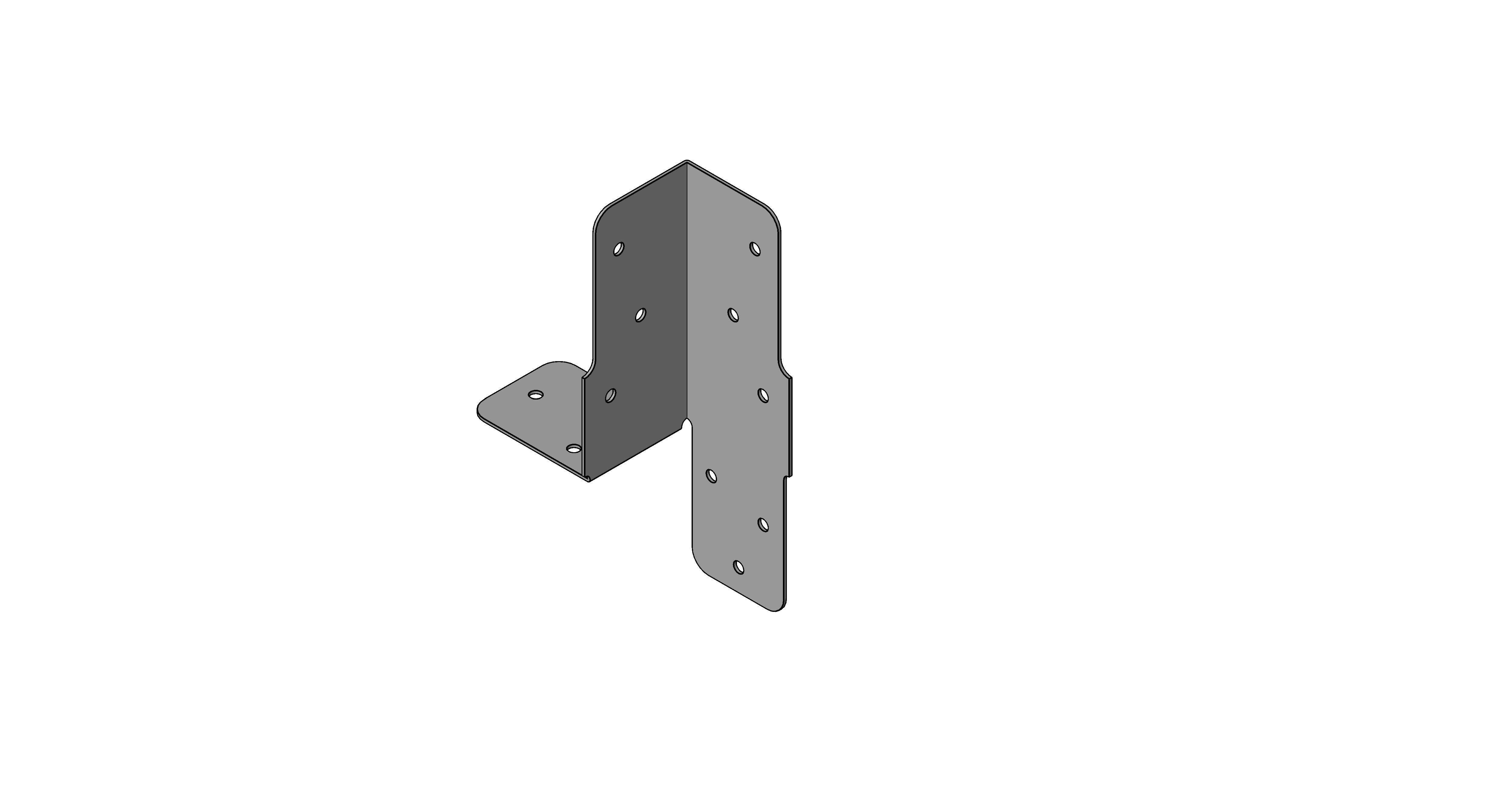

• BIM Object NameExpamet_FramingAnchors_MultiGrip
• Classification NameUniclass2015
• Classification ValuePr_20_29_03_31
• Code PerformanceETAG015/TR016, ETAG015 (ETA13/0802), BS EN 10346:2015, DX51D + Z275
• ColorSteel
• Constituentsn/a
• Created Byinfo@birtleygroup.co.uk
• Created On2019-06-18 T09:00:00
• Declared Shear Capacity6.4kN (ULS) Shear per pair
• DescriptionBAT Multi-Grip Framing Anchors offer the most effective and economical method of providing strong a mechanical joints for framing of timbers. All timber facing nail holes must be filled. Always use in pairs to avoid eccentric loading.
• Documentation Certificateswww.birtleygroup.co.uk
• Documentation Installation Guidewww.birtleygroup.co.uk
• Documentation Literaturewww.birtleygroup.co.uk
• Documentation Maintenancewww.birtleygroup.co.uk
• Documentation Technicalwww.birtleygroup.co.uk
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finish275g/m² Zinc Coating
• Framing Anchor MaterialExpamet_GalvanizedSteel
• Graden/a
• Ifc Export AsIfcMember
• Ifc Export TypeIfcMemberTypeEnum.PLATE
• KeynoteG20
• ManufacturerExpamet
• Manufacturer NameExpamet
• MaterialGalvanized mild steel
• ModelMFABL
• Model NumberProvide strong mechanical joints for framing of timbers.
• Model ReferenceMFABL
• NBS DescriptionFraming Anchors
• NBS Object NameExpamet FramingAnchors
• NBS Office Master Tagn/a
• NBS Reference45-50-50/405
• Nominal Length37.50 mm
• Number Of Nail Holes12

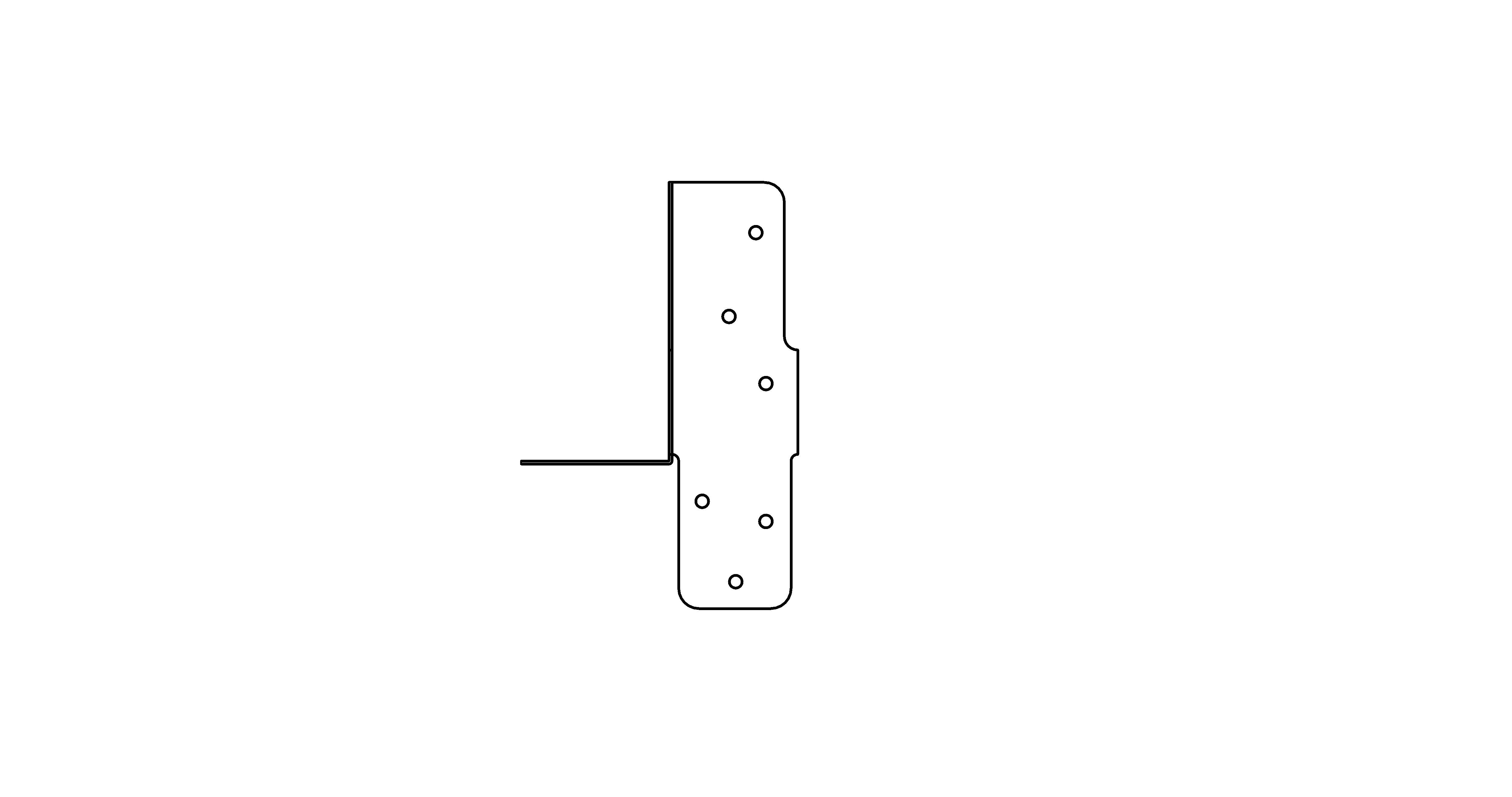

• Overall Height127.00 mm

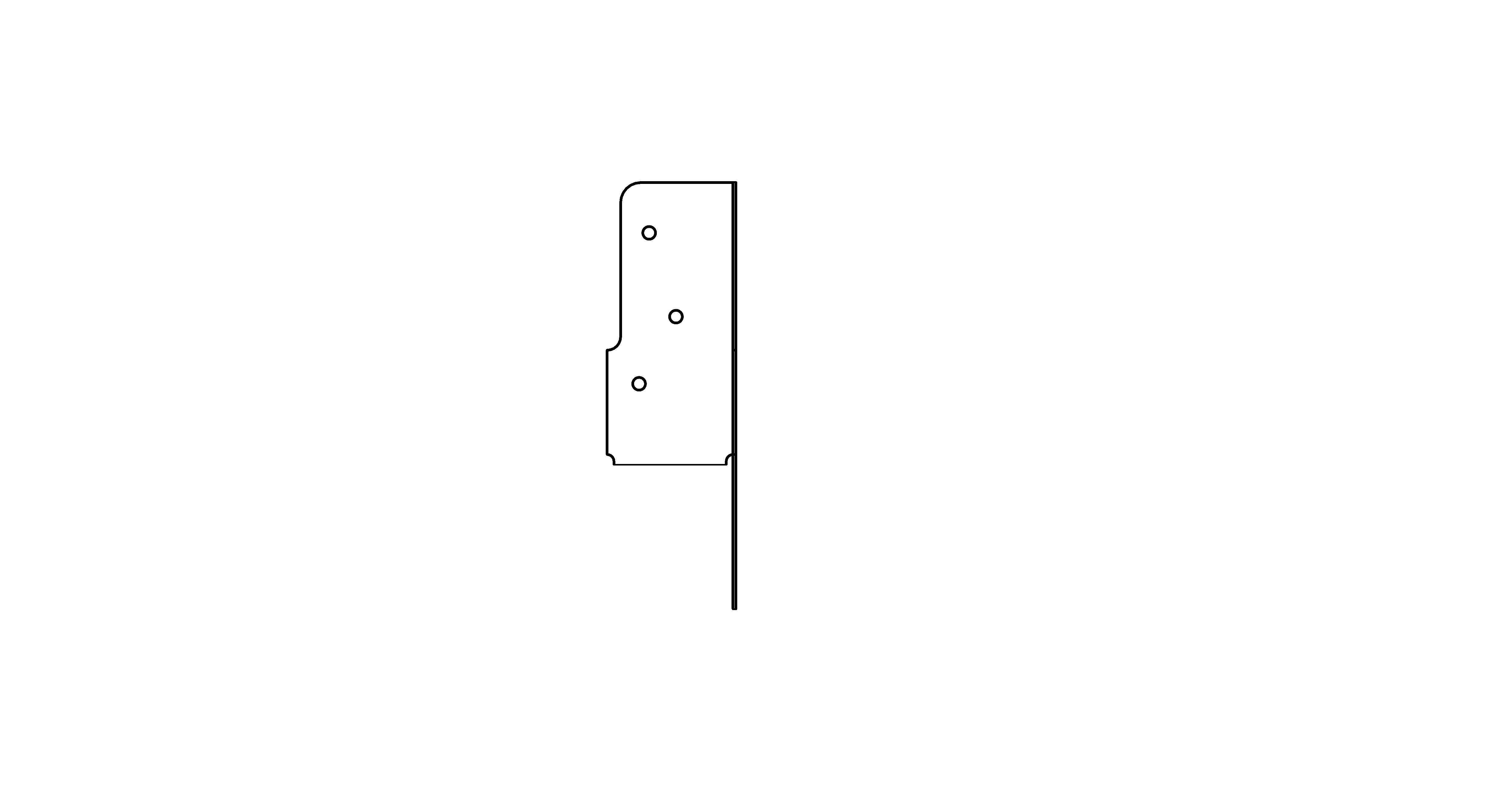

• Overall Length37.50 mm

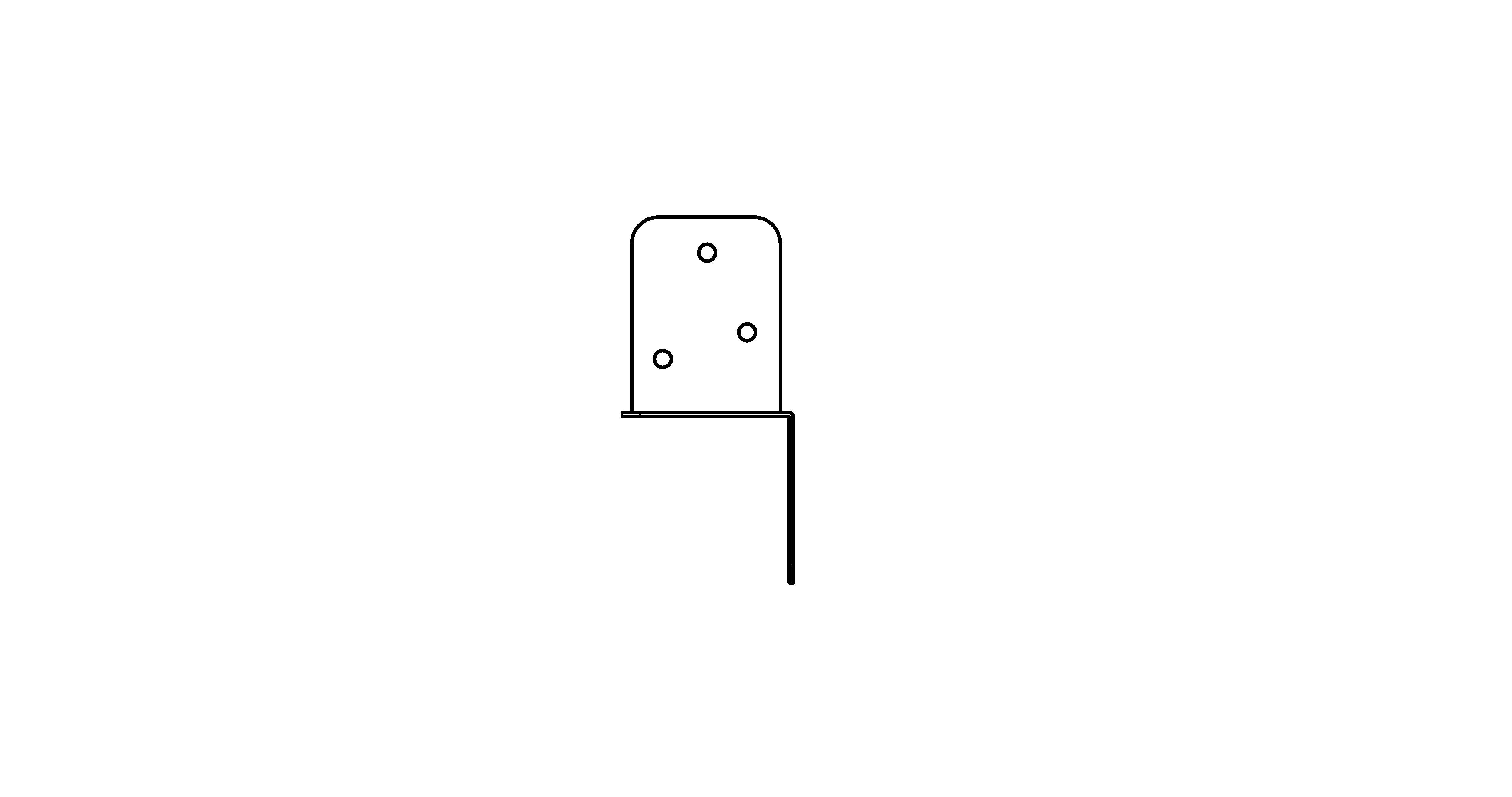

• Overall Width37.50 mm
• Production Year2019
• Referenced StandardETAG015/TR016, ETAG015 (ETA13/0802), BS EN 10346:2015, DX51D + Z275
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Thickness0.90 mm
• Type CommentsProvide strong mechanical joints for framing of timbers.
• Type NameMFABL
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@birtleygroup.co.uk
• Warranty Guarantor Partsinfo@birtleygroup.co.uk
