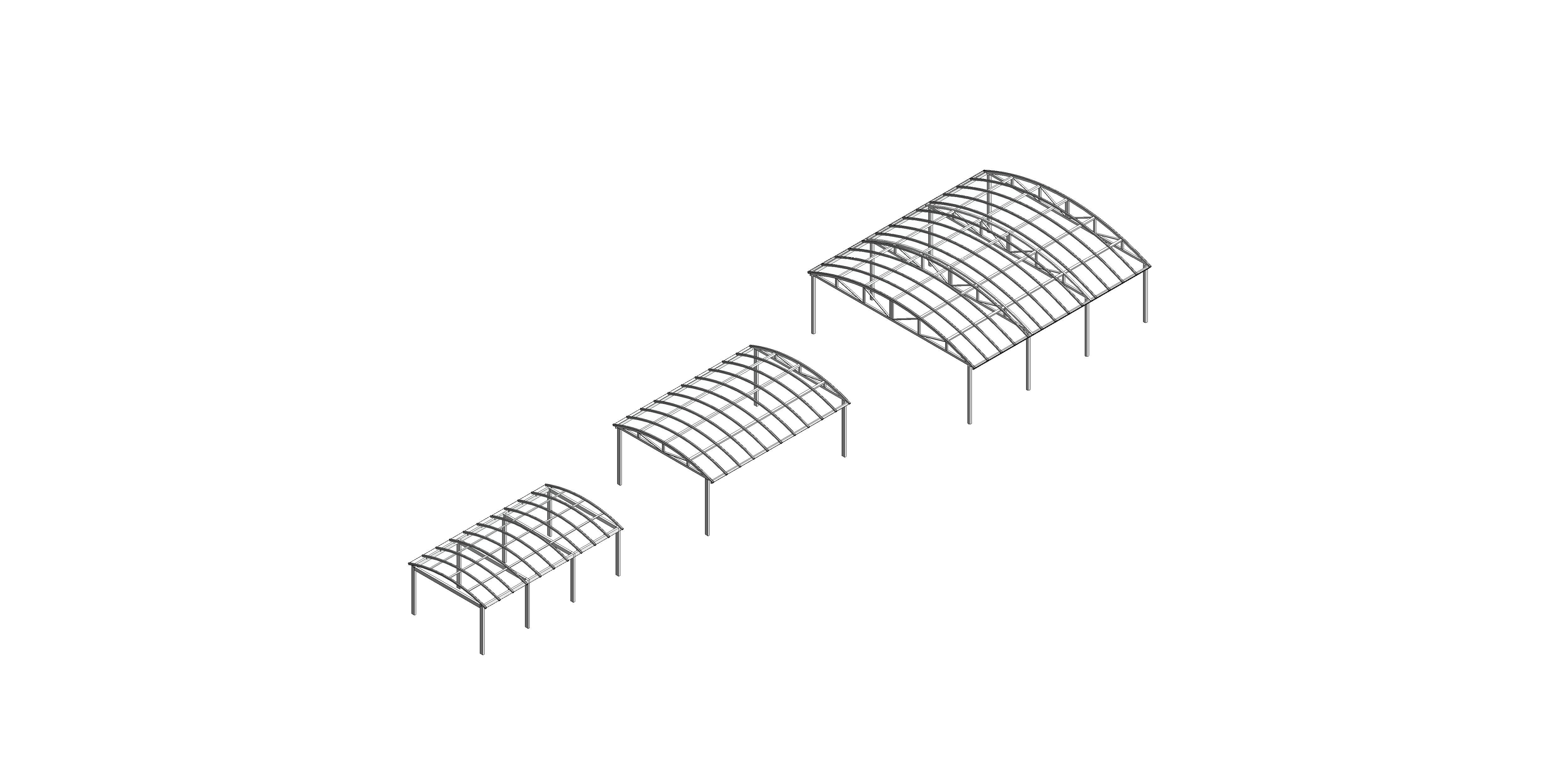

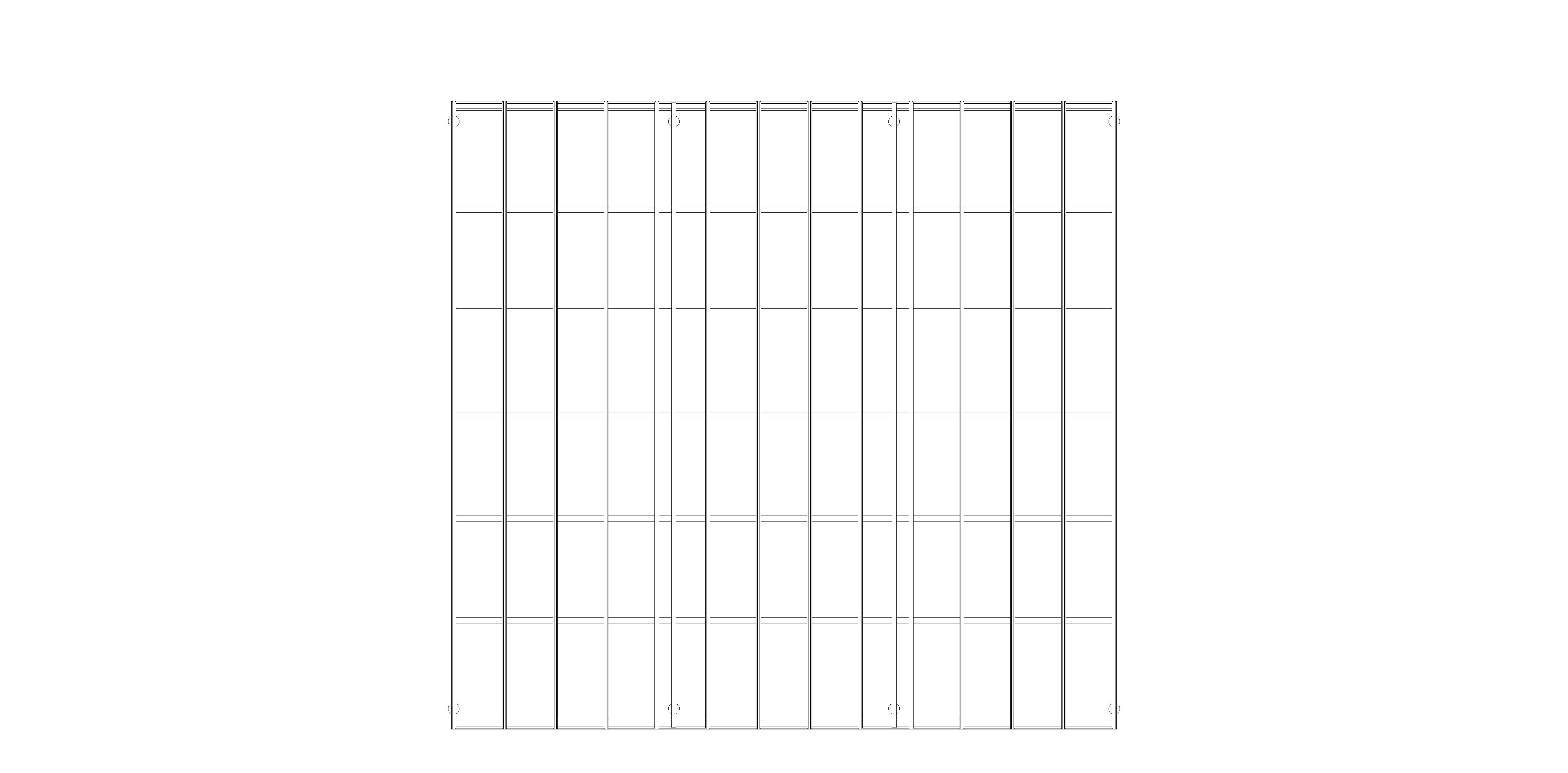

Free Standing Barrel Vault Canopy

by Twinfix

Download Add to collection

Description

As well as providing excellent cover, a curved canopy also delivers in terms of its striking visual appearance. They make superb outside covered eating areas or can be used as a classroom extension when situated adjacent to the school building. The UV protected polycarbonate roof is Non-Fragile when tested to ACR(M)001:2014.

Unapproved

This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

Object Data

2 Revision

Last Updated

16/08/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/free-standing-barrel-vault-canopy/document/object-user-guide
Accessibility Performancen/a
AccessoriesFlashings, Gable Glazing, Vertical Glazing, Roller Shutters, Vents, Signs, Doors & Windows, Foundation Pots, Post Protectors, Site Specific Calculations.
Assembly CodeB3010
Asset TypeFixed
Beam MaterialConcept
BIM Object NameTwinfix_OpenSddShltrs_FreeStandingBarrelVaultCanopy_DoubleTrussCanopy
Bottom Chord Depth100 mm
Canopy Overhang150 mm
Classification NameUniclass2015
Classification ValuePr_20_65_78_58
Code Performancen/a
Colorn/a
Column End Spacing0 mm
Column MaterialConcept
Column Width150 mm
Constituentsn/a
Created Byenquiries@twinfix.co.uk
Created On2021-10-12T09:00:00
DescriptionFreestanding barrel vault glazed canopy with double truss frame
Documentation Certificateswww.bimstore.co/products/free-standing-barrel-vault-canopy/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/free-standing-barrel-vault-canopy/document/installation-guide
Documentation Literaturewww.bimstore.co/products/free-standing-barrel-vault-canopy/document/product-literature
Documentation Maintenancewww.bimstore.co/products/free-standing-barrel-vault-canopy/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/free-standing-barrel-vault-canopy/document/technical-data-sheet
Duration UnitYears
Environmental Product Declarationn/a
Expected Life0
FeaturesLightweight and recyclable framework, glazing provides UV protection
Fill Gasn/a
FinishFrame: Polyester powder coated (to BS 6496)
Fire RatingClass 1y-BS 476 Pt7, B-s1,d0-BS EN 13501-1, Class 0-BS 476 Pt 6 & 7, Tp(a)
FixingsStainless steel self-tapping screws & bolts
Frame Colour OptionsRAL 1021, RAL 3020, RAL 5010, RAL 6002, RAL 6005, RAL 7035, RAL 7037, RAL 9011, RAL 9910, RAL special order
Frame Length Post Centre Options1000-4000 mm
Frame Size6000-7500 x 1000-4000 mm (w x l) post centres: 150 x 75 mm box frame; 8000-9000 x 1000-3000 mm (w x l) post centres: 152 mm diameter circular columns
Frame Thickness60 mm
Frame Width Options6000-9000 mm
Glass Colorn/a
Glass Layers1
Glass Thickness 14 mm
Glazing Panel MaterialPlastic_Clear
Glazing Tint OptionsBronze (Not available with Curved6NF), Clear, Opal (Not available with Curved6NF)
Glazing Type OptionsCurved6NF (6 mm UV solid polycarbonate), Curved10NF (10 mm UV twinwall polycarbonate)
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
Integral Servicesn/a
Is CoatedNo
Is ExternalYes
Is LaminatedNo
Is TemperedNo
Is WiredNo
KeynoteQ50
Manufacturerwww.twinfix.co.uk
Manufacturer NameTwinfix
Materialn/a
Maximum Glazing Projection750 mm
ModelFree Standing Barrel Vault Canopy - Double Truss Frame
Model NumberSingle Truss Canopy
Model ReferenceFree Standing Barrel Vault Canopy - Double Truss Frame
NBS DescriptionOpen sided shelters
NBS Noten/a
NBS Object NameTwinfix - Open sided shelters
NBS Office Master Tagn/a
NBS Reference45-05-75/315
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Purlins5
Openings Doorsn/a
Openings Roof Ventsn/a
Openings Windowsn/a
Production Year2021
Rail MaterialConcept
Rainwater DrainageAluminium guttering and downpipes, PVC-U guttering and downpipes
Referencen/a
Referenced Standardn/a
Replacement Costn/a
Roof CoveringPolycarbonate glazing
Shapen/a
Sizen/a
Spare Partsn/a
Top Chord Depth75 mm
Truss MaterialConcept
Type CommentsFree Standing Barrel Vault Canopy - Single Truss Frame
Type NameDouble Truss Canopy
URLwww.twinfix.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@twinfix.co.uk
Warranty Guarantor Partsenquiries@twinfix.co.uk
