Free Standing Duo Pitch Canopy

by Twinfix

Download Add to collection

Description

A duo-pitch design is often chosen for a canopy where the area to be covered is quite large, such as when enclosing a school quadrangle. Or, it could be that an adjoining building has an angular shaped roof and the canopy is designed to match it.

Unapproved

This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

Object Data

1 Revision

Last Updated

14/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Technical Data Sheet

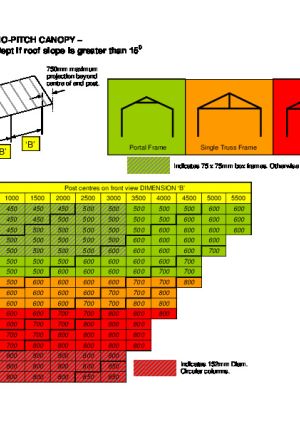

Product Data Sheet

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/free-standing-duo-pitch-canopy/document/object-user-guide
Accessibility Performancen/a
AccessoriesFlashings, Gable Glazing, Vertical Glazing, Roller Shutters, Vents, Signs, Doors & Windows, Foundation Pots, Post Protectors, Site Specific Calculations.
Assembly CodeB3010
Asset TypeFixed
Beam Depth150 mm
Beam MaterialAluminum

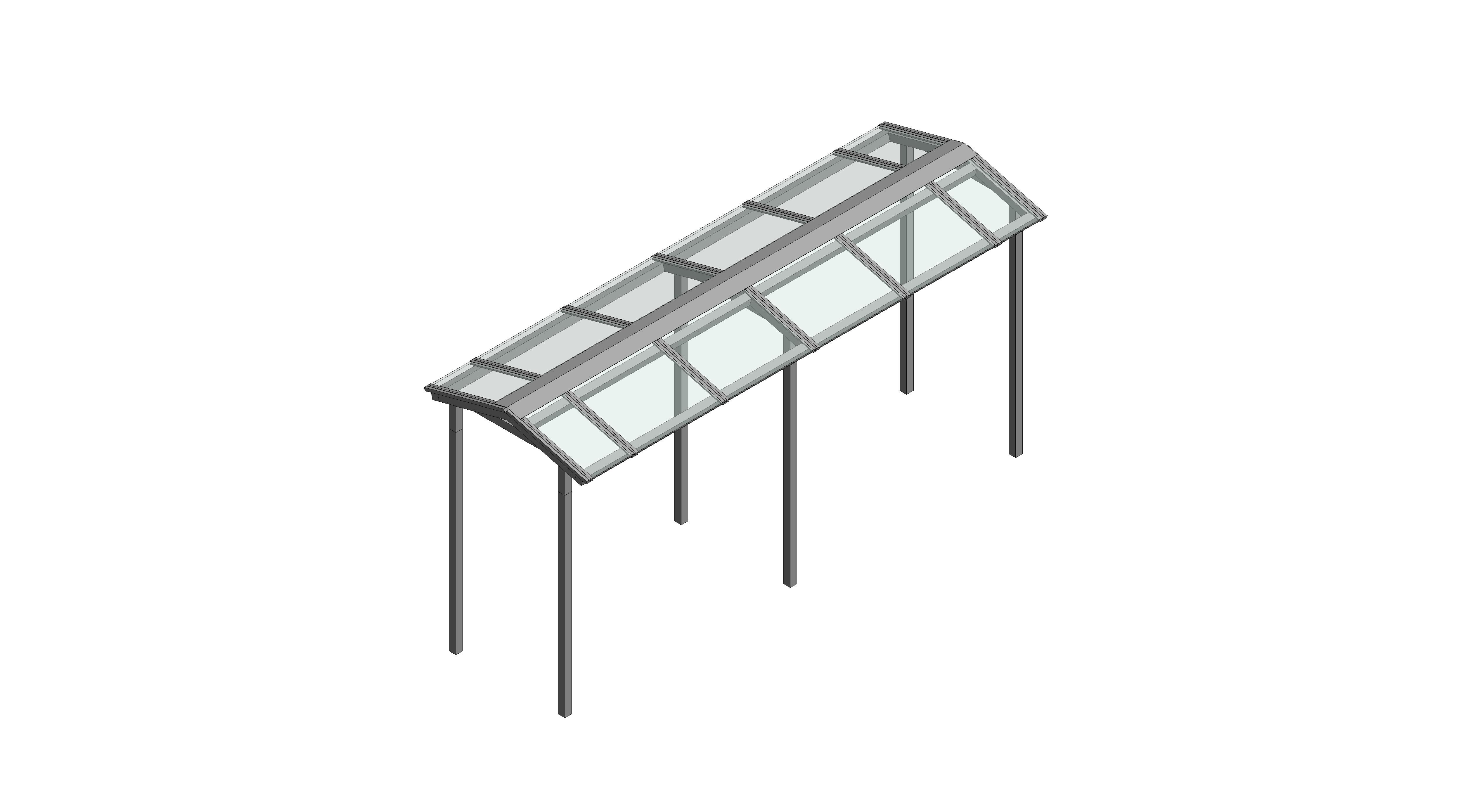

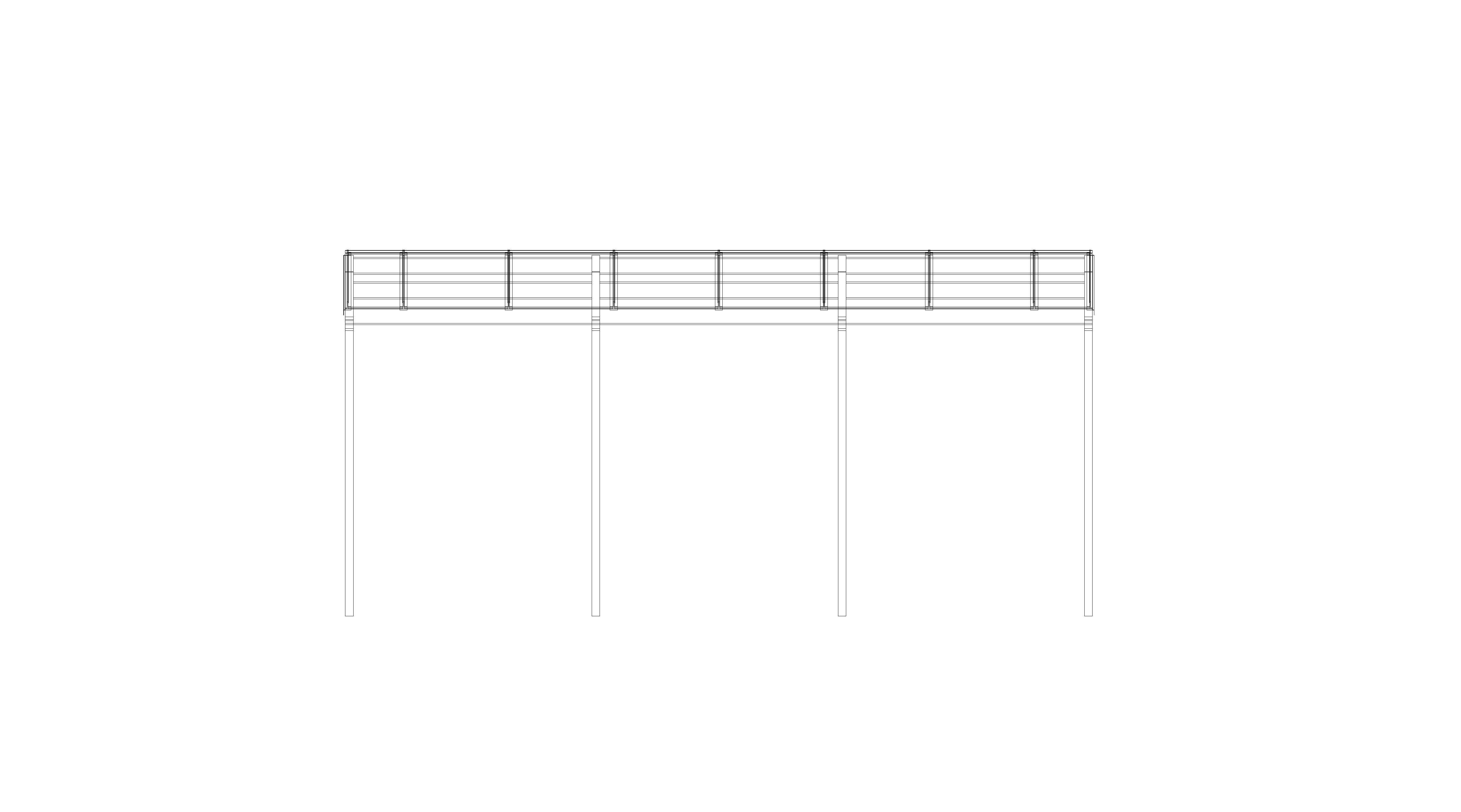

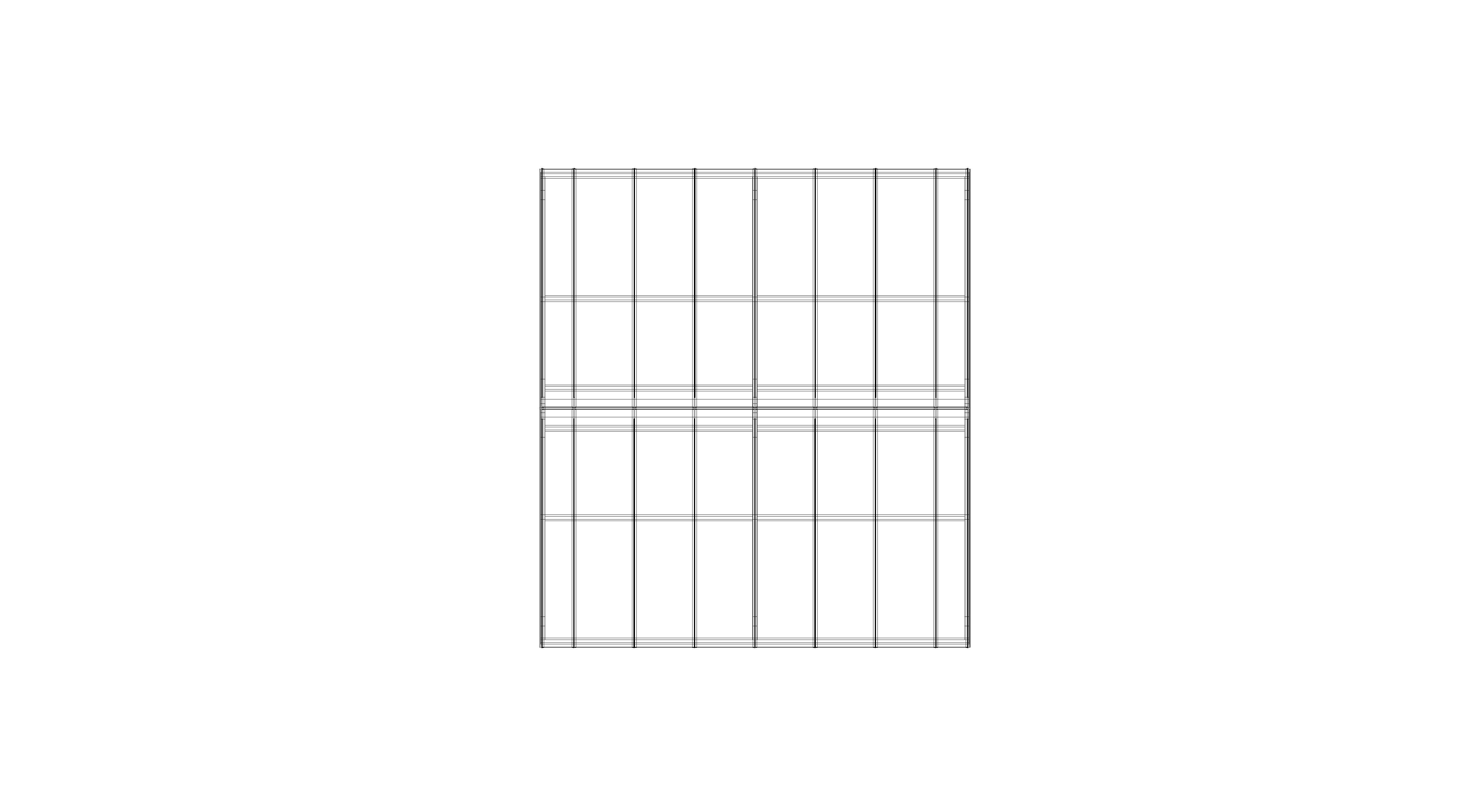

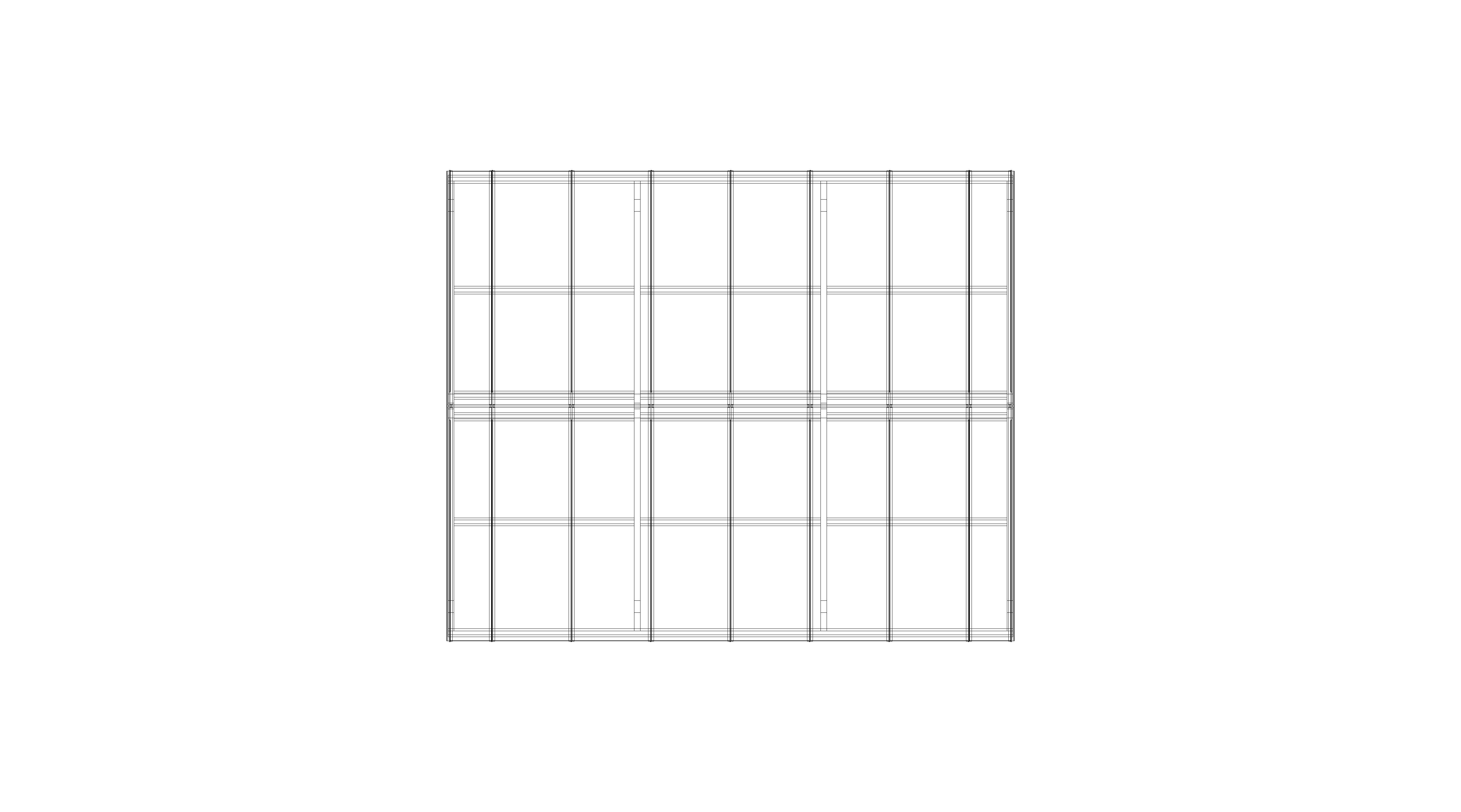

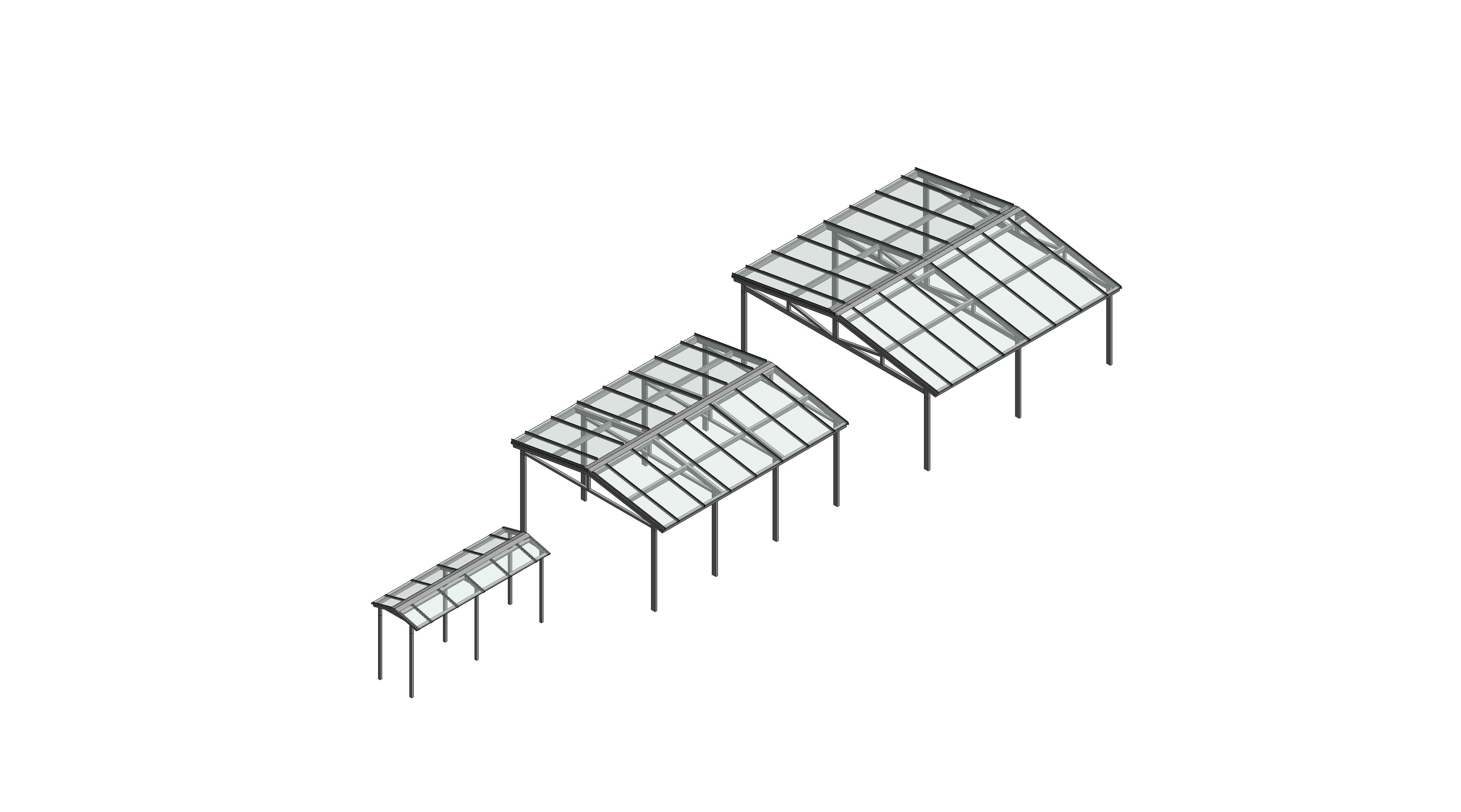

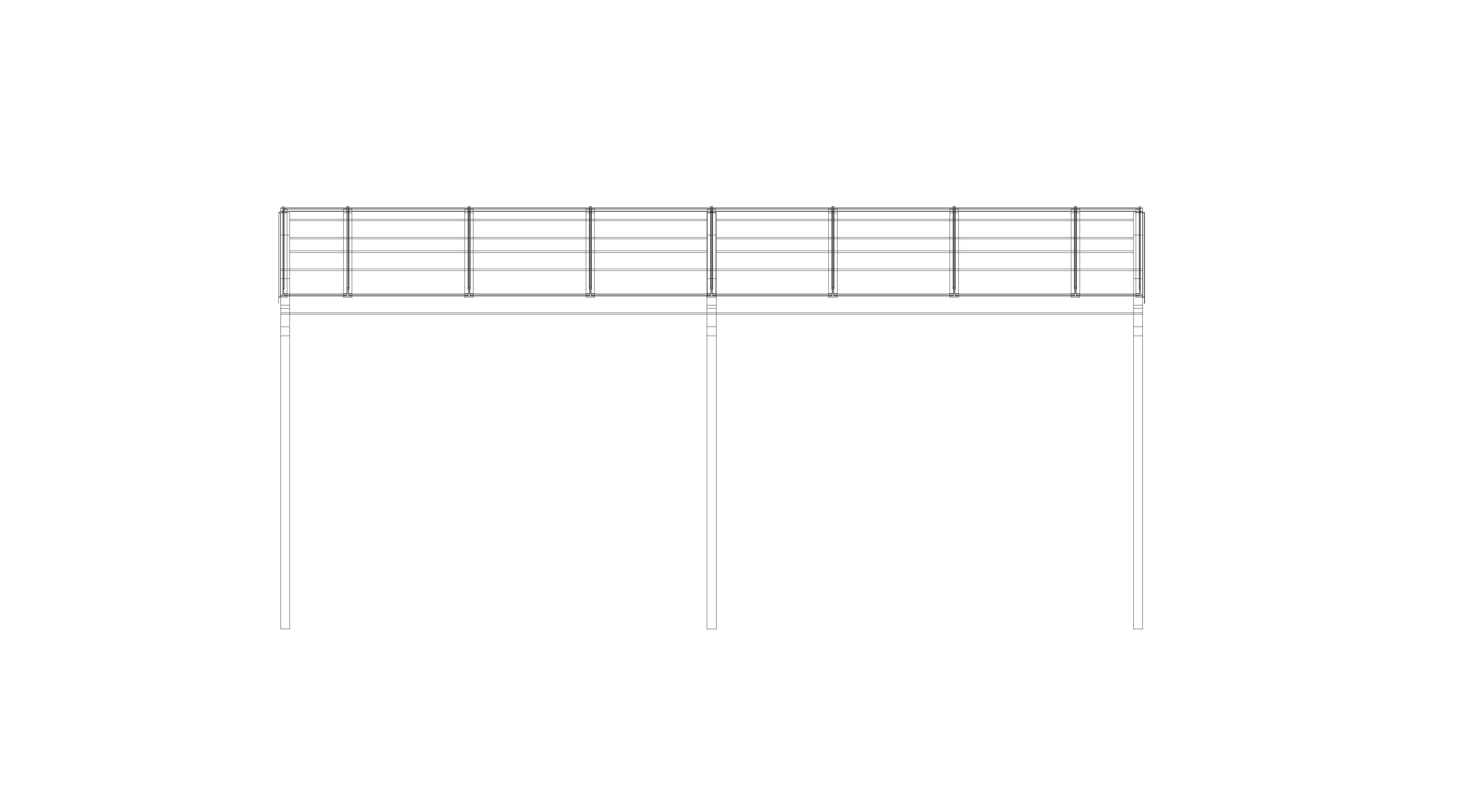

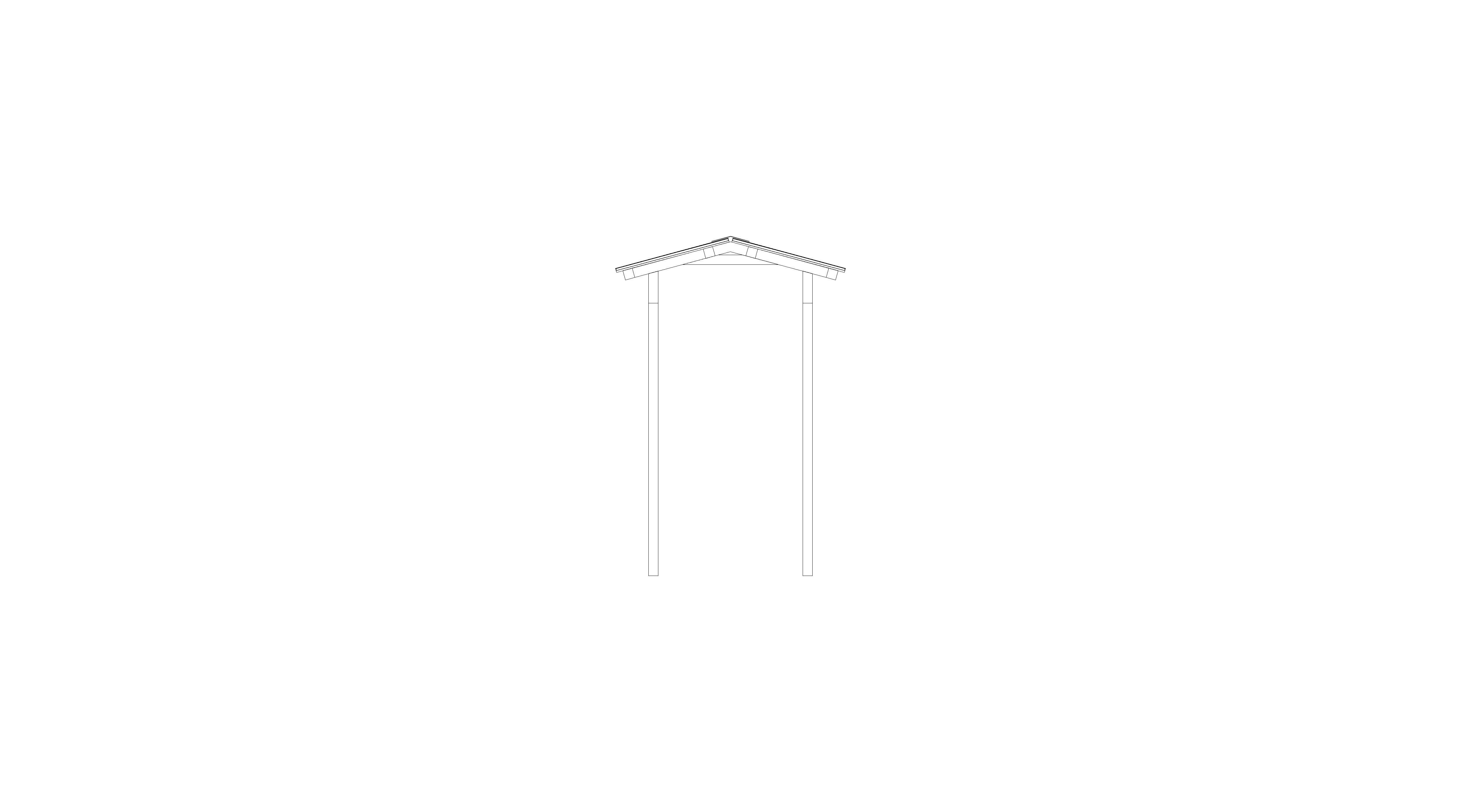

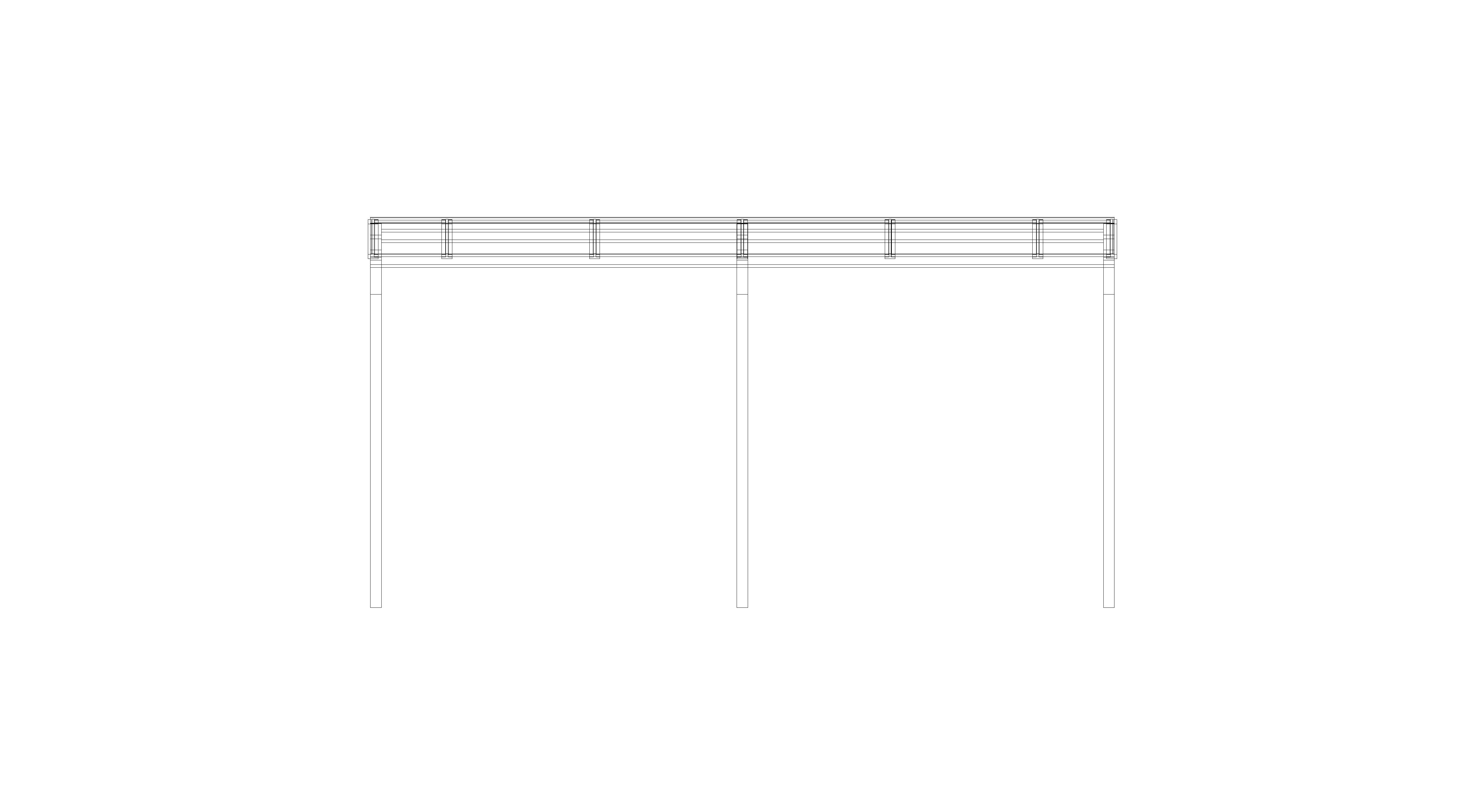

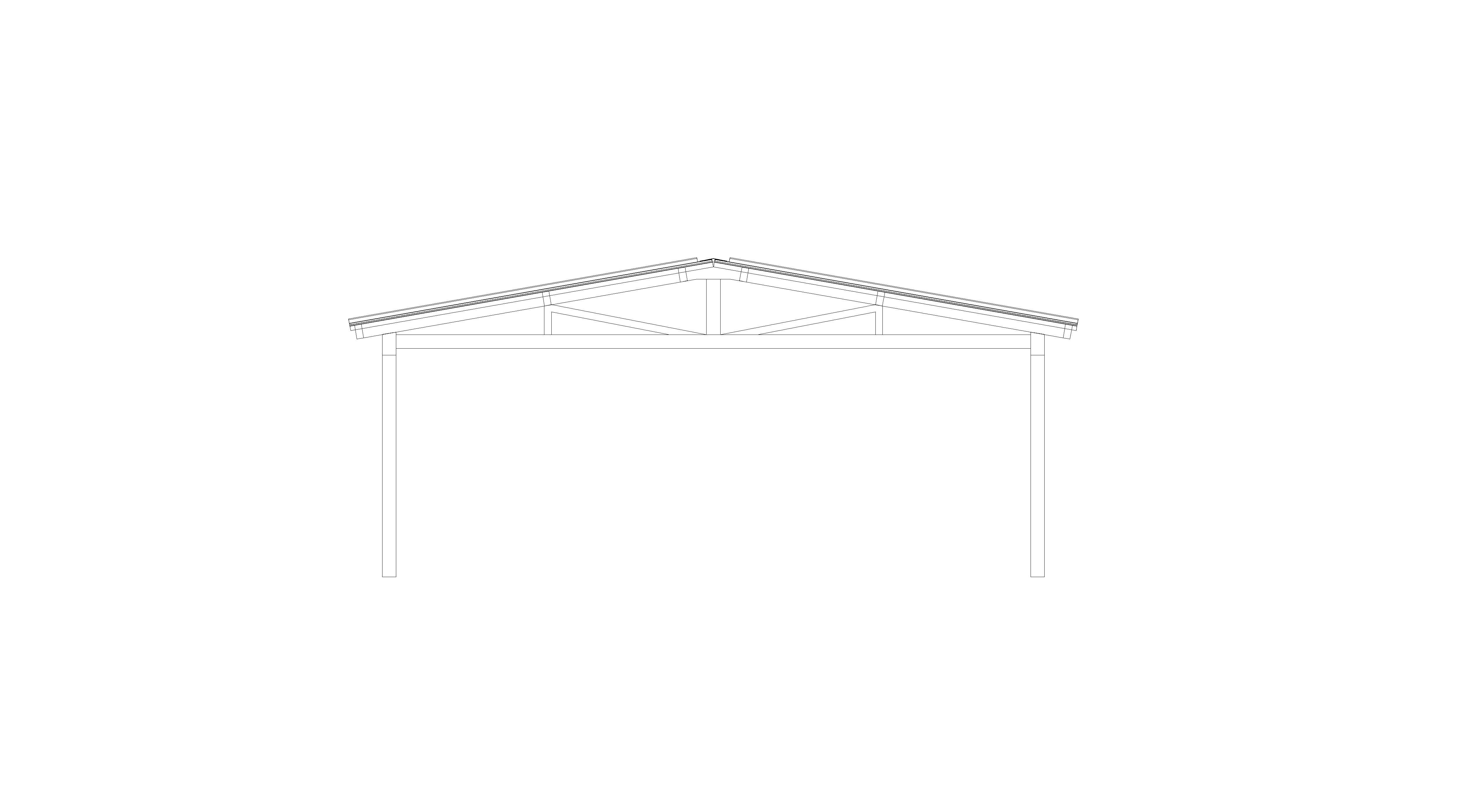

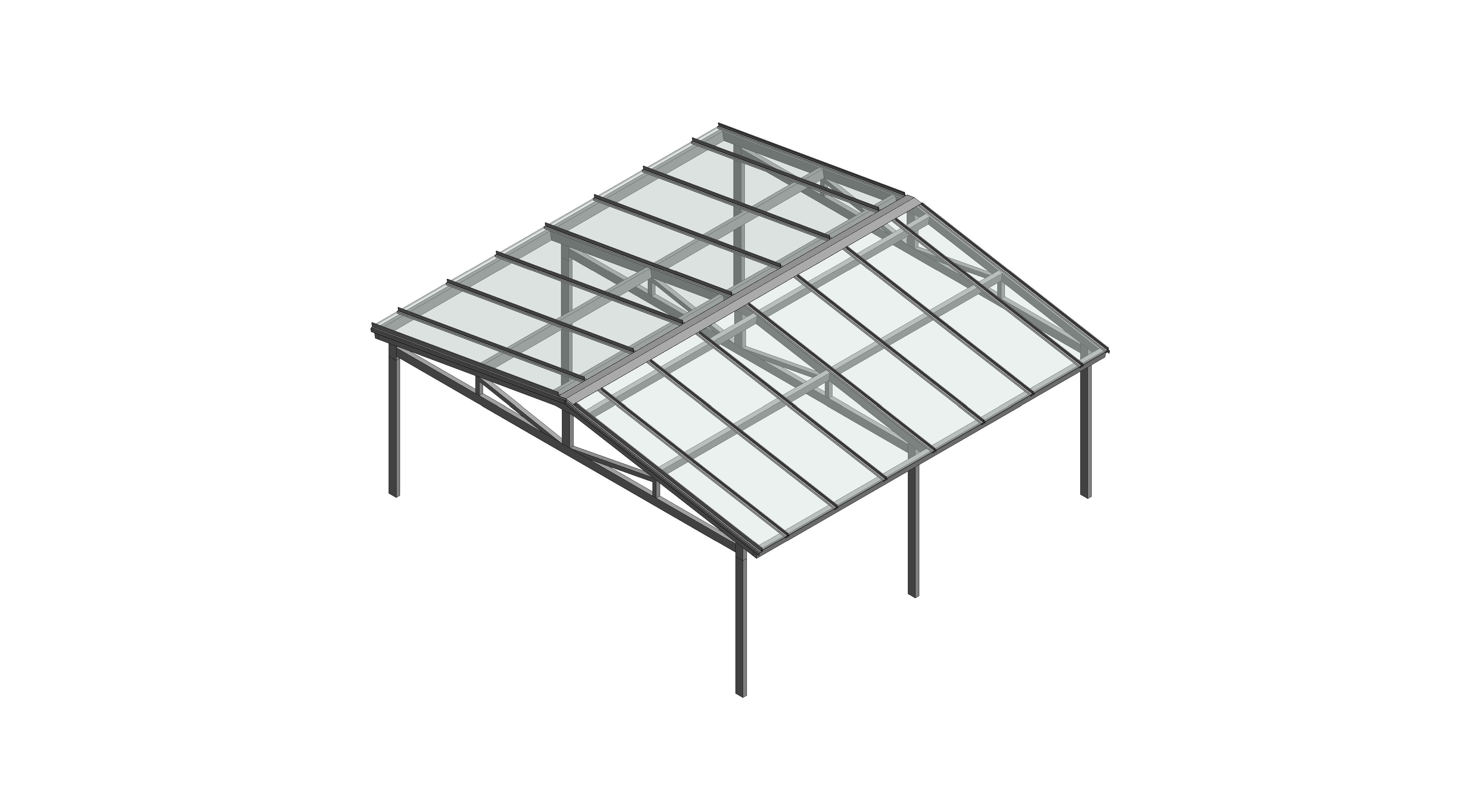

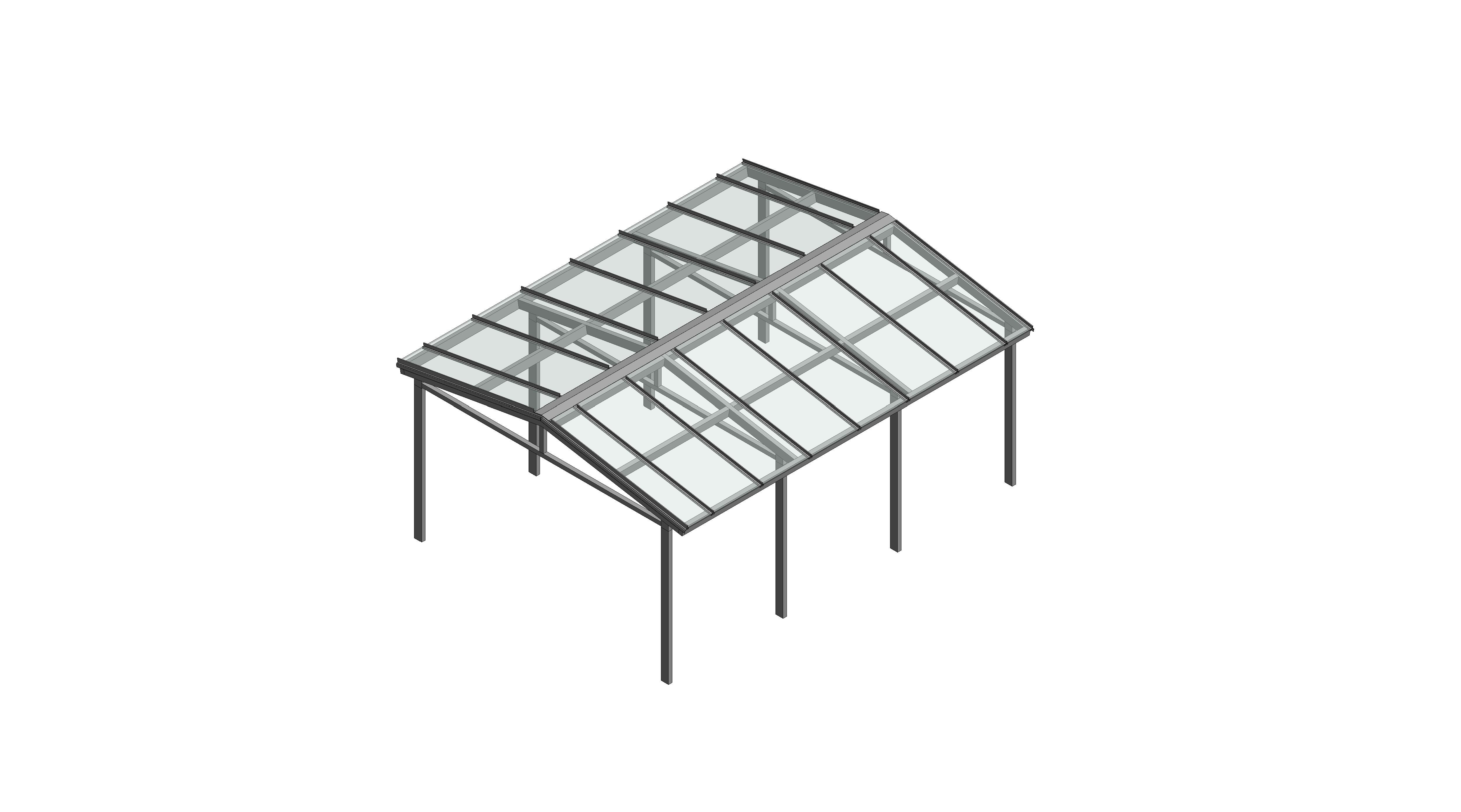

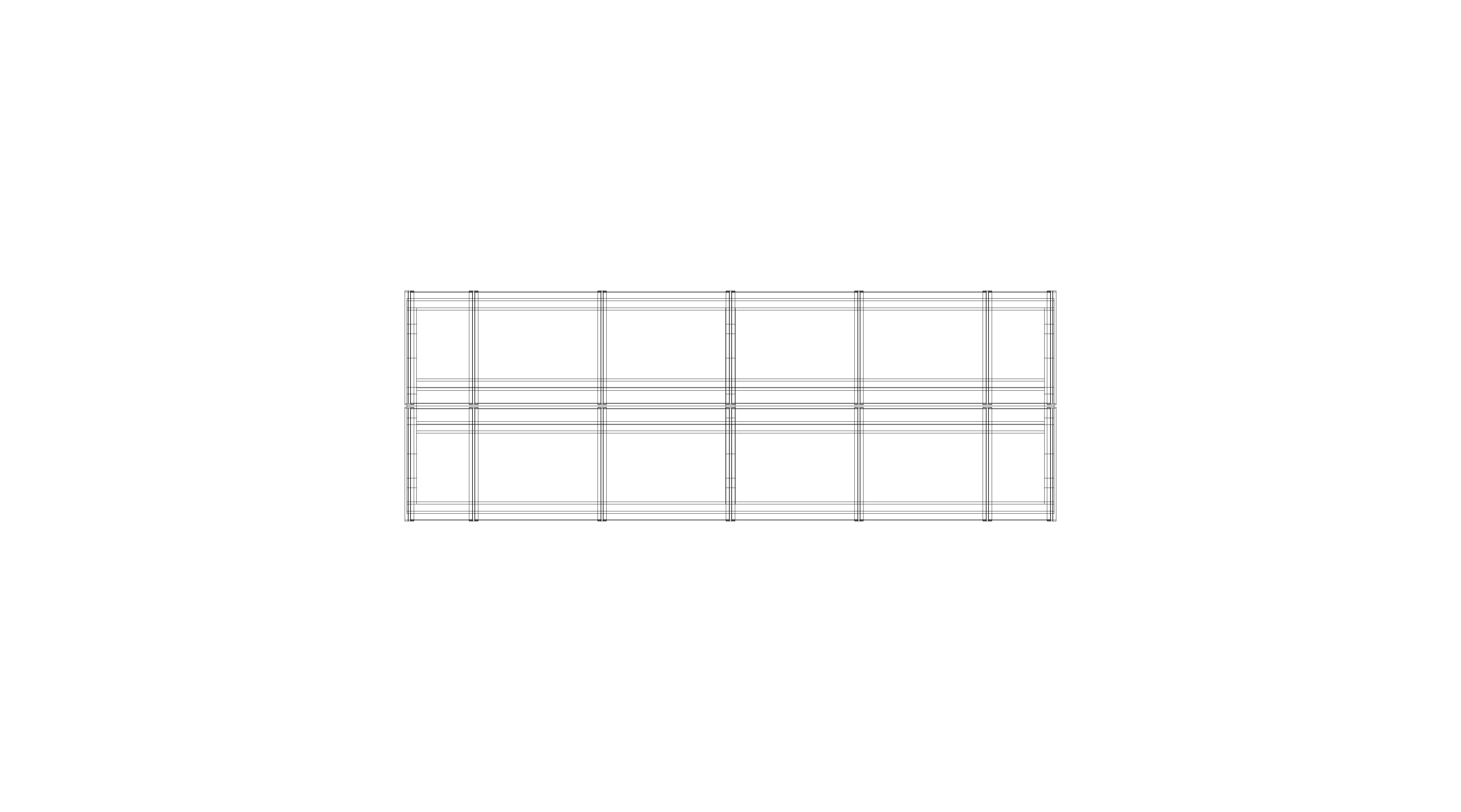

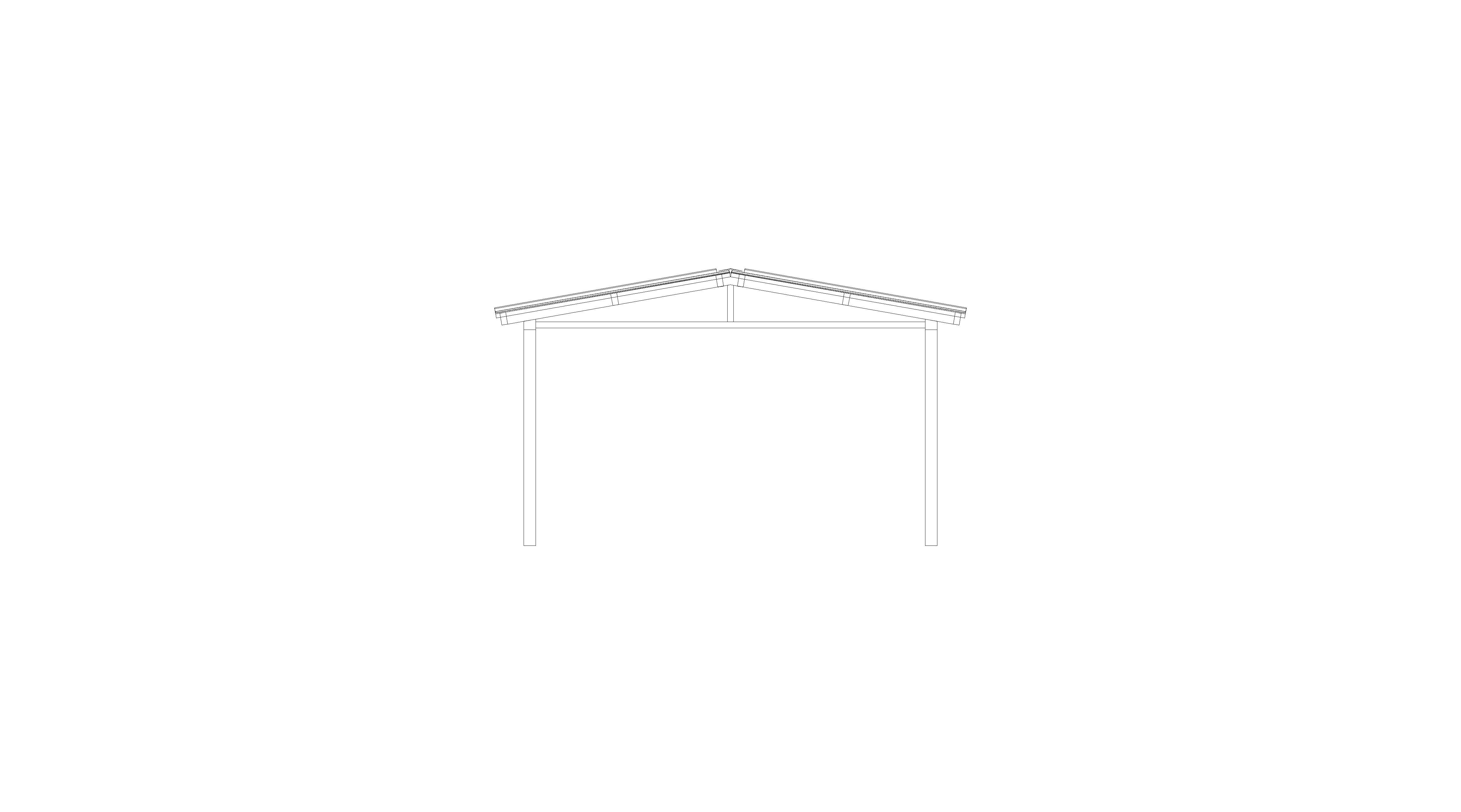

BIM Object NameTwinfix_OpenSddShltrs_FreeStandingDuo_PitchCanopy_DoubleTrussFrame
Canopy Overhang300 mm
Classification NameUniclass2015
Classification ValuePr_20_65_78_58
Code Performancen/a
Colorn/a
Column End Spacing19 mm
Column MaterialAluminum
Constituentsn/a
Created Byenquiries@twinfix.co.uk
Created On2021-10-12T09:00:00
DescriptionFreestanding duo pitch glazed canopy with double truss frame
Documentation Certificateswww.bimstore.co/products/free-standing-duo-pitch-canopy/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/free-standing-duo-pitch-canopy/document/installation-guide
Documentation Literaturewww.bimstore.co/products/free-standing-duo-pitch-canopy/document/product-literature
Documentation Maintenancewww.bimstore.co/products/free-standing-duo-pitch-canopy/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/free-standing-duo-pitch-canopy/document/technical-data-sheet
Duration UnitYears
Environmental Product Declarationn/a
Expected Life0
FeaturesLightweight and recyclable framework, glazing provides UV protection
FinishFrame: Polyester powder coated (to BS 6496)
FixingsStainless steel self-tapping screws & bolts
Flashing MaterialAluminum
Frame Colour OptionsRAL 1021, RAL 3020, RAL 5010, RAL 6002, RAL 6005, RAL 7035, RAL 7037, RAL 9011, RAL 9910, RAL special order
Frame Length Post Centre Options1000-4000 mm
Frame Size6000-7500 x 1000-4000 mm (w x l) post centres: 150 x 75 mm box frame; 8000-9000 x 1000-3000 mm (w x l) post centres: 152 mm diameter circular columns
Frame Thickness75 mm
Frame Width Options6000-9000 mm
Glazing Panel MaterialGlass
Glazing Panel Width990 mm
Glazing Tint OptionsBronze (not available with solid), Clear, Opal (not available with solid)
Glazing Type OptionsLaminated (6.8 mm thick glass), ML16NF (16 mm thick Makrolon triplewall polycarbonate), ML25NF (25 mm thick Makrolon fivewall polycarbonate), Solid (6 mm thick polycarbonate)
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
Integral Servicesn/a
KeynoteQ50
ManufacturerTwinfix
Manufacturer NameTwinfix
Materialn/a
Maximum Glazing Projection750 mm
ModelFree Standing Duo-Pitch Canopy - Double Truss Frame
Model NumberDouble Truss Canopy
Model ReferenceFree Standing Barrel Vault Canopy - Double Truss Frame
NBS DescriptionOpen sided shelters
NBS Noten/a
NBS Object NameTwinfix - Open sided shelters
NBS Office Master Tagn/a
NBS Reference45-05-75/315
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Openings Doorsn/a
Openings Roof Ventsn/a
Openings Windowsn/a
Panel Spacing Maximum990 mm
Panel Thickness16 mm
Production Year2021
Rafter Depth150 mm
Rail MaterialAluminum
Rainwater DrainageAluminium guttering and downpipes, PVC-U guttering and downpipes
Referenced Standardn/a
Replacement Costn/a
Roof CoveringPolycarbonate/Glass glazing
Shapen/a
Sizen/a
Spare Partsn/a
Truss MaterialAluminum
Type CommentsFree Standing Duo-Pitch Canopy - Double Truss Frame
Type NameDouble Truss Canopy
URLwww.twinfix.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@twinfix.co.uk
Warranty Guarantor Partsenquiries@twinfix.co.uk
