Free Standing Mono Pitch Canopy

by Twinfix

Download Add to collection

Description

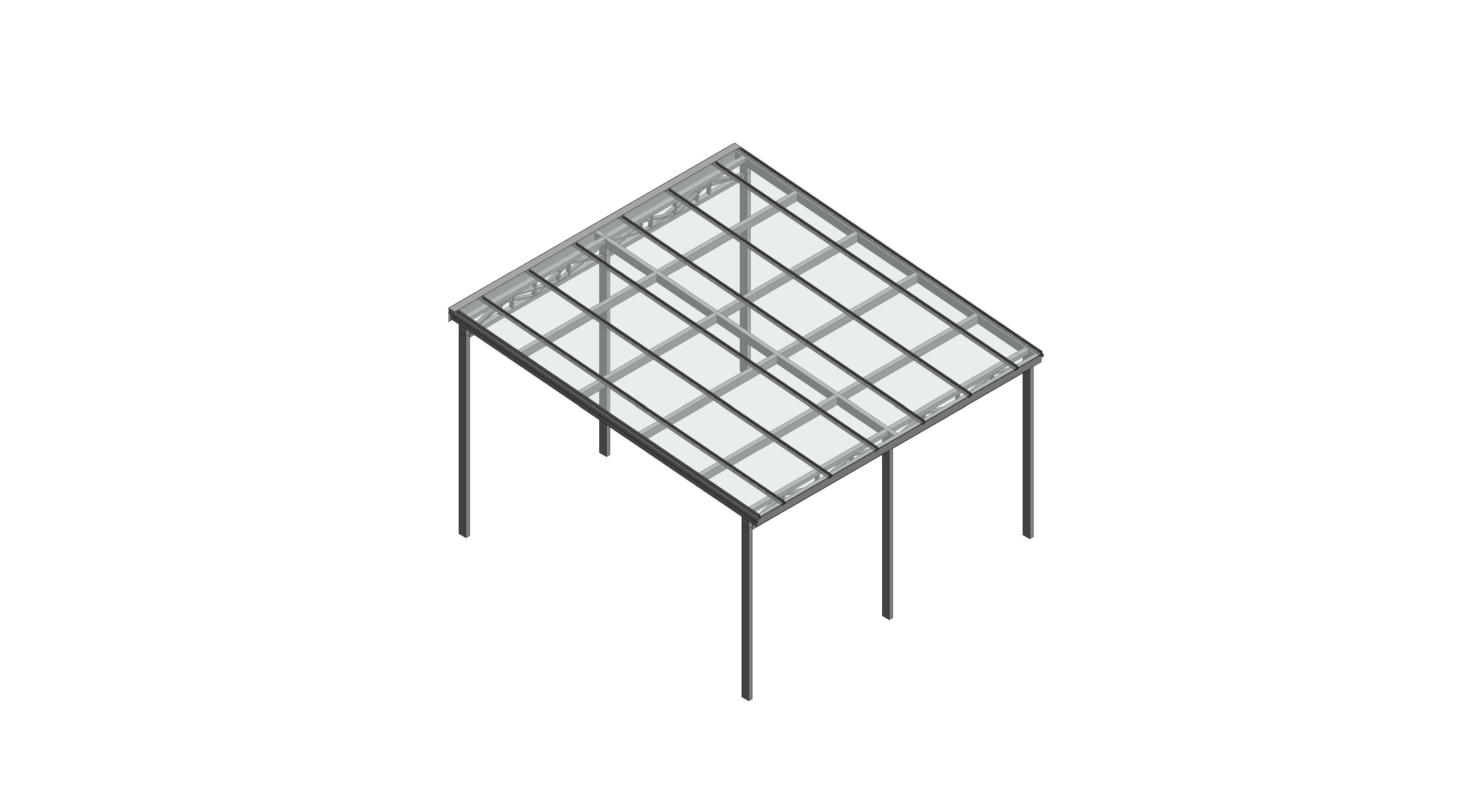

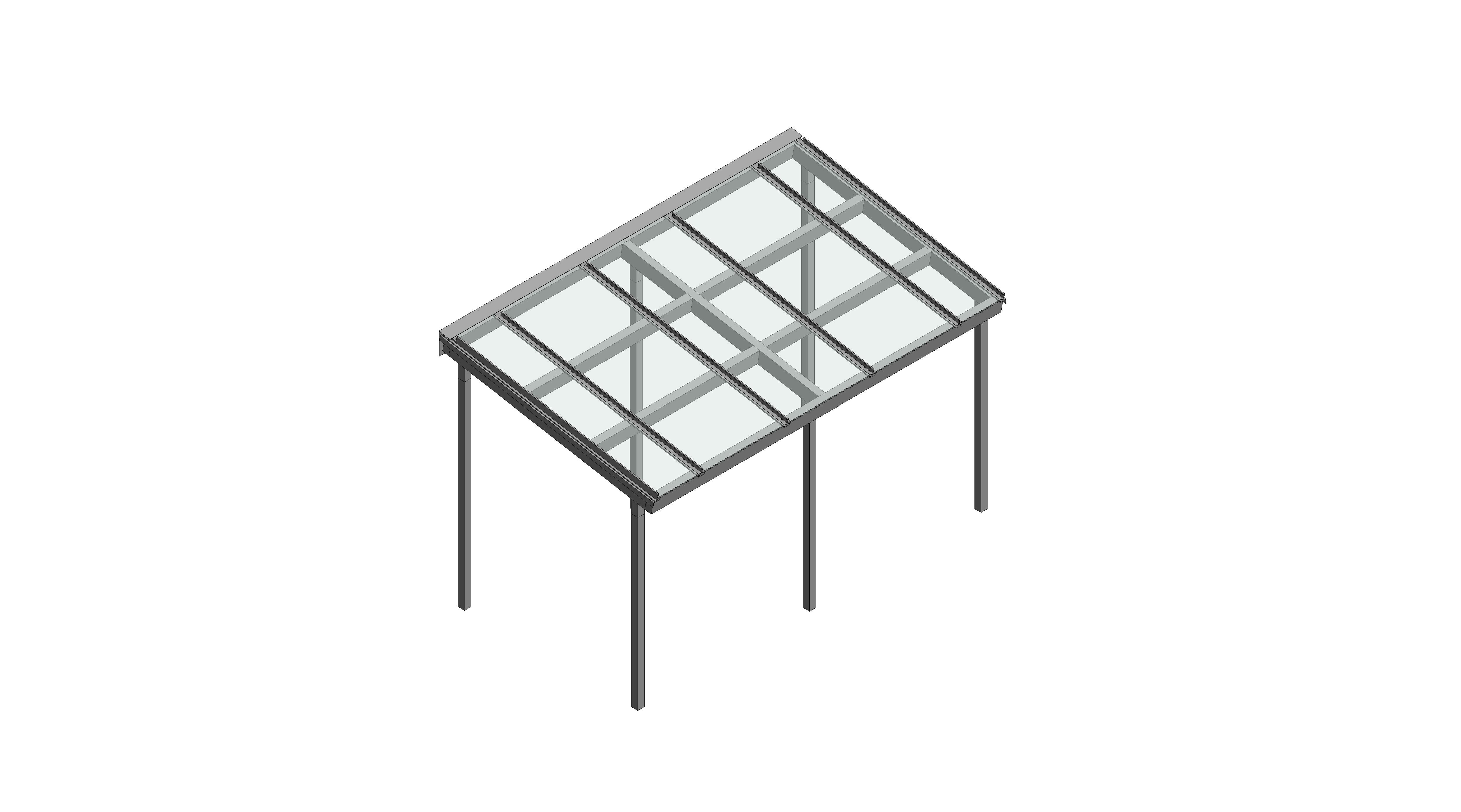

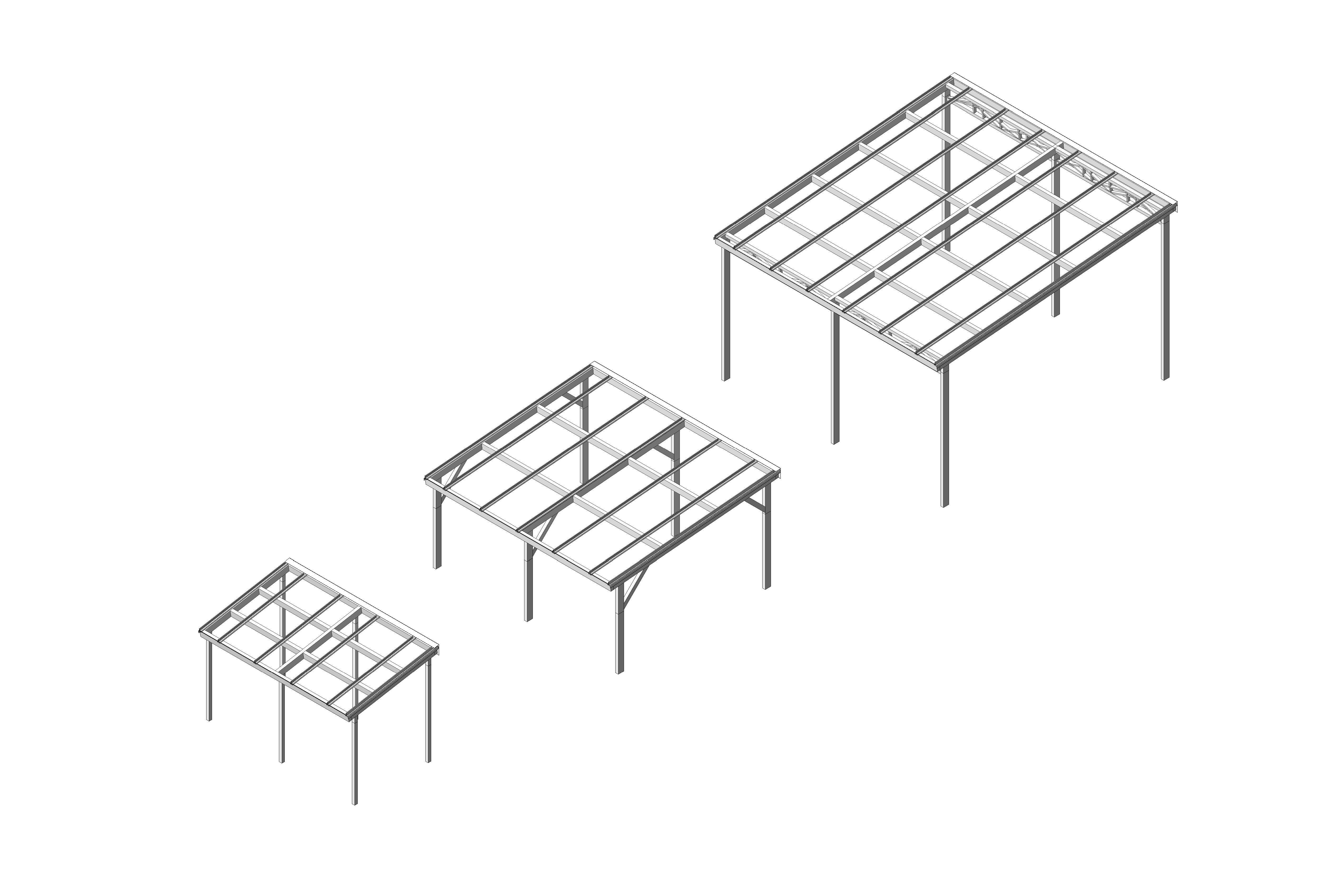

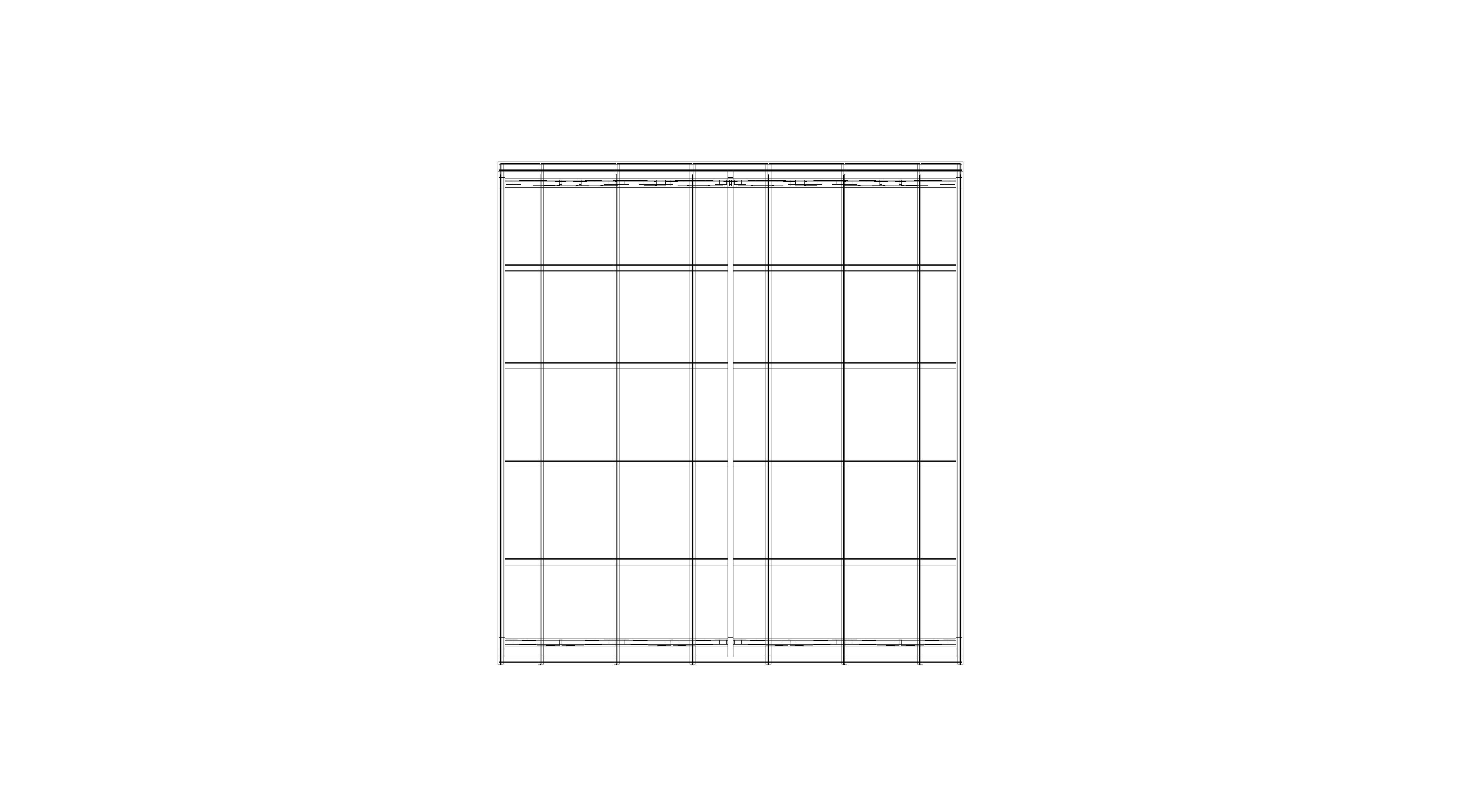

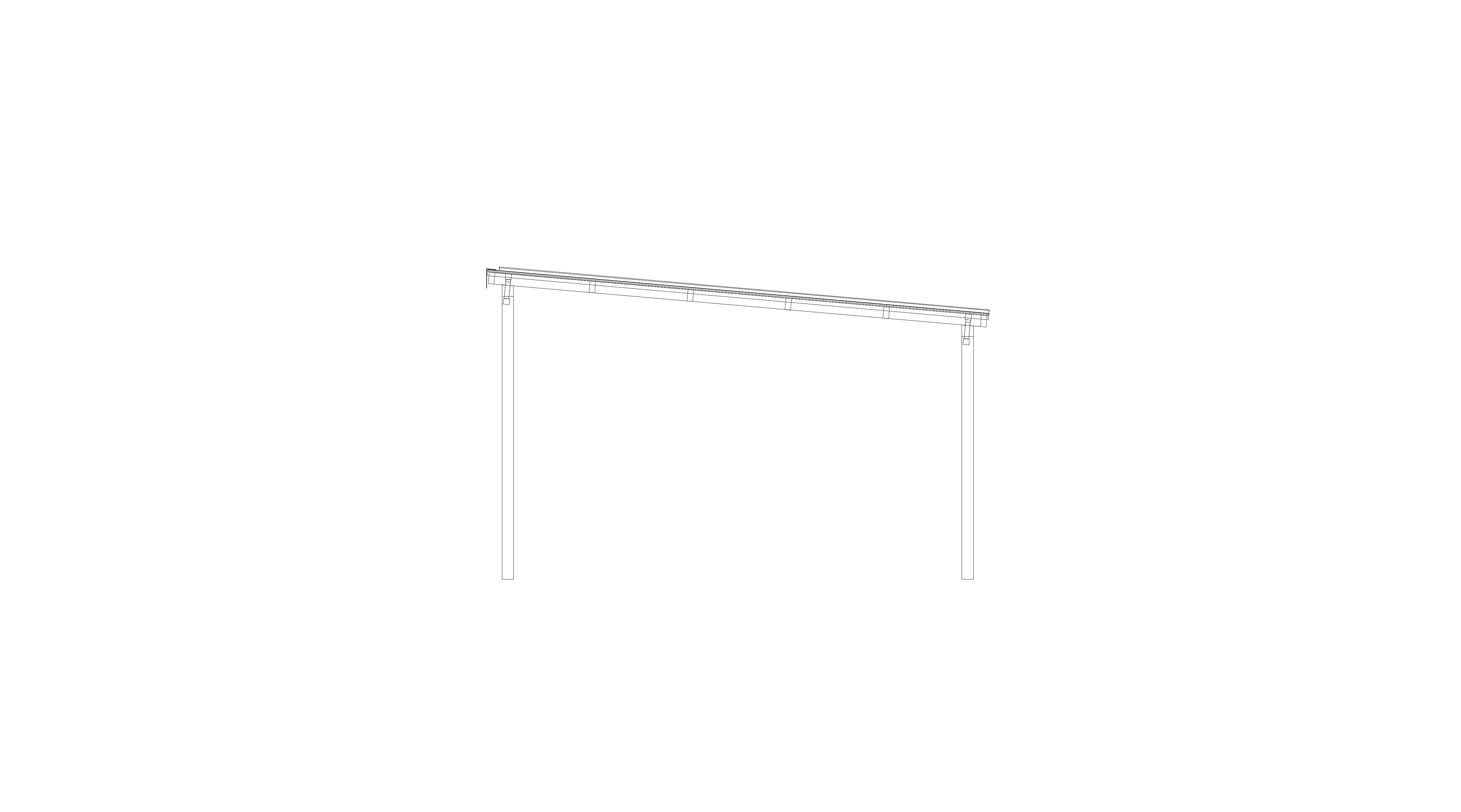

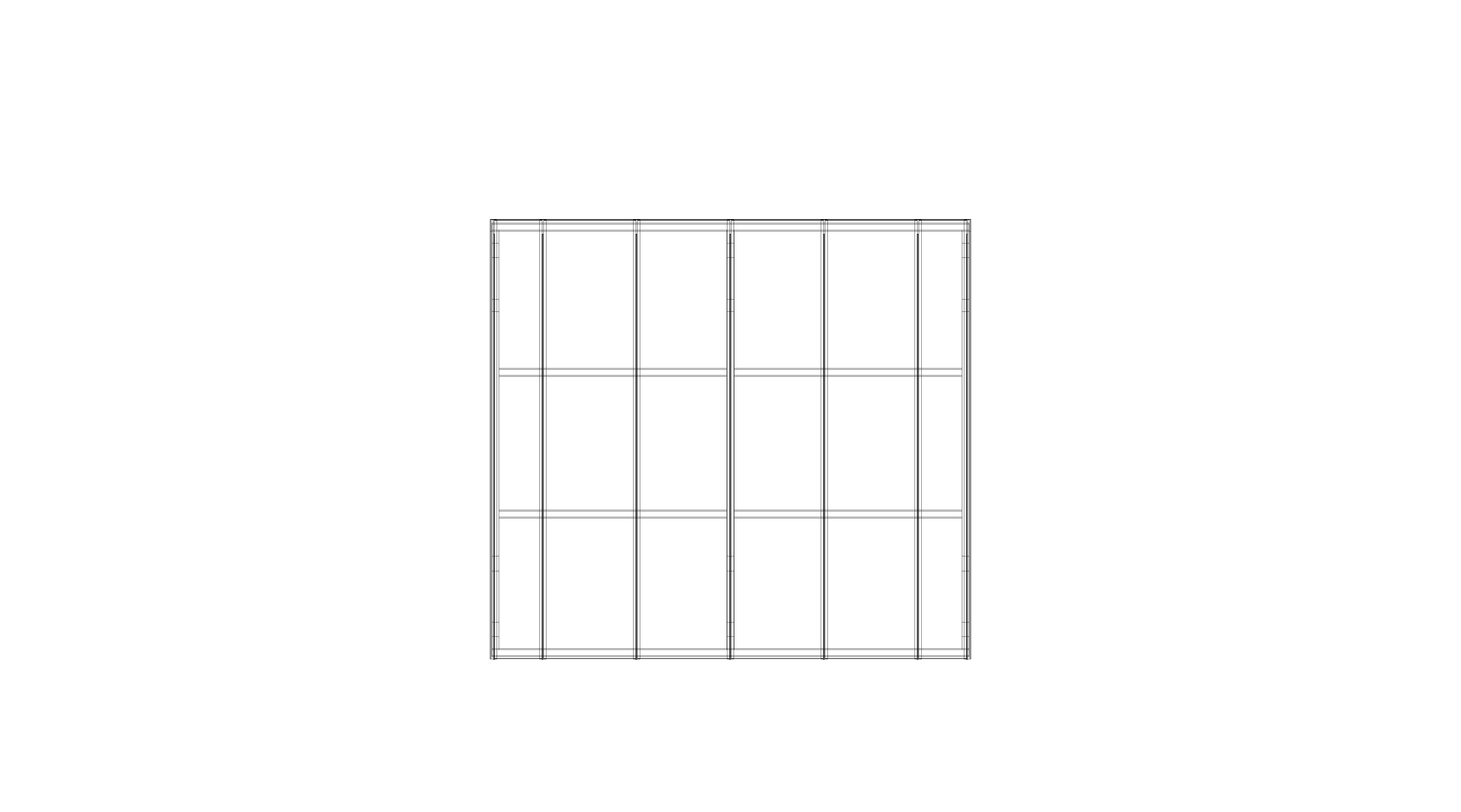

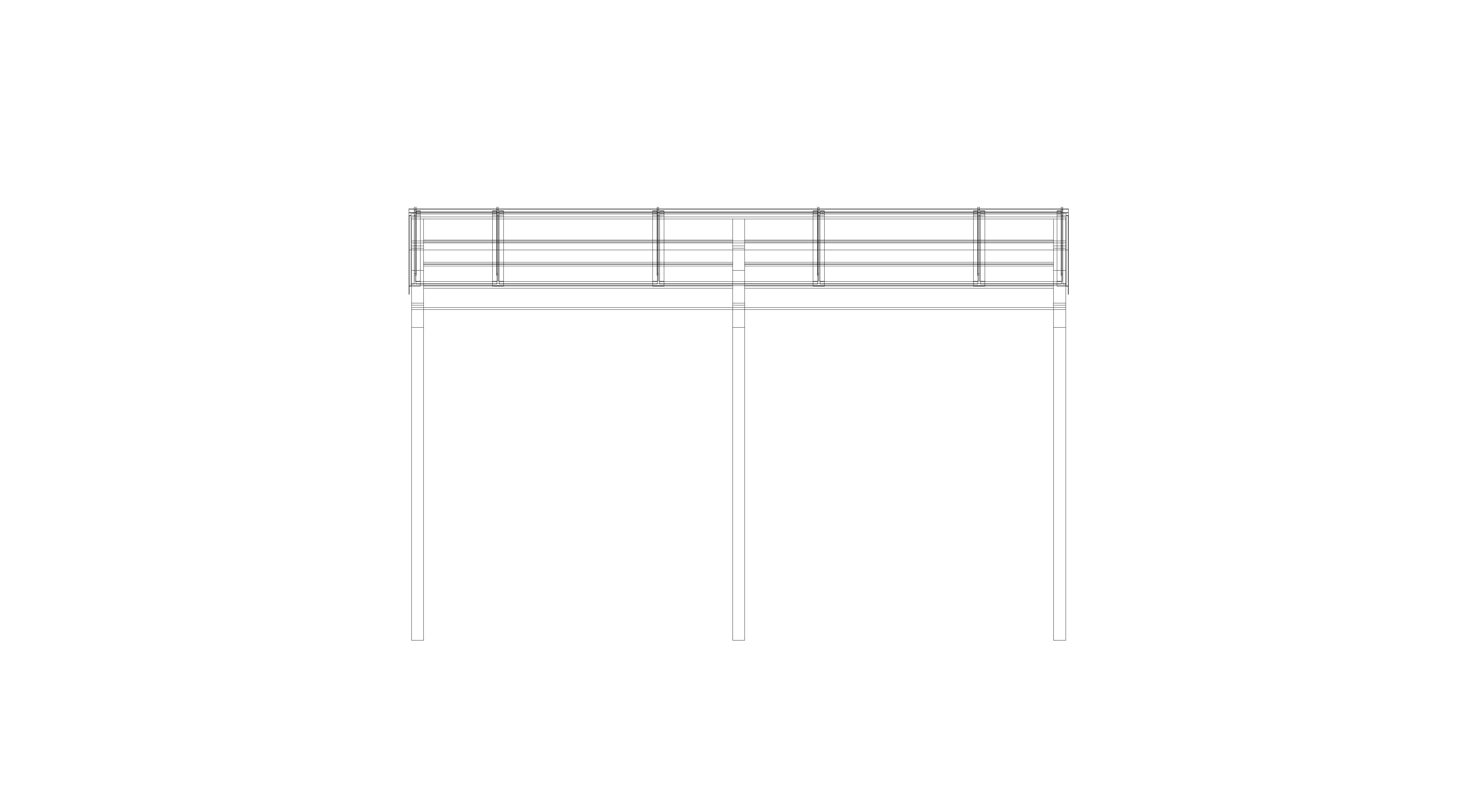

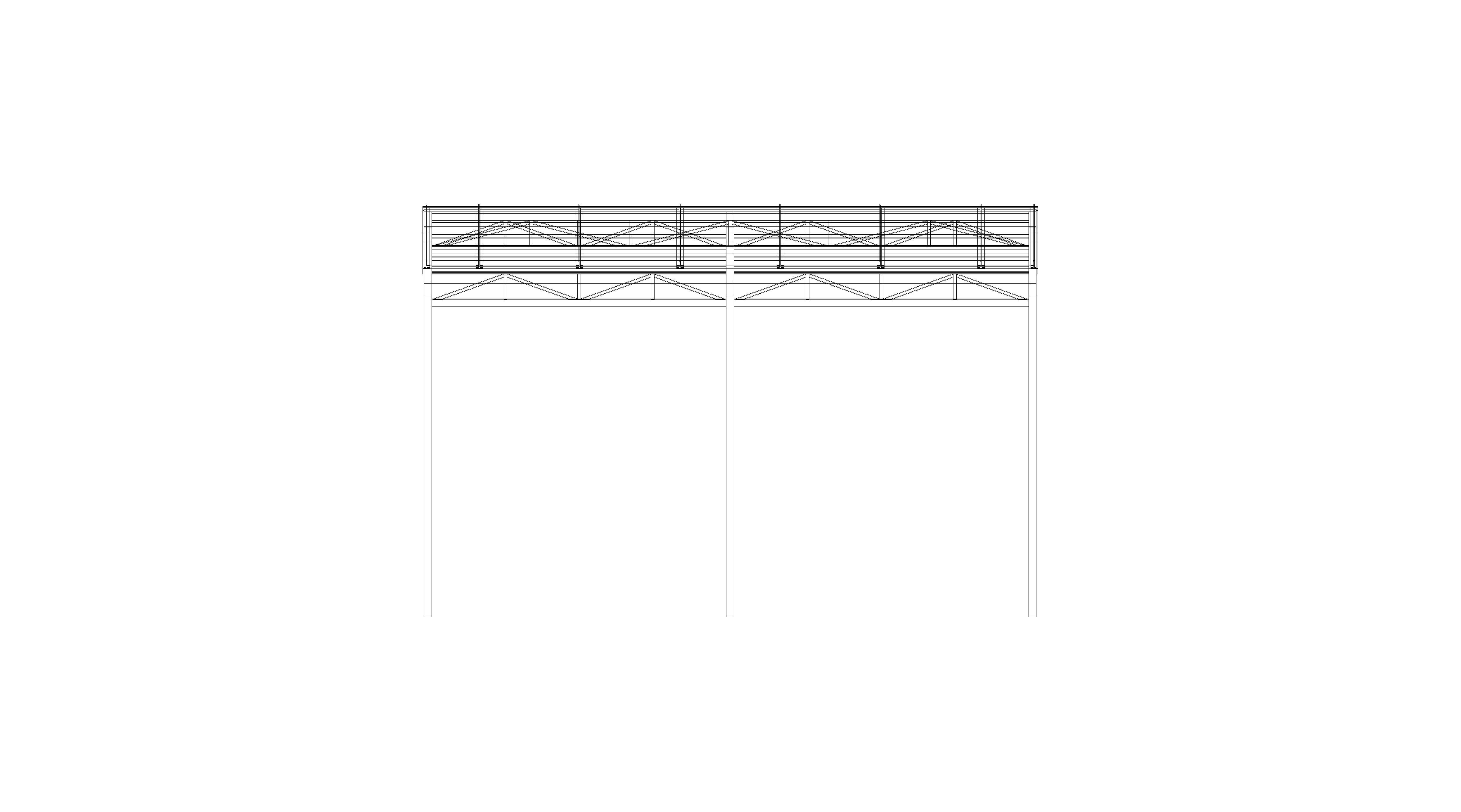

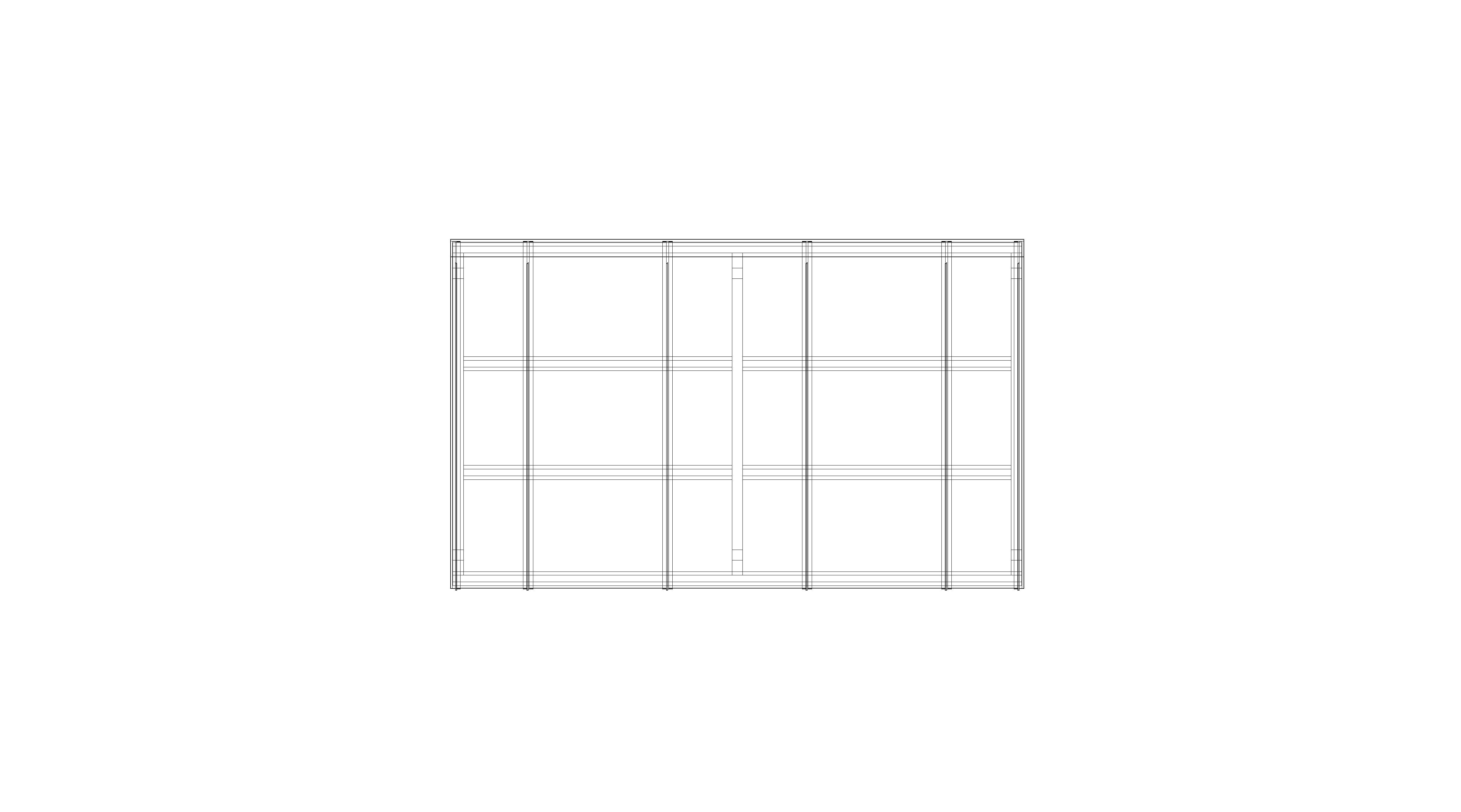

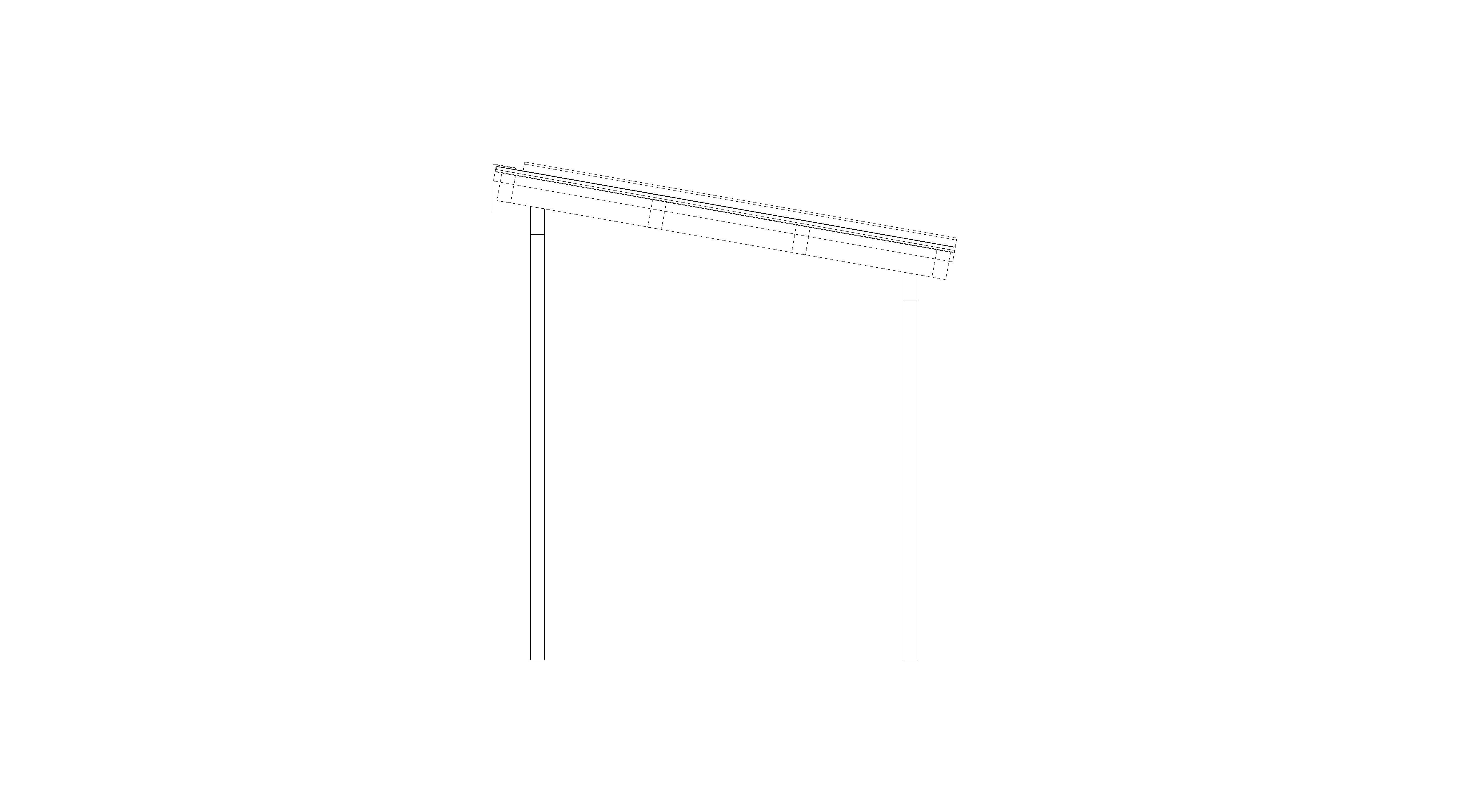

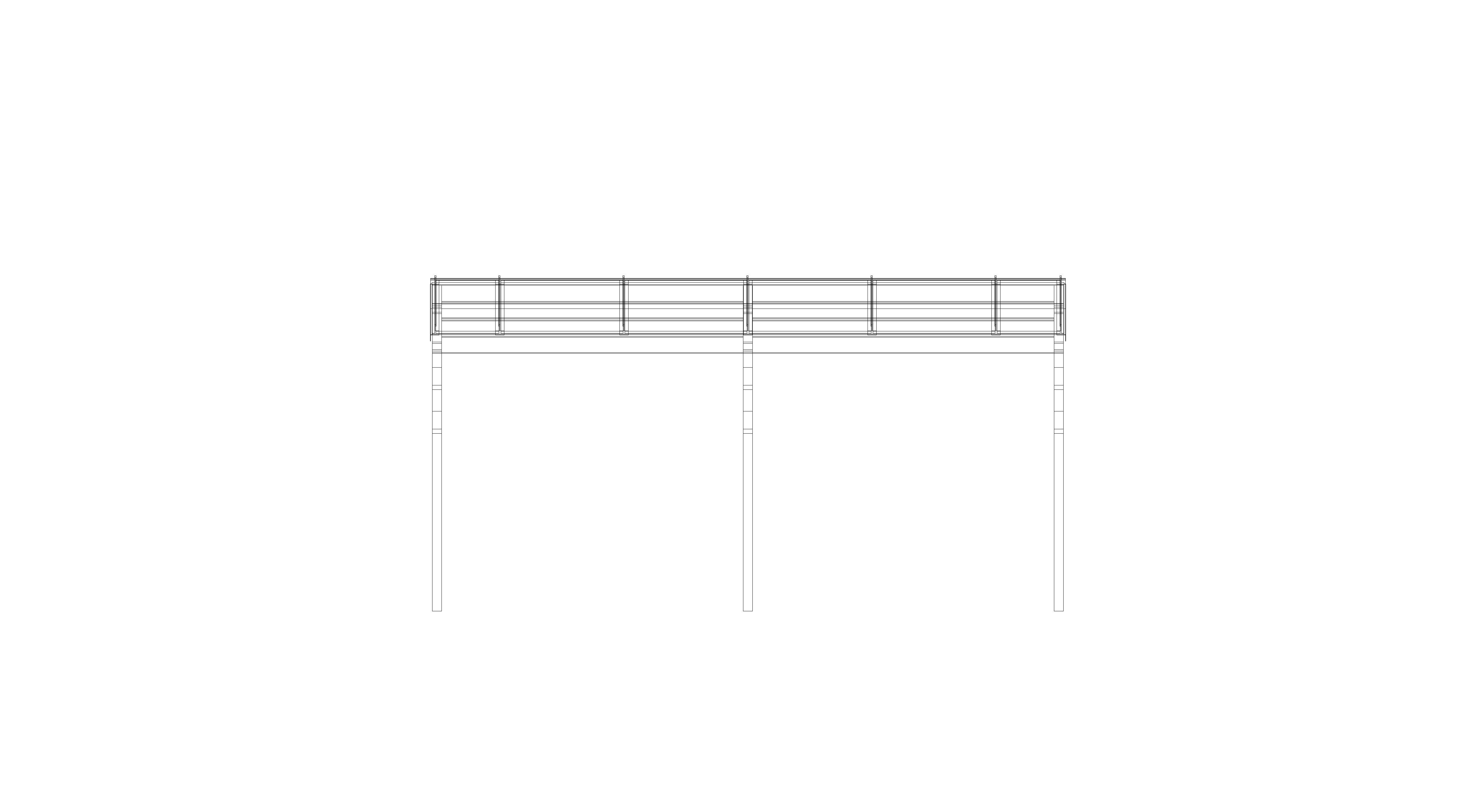

A Free Standing Mono-Pitch Canopy with an aluminium box section framework and MultiLink non-fragile roof panels glazed with multiwall or solid polycarbonate.

Unapproved

This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

Object Data

2 Revision

Last Updated

14/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Technical Data Sheet

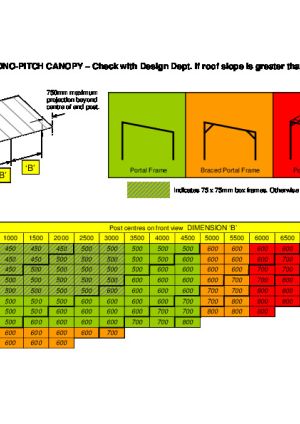

Product Data Sheet

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/free-standing-mono-pitch-canopy/document/object-user-guide
Accessibility Performancen/a
AccessoriesFlashings, Gable Glazing, Vertical Glazing, Roller Shutters, Vents, Signs, Doors & Windows, Foundation Pots, Post Protectors, Site Specific Calculations.
Assembly CodeB3010
Asset TypeFixed
Beam MaterialAluminum
BIM Object NameTwinfix_OpenSddShltrs_FreeStandingMono_PitchCanopy_BracedPortalFrame
Canopy Overhang250 mm
Classification NameUniclass2015
Classification ValuePr_20_65_78_58
Code Performancen/a
Colorn/a
Column End Spacing19 mm
Column MaterialAluminum
Column Width150 mm
Constituentsn/a
Created Byenquiries@twinfix.co.uk
Created On2021-10-12T09:00:00

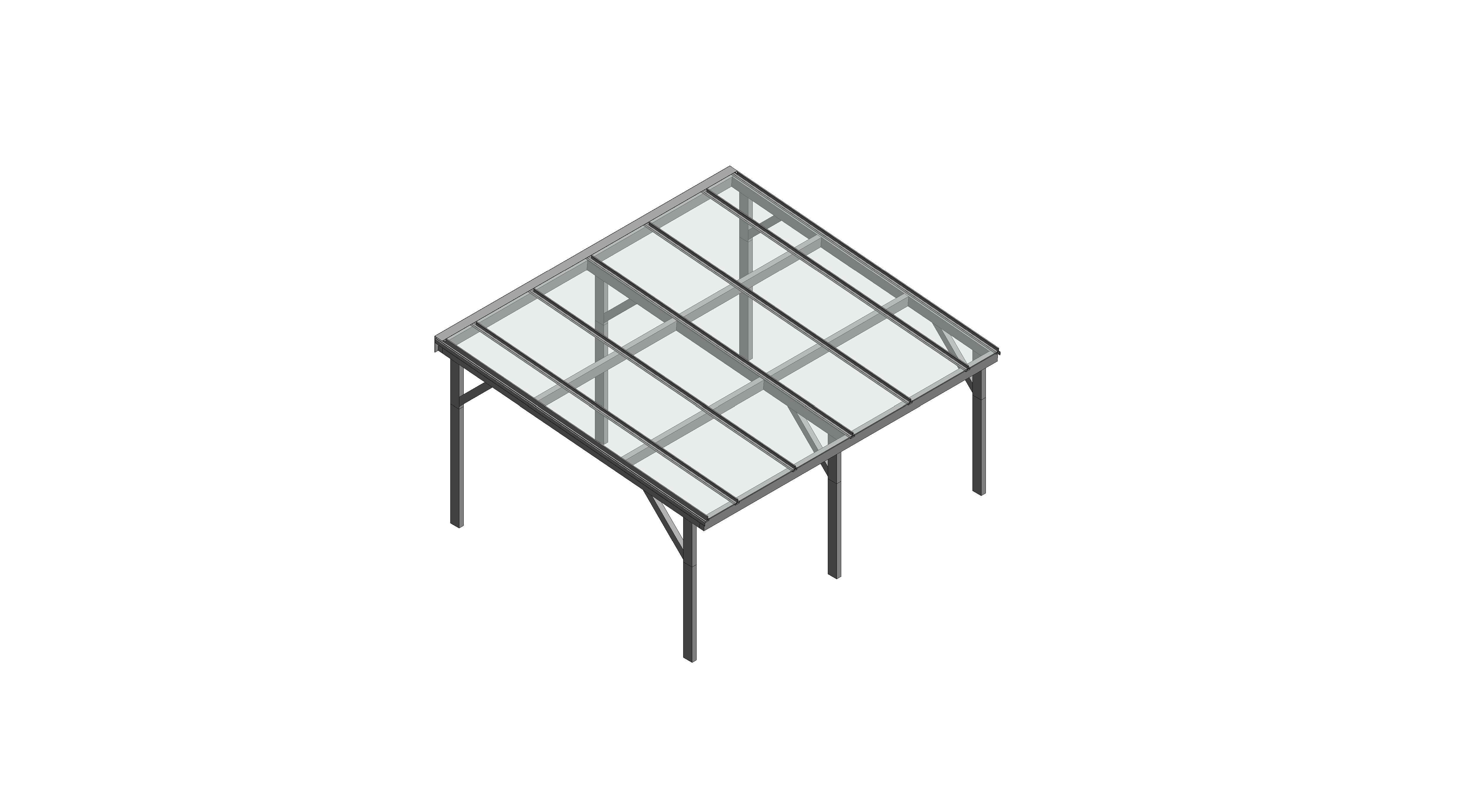

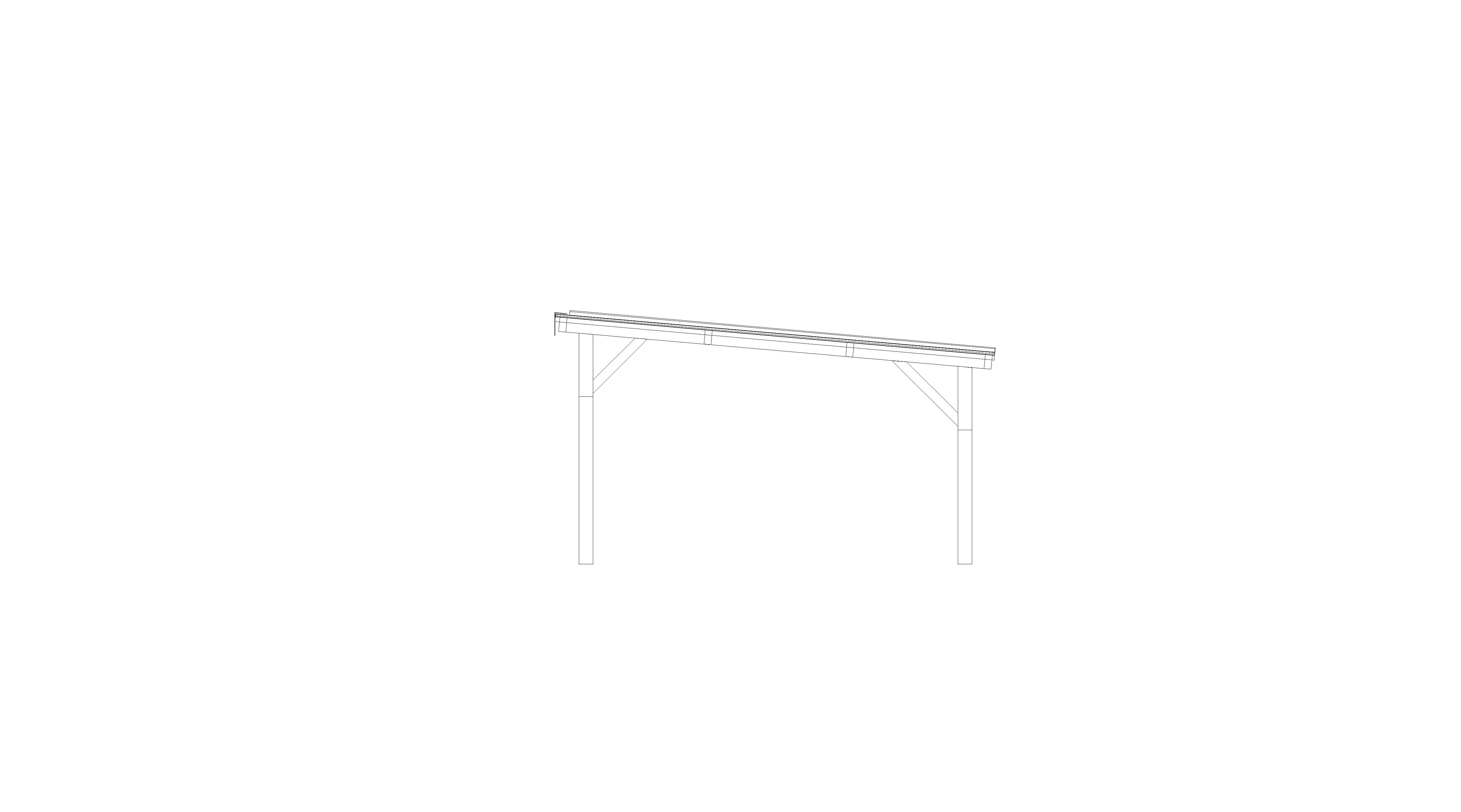

DescriptionFreestanding mono pitch glazed canopy with braced portal frame
Documentation Certificateswww.bimstore.co/products/free-standing-mono-pitch-canopy/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/free-standing-mono-pitch-canopy/document/installation-guide
Documentation Literaturewww.bimstore.co/products/free-standing-mono-pitch-canopy/document/product-literature
Documentation Maintenancewww.bimstore.co/products/free-standing-mono-pitch-canopy/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/free-standing-mono-pitch-canopy/document/technical-data-sheet
Duration UnitYears
Environmental Product Declarationn/a
Expected Life0
FeaturesLightweight and recyclable framework, glazing provides UV protection
FinishFrame: Polyester powder coated (to BS 6496)
FixingsStainless steel self-tapping screws & bolts
Flashing MaterialAluminum
Frame Colour OptionsRAL 1021, RAL 3020, RAL 5010, RAL 6002, RAL 6005, RAL 7035, RAL 7037, RAL 9011, RAL 9910, RAL special order
Frame Length Post Centre Options1000-5500 mm
Frame Size150 x 75 mm box frame
Frame Thickness75 mm
Frame Width Options1000-5500 mm
Glazing Panel MaterialGlass
Glazing Panel Width990 mm
Glazing Tint OptionsBronze (not available with solid), Clear, Opal (not available with solid)
Glazing Type OptionsLaminated (6.8 mm thick glass), ML16NF (16 mm thick Makrolon triplewall polycarbonate), ML25NF (25 mm thick Makrolon fivewall polycarbonate), Solid (6 mm thick polycarbonate)
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
Integral Servicesn/a
KeynoteQ50
ManufacturerTwinfix
Manufacturer NameTwinfix
Materialn/a
Maximum Glazing Projection750 mm
ModelFree Standing Mono-Pitch Canopy - Braced Portal Frame
Model NumberBraced Portal Canopy
Model ReferenceFabricated Lean-To Canopy - Braced Portal Frame
NBS DescriptionOpen sided shelters
NBS Noten/a
NBS Object NameTwinfix - Open sided shelters
NBS Office Master Tagn/a
NBS Reference45-05-75/315
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Openings Doorsn/a
Openings Roof Ventsn/a
Openings Windowsn/a
Panel Spacing Maximum990 mm
Panel Thickness16 mm
Production Year2021
Rafter Depth150 mm
Rafter MaterialAluminum
Rail MaterialAluminum
Rainwater DrainageAluminium guttering and downpipes, PVC-U guttering and downpipes
Referenced Standardn/a
Replacement Costn/a
Roof CoveringPolycarbonate/ Glass glazing
Shapen/a
Sizen/a
Spare Partsn/a
Type CommentsFree Standing Mono-Pitch Canopy - Braced Portal Frame
Type NameBraced Portal Canopy
URLwww.twinfix.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@twinfix.co.uk
Warranty Guarantor Partsenquiries@twinfix.co.uk
