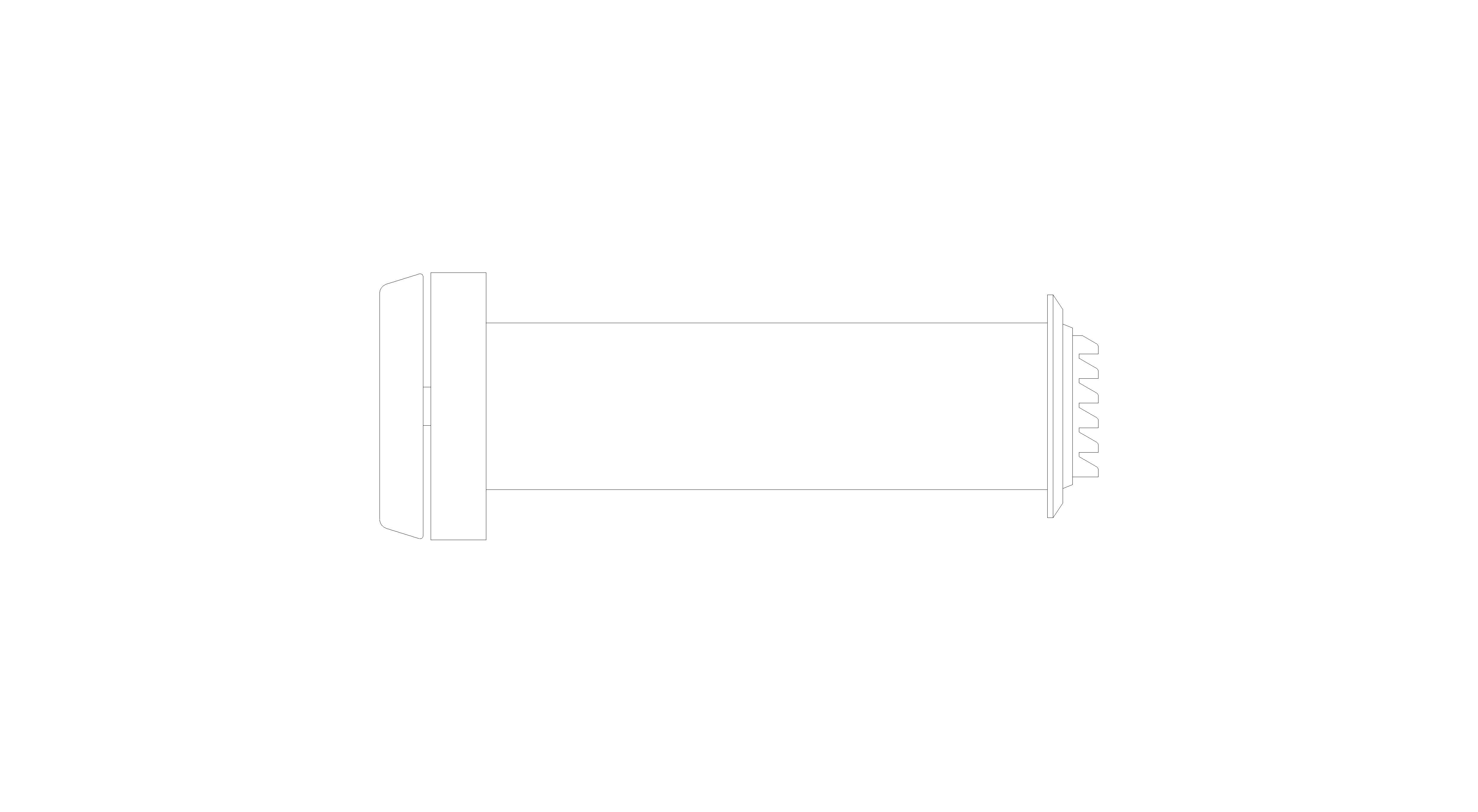

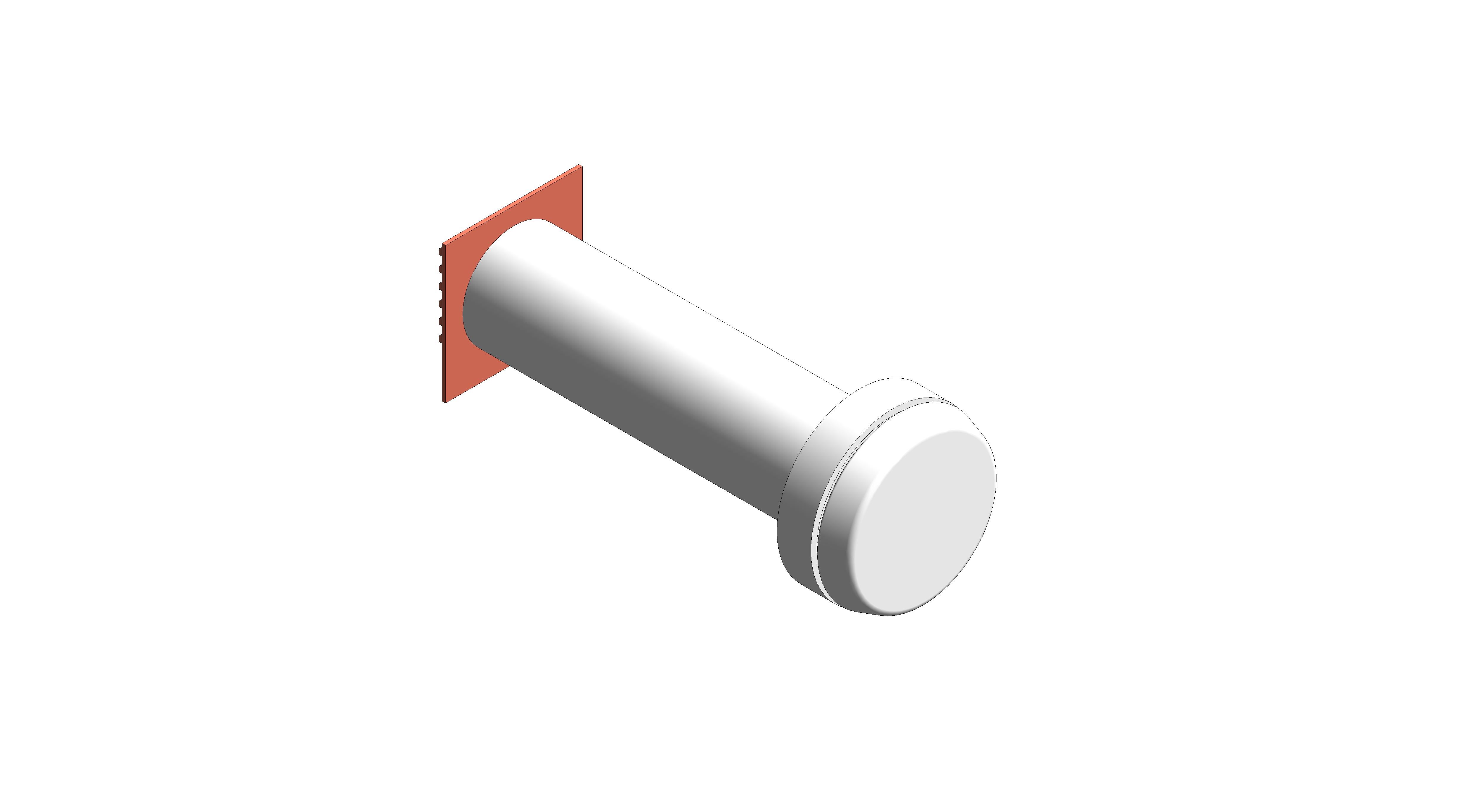

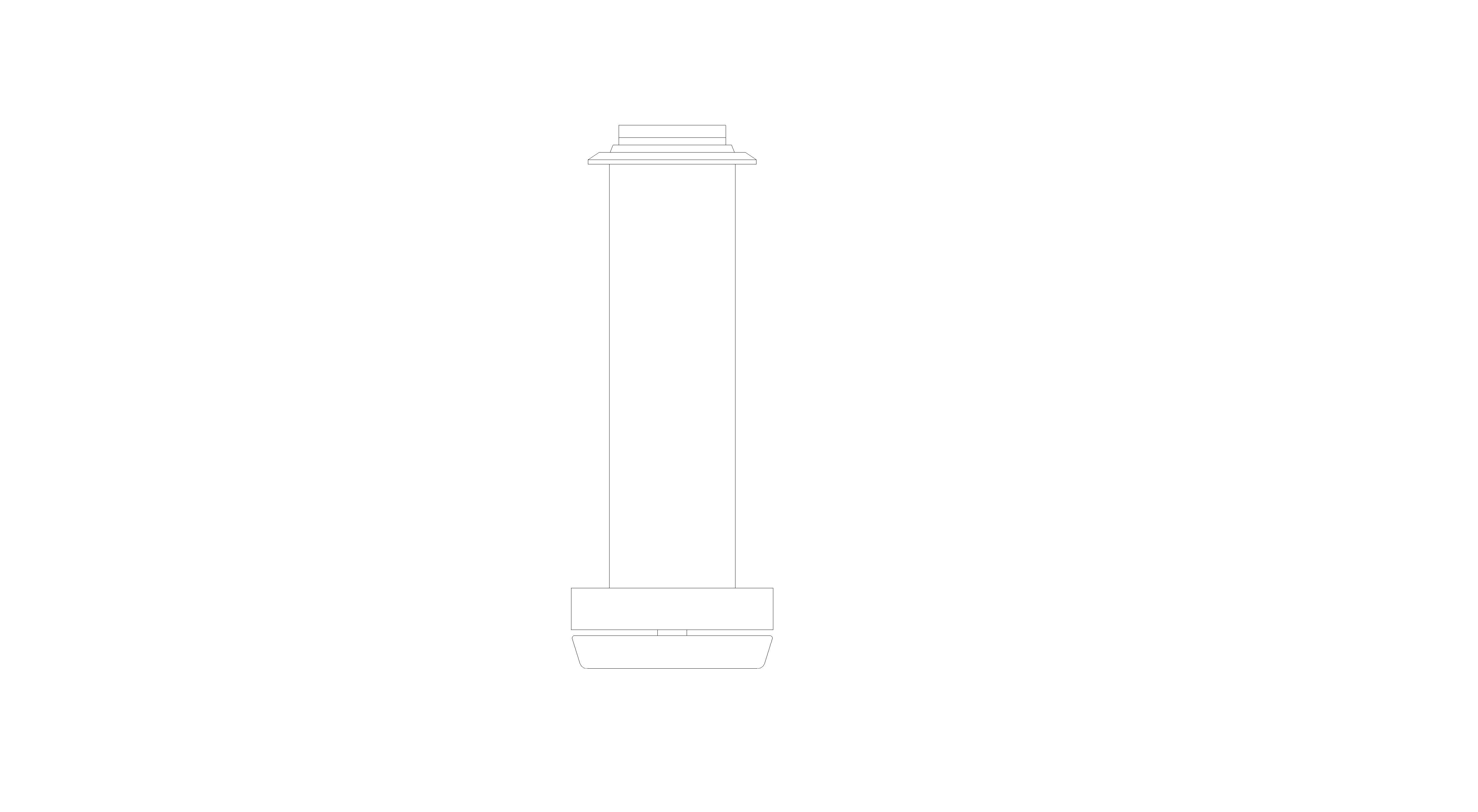

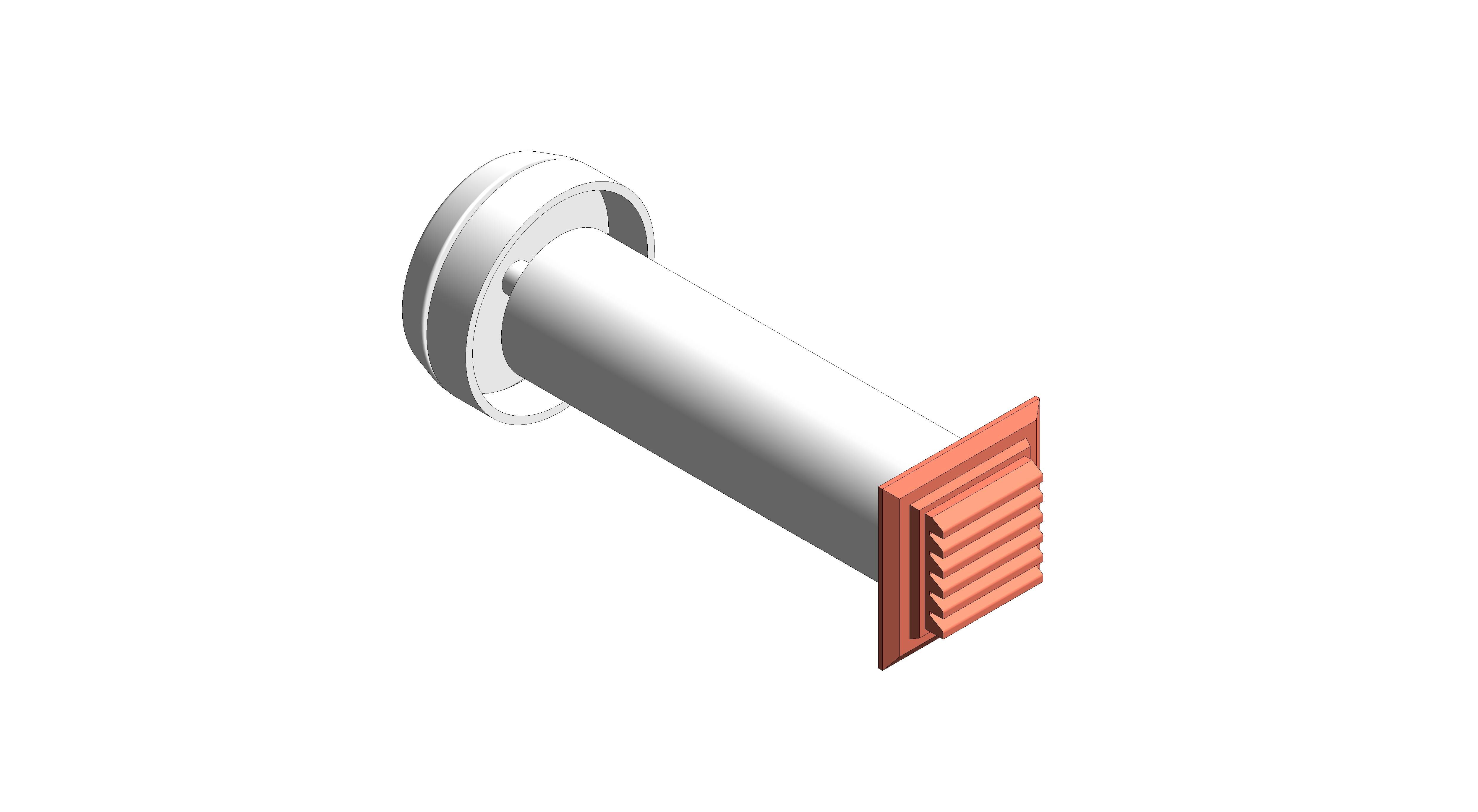

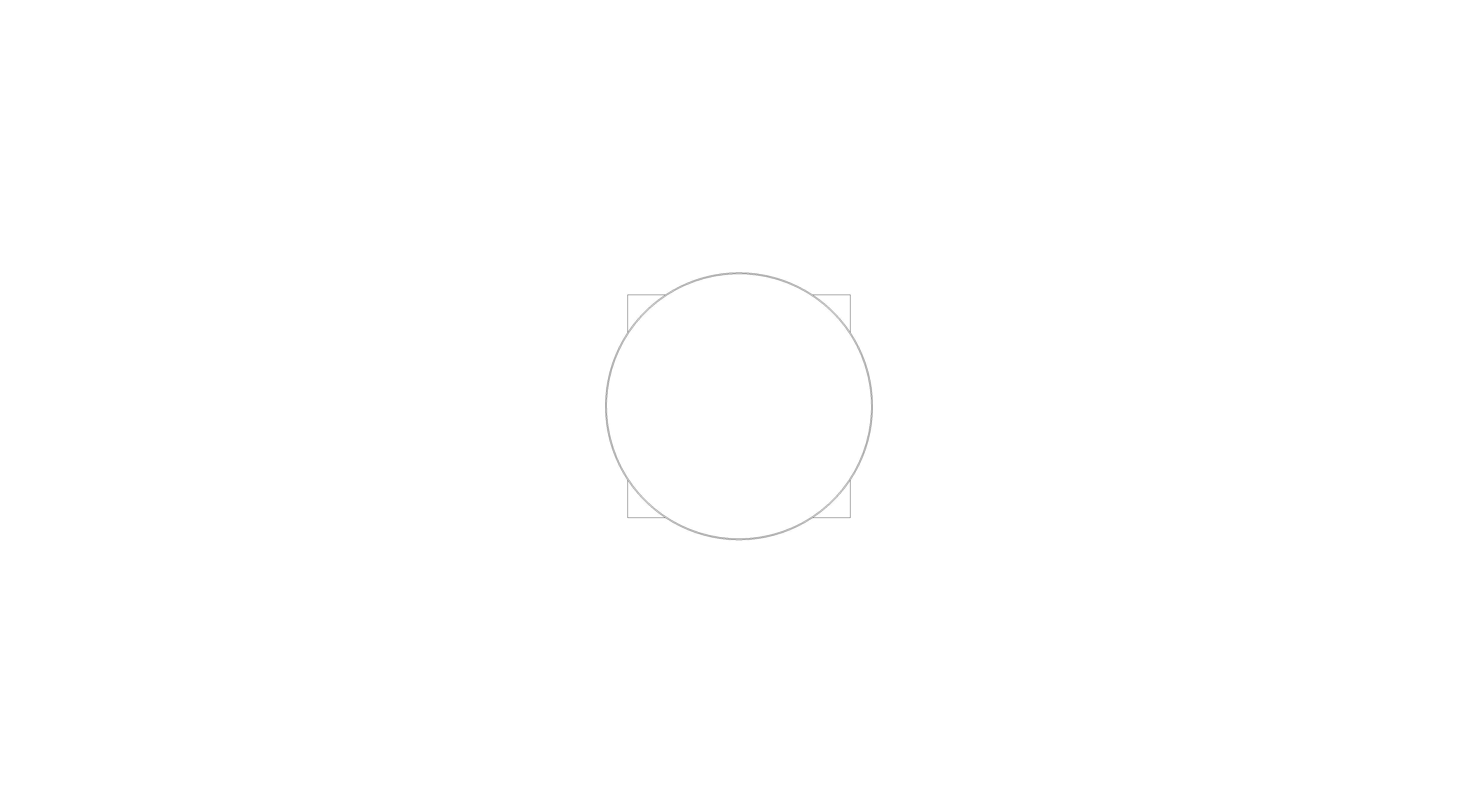

Glidevale Protect Fresh 80 Through Wall Vent

by Glidevale Protect

Download Add to collection

Description

Non-electric through wall vent provides controllable background ventilation. Supplied as controllable internal vent, ducting and external grille.

Features & benefits

Manual pull cord operation
Trickle facility possible even when ‘closed’ to ensure fresh air ingress
Filter and condensation protection incorporated
Ventilation levels can be controlled to set levels

Object Data

1 Revision

Last Updated

30/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

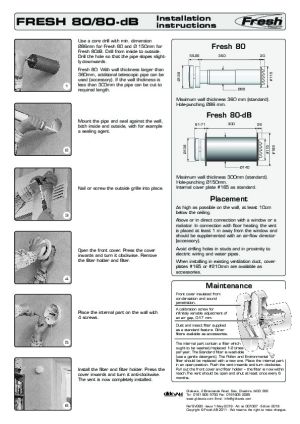

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameGlidevaleProtect_WallVenting_Fresh80WallVentilator
Cill Height1185 mm
Classification NameUniclass2015
Classification ValuePr_30_59_96
Code Performancen/a
Colorwhite
Constituentsn/a
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
DescriptionNon-electric through wall vent provides controllable background ventilation. Supplied as controllable internal vent, ducting and terracotta colour external grille.
Documentation Certificatesglidevaleprotect.com/technical-resources/downloads/
Documentation Installation Guideglidevaleprotect.com/technical-resources/downloads/
Documentation Literatureglidevaleprotect.com/technical-resources/downloads/
Documentation Maintenanceglidevaleprotect.com/technical-resources/downloads/
Documentation Technicalglidevaleprotect.com/technical-resources/downloads/
Duration UnitYear
Expected Life0
FeaturesManual pull cord operation, trickle facility possible even when ‘closed’ to ensure fresh air ingress, filter and condensation protection incorporated, ventilation levels can be controlled to set levels.
Finishwhite
Graden/a
Ifc Export AsIfcAirTerminalType
Ifc Export TypeGRILLE
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
MaterialRecyclable ABS
ModelGlidevale Protect Fresh wall ventilators
Model Numbern/a
Model ReferenceFresh 80 Wall Ventilator
NBS Descriptionn/a
NBS Noten/a
NBS Object NameGlidevale Protect - n/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth55 mm
Nominal Height138 mm
Nominal Length138 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapecircular
SizeInternal controller: 138mm (diameter) x 55mm (depth) Wall Sleeve: 86mm (diameter) x 360mm (length)
Spare PartsTechnical@glidevaleprotect.com
Type CommentsGlidevale Protect Fresh wall ventilators
Type NameGlidevale Protect Fresh wall ventilators
URLglidevaleprotect.com/
Wall Venting MaterialWBR_GlidevaleProtect_RecyclableABS
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
