FV Fascia ventilators

by Glidevale Protect

Download Add to collection

Description

Glidevale FV Fascia Ventilators are an unobtrusive method of providing ventilation in a range of eaves details, including those without a projecting soffit. FV Fascia VentIlators must be used with RV Rafter Ventilators to provide a continuous ventilation path from roof void to outside.

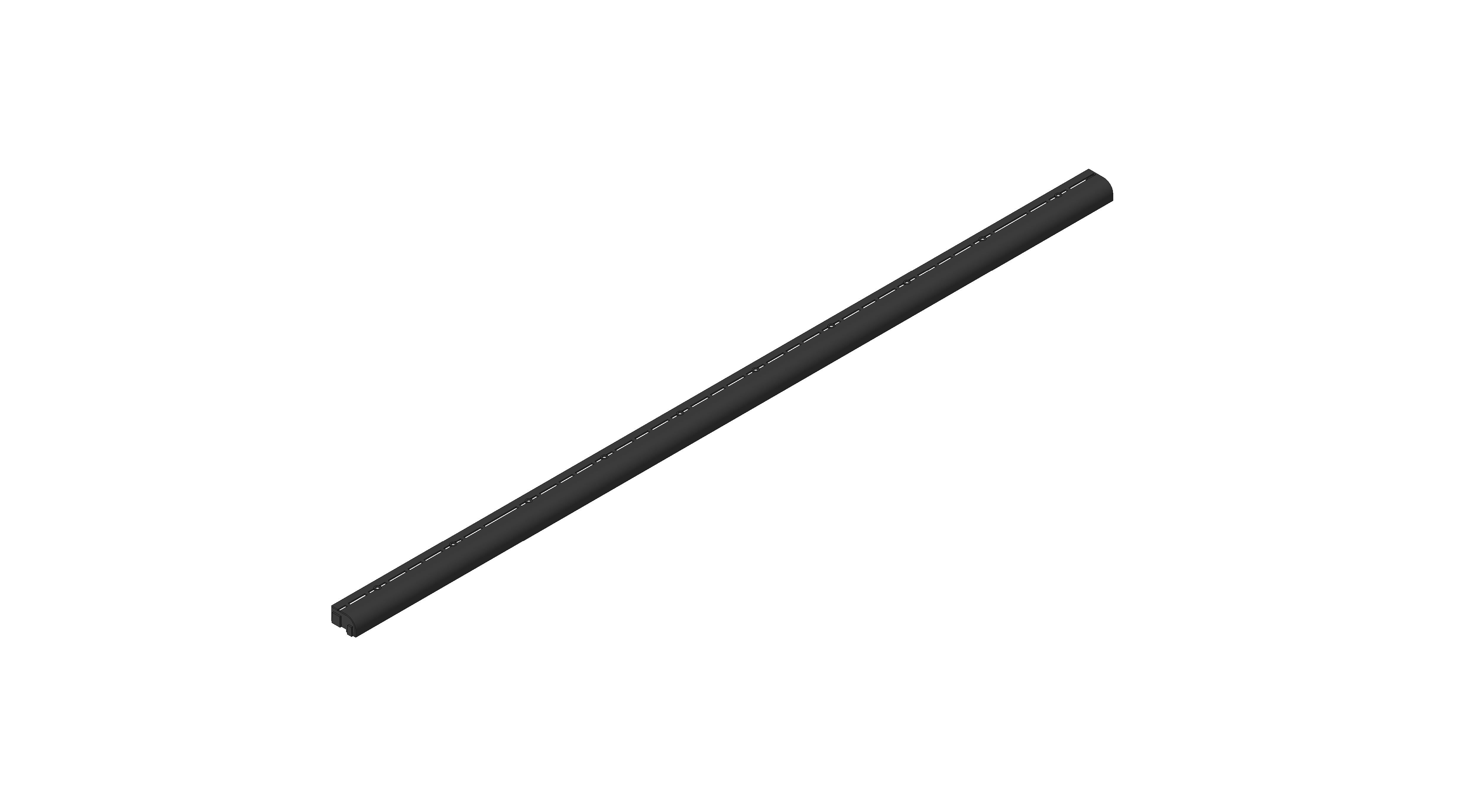

FV100 Over Fascia Ventilator installed continuously provides ventilation opening of 10,000mm²/m

FV250 Over Fascia Ventilator installed continuously provides ventilation opening of 25,000mm²/m

Features & benefits

Quick and easy to install.
Lightweight and durable.
Compatible with all roof tile clips and eaves fillers.
Does not effect slating/tiling process.
Gutter bracket spacers available to ensure correct gutter position and unrestricted airflow.

Object Data

1 Revision

Last Updated

30/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

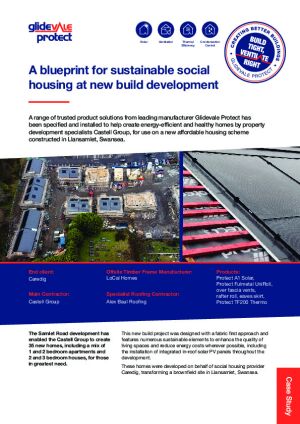

Case Study

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameGlidevaleProtect_FixedRoofVentilators_FV100OverFasciaVentilator
Classification NameUniclass2015
Classification ValuePr_30_59_29
Code PerformanceBS EN ISO 9001
Colorblack
Constituentsgutter space brackets
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionFV100 Over Fascia Ventilator installed continuously, provides guaranteed actual ventilation opening of 10,000mm²/m. Can be used to comply with roof space ventilation requirements of Building Regulations Approved Document C2 and BS 5250. FV Fascia Ventilators are an unobtrusive method of providing ventilation in a range of eaves details, including those without a projecting soffit. They must always be used with RV Rafter Ventilators, to provide a continuous ventilation path.
Documentation Certificatesglidevaleprotect.com/technical-resources/downloads/
Documentation Installation Guideglidevaleprotect.com/technical-resources/downloads/
Documentation Literatureglidevaleprotect.com/technical-resources/downloads/
Documentation Maintenanceglidevaleprotect.com/technical-resources/downloads/
Documentation Technicalglidevaleprotect.com/technical-resources/downloads/
Duration UnitYear
Expected Life0
Features● Internal design provides effective resistance to both driving rain and large insects. ● Unobtrusive when fitted, hidden by gutter and roof covering. ● Can be used to provide ventilation above or below the underlay ● Patented gutter bracket spacers ensure correct airflow behind the gutter. ● Lightweight and durable. ● Quick and easy to install, with no special tools required. ● Compatible with all roof tile clips and eaves comb fillers. ● Modular lengths allow adjustment for fascia board inaccuracies. ● Position on the fascia minimises the risk of fire spread to the roof space. ● Integral dovetail joints ensure positive and continuous interlock between units. ● Do not affect the slating/tiling process.
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyCommon
Ifc Export TypeUSERDEFINED
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
MaterialInjection moulded black polypropylene
ModelGlidevale Protect FV Fascia ventilators
Model Numbern/a
Model ReferenceFV100 Over Fascia Ventilator
NBS DescriptionCombined eaves fascia grilles and ventilator trays
NBS Noten/a
NBS Object NameGlidevale Protect - Combined eaves fascia grilles and ventilator trays
NBS Office Master Tagn/a
NBS Reference45-20-75/380
Nominal Depth33 mm
Nominal Height21 mm
Nominal Length1000 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a

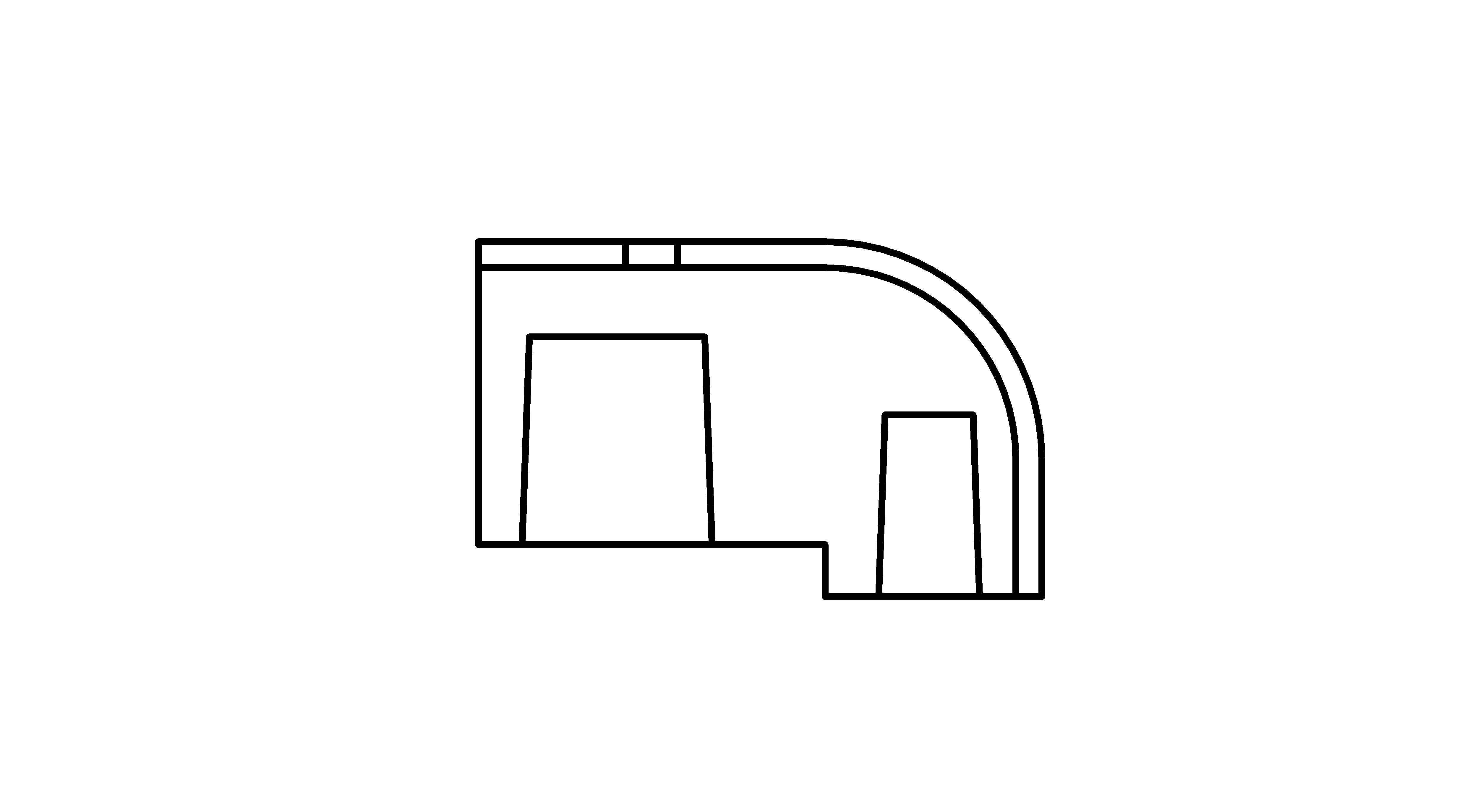

Size1mx32.5mmx20.5mm
Spare PartsTechnical@glidevaleprotect.com
Type CommentsGlidevale Protect FV Fascia ventilators
Type NameGlidevale Protect FV Fascia ventilators
URLglidevaleprotect.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com
