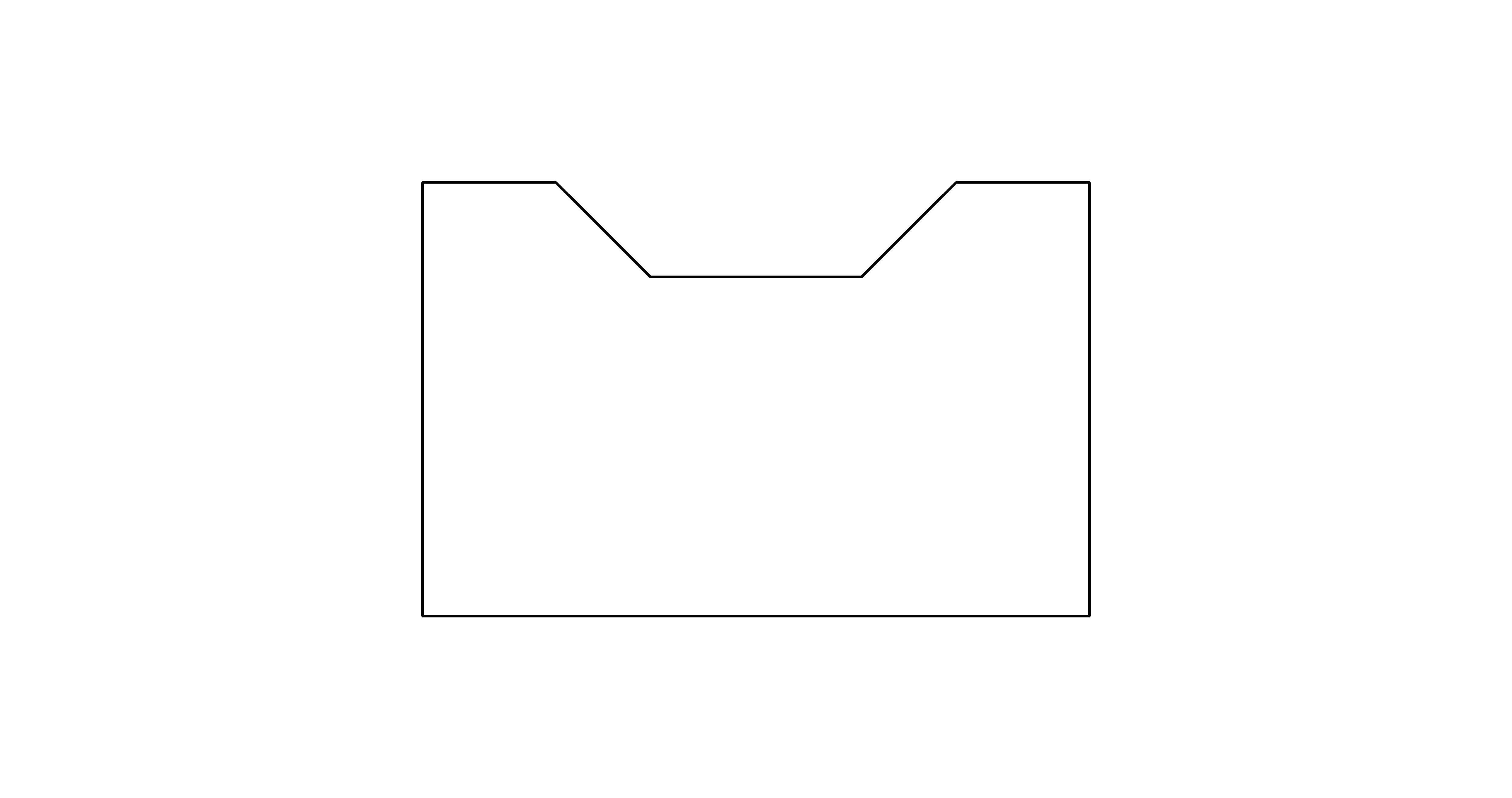

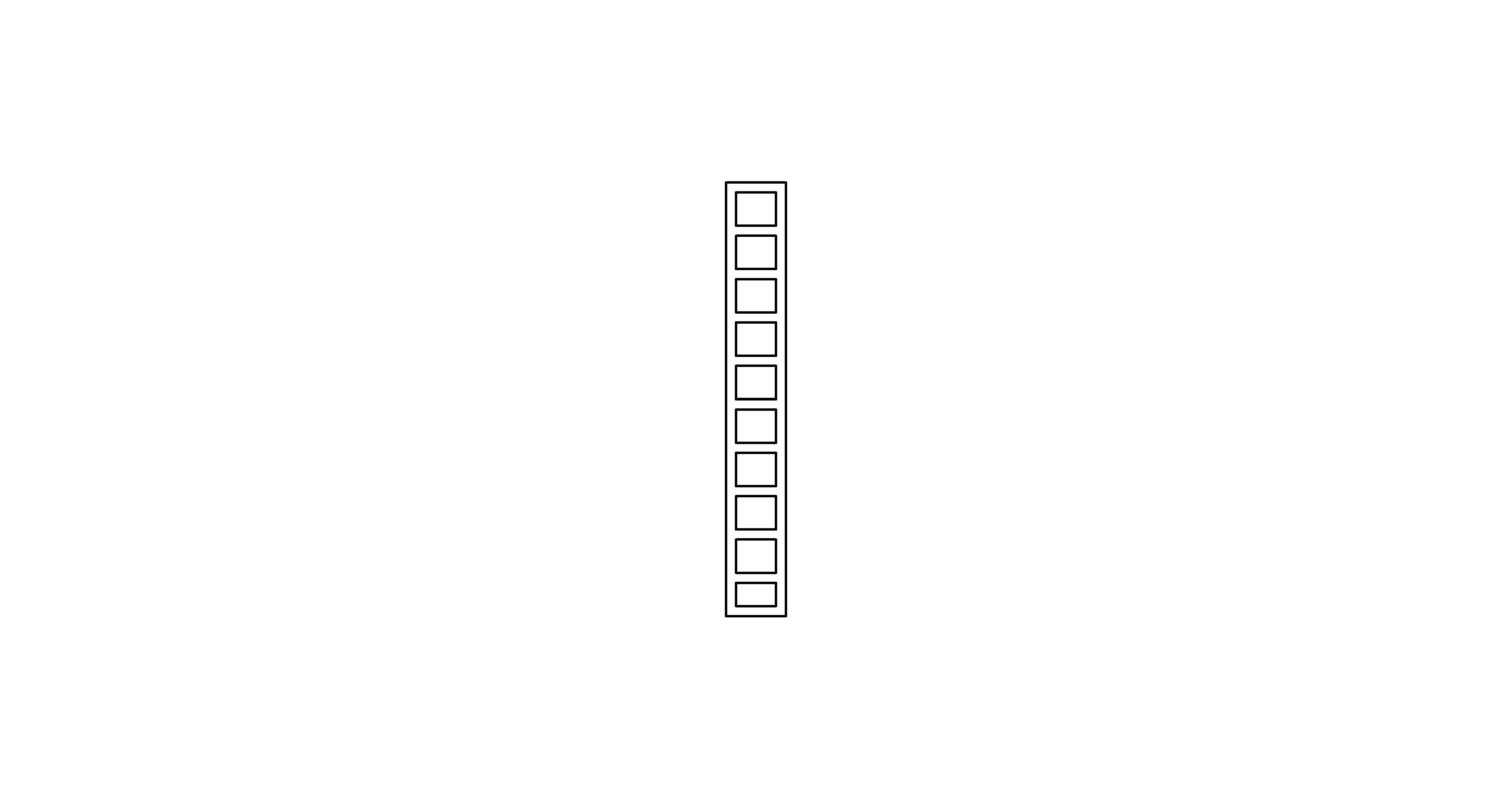

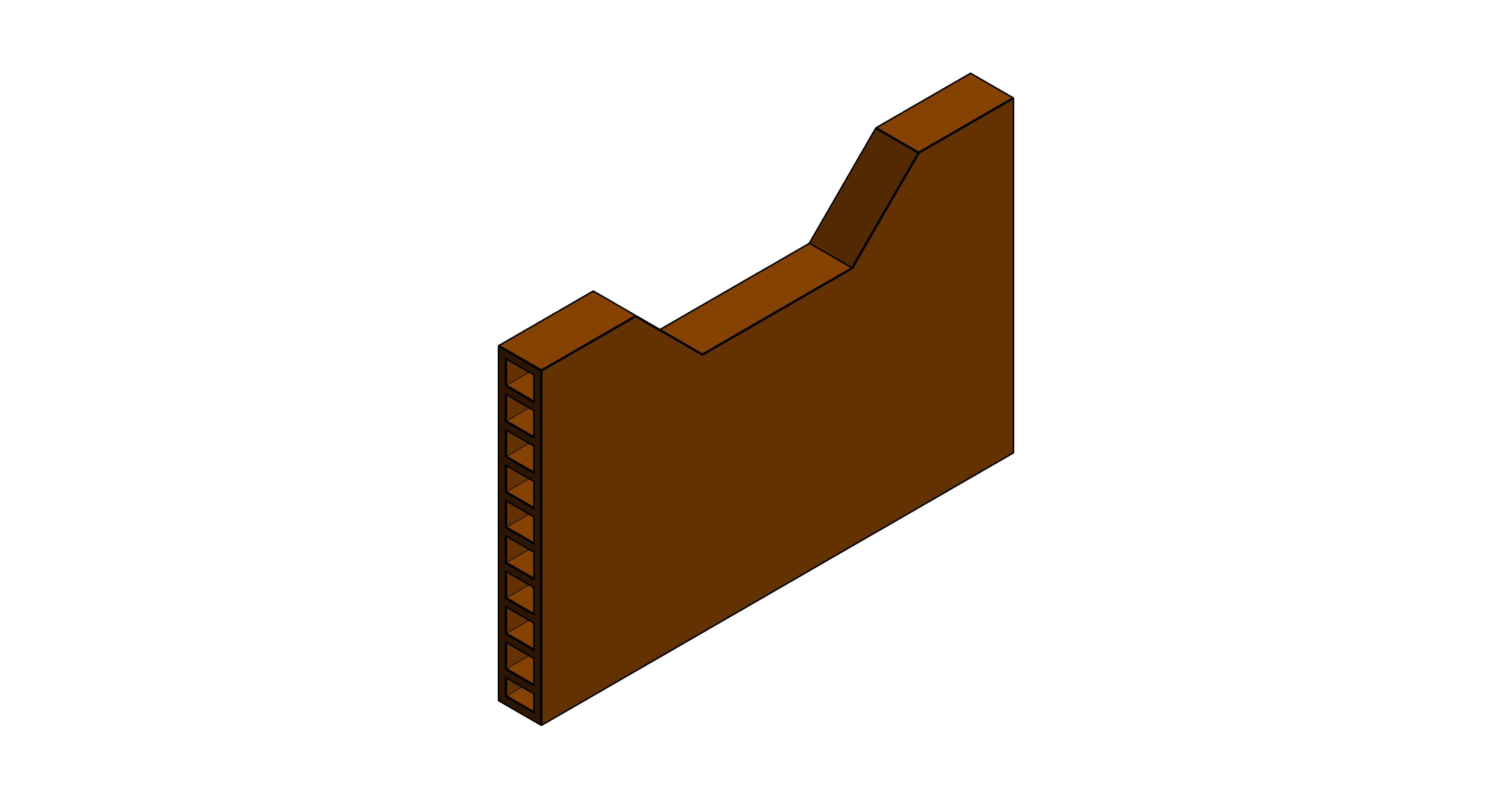

G950 Weep Vent

by Manthorpe Building Products

Download Add to collection

Description

The G950 Weep Vent is generally used to drain lintels, cavity trays and to ventilate cavity walls. The vent has a baffled grill to help reduce the ingress of driving rain and wind while incorporating an insect grill and drip lip. The grill is specifically sized to prohibit large insects gaining access but wide enough not to be blocked by debris, paint or water droplets (see BS5250 section 6)

Object Data

1 Revision

Last Updated

14/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

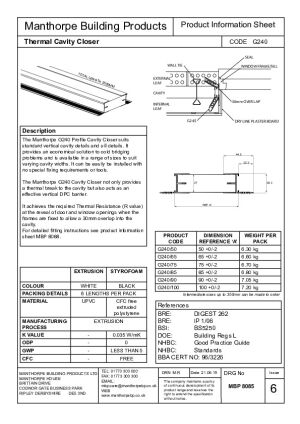

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeB2010
Asset TypeFixed
BIM Object NameManthorpe_G950_WeepVent
Classification NameUniclass2015
Classification ValuePr_20_85_62_64
Code Performancen/a
ColorRange of colours availible
Constituentsn/a
Created Bywww.manthorpebp.co.uk/
Created On2022-06-09T:09:00:00
DescriptionWeep Vent
Documentation Certificateswww.bimstore.co/products/g950-weep-vent/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/g950-weep-vent/document/installation-guide
Documentation Literaturewww.bimstore.co/products/g950-weep-vent/document/product-literature
Documentation Maintenancewww.bimstore.co/products/g950-weep-vent/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/g950-weep-vent/document/technical-data-sheet
Duration UnitYears
Expected Life0
ExtrusionManthorpe - Brown
FeaturesThe vent has a baffled grill to help reduce the ingress of driving rain and wind while incorporating an insect grill and drip lip.
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeNOTDEFINED
KeynoteF30/130
ManufacturerMathorpe Building Products LTD
Manufacturer NameMathorpe Building Products LTD
MaterialPolypropylene
ModelG950
Model NumberG950
Model ReferenceG950
NBS DescriptionPlastics drainage weep holes
NBS Object NameManthorpe - Plastics drainage weep holes
NBS Office Master Tagn/a
NBS Reference45-15-60/400
Nominal Depth9 mm
Nominal Height65 mm
Nominal Length100 mm
Offset1 mm
Production Year2022
Referenced StandardBS5250 section 6
Replacement Costn/a
Shapen/a
Size100x65x9mm
Spare Partsn/a
Type CommentsG950
Type NameG950
URLwww.bimstore.co.
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.manthorpebp.co.uk/
Warranty Guarantor Partswww.manthorpebp.co.uk/
