Galant Vertical

by MHS Radiators

Download Add to collection

Description

The Galant Vertical is manufactured from 1.2mm steel and is available in RAL 9016 Traffic White as standard, with other colours available on request.

Supplied complete with wall brackets, plugs and air vent, securable side panels and top grille as standard, the Galant Vertical has a 6 bar maximum working pressure (8 bar test), with 10 bar maximum working pressure available upon request. The Galant Vertical is supplied with 4 1/2” bsp-f connections and carries a 10-year guarantee against manufacturing defects

Object Data

1 Revision

Last Updated

14/12/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIan Holmes
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision0
_Distributed Bywww.bimstore.co.uk
6 Monthlyn/a
A103 mm
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentYes
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Back Panel FinsNo
Bespoke Timeframen/a
BIM Object NameMHSRadiators_MechanicalEquipment_Radiators_GalantVertical
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorTraffic White
ColourTraffic White
Constituentsn/a
Created Byenquiries@mhsradiators.co.uk
Created On2018-12-04T09:00:00
Dailyn/a
Depth70 mm
DescriptionHeavy-duty steel panel radiators
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2808
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2808
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
FeaturesCentral underside connections.Outputs tested to EN442. Compatible with gas, oil and electric boilers. Supplied complete with top grille, wall brackets, plugs and air vent.
Feet MaterialMHS - RAL 9016 - Traffic White
FinishRAL 9016
Fin MaterialMHS - RAL 9016 - Steel - Traffic White
FinnedNo
Floor StandsNo
Front Panel FinsNo
Graden/a
Green Guide For Specificationn/a
Gross Weight0.00 kg
Heat Emitter Materialn/a
Heat ReflectorNo
Heat Transfer Mediumn/a
Height1500 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
Intermediate Panel0 mm
Intermediate Panel VisNo
KeynoteT32
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerMHS Radiators
Manufacturer NameMHS Radiators
Manufacturer Websitewww.mhsradiators.co.uk/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure600000.0 Pa
Maximum Operating Temperature95 °C
Maximum Test Pressure1300000.0 Pa
ModelGalant Vertical
Model Number*Type TK3 - 950 x 9500mm - Standard*
Model ReferenceGalant Vertical
Monthlyn/a
Mounting TypeWall Brackets
NBS DescriptionRadiators
NBS Object NameMHS Radiators - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth70 mm
Nominal Height1500 mm
Nominal Length500 mm
Number Of Panels2
Number Of Sections0
O&M Manualn/a
Outlet GrilleYes
Overall Height1500 mm
Overall Length500 mm
Overall Width70 mm
Panel MaterialMHS - RAL 9016 - Steel - Traffic White
Panel Thickness14 mm
Pipe Connection Size15 mm
Possible Connections Positionsn/a
Production Year2018
Product Literaturespecifi.bimstore.co.uk/document/share/2808
Product Model Number*Type TK3 - 950 x 9500mm - Standard*
Product RangeGalant Vertical
Quaterlyn/a
Referenced Standardn/a
Reference Standardn/a
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangular
Shipping Weight0.00 kg
Size*950mm x 3900mm*
Spare Partsn/a
T20
Temperature Classificationn/a
Thermal Output0 W
Typen/a
Type Comments*Type TK3 - 950 x 9500mm - Standard*
Type Name*1600mm(h)x400(w)50(d)*
URLwww.mhsradiators.co.uk/
Wall BracketsYes
Warranty Description10 Year Guarantee
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@mhsradiators.co.uk
Warranty IDn/a
Water Content27.0 L
Water Flow Raten/a
Weeklyn/a
Width500 mm

Bimstore on 22 February 2025

Be the first to write a comment...

Galant Vertical

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

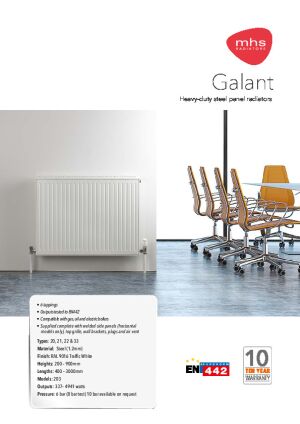

Product Literature
