The Worcester GB162 V2 is part of a market leading range of energy-saving condensing wall mounted gas-fired boilers.

The GB162 V2 is an extremely versatile and compact wall hung condensing boiler that can be installed on its own or as part of a multi-boiler ‘cascade’ system. The boiler is available with individual outputs of 45, 65, 85 and 100kW and outputs of up to 800kW can be achieved when multiple units are connected as part of a cascade installation.

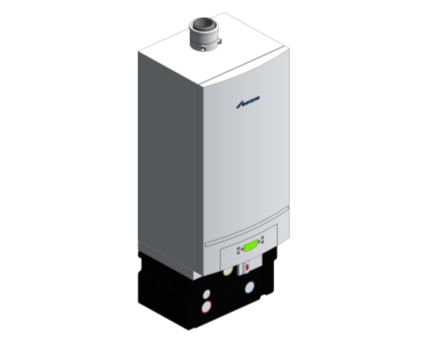

This download contains Revit components for the Worcester GB162 V2 Wall Mounted Gas-Fired Condensing Boiler (Single) from 50kW up to 100kW.

Components include user selectable features and guidance regarding additional flue adaptor, air intake basket and manufacturer recommend clearance zones.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byKris Atkinson
_current revision1
_distributed bywww.bimstore.co.uk
6 Monthlynone
Above (mm)40.000000000000 mm
Access Clearance Bottom350
Access Clearance Front550
Access Clearance Left0
Access Clearance Rear0
Access Clearance Right0
Access Clearance Top40
Air Inlet Connection Size150
Annuallyannual service and maintenance
Assembly CodeD3020100
Asset TypeFixed
Below (mm)350.000000000000 mm
Bespoke TimeframeN/A
BMS LinksYes
Building Regulations Seasonal Efficiency96.1
Burner ConfigurationIntergral
CE ApprovalCE-0063CO3391
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
ColorWhite
ColourWhite
Condensate Drain Size24
Condensate Drain TypePlain
ConfigurationSingle Boiler
ConstituentsAluminium, steel, polymers
Control OptionsModulating
Control TypeExternal
Created Bycommercial.industrial@uk.bosch.com
Created OnOct 15
Dailynone
Depth464.900000000000 mm
DescriptionThe GB162 boiler is perfect for both large domestic and commercial applications and can be installed on its own or as part of a multi-boiler 'cascade' system.
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/897
Documentation Literaturespecifi.bimstore.co.uk/document/share/897
Documentation Maintenancespecifi.bimstore.co.uk/document/share/897
Documentation Technicalspecifi.bimstore.co.uk/document/share/897
Drain Connection SizeR 1/2" BSP FI
Drain Connection TypeThreaded
Duration UnitYears
eighty kWNo
Energy Technology listetl.decc.gov.uk/engetl/fox/live/ETL_PUBLIC_PRODUCT_SEARCH/product?PROD_ID=69428
ErP Energy LabelN
ErP Rated Efficiency at Full Load87.4
ErP Rated Efficiency at Part Load97.2
Erp Seasonal EfficiencyN/A
Expected Life15 - 20
Expected Life20
External MaterialSteel
FeaturesGas Condensing boiler
fifty kWNo
FinishPaint
Flow and Return Connection SizeR 1 1/2"
Flow and Return Connection TypeThreaded
Flue Connection Size100
Flue or Air Intake ClassificationB23,C13,C33,C43,C53,C63,C83
Frequency61
Front (mm)550.000000000000 mm
Fuel Connection SizeR 1"
Fuel Connection TypeThreaded
Full Load Current0.64
Fuse Rating10
Gas Consumption rate10.24
Gross Weight70
Heat Exchanger MaterialAluminium
Height980.000000000000 mm
Height Above Floor500.000000000000 mm
IK RatingN/A
InterlocksYes
IP RatingIPX 4D
KeynoteT20/320
Left Side (mm)0.000000000000 mm
Maintenance Required 0-300hrsN/A
Maintenance Required 1001-2000hrsN/A
Maintenance Required 2001-4000hrsN/A
Maintenance Required 301-600hrsN/A
Maintenance Required 4001-8000hrsN/A
Maintenance Required 601-1000hrsN/A
Maintenance Required 8001-12000hrsN/A
ManufacturerWorcester - Bosch Group
MaterialSteel
Maximum Gas Inlet Pressure25
Maximum Oil Inlet PressureN/A
Maximum Operating Pressure4
Maximum Power Consumption295
Minimum Gas Inlet Pressure17
Minimum Oil Inlet PressureN/A
Minimum Operating Pressure0.8
Minimum Power Consumption14
ModelGB162 Wall Mounted Gas-Fired Condensing Boiler
Model NumberGB162 Wall Mounted Gas-Fired Condensing Boiler
Monthlynone
MountingWall Mounted
NBS Object NameGas fired condensing boilers
NBS Reference90-40-05/340
Nominal Gas Inlet Pressure20
Nominal Oil Inlet PressureN/A
NOx Emissions35
O&M Manualwww.worcester-bosch.co.uk/professional/products/commercial-heating/gb162
Oil Consumption rateN/A
one hundred kWYes
Overall Height1414
Overall Length465
Overall Width520
Primary FuelGas - NG

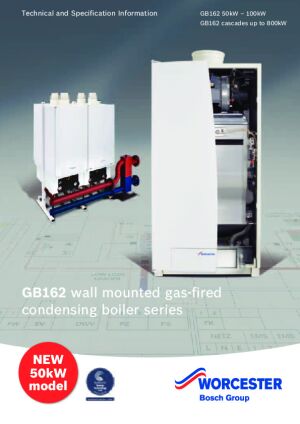

Product Literaturewww.worcester-bosch.co.uk/professional/products/commercial-heating/gb162
Product Model Number100kW
Product RangeGB162 V2
Production Year2015
Quaterlynone
Rated Criteria50/30
Rated Efficiency at Full Load97
Rated Efficiency at Part Load109.5
Rated Output99.5
Referenced StandardBS EN
Right Side (mm)0.000000000000 mm
Safety Valve Connection SizeR 1" BSP FI
Safety Valve Connection TypeThreaded
Secondary FuelGas - LPG
ShapeRectangular (Vertical)
Shipping Weight75
sixty five kWNo
Size520 x 465 x 1414mm
Sound Pressure Level52
Starting CurrentN/A
Supply Phase1
Turndown Ratio4.85:1
TypeSpace Heating
Type CommentsWall Mounted - GB162 (100kW)
Type NameWall Mounted - GB162 (100kW)
URLwww.worcester-bosch.co.uk/
Voltage230
Warranty IDSerial number and end user registration
Warranty Duration UnitYears
Water Content5
Weeklysystem pressure check
Width520.000000000000 mm
