GB402 Commercial Condensing Boiler

by Bosch

Download Add to collection

Description

A high efficiency condensing boiler, perfect for single or multiple boiler installations in medium to large buildings including schools, hotels, care homes, offices and commercial buildings. Compact, quiet and perfect for both new build and renovation projects. It combines high efficiency and low emissions with a wide range of practical benefits.

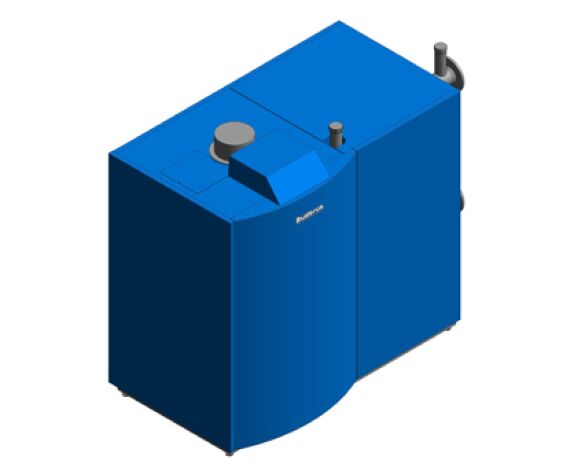

This download contains Revit components for the Buderus GB402 Commercial Condensing Boiler from 320kW up to 620kW.

Components include user selectable features and guidance regarding control panel position,optional air inlet connection and manufacturer recommend clearance zones.

Object Data

1 Revision

Last Updated

22/10/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID0
_created byKris Atkinson
_current revision1
_distributed bywww.bimstore.co.uk
6 MonthlyNo
Access Clearance Bottom0
Access Clearance Front700
Access Clearance Left150
Access Clearance Rear150 (beyond flue)
Access Clearance Right700
Access Clearance Top0
Air Inlet Connection Size200
AnnuallyAnnual service
Assembly CodeD3020100
Asset TypeFixed
Back (mm)150 mm
Bespoke TimeframeNo
BMS LinksYes
Building Regulations Seasonal Efficiency93.4
Burner ConfigurationIntegral
CE ApprovalCE0085BU0332
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
ColorRAL classic 5005
ColourBlue RAL classic 5015
Condensate Drain SizeR 3/4"
Condensate Drain TypePlain
ConfigurationSingle Boiler
ConstituentsAluminium, steel, polymers
Control OptionsModulating
Control TypeExternal
Created Bycommercial.industrial@uk.bosch.com
Created OnAug 15
DailyNo
DescriptionA high efficiency condensing boiler, perfect for single or multiple boiler installations in medium to large buildings including schools, hotels, care homes, offices and commercial buildings.
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/952
Documentation Literaturespecifi.bimstore.co.uk/document/share/887
Documentation Maintenancespecifi.bimstore.co.uk/document/share/951
Documentation Technicalspecifi.bimstore.co.uk/document/share/950
Drain Connection Size15
Drain Connection TypePlain
Duration UnitYears
Energy Technology listetl.decc.gov.uk/engetl/fox/live/ETL_PUBLIC_PRODUCT_SEARCH/product?PROD_ID=69421
ErP Energy LabelA
ErP Rated Efficiency at Full Load88.4
ErP Rated Efficiency at Part Load97.3
Erp Seasonal Efficiency93.0
Expected Life15-20
Expected Life20
External MaterialSteel
FeaturesGas Condensing Boiler
FinishPaint
Flow and Return Connection SizeDN 80
Flow and Return Connection TypeFlanged
Flue Connection SizeR 2"
Flue or Air Intake ClassificationB23, B23p, C13, C33, C43, C53, C63, C83, C93
Frequency50
Front (mm)700 mm
Fuel Connection Size250
Fuel Connection TypeThreaded
Full Load Current1.7
Fuse Rating10
Gas Consumption rate32.3
Gross Weight457.3
Heat Exchanger MaterialAluminium
Height1442 mm
IK RatingN/A
InterlocksYes
IP RatingIP X0D
KeynoteT20/320
Left Side (mm)150 mm
Length1565 mm
Maintenance Required 0-300hrsNo
Maintenance Required 1001-2000hrsNo
Maintenance Required 2001-4000hrsNo
Maintenance Required 301-600hrsNo
Maintenance Required 4001-8000hrsNo
Maintenance Required 601-1000hrsNo
Maintenance Required 8001-12000hrsNo
ManufacturerBosch Thermotechnology
MaterialAluminium, steel, stainless steel, polymers
Maximum Gas Inlet Pressure25
Maximum Oil Inlet PressureN/A
Maximum Operating Pressure6
Maximum Power Consumption395
Minimum Gas Inlet Pressure17
Minimum Oil Inlet PressureN/A
Minimum Operating Pressure0.8
Minimum Power Consumption40
ModelLegano Plus GB402 - Floor Standing Gas Condensing Boiler
Model NumberLegano Plus GB402 - Floor Standing Gas Condensing Boiler
MonthlyNo
MountingFloor Standing
NBS Object NameGas fired condensing boilers
NBS Reference90-40-05/340
Nominal Gas Inlet Pressure20
Nominal Oil Inlet PressureN/A
NOx Emissions35
O&M Manualwww.buderus.co.uk/products/floor-standing-condensing-boilers/gb402.html
Oil Consumption rateN/A
Overall Height1593
Overall Length844
Overall Width1869
Panel Height1374 mm
Panel Width 1845 mm
Panel Width 2721 mm
Primary FuelGas - NG
Product Literaturewww.buderus.co.uk/products/floor-standing-condensing-boilers/gb402.html
Product Model Number320kW
Product RangeGB402
Production Year2015
QuaterlyNo
Rated Criteria50/30
Rated Efficiency at Full Load97.5
Rated Efficiency at Part Load105.1
Rated Output320.0
Referenced StandardBS EN
Right Side (mm)700 mm
Room Height Min (mm)2000 mm
Safety Valve Connection SizeR 2"
Safety Valve Connection TypeFlanged
Secondary FuelNo Secondary Fuel
ShapeRectangular (Horizontal)
Shipping Weight410
Sound Pressure Level57.6
Starting CurrentN/A
Supply Phase1
Turndown Ratio4.8:1
TypeSpace Heating
Type CommentsLegano Plus GB402 - 320kW
Type NameLegano Plus GB402 - 320kW
URLwww.buderus.co.uk/
Voltage230
Warranty IDSerial number and end user registration
Warranty Duration Labor2 years plus 5 years for the heat exchanger
Warranty Duration Parts2 years plus 5 years for the heat exchanger
Warranty Duration UnitYears
Water Content47.3
WeeklySystem Pressure Check
Width845 mm
