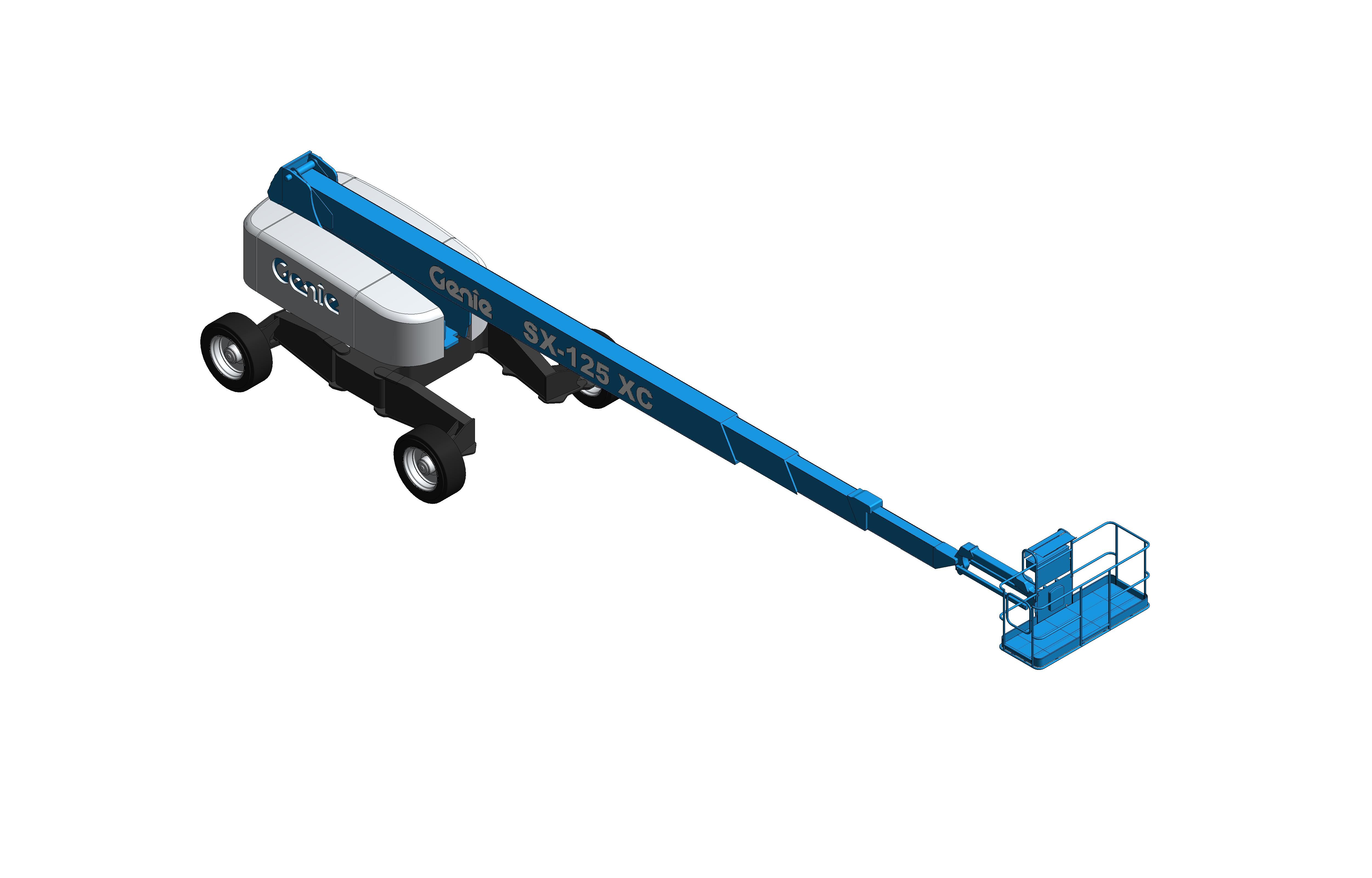

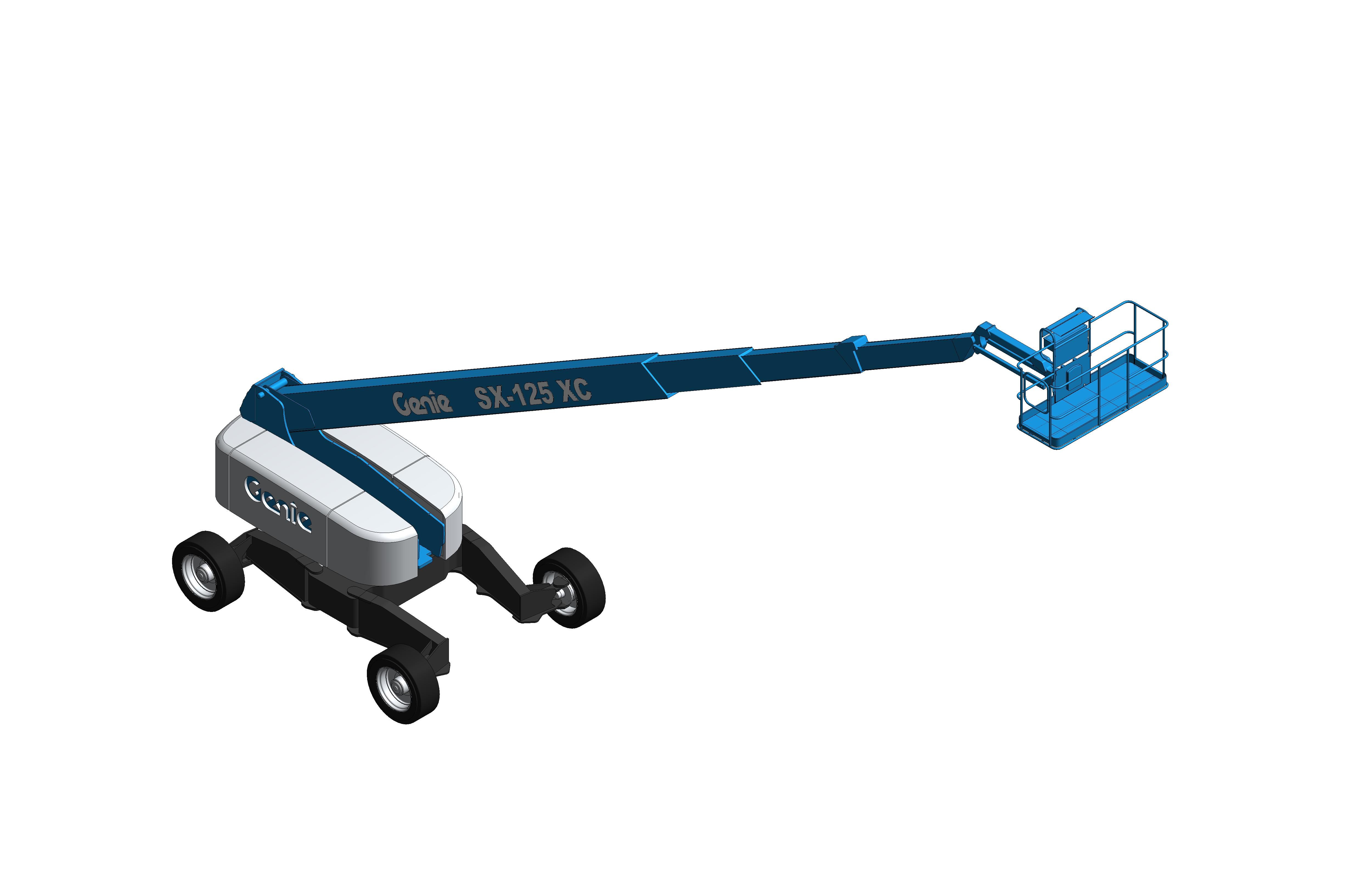

SX-125 XC Telescopic Boom Lift

8.7k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/04/2023

Download BIM

Add to collection

Available for:

Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX™-125 XC™ telescopic boom lift works in more applications that require higher capacities thanks to its industry-leading dual lift capacity.

Overview

Mini Genie XChassis™ design for easy transport
1.52 m (5 ft) robust articulating jib
Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
Impressive below-grade capabilities (2.69 m / 8 ft 10 in)
Automatic envelope control and chassis tilt sensor technology for smooth operation
Zero-load field calibration and onboard diagnostics maximize serviceability

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030900
Asset TypeMoveable
BIM Object NameGenie_TelescopicBoomLift_(SX-125XC)
Classification NameUniclass2015
Classification ValueTE_30_30_60_10
Code Performancen/a
ColorBlue
Constituentsn/a
Created Bywww.genielift.com/en-gb/about-genie/contact-us
Created On2023-04-17T09:00:00
DescriptionPerfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX™-125 XC™ telescopic boom lift works in more applications that require higher capacities thanks to its industry-leading dual lift capacity.
Documentation Certificateswww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/installation-guide
Documentation Literaturewww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/product-literature
Documentation Maintenancewww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/maintenance-information

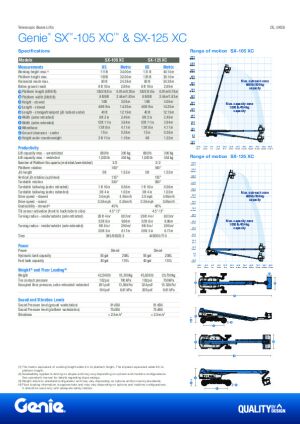

Documentation Technicalwww.bimstore.co/products/genie-sx-125-xc-telescopic-boom-lift/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height Stowed3050 mm
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
Length Stowed14250 mm
Lift Capacity Maximum454.00 kg
ManufacturerGenie
Manufacturer NameGenie
Materialn/a
ModelSX-125 XC Telescopic Boom Lift
Model NumberSX-125 XC
Model ReferenceTelescopic Boom Lift
NBS DescriptionBoom lifts
NBS Noten/a
NBS Object NameGenie - Boom lifts
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partswww.genielift.com/en-gb/about-genie/contact-us
Turning Radius Inside8030 mm
Turning Radius Outside9960 mm
Type CommentsSX-125 XC Telescopic Boom Lift
Type NameSX-125 XC Telescopic Boom Lift
URLwww.genielift.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.genielift.com/en-gb/about-genie/contact-us
Warranty Guarantor Partswww.genielift.com/en-gb/about-genie/contact-us
Weight20700.00 kg
Width2490 mm
