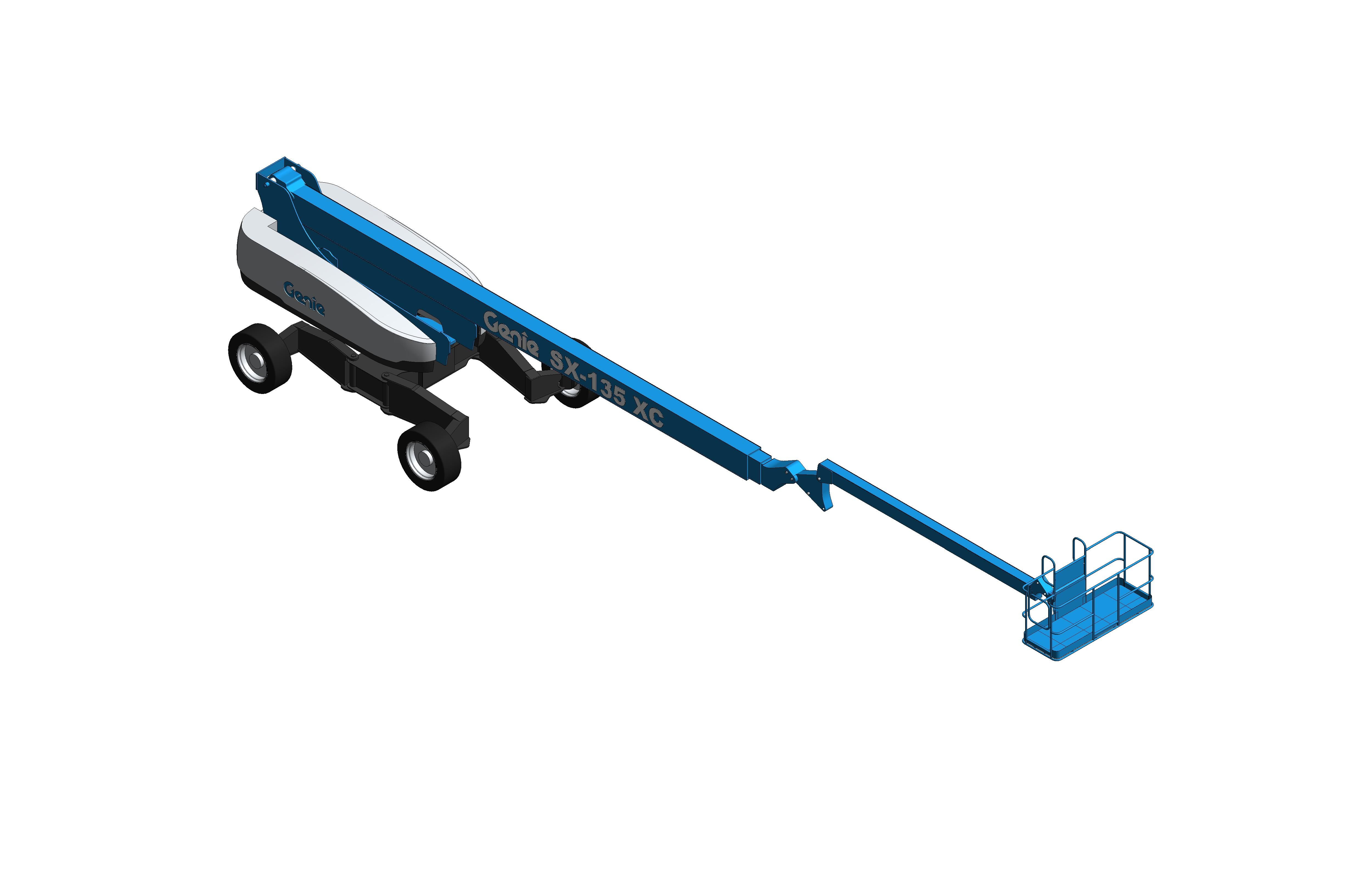

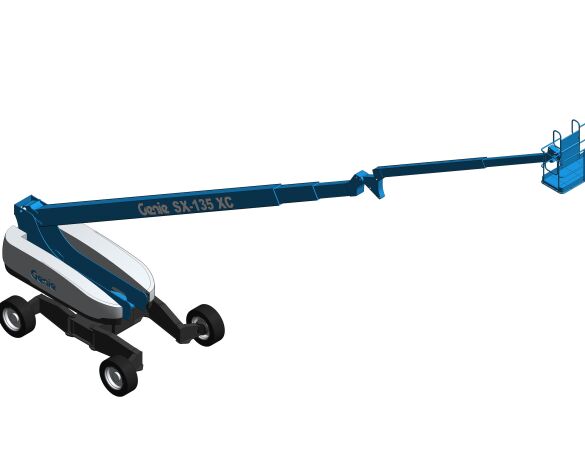

SX-135 XC Telescopic Boom Lift

Description

The Genie® SX™-135 XC™ telescopic boom lift provides 3 m (10 ft) more outreach and 32 per cent more capacity across its full working envelope than typical self-propelled booms of this size. Thanks to its unique up-and-over style capability, operators will easily navigate any obstacles at height.

Overview

• Mini Genie XChassis™ design for easy transport
• 5.48 m to 9.14 m (18 to 30 ft) telescoping Jib-Extend™ with 130˚ articulation, for an increased range of motion
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Impressive outreach (27.43 m - 90 ft) and below-grade (6 m - 19 ft 8 in) capabilities
• Automatic envelope control and chassis tilt sensor technology for smooth operation
• Zero-load field calibration and onboard diagnostics maximize serviceability
