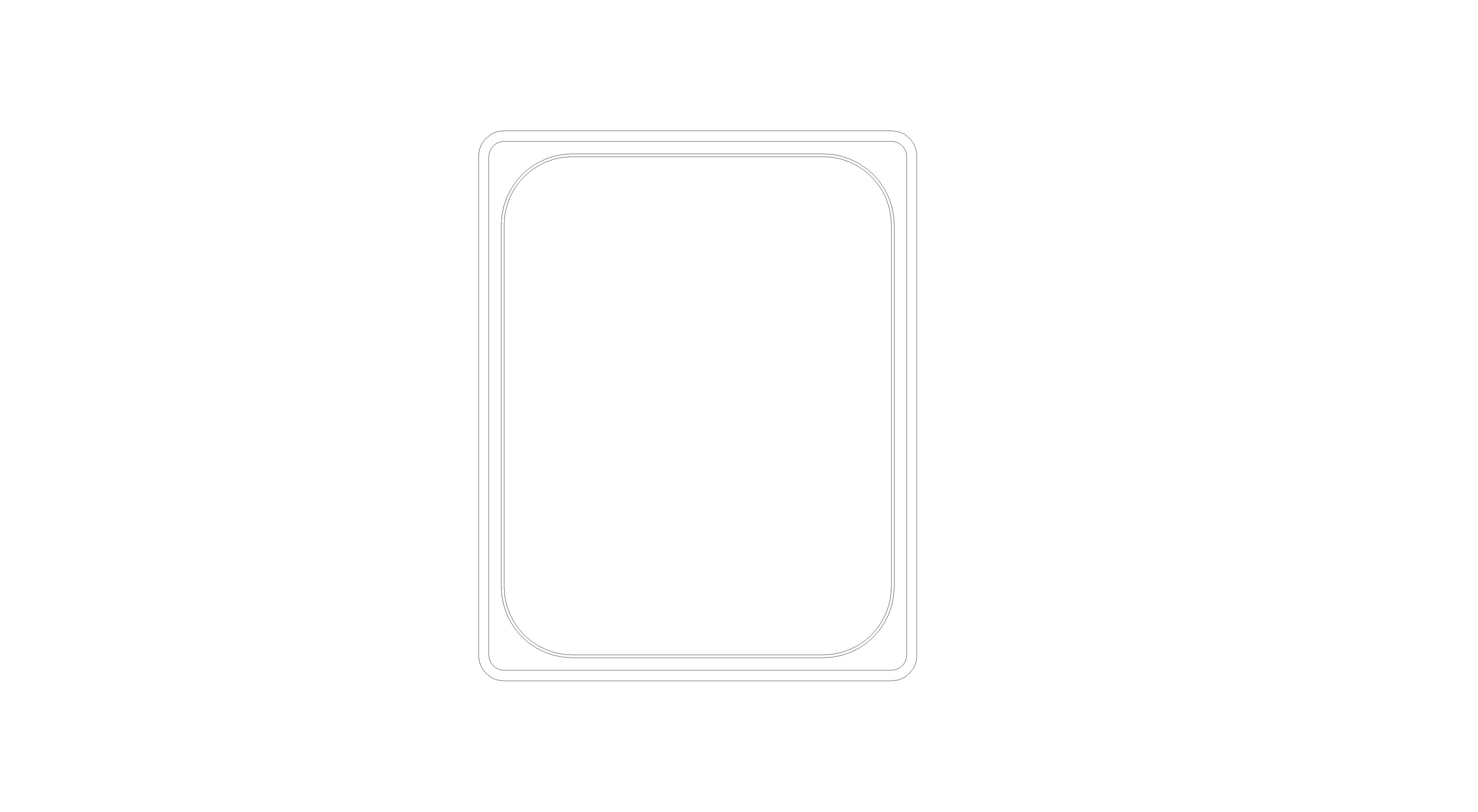

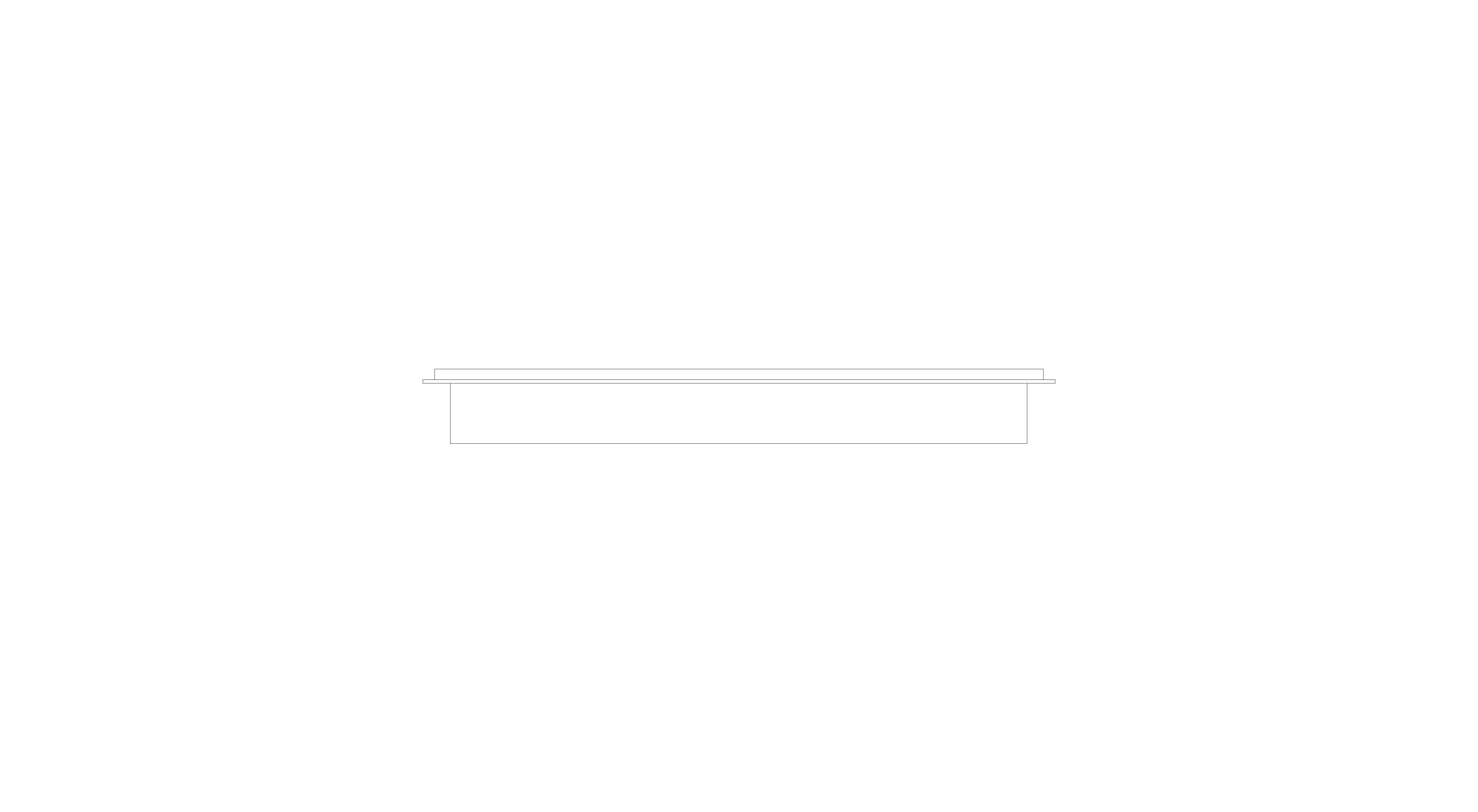

Glidevale Protect AH4 Part L Push-Up Hatch

by Glidevale Protect

Download Add to collection

Description

Glidevale Protect loft access hatches have been designed and engineered to BS EN ISO 9001. Each Glidevale Protect loft access hatch comprises a frame that is fixed into a trimmed opening and has a seal to the ceiling, and a hatch door that is thermally insulated and has a flexible closed cell seal between door and frame.

The AH4 push-up hatch door is injection-moulded polypropylene with insulation infill. Twin latches, and an anti-wind uplift mechanism at the opposite end of the door, prevent the hatch from becoming dislodged if there is severe wind gusting. Option: Two lockable security bolts.

Object Data

1 Revision

Last Updated

29/07/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameWBR_GlidevaleProtect_HatchesAndAccessPanels_LoftHatch_AH4
Classification NameUniclass2015
Classification ValuePr_30_59_36
Code PerformanceBS EN ISO 9001
ColorWhite
Constituentsn/a
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionAH4 push-up hatch has twin latches, and an anti-wind uplift mechanism at the opposite end of the door, to prevent the hatch from becoming dislodged if there is severe wind gusting. Option: Two lockable security bolts.
Documentation Certificatesglidevaleprotect.com/product/loft-hatches/
Documentation Installation Guideglidevaleprotect.com/product/loft-hatches/
Documentation Literatureglidevaleprotect.com/product/loft-hatches/
Documentation Maintenanceglidevaleprotect.com/product/loft-hatches/
Documentation Technicalglidevaleprotect.com/product/loft-hatches/
Door MaterialWBR_GlidevaleProtect_White
Duration UnitYear
Expected Life0
FeaturesThe integral seals significantly reduce water vapour migration into the loft space, reducing condensation risk, the seals also virtually eliminate heat loss by air movement around the hatch door and exceed the airtightness requirement, the hatches provide continuity of thermal insulation at ceiling level, substantially reducing heat loss
Finishn/a
Graden/a
Ifc Export AsIfcDoorType
Ifc Export TypeUSERDEFINED
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
MaterialHatch door is polypropylene with insulation infill
Modeln/a
Model Numbern/a
Model ReferenceAH4 Part L Push-Up Hatch
NBS DescriptionHatches and access panels
NBS Object NameGlidevale Protect - Hatches and access panels
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height717 mm
Nominal Length555 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size717mmx555mm
Spare Partsn/a
Type Commentsn/a
Type NameAH4 Part L Push-Up Hatch
URLwww.buildingproductdesign.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com
