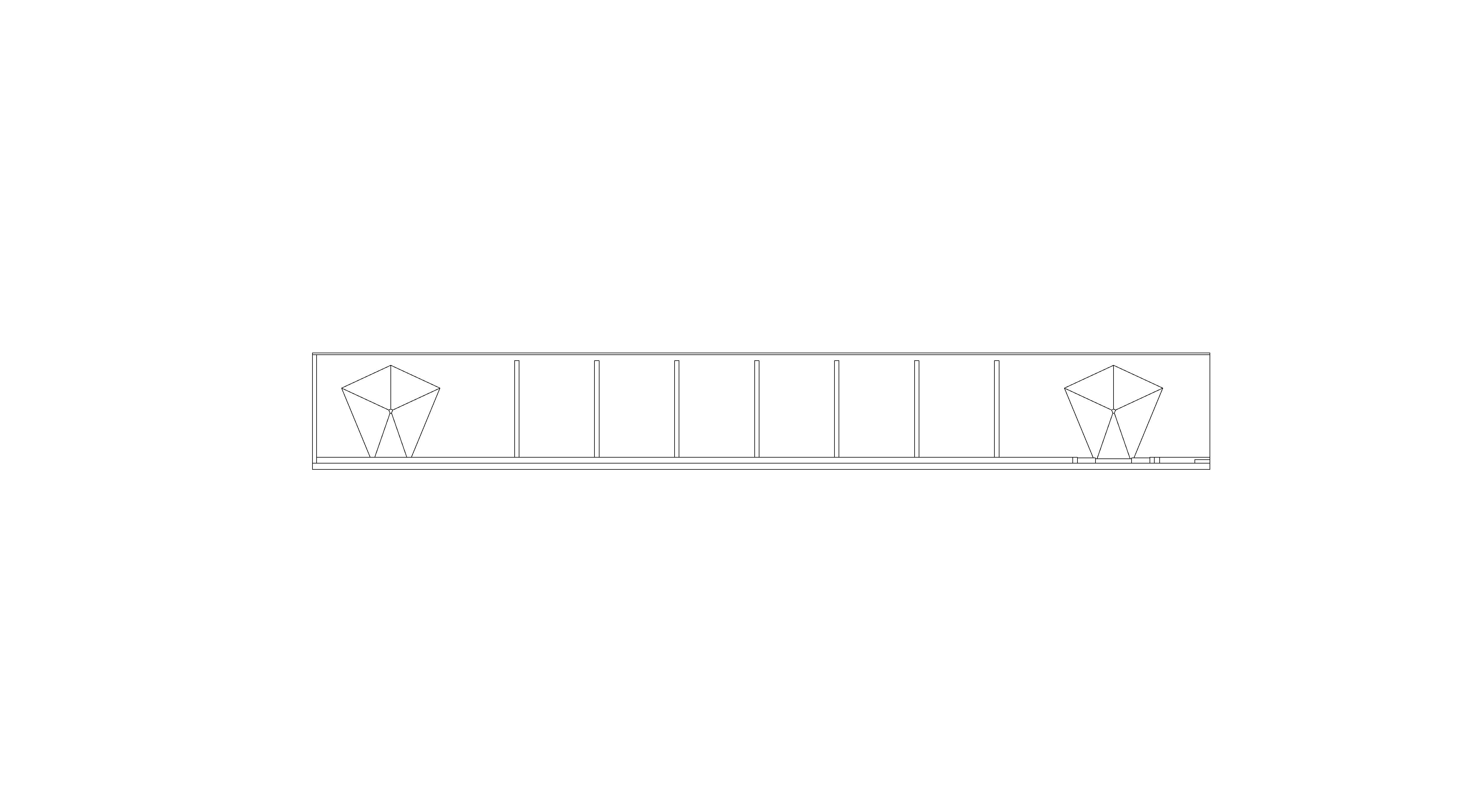

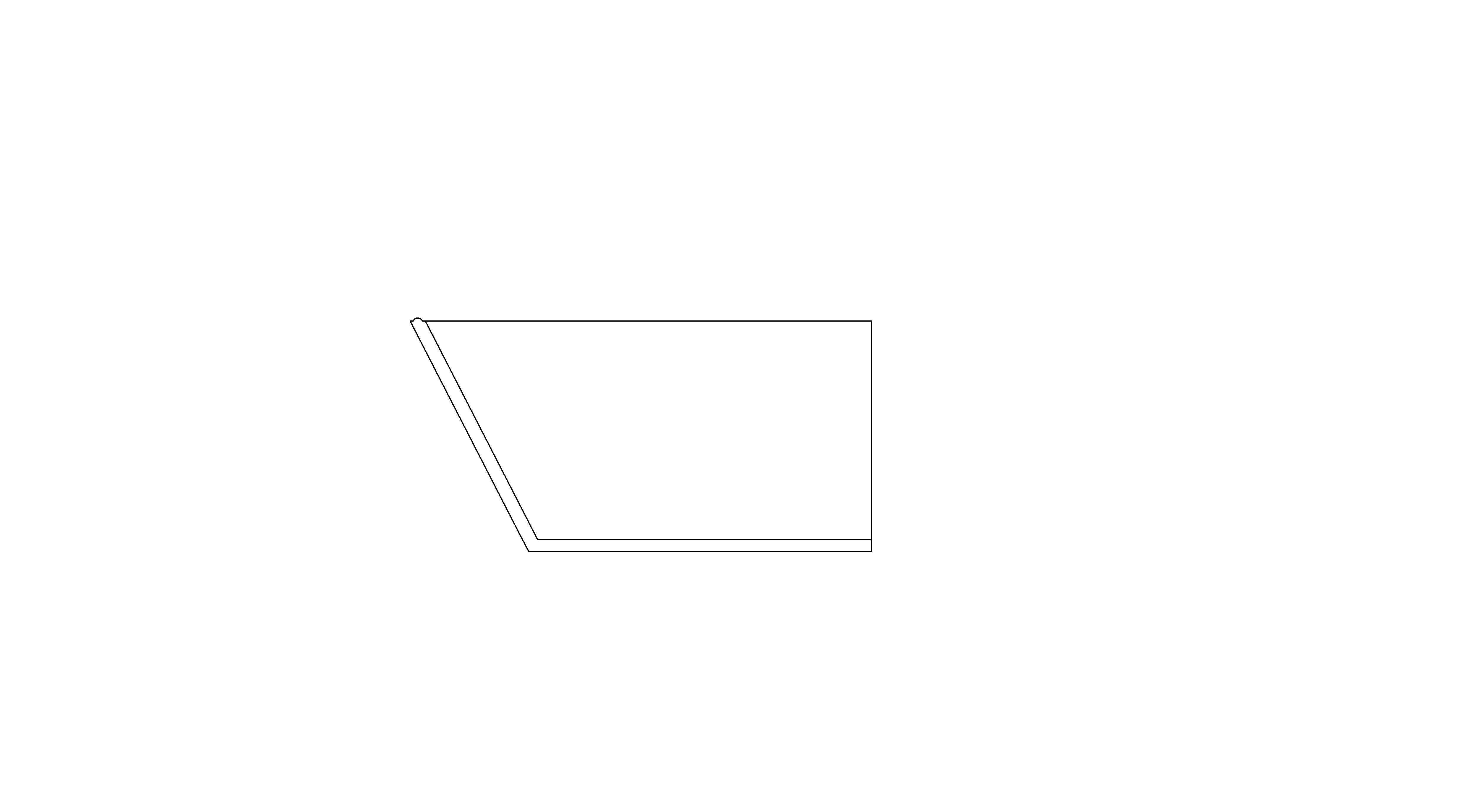

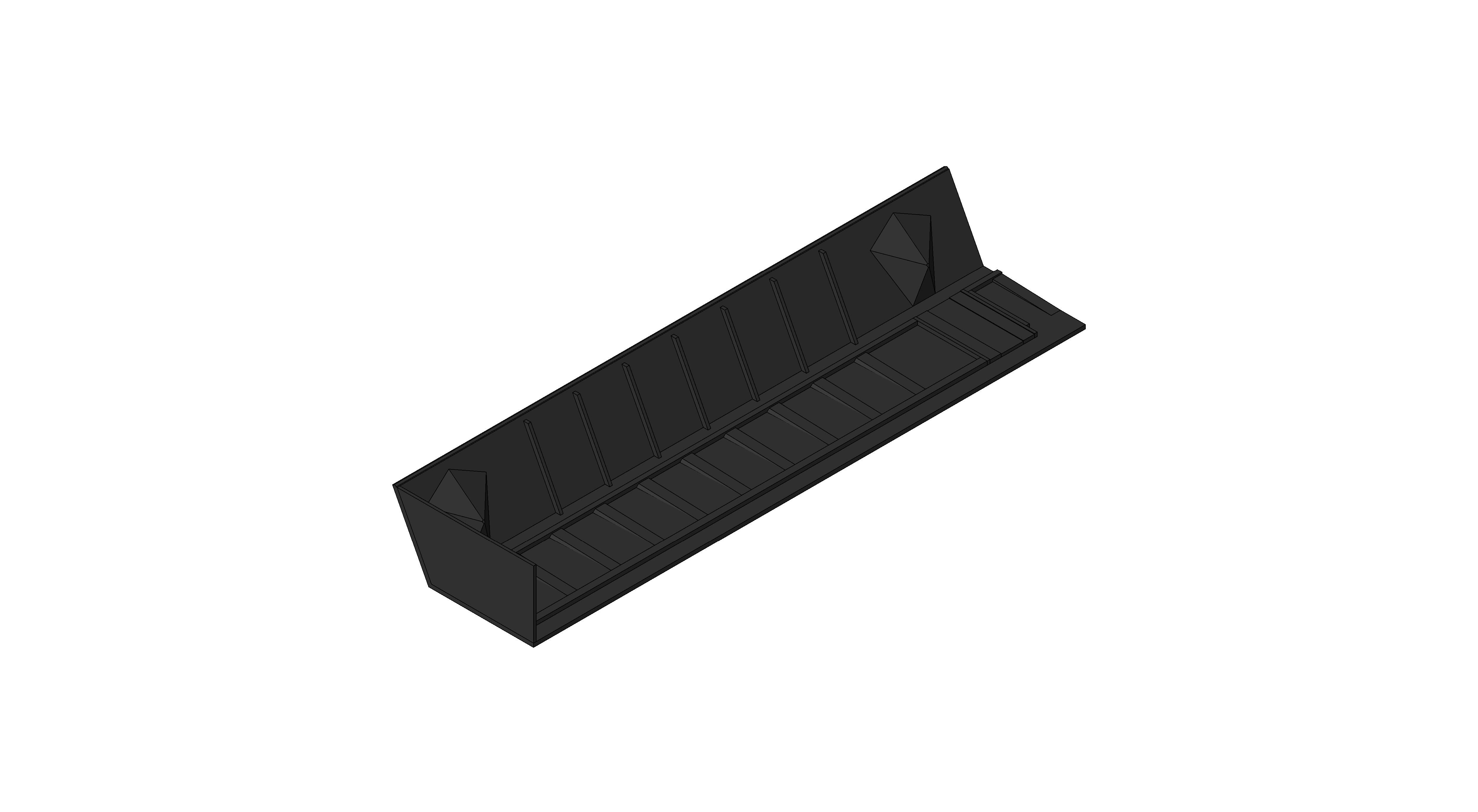

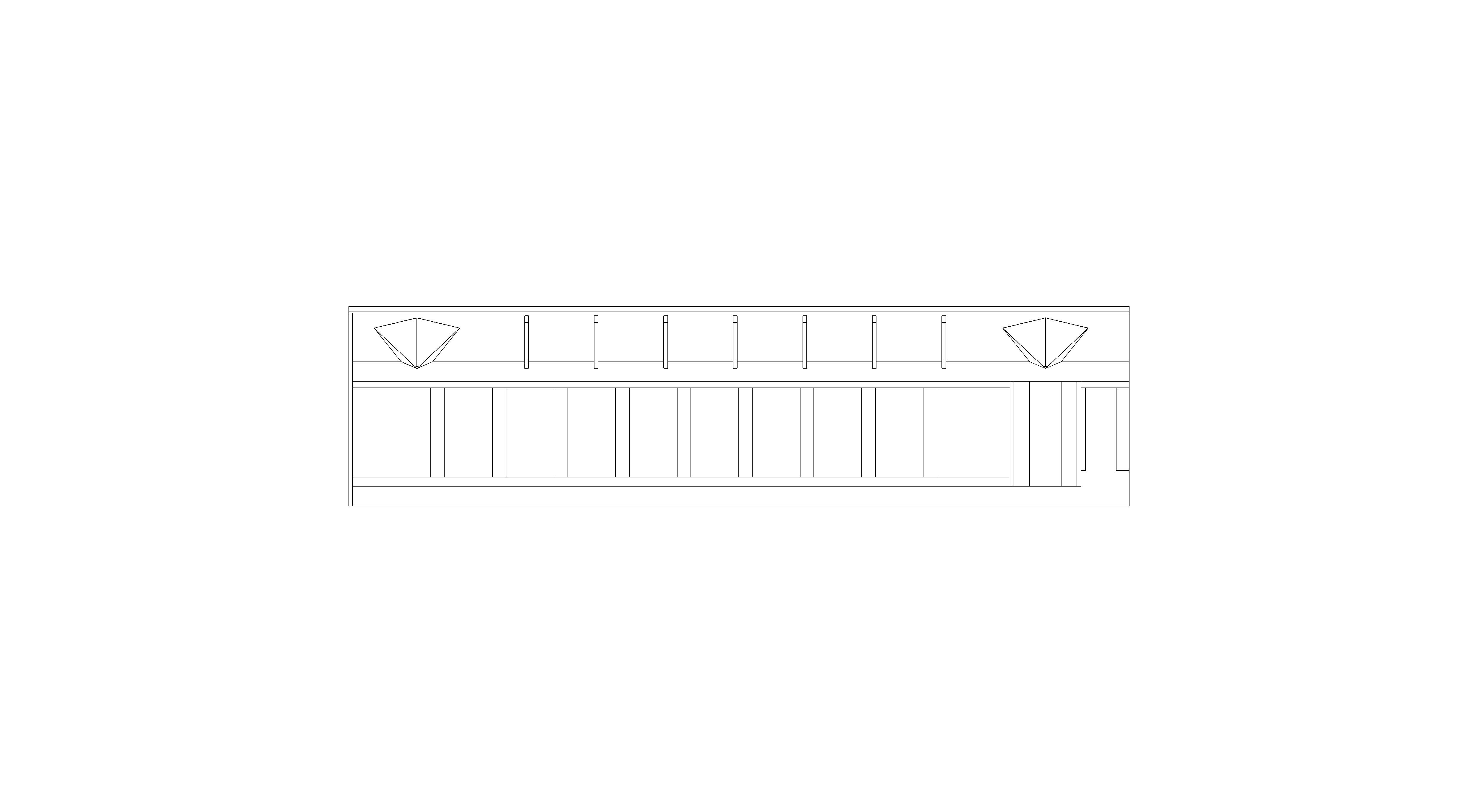

Glidevale Protect AT601 Righthand Blockwork Abutment Tray

by Glidevale Protect

Download Add to collection

Description

A Right Handed Blockwork Tray. AT Trays for abutments to blockwork are available in three sizes for different roof pitches and course heights. The AT100 Connector Unit is used to weather the vertical face of all blocks between trays. Abutment trays offer preformed cavity tray solutions at the junction where the sloping edge of a pitched roof abuts a wall. Part of the innovative Glidevale Protect Cavity Tray range offering many advantages over other systems. Intermediate trays are handed, with an upstand at one end preventing water from entering the cavity. Each tray has an integral weep to divert water safely on the roof covering. Availible in unleaded, short lead or long lead.

Object Data

1 Revision

Last Updated

29/07/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameWBR_GlidevaleProtect_PreformedCavityTrays_BlockworkAbutmentTray_AT601
Cavity Tray MaterialWBR_GlidevaleProtect_Black
Classification NameUniclass2015
Classification ValuePr_25_57_21_66
Code PerformanceBS EN 9001
ColorAnthracite
Constituentsn/a
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionA Right Handed Blockwork Tray, with a left hand upstand preventing water from entering the cavity with short lead flashing. AT Trays for abutments to blockwork are available in three sizes for different roof pitches and course heights. Due to the size of blocks compared to bricks (typically 225mm course height) the trays do not sit directly on top of each other, and the AT100 Connector Unit is used to weather the vertical face of all blocks between trays.
Documentation Certificatesglidevaleprotect.com/product/at-blockwork-abutment-trays/
Documentation Installation Guideglidevaleprotect.com/product/at-blockwork-abutment-trays/

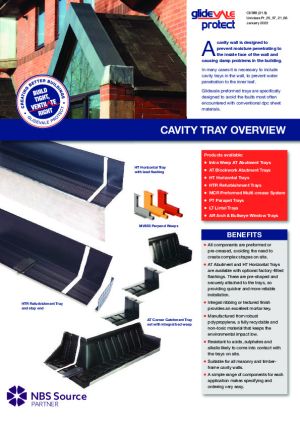

Documentation Literatureglidevaleprotect.com/product/at-blockwork-abutment-trays/
Documentation Maintenanceglidevaleprotect.com/product/at-blockwork-abutment-trays/
Documentation Technicalglidevaleprotect.com/product/at-blockwork-abutment-trays/
Duration UnitYear
Expected Life0
FeaturesAll components are preformed or pre-creased, avoiding the need to create complex shapes on site. Integral ribbing or textured finish provides an excellent mortar key. Manufactured from robust polypropylene sheet the trays are virtually indestructible on site. Resistant to acids, sulphates and alkalis likely to come into contact with the trays on site. Includes a polystyrene strip to assist in raking out joint for sitefitted flashing. Comes with optional factory-fitted handed lead flashing, avoiding the need to cut and dress flashings on site. Code 4 lead flashings to BS EN12588. AT100 Connector Unit should be used to weather the vertical face of all blocks between trays. The majority of cavity trays are made from recyclable materials.
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyCommon
Ifc Export TypeUSERDEFINED
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
Materialpolypropylene
Modeln/a
Model Numbern/a
Model ReferenceAT601 Right and Blockwork Abutment Tray Short Lead
NBS DescriptionPreformed cavity trays
NBS Object NameGlidevale Protect - Preformed cavity trays
NBS Office Master Tagn/a
NBS Reference45-25-20/415
Nominal Depth75 mm
Nominal Height0 mm
Nominal Length102 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeVariable length x 102 x 75
Spare Partsn/a
Type Commentsn/a
Type NameAT601 Right and Blockwork Abutment Tray Short Lead
URLwww.buildingproductdesign.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com
