Glidevale Protect MV250 Airbrick

by Glidevale Protect

Download Add to collection

Description

Airbrick to provide ventilation to underfloor voids, Glidevale Protect have a range of underfloor, through-wall and cavity wall ventilation products that meet the requirements of the regulations and provide protection against driving rain, birds, rodents and large insects.

Object Data

1 Revision

Last Updated

29/07/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

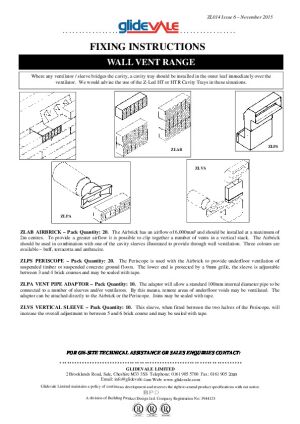

Installation Guide

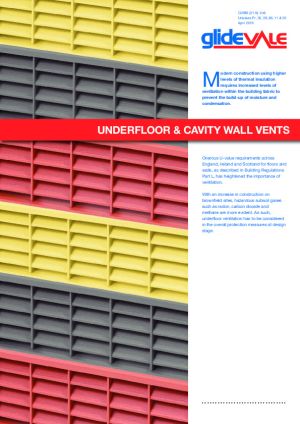

Product Literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameWBR_GlidevaleProtect_CavityVentilators_Airbrick_MV250
Classification NameUniclass2015
Classification ValuePr_35_90_50_03
Code Performancen/a
Colorterracotta/ buff/ anthracite
Constituentsn/a
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionGlidevale Universal In-Line Flat Interlocking Tile Vent is a universal tile ventilator and terminal solution which matches with various interlocking tile profiles. It can be used for all roof space ventilation requirements and can also be adapted into an SVP and mechanical extraction terminal by means of a pipe adaptor and flexible pipe. (Matches: Condron Concrete Slate Tile, Lagan Flat, Marley Modern, Marley Duo Modern, Northstone Donard or Penrose, Quinn Western Slate, Redland Mini Stonewold, Redland Mockbond Mini Stonewold, Russell Grampian, Russell Highland, Sandtoft Calderdale, Sandtoft Dual Calderdale)
Documentation Certificatesglidevaleprotect.com/product/underfloor-cavity-wall-vents/
Documentation Installation Guideglidevaleprotect.com/product/underfloor-cavity-wall-vents/
Documentation Literatureglidevaleprotect.com/product/underfloor-cavity-wall-vents/
Documentation Maintenanceglidevaleprotect.com/product/underfloor-cavity-wall-vents/
Documentation Technicalglidevaleprotect.com/product/underfloor-cavity-wall-vents/
Duration UnitYear
Expected Life0
FeaturesDriving rain resistant, standard brick face dimensions, injection-moulded components,can be stacked in multiples, can be used with MV255 Straight Sleeve and MV251 Periscope.
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyCommon
Ifc Export TypeUSERDEFINED
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
Materialn/a
Modeln/a
Model Numbern/a
Model ReferenceMV250 Airbrick
NBS DescriptionAirbricks
NBS Object NameGlidevale Protect - Airbricks
NBS Office Master Tagn/a
NBS Reference45-80-50/370
Nominal Depth65 mm
Nominal Height215 mm
Nominal Length57 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
ShapeCuboid
Size215mm x 57mm x 65mm
Spare Partsn/a
Type Commentsn/a
Type NameMV250 Airbrick
URLwww.buildingproductdesign.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com
