Glidevale trickle ventilators (Tricklevents)

by Glidevale Protect

Download Add to collection

Description

The Glidevale range of trickle ventilators (tricklevents) can be used to provide background ventilation in all types of building. The comprehensive range of window ventilators provide solutions for all types of application and window type.

Features & benefits

Suitable for plastic, metal or timber windows.
The vents are available in their standard colour, but can be colour-matched to order.
All Glidevale Trickle Ventilators have been tested to meet the building regulations.

Range includes:

Standard through frame

Ultra Vent and Grille
Energy saver humidity sensitive vent

Acoustic through frame

Acoustic energy saver humidity sensitive vent
Acoustic low profile vent

Object Data

1 Revision

Last Updated

30/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameGlidevaleProtect_WallVenting_TVES4EnergySaverHumiditySensitiveTrickleVent
Classification NameUniclass2015
Classification ValuePr_30_59_96
Code Performancen/a
Colorwhite
Constituentsn/a
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionThrough frame window tricklevent with automatic open/close function dependant on humdity levels. It can be used to meet background ventilation requirements of Building Regulations. Minimises unnecessary ingress of cold air
Documentation Certificatesglidevaleprotect.com/technical-resources/downloads/
Documentation Installation Guideglidevaleprotect.com/technical-resources/downloads/
Documentation Literatureglidevaleprotect.com/technical-resources/downloads/
Documentation Maintenanceglidevaleprotect.com/technical-resources/downloads/
Documentation Technicalglidevaleprotect.com/technical-resources/downloads/
Duration UnitYear
Expected Life0
Features● Automatic, no user input. ● Uses no electricity or mechanical power. ● Airflow at 20Pa: minimum 7m3/hr (closed to trickle), max 40m3/hr ● Directs airflow upwards avoiding draughts and discomfort ● Energy efficient, minimises heat loss. ● Colour: white, brown or black as standard. Other RAL colours to order
Finishwhite
Graden/a
Ifc Export AsIfcAirTerminalType
Ifc Export TypeGRILLE
Keynoten/a
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
MaterialInjection moulded polystyrene
ModelGlidevale Protect Glidevale trickle ventilators (Tricklevents)
Model Numbern/a

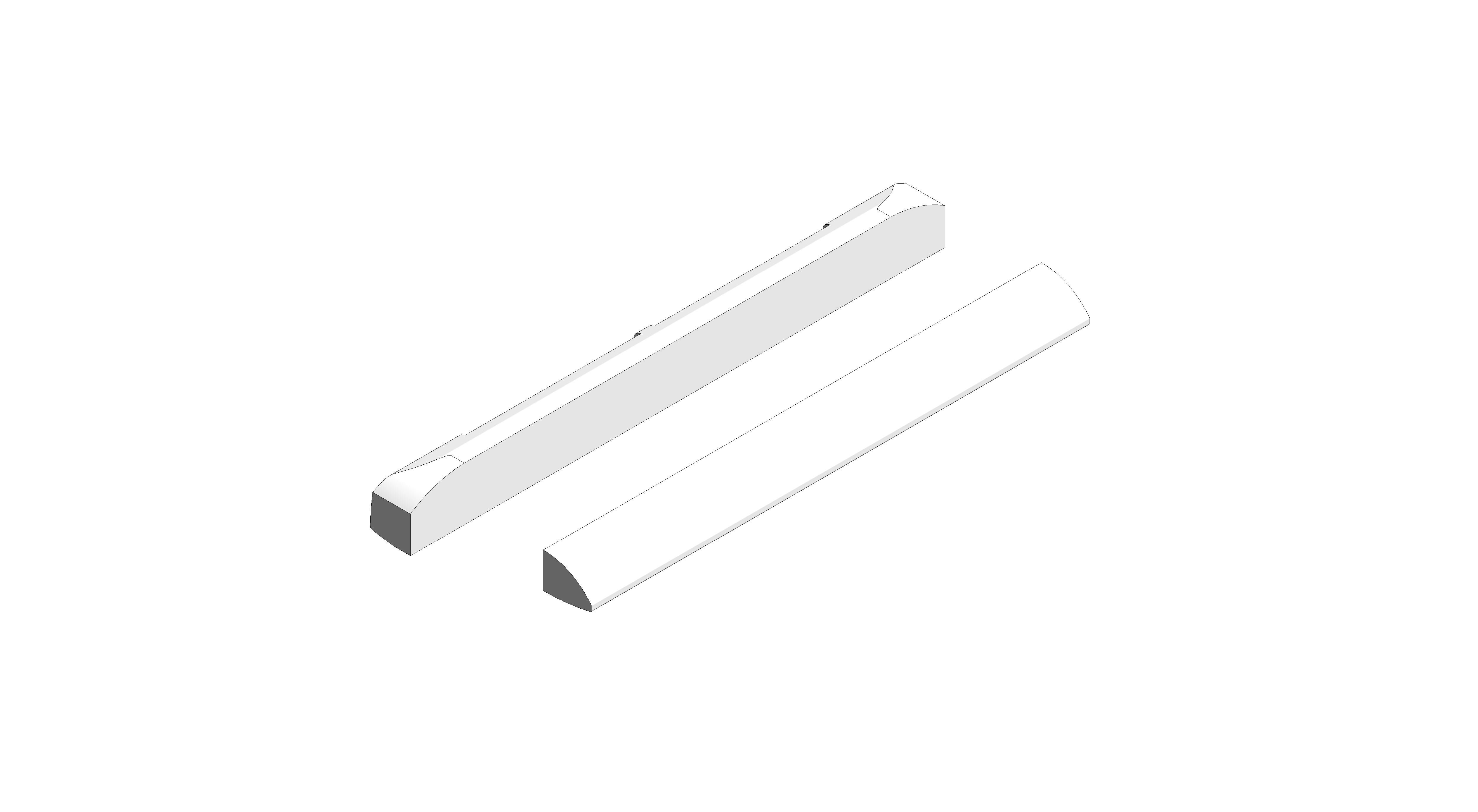

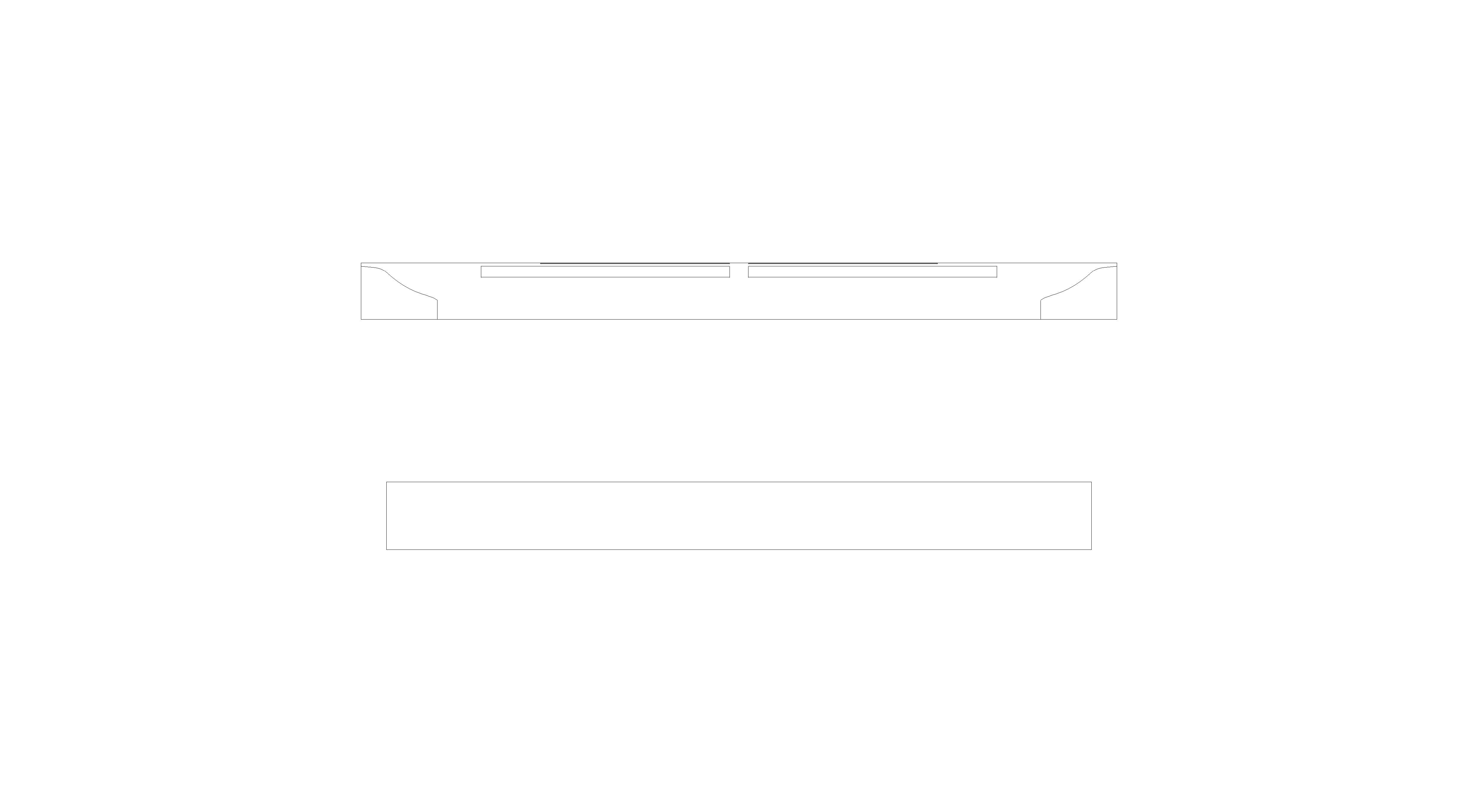

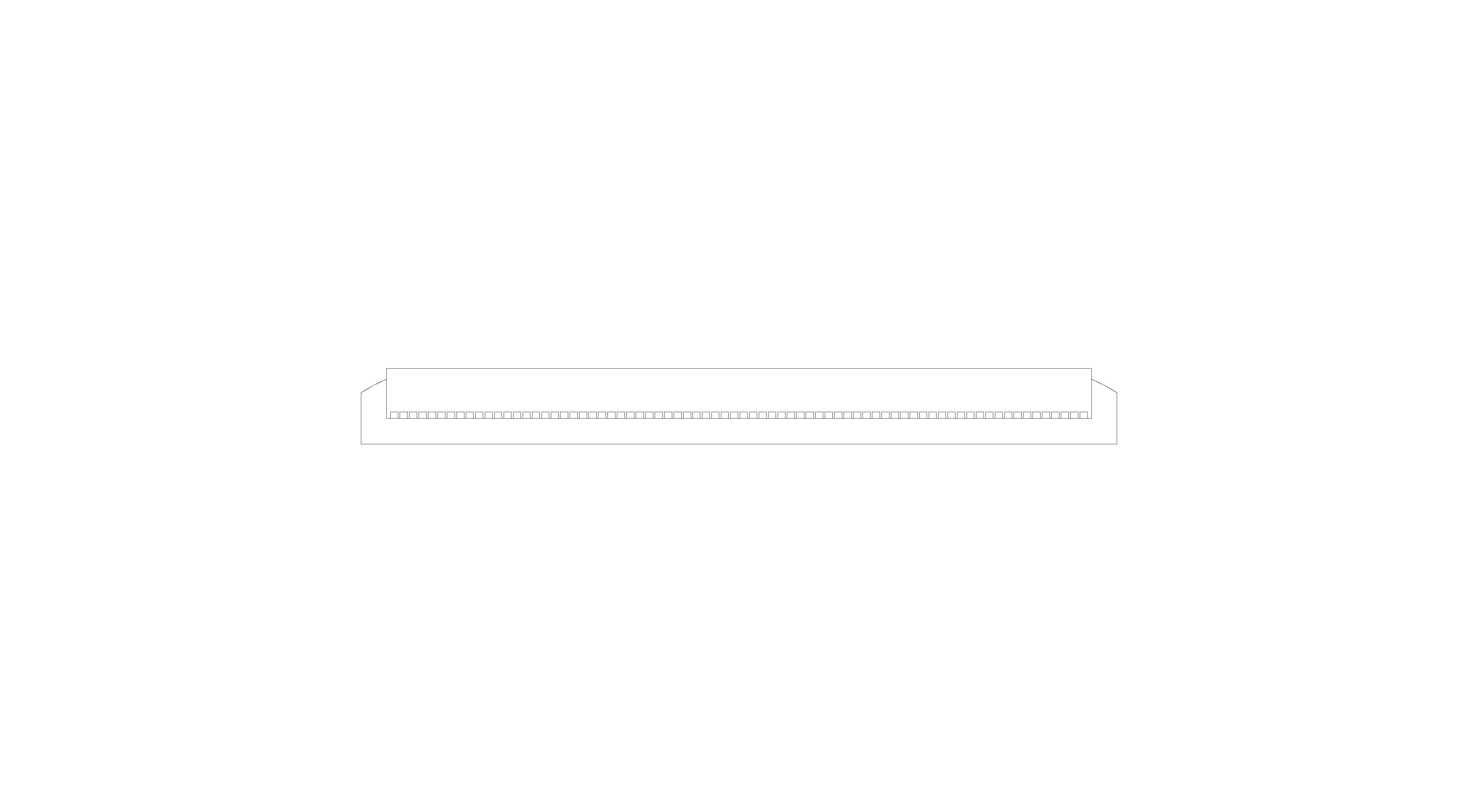

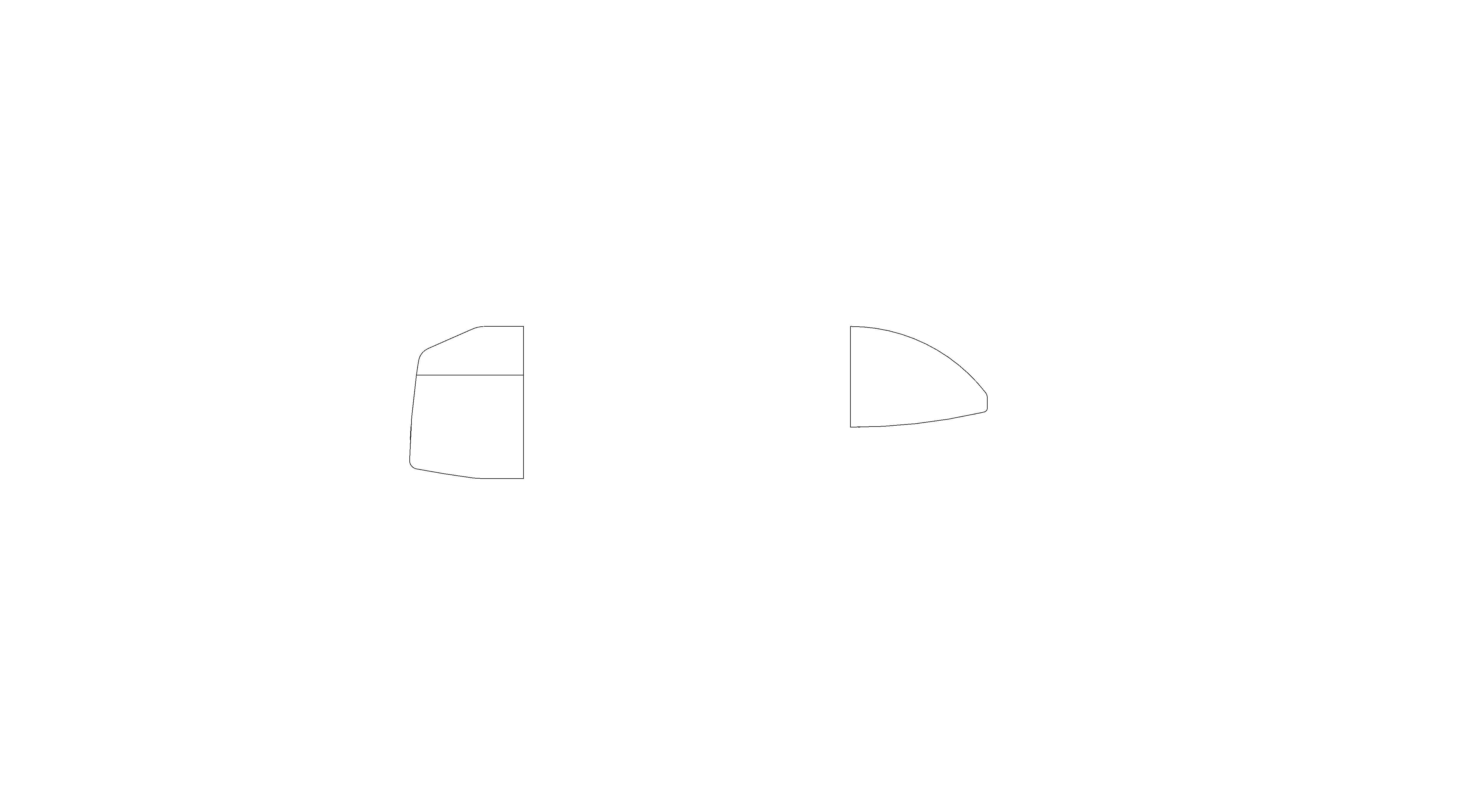

Model ReferenceTVES4 Energy Saver Humidity Sensitive Trickle Vent
NBS Descriptionn/a
NBS Noten/a
NBS Object NameGlidevale Protect - n/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth30 mm
Nominal Height40 mm
Nominal Length400 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size400 x 40 x 30
Spare PartsTechnical@glidevaleprotect.com
Trickle Vent MaterialWBR_GlidevaleProtect_Polystyrene_White
Type CommentsGlidevale Protect Glidevale trickle ventilators (Tricklevents)
Type NameGlidevale Protect Glidevale trickle ventilators (Tricklevents)
URLglidevaleprotect.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor LaborTechnical@glidevaleprotect.com
Warranty Guarantor PartsTechnical@glidevaleprotect.com
