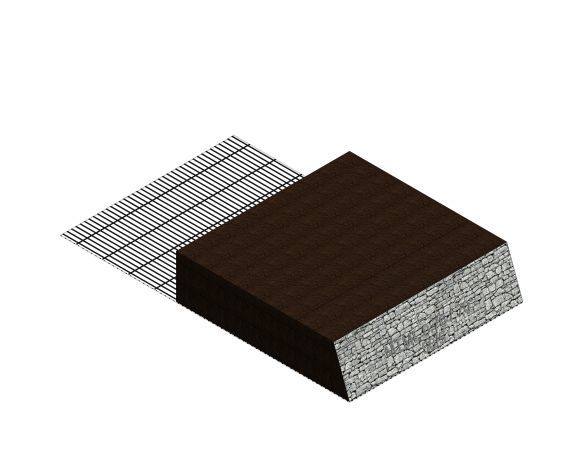

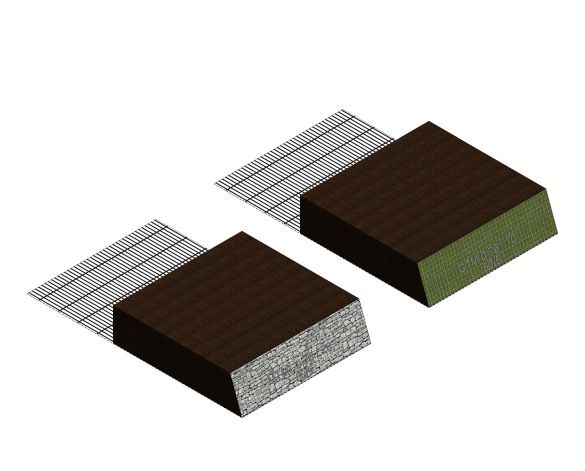

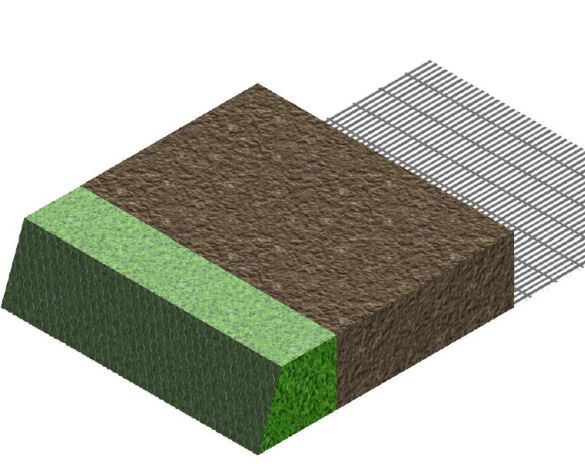

Green Terramesh® is an environmentally friendly modular system used to form vegetated (green) faced soil reinforced structures. The system consists of pre-fabricated units of double twisted wire mesh (8×10 type, wire diameter 2.2 mm or 2.7 mm) lined with an erosion control blanket and stiffened with a welded mesh panel. The angled front face and the erosion control blanket are designed to facilitate the establishment of natural vegetation. As all components are factory fitted, Green Terramesh® is the quickest to install reinforced soil system. Green Terramesh can be used in conjunction with our high performance primary geogrids, ParaLink®, ParaGrid® on taller slopes and structures.

Green Terramesh® is covered by Environmental Product Declaration (EPD)

_Authorinfo@hq.maccaferri.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Byinfo@hq.maccaferri.com
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/product/2c33ffa5-fa64-4fbe-9971-888791693bb5/document/f190cc5c-147f-43f8-8804-4a9c733ee966/download
A45.000000000000 °
a569.998776300001 mm
Accessibility Performancen/a
ApplicationsSoil reinforcement with slope angles up to 87
Assembly CodeG2040
Asset TypeMovable
b569.998776300000 mm
B45.000000000000 °
Backfill MaterialMust meet the requirements of the MCHW Volume 1 SHW
BBA_DurabilityService life expectancy of 120 years

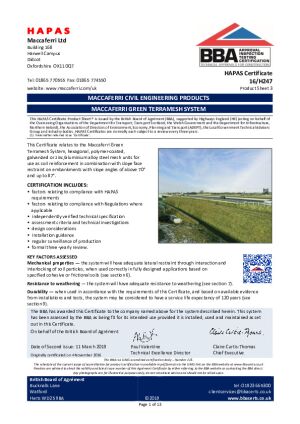

BBA_HAPAS Certificate16/H247 Product Sheet 3
BBA_HAPAS Certificate URLwww.bbacerts.co.uk/uploads/files/CertificateFiles/H2/H247ps3i2.pdf
BBA_Related Certificatewww.bbacerts.co.uk/uploads/files/CertificateFiles/31/3141ps1i2.pdf
BBA_Related Certificate Mesh95/3141 Product Sheet 1 - Maccaferri Hexagonal Double twisted mesh products for civil engineering and enviromental applications
BBA_TitleMaccaferri Green Terramesh System
BBA_UseSoil reinforcement in combination with slope face restraint on embankments with slope angles of above 70
BBA_Wire Tensile Strength350 to 550 N
BIM Object NameMaccaferri_Site_GreenTerramesh
c806.099999979529 mm
C90.000000000000 °
Classification NameUniclass2015
Classification ValuePr_20_93_71
Code Performancen/a
Colorn/a
ConstituentsPolimac coated mesh panel, erosion control blanket, welded mesh panel, two steel brackets and steel tie rods
Created Byinfo@hq.maccaferri.com
Created On2019-04-03T09:00:00
DescriptionGreen Terramesh is an environmentally friendly modular system used to form vegetated (green) faced soil reinforced slopes (also known as Mechanically Stabilised Earth) and embankments.
Documentation Certificateswww.maccaferri.com/products/green-terramesh/
Documentation Installation Guidewww.maccaferri.com/products/green-terramesh/
Documentation Literaturewww.maccaferri.com/products/green-terramesh/
Documentation Maintenancewww.maccaferri.com/products/green-terramesh/
Documentation Technicalwww.maccaferri.com/products/green-terramesh/
Duration UnitYears
Expected Life120
Face300-500 mm of vegetative soil and erosion control blanket (woven polyester fabric or biodegradable mat)
Facing Inclination45.000000000000 °
Featuresn/a
Fill MaterialGrass
Finishn/a
Graden/a
Grid MaterialMaccaferri_Paragrid_30/05_100/05
Height569.998776300000 mm
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.MOVABLE
Installationn/a
Length3000.000000000000 mm
MaintenanceIs not normally required. Should the exposed mesh be damaged, replacement panels can readily be fixed to the structure
ManufacturerMaccaferri
Manufacturer NameMaccaferri
MaterialPolimac coated steel wire
Mesh ImageMesh.jpg
Mesh Tensile Strength50.0 kN/m
Mesh Type8x10
ModelGreen Terramesh
Model NumberMaccaferri Green Terramesh System
Model ReferenceGreen Terramesh
NBS DescriptionRetaining wall units
NBS Object NameMaccaferri - Retaining wall units
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth3000.000000000000 mm
Nominal Height569.998776300000 mm
Nominal Length3000.000000000000 mm
Production Year2019
Product URLwww.maccaferri.com/products/green-terramesh/
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Sizen/a
Soil MaterialEarth
Spare Partsn/a
StoneStone Class 6G not in the scope of the BBA certificate Stone size between 100 and 200mm. Must be hard and durable material (only for Mineral Terramesh facing)
TextGTM 0.57 / 45
Type CommentsMaccaferri Green Terramesh System
Type NameMaccaferri Green Terramesh System
URLwww.maccaferri.com/
Void Thickness1.000000000000 mm
Volume5.129988986700 m³
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@hq.maccaferri.com
Welded Mesh MaterialMaccaferri_Mesh_Welded4mm
Width3000.000000000000 mm
Wire Diameter2.70/3.70 mm
Wire Mesh MaterialMaccaferri_Mesh_DtWire
Wire Thickness2.000000000000 mm
Wrap Length650.000000000000 mm
