Greenstar Heat Interface Unit (HIU)

by Bosch

Download Add to collection

Description

Our Heat Interface Unit (HIU) is the perfect solution for providing hot water and space heating to properties which are serviced from district heating and applications with a centralised plant room.

The new Greenstar HIU includes a premium appliance that offers up to 21 litres per minute flow rate and incorporates components such as a differential pressure control valve (KE Plus, E Plus and E) and summer by-pass (KE Plus and E Plus)

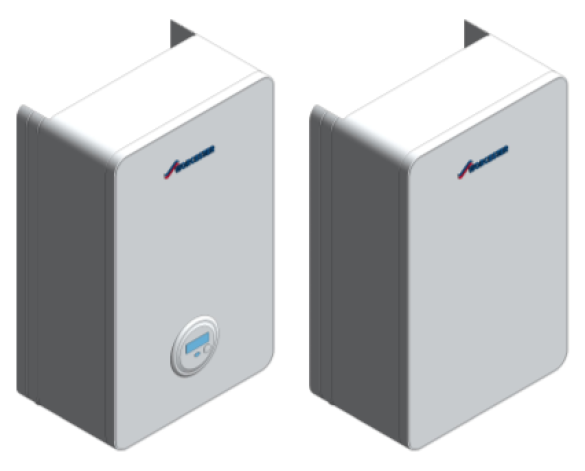

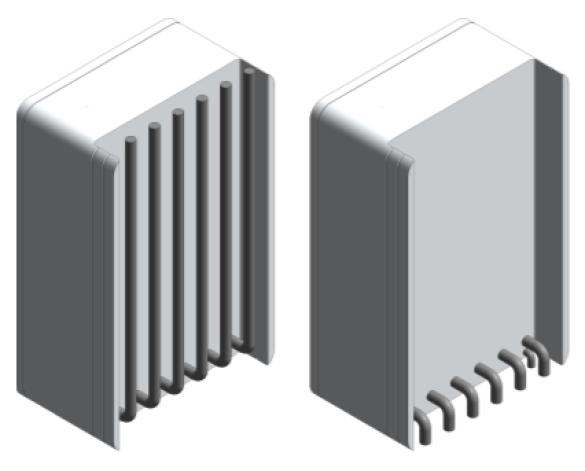

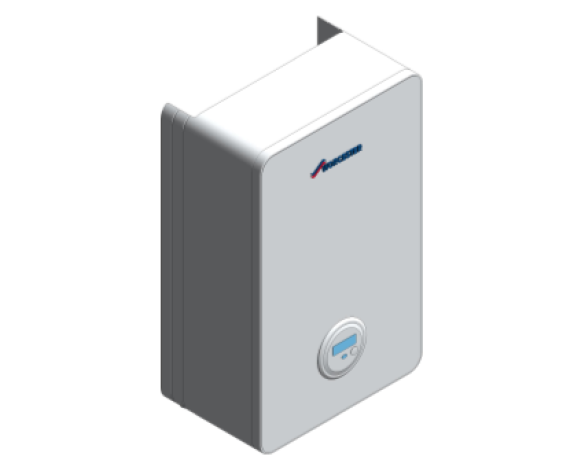

This download contains Revit components for the Worcester Grenstar Heat Interface Unit (HIU) including HIU, HIU E, HIU E Plus & HIU KE Plus versions with or without meter.

Components include user selectable features and guidance including manufacturer recommend clearance zones.

Object Data

1 Revision

Last Updated

13/04/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorKris Atkinson
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Access Clearance Bottom200 mm
Access Clearance Front600 mm
Access Clearance Left5 mm
Access Clearance Rear0 mm
Access Clearance Right5 mm
Access Clearance Top30 mm
Assembly CodeD3020
Asset TypeFixed
CE ApprovalECT0158
Classification NameUniclass2015
Classification ValuePr_80_51_51_37
Cold Inlet Size22 mm
ColorWhite
ColourWhite
Connection OrientationTop & Bottom
ConstituentsSteel, Copper, Stainless steel, Cast iron, Polymers, Foam
Controls Type230VAC or EMS
Created Bychp.technical@uk.bosch.com
Created OnMar 17
Depth270 mm
DescriptionDomestic hot water and space heating for properties that are serviced from district heating or centralised boiler plants
DHW39.1 kW
DHW Connection TypeCompression
DHW Flow Rate L/Min14
DHW Heat Exchanger MaterialStainless Steel and Copper
DHW Max Operating Pressure10 bar
DHW Max Temperature60 °C
DHW Primary Flow Rate L/S0.16
DHW Primary Pressure Loss19.1 kPa
DHW Rated CriteriaDistrict 80°C (DHW 50°C @ 40K rise)
Documentation Certificateswww.worcester-bosch.co.uk/professional
Documentation Installation Guidewww.worcester-bosch.co.uk/professional
Duration UnitYears
Expected Life20
External MaterialSteel
Frequency50
Gross Weight31.00 kg
Heating Flow&Return Connection Size22 mm
Heating Flow&Return Connection TypeCompression
Heating Max Flow Temperature80 °C
Heating Max Operating Pressure3 bar
Heating Output Range1.5-15
Height700 mm
Hot Outlet Size22 mm
Inside Dim418 mm
Internal Flow MeterYes
KeynoteT10
Maintenance Interval3 years
ManufacturerWorcester
Maximum Power Consumption41.3
Meter Interface ProtocolMbus
Meter TypeMID Class 2
ModelWorcester Greenstar HDU - Wall Mounted Heat Distribution Unit
Model NumberWorcester Greenstar HDU - Wall Mounted Heat Distribution Unit
MountingWall
NBS Object NameHeat meters
NBS Reference90-65-55/430
Primary Flow&Return Connection TypeCompression
Primary Flow&Return Size22 mm
Primary Max Operating Pressure10 bar
Production Year2015
Product Model NumberGreenstar HIU
Product RangeWorcester Greenstar HDU - Wall Mounted Heat Distribution Unit
Replacement Costn/a
Safety Valve Connection Size15 mm
Safety Valve Connection TypePlain
ShapeRectangular Vertical
Shipping Weight34.00 kg
Size440 x 700 x 270mm
Spare Partsn/a
TypeIndirect
Type CommentsGreenstar HIU (with meter)
Type NameGreenstar HIU (with meter)
URLwww.worcester-bosch.co.uk/professional
Voltage230VAC
Warranty Description2 years Parts & Labour
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Partschp.technical@uk.bosch.com
Width440 mm
