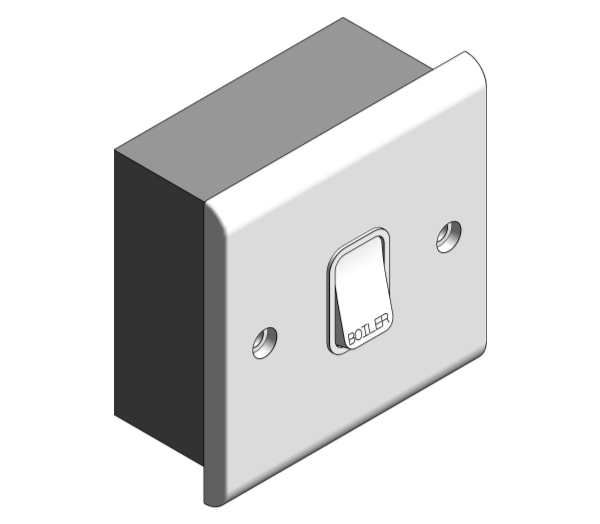

Gridswitch (Décor Stainless Steel)

by Deta Electrical Co. Ltd.

Download Add to collection

Description

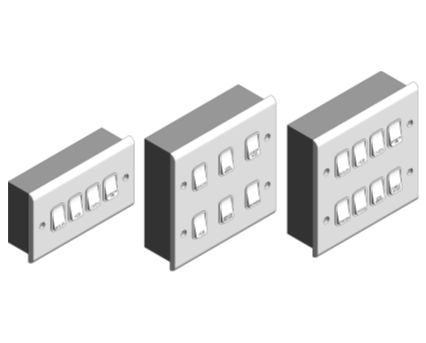

Slimline Décor offers a comprehensive range of accessories available in a choice of Chrome or Satin Chrome finishes with either black or white moulded inserts. With matching metal rockers on all switched accessories, Slimline Décor provides elegance and sophistication to any modern domestic or commercial building.

Unique slim profile with curved top and bottom edges, Grey font engraving, Clear embossed & white printed terminal markings, Colour coded terminals, Neon versions available, Neon leads enclosed, 2 earth terminals, Captive and backed out terminals, Terminals have large lead-ins, Flex outlet option.

Products in the Slimline Décor range are guaranteed for 25 years (2 years for electronic products).

This download is for the Gridswitch (Decor Stainless Steel)

Object Data

1 Revision

Last Updated

10/07/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD5020120
Asset TypeFixed
Back Box Depth42 mm
BIM Object NameDetaElectrical_Gridswitch_SlimlineDecor_StainlessSteel
Classification NameUniclass2015
Classification ValuePr_65_72_97_34
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bysales@detaelectrical.co.uk
Created On2023-05-23T09:00:00
Default Elevation1219 mm
DescriptionG3421SS - Grid Plate Slimline Decor 1g SS
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2157
Documentation Literaturespecifi.bimstore.co.uk/document/share/2157
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2157
Duration UnitYears
Expected Life0
FeaturesAll modules have Clear Grey font engraving to curved rocker - identifying the individual function, clear terminal markings and are front loading so they simply clip in place, which means they can easily be upgraded or replaced without the need to remove the mounting grid frame.
Finishn/a
Fixing Offset43 mm
Fixing Offset 243 mm
Fixing Offset 35 mm
Fixing Offset 453 mm
Graden/a
Grid Frames2 x G3404 - 4 module - for 4,8,12 gang plate frame
Gridswitch No1
Height146 mm
Ifc Export AsPset_ElectricalDeviceCommon
Ifc Export TypeIfcSwitchingDeviceType
KeynoteV31
ManufacturerDeta Electrical
Manufacturer NameDeta Electrical
MaterialStainless Steel
Material Type ChromeNo
Material Type SatinYes
ModelG3421SS
Model NumberG3421SS
Model ReferenceG3421SS - Grid Plate Slimline Decor 1g SS
NBS DescriptionMultiswitches
NBS Noten/a
NBS Object NameDeta Electrical - Multiswitches
NBS Office Master Tagn/a
NBS Reference90-70-10/465
Nominal Depth7 mm
Nominal Height146 mm
Nominal Length146 mm
Production Year2023
Referenced StandardIn compliance with BS 5733
Replacement Costn/a
ShapeSquare
Size146mm x 146mm
Spare Partsn/a
Switch 1Yes
Switch 1-5 Offset35 mm
Switch 2Yes
Switch 2-6 Offset25 mm
Switch 3Yes
Switch 3-6 Offset25 mm
Switch 4Yes
Switch 4-8 Offset25 mm
Switch 5Yes
Switch 6Yes
Switch 7Yes
Switch 8Yes
Switch MaterialDetaElectrical_StainlessSteel
Thickness7 mm
Type CommentsG3421SS - Grid Plate Slimline Decor 1g SS
Type NameG3421SS - Grid Plate Slimline Decor 1g SS
Unit MaterialDetaElectrical_StainlessSteel
URLwww.detaelectrical.co.uk/
Warranty Description25-year guarantee
Warranty Duration Laborn/a
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborsales@detaelectrical.co.uk
Warranty Guarantor Partssales@detaelectrical.co.uk
Width146 mm
