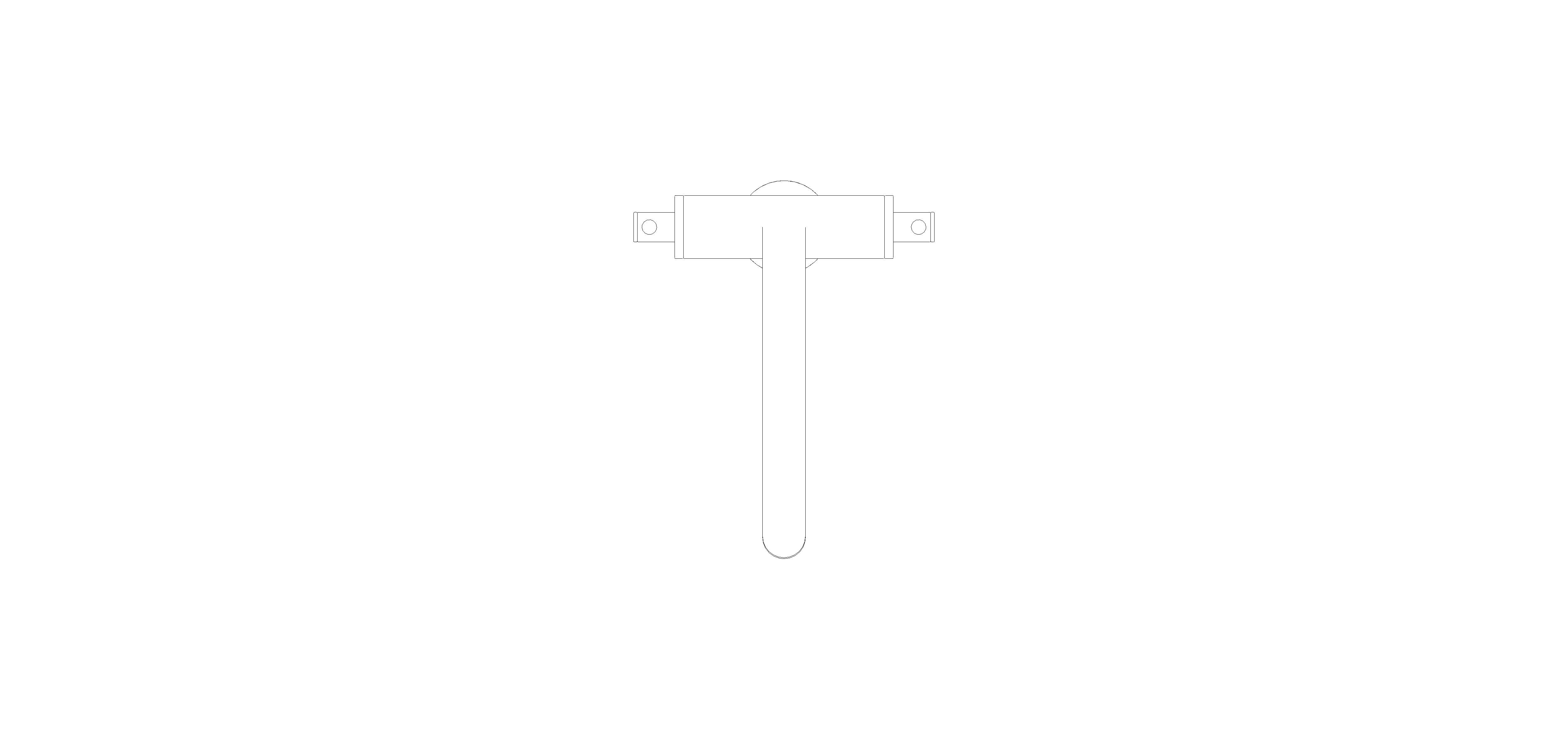

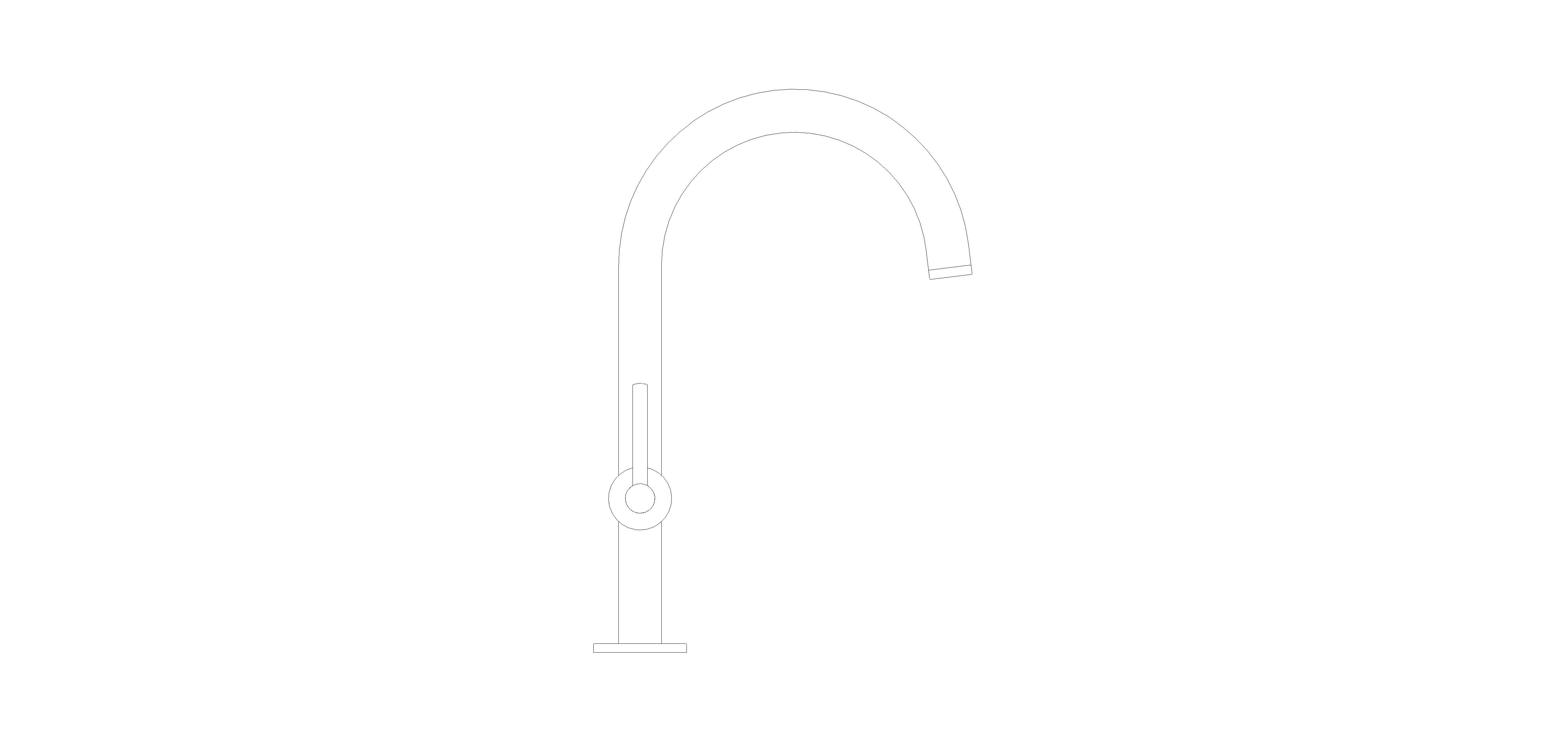

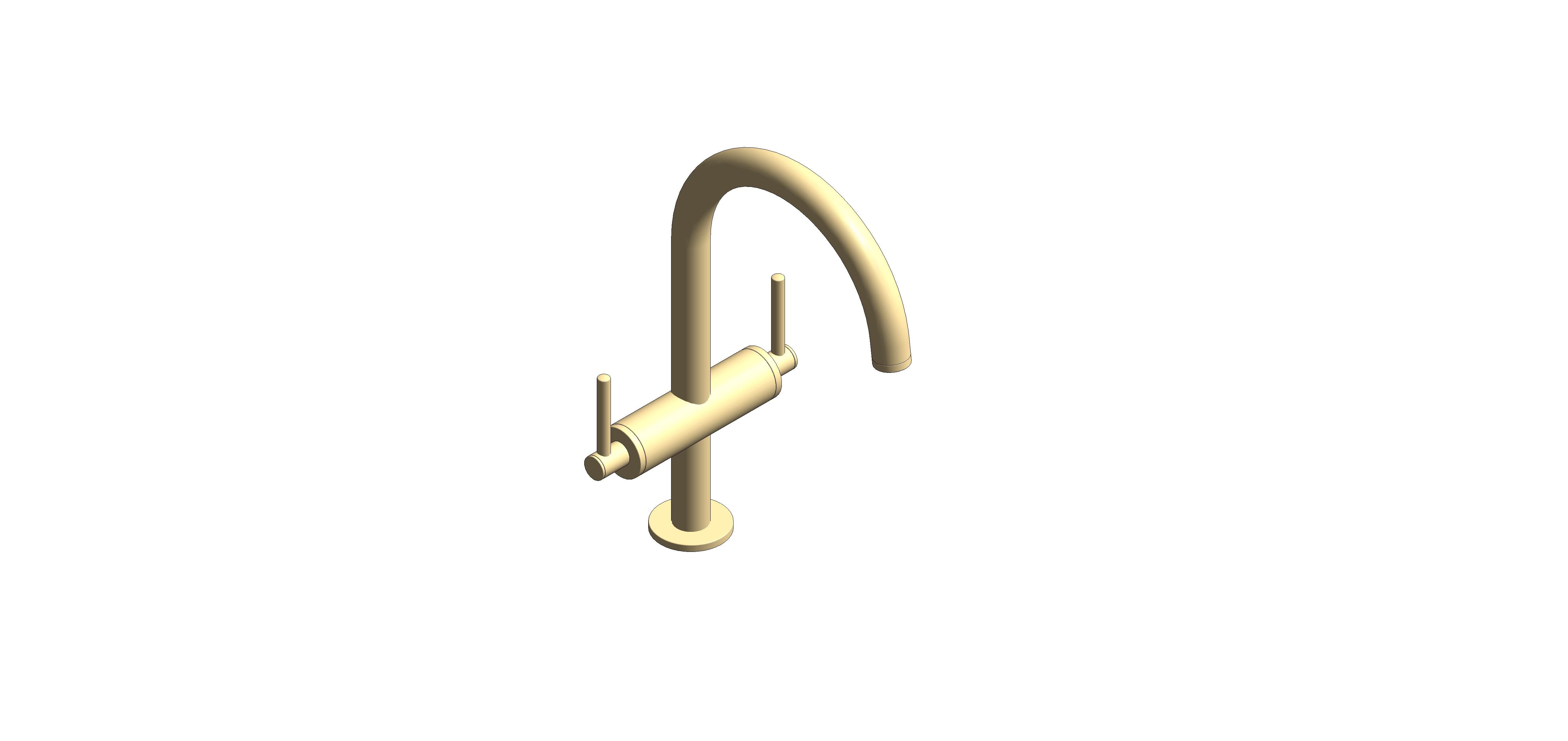

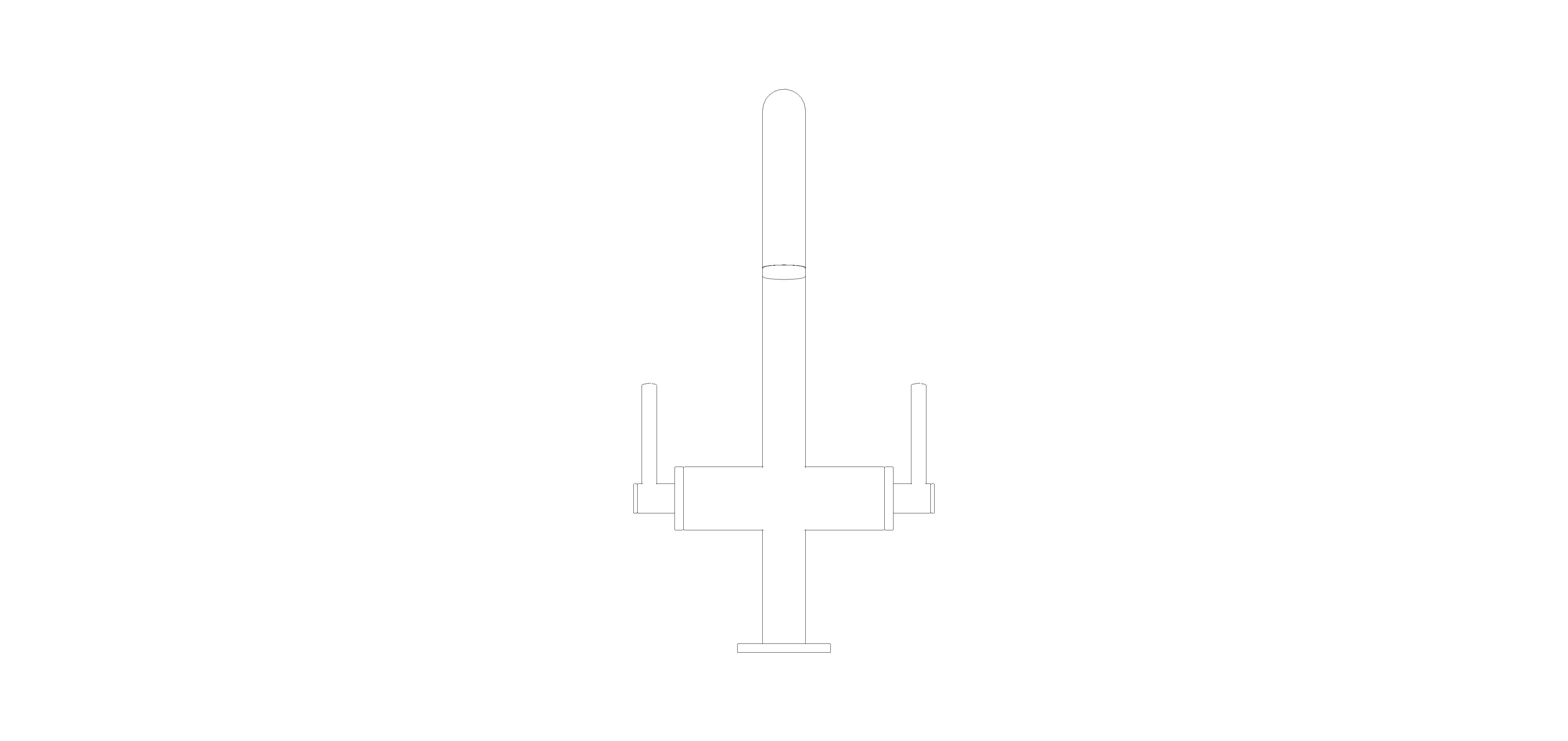

ATRIO Basin mixer, 1/2″ L-Size (21145GN0)

by GROHE

Download Add to collection

Description

PRODUCT MAIN FEATURES

Ceramic headparts 1/2", 90°
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
Maximum flow rate (at 3 bar): 5 l/min
Rapid installation system
Swivel tubular spout with mousseur and stop limiter
Adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4"
Flexible connection hoses
With lever handles
Two different sets of caps included. One set with "H" and "C" marking, one set without marking.

Object Data

1 Revision

Last Updated

02/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Object metadata

_AuthorRL IH 186
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-21145gn0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_Atrio_BasinMixer_(21145GN0)
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorBrushed Cool Sunrise
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2024-06-11T:09:00:00
Default Elevation0 mm
DescriptionATRIO Basin Mixer 1/2″ L-Size 21145GN0
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100080/100089/100089176/1280/100089176.jpg
Documentation Certificateswww.bimstore.co/products/grohe-21145gn0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-21145gn0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-21145gn0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-21145gn0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-21145gn0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Other
EF002149FALSE
EF002286Insert (push coupling)
EF002671Other
EF007955FALSE
EF011775EB
EF011779FALSE
EF011781not applicable
EF0127535.00
EF014578true
EF014591false
EF015280false
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Two-grip
EF020781Plastic cartridge
EF020785M26 x 1.5
EF020787Group II, <=30 dB(A)
EF020789166
EF020791Stainless steel
EF020792FALSE
EF020794TRUE
EF020795Rotating, top
EF020796303 mm
EF020797202
EF020798Pop-up waste (click-clack)
EF020799TRUE
EF020801FALSE
EF0218081-hole
EF021835162
EF022042Z
EF022168FALSE
EF022750Pipe
EF023686not applicable
EF023687FALSE
EF023688Anti-splash jet nozzle
EF025109Other
EFDE0022None
EFSE0002true
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelATRIO Basin Mixer 1/2″ L-Size 21145GN0
Model Number21145GN0
Model ReferenceATRIO Basin Mixer 1/2″ L-Size 21145GN0
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/211/original/21145GN0-pqchart-en_GB.svg
Primary MaterialGrohe_BrushedCoolSunrise
Product Descriptionceramic headparts 1/2", 90° GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min rapid installation system swivel tubular spout with mousseur and stop limiter adjustable swivel area 0° / 150° / 360° push-open waste set 1 1/4" flexible connection hoses with lever handles Two different sets of caps included. One set with "H" and "C" marking, one set without marking.
Production Year2024
Product Number21145GN0
Product Page URLwww.grohe.co.uk/en_gb/-21145GN0.html
Product Short TextOne-hole basin mixer, 1/2"<br />L-Size
Product TypeTwo Handle Fitting
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2204/2204728/original/2204728.pdf
Type CommentsATRIO Basin Mixer 1/2″ L-Size 21145GN0
Type NameATRIO Basin Mixer 1/2″ L-Size 21145GN0
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
