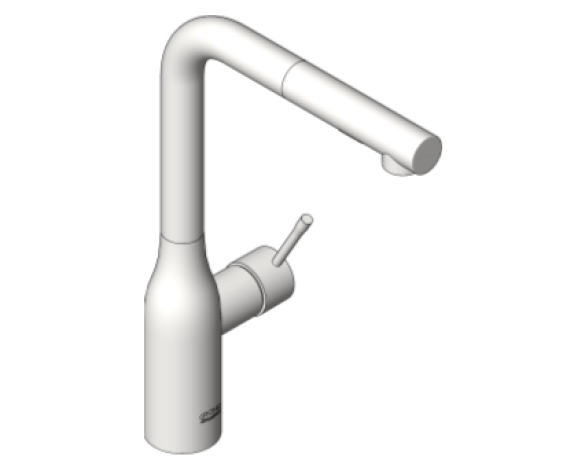

Grohe Essence Single Lever Sink Mixer L Spout (L) - 30270000

by GROHE

Download Add to collection

Description

Single-lever bidet mixer 1/2" S-Size single hole installationmetal leverGROHE SilkMove® Joystick cartridgeGROHE StarLight® chrome finishGROHE EcoJoy® ball-joint mousseur 5.7 l/minpop-up waste set 1 1/4"flexible connection hosesGROHE QuickFix™ Plus min. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Rev 02 - New Colours added

Object Data

2 Revision

Last Updated

19/07/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRW
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_Essence_SingleLeverSinkMixer_30270000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_85
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-06-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionHigh spout single hole installation GROHE StarLight chrome finish GROHE SilkMove 28 mm ceramic cartridge GROHE EasyDock guarantees easy retraction and smooth docking back to the starting position pull-out dual spray - switches back and forth between regular flow and spray diverter: mousseur/SpeedClean shower jet automatic return to mousseur swivel tubular spout swivel area 360° integrated non-return valve protected against backflow flexible connection hoses rapid installation system integrated temperature limiter min. recommended pressure 1.0 bar
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesHigh spout single hole installation GROHE StarLight chrome finish GROHE SilkMove 28 mm ceramic cartridge GROHE EasyDock guarantees easy retraction and smooth docking back to the starting position pull-out dual spray - switches back and forth between regular flow and spray diverter: mousseur/SpeedClean shower jet automatic return to mousseur swivel tubular spout swivel area 360° integrated non-return valve protected against backflow flexible connection hoses rapid installation system integrated temperature limiter min. recommended pressure 1.0 bar
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEssence Single-lever sink mixer 1/2''
Model Number30270000
Model ReferenceEssence Single-lever sink mixer 1/2''
NBS DescriptionSink thermostatic water supply sets
NBS Object NameGrohe Limited - Water supply fittings for sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth251 mm
Nominal Height348 mm
Nominal Length34 mm
Percentage Of Recycled Contentn/a
Pipe MaterialGroheLimited-Pipework
Primary MaterialGroheLimited-Chrome
Product Documentation Linkcdn.cloud.grohe.com/tpi/1000/1900/1960/1966/1966881/original/1966881.pdf
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/single-lever-sink-mixer-1-2-30270000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments30270000
Type NameEssence Single-lever sink mixer 1/2''
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
