Grohe Euphoria - Cuve XXL System 310 - 26075000

by GROHE

Download Add to collection

Description

"GROHE TurboStat® compact cartridge with wax thermoelement.

GROHE DreamSpray® perfect spray pattern.

GROHE StarLight® chrome finish"

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Rev 02 - New Colours added

Object Data

2 Revision

Last Updated

19/07/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

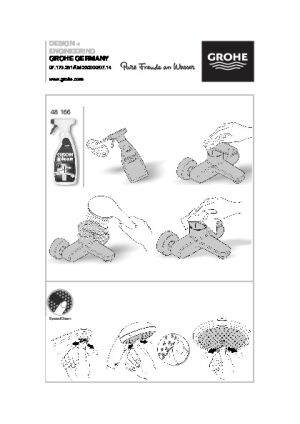

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_Euphoria_XXLSystem310_26075000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_81
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-06-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionEuphoria XXL System 310 Shower system with thermostatic mixer for wall mounting consisting of: horizontal swivable 450 mm shower arm exposed thermostat with Aquadimmer function allows change between: Rainshower Cosmopolitan 310 metal head shower (27 477 000) spray pattern: Rain with ball joint, rotation angle ± 15° hand shower Euphoria 110 Massage (27 221) adjustable in height with gliding element Silverflex shower hose 1750 mm (28 388) GROHE TurboStat compact cartridge with wax thermoelement GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish Inner WaterGuide for a longer life SpeedClean anti-lime system Twistfree to prevent hose from twisting GROHE MetalGrip ergonomically shaped metal handles suitable for instantaneous heaters from 18 kW/h minimum flow rate 7 l/min min. recommended pressure 1.0 bar optional upgrade: GROHE EasyReach tray (26 362), sold separately
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancecdn.cloud.grohe.com/tpi/1000/1900/1940/1948/1948997/original/1948997.pdf#_ga=2.186584809.1122286748.1499669933-265171350.1499239726
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesEuphoria XXL System 310 Shower system with thermostatic mixer for wall mounting consisting of: horizontal swivable 450 mm shower arm exposed thermostat with Aquadimmer function allows change between: Rainshower Cosmopolitan 310 metal head shower (27 477 000) spray pattern: Rain with ball joint, rotation angle ± 15° hand shower Euphoria 110 Massage (27 221) adjustable in height with gliding element Silverflex shower hose 1750 mm (28 388) GROHE TurboStat compact cartridge with wax thermoelement GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish Inner WaterGuide for a longer life SpeedClean anti-lime system Twistfree to prevent hose from twisting GROHE MetalGrip ergonomically shaped metal handles suitable for instantaneous heaters from 18 kW/h minimum flow rate 7 l/min min. recommended pressure 1.0 bar optional upgrade: GROHE EasyReach tray (26 362), sold separately
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuphoria XXL System 310 Shower system with thermostatic mixer for wall mounting
Model Number26075000
Model ReferenceEuphoria XXL System 310 Shower system with thermostatic mixer for wall mounting
NBS DescriptionShower thermostatic water supply sets
NBS Object NameGrohe Limited - Shower mixers
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth618 mm
Nominal Height1016 mm
Nominal Length310 mm
Percentage Of Recycled Contentn/a
Pipe MaterialGroheLimited-Pipework
Primary MaterialGroheLimited-Chrome
Product Documentation Linkcdn.cloud.grohe.com/tpi/1000/1900/1950/1952/1952262/original/1952262.pdf
Production Year2017
Product Page URLwww.grohe.com/ir/11131/shower/shower-systems/euphoria-systems/product-details/?product=26075-G236&color=000&material=26075000
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments26075000
Type NameEuphoria XXL System 310 Shower system with thermostatic mixer for wall mounting
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
