Grohe Rainshower Cosmopolitan 160 Head Shower - 27135000

3k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/09/2015

Download BIM

Add to collection

Available for:

Rainshower® Cosmopolitan 160Head shower 4 sprays• SpeedClean anti-lime system• Diameter Ø 6 5/16"• 4 spray patterns: Rain / Jet / Pure / Champagne spray• GROHE EcoJoy® 2.4 g flow limiter • Min. recommended pressure 7 psi• 15° swivel ball joint (± 15°)• Suitable for instantaneous heater• Recommended for use with Rainshower shower arms.• Max Flow Rate 2.5 gpm at 80 psi (9.5 L/min)

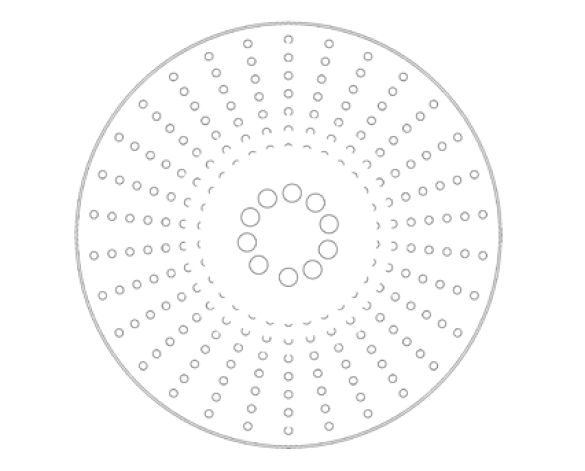

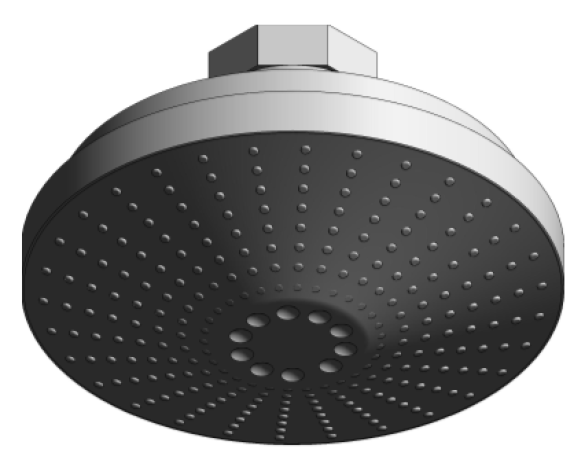

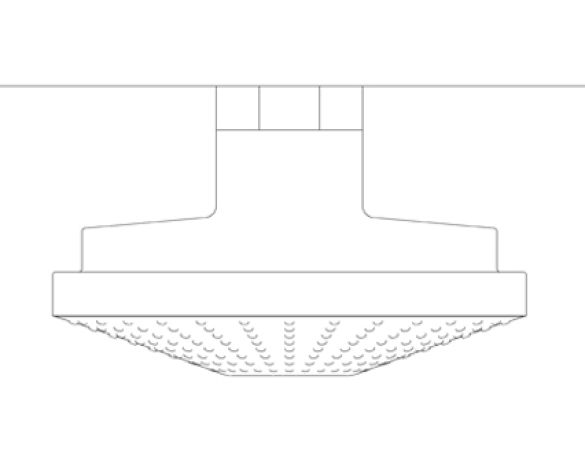

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byConnor Laing
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMay 2015
CW ConnectionNo
CWFU4.5
Default Elevation600 mm
DescriptionRainshower® Cosmopolitan 160 Head shower 4 sprays SpeedClean anti-lime system Diameter Ø 6 5/16" 4 spray patterns: Rain / Jet / Pure / Champagne spray GROHE EcoJoy® 2.4 g flow limiter Min. recommended pressure 7 psi 15° swivel ball joint (± 15°) Suitable for instantaneous heater Recommended for use with Rainshower shower arms. Max Flow Rate 2.5 gpm at 80 psi (9.5 L/min)
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1165697.pdf
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1165697.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1165697.pdf
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Pipework
Flow Pressuremin 0.5 bar/recommended 1-5bar
Flow Rate13.5L/min
HW ConnectionNo
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
ModelRainshower Cosmopolitan 160
Model Number27135
NBS Object NameShower heads
NBS Reference45-35-70/333
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1165697.pdf
Product Page URLwww.grohe.com/us/6370/showers/shower-heads-body-sprays/rainshower-shower-heads/product-details/?product=27135-G165&color=000&material=27135000
Spare Parts Listwww.grohe.com/us/6370/showers/shower-heads-body-sprays/rainshower-shower-heads/product-details/?product=27135-G165&color=000&material=27135000&%7E%5Bajax%5D=2647
Temp - Hot Water Supplymax 80 deg C
Temp - Hot Water Supply (Recommended)60 deg C
Test Pressure16 bar
Type CommentsRainshower Cosmopolitan 160 Shower Head
Type NameRainshower Cosmopolitan 160
URLwww.grohe.com
Vent ConnectionNo
Waste ConnectionNo
WFU0
