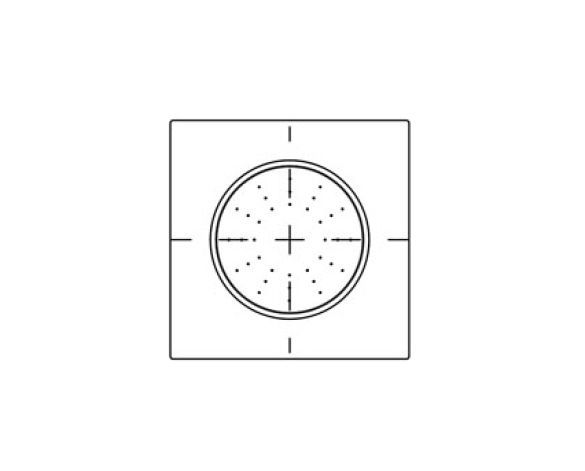

Grohe Rainshower F-Series Side Shower - 27251000

by GROHE

Download Add to collection

Description

Rainshower® F-Series 5"Side shower 1 sprayNormal sprayincluding concealed bodyalso to be used as head shower127 x 127 mmflow straightener with ball joint (± 12.5° rotatable)GROHE DreamSpray® perfect spray pattern GROHE FlowBalance flow regulating screwconnection thread 1/2"SpeedClean anti-limescale systemGROHE StarLight® chrome finishmin recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Rev 02 - New Colours added

Object Data

2 Revision

Last Updated

19/07/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRW
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_Rainshower_FSeriesSideShower_27251000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-06-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionRainshower F-Series 5'' Side shower 1 spray Normal spray including concealed body 127 x 127 mm flow straightener with ball joint (± 12.5° rotatable) connection thread ½'' GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish GROHE FlowBalance flow regulating screw SpeedClean anti-lime system suitable for instantaneous heater
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancecdn.cloud.grohe.com/tpi/1000/1900/1940/1948/1948997/original/1948997.pdf#_ga=2.186584809.1122286748.1499669933-265171350.1499239726
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesRainshower F-Series 5'' Side shower 1 spray Normal spray including concealed body 127 x 127 mm flow straightener with ball joint (± 12.5° rotatable) connection thread ½'' GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish GROHE FlowBalance flow regulating screw SpeedClean anti-lime system suitable for instantaneous heater
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelRainshower F-Series 5'' Side shower 1 spray
Model Number27251000
Model ReferenceRainshower F-Series 5'' Side shower 1 spray
NBS DescriptionShower heads
NBS Object NameGrohe Limited - Shower heads
NBS Office Master Tagn/a
NBS Reference45-35-70/333
Nominal Depth15 mm
Nominal Height127 mm
Nominal Length127 mm
Percentage Of Recycled Contentn/a
Pipe MaterialGroheLimited-Pipework
Primary MaterialGroheLimited-Chrome
Product Documentation Linkcdn.cloud.grohe.com/tpi/1000/1600/1620/1620/1620854/original/1620854.pdf
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/rainshower-f-series-side-shower-1-spray-27251000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments27251000
Type NameRainshower F-Series 5'' Side shower 1 spray
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
