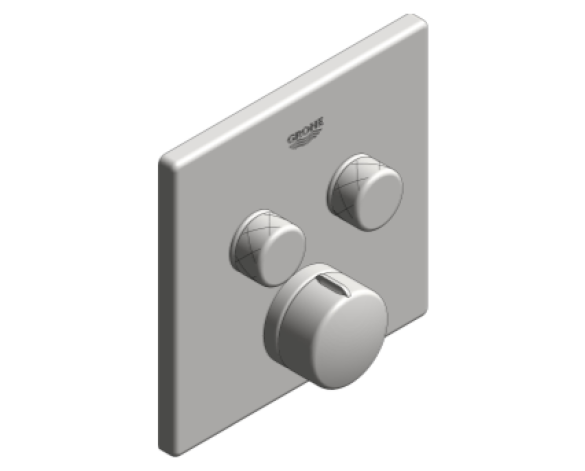

Grohe SmartControl Concealed Mixer - 29148000

by GROHE

Download Add to collection

Description

set for final installation forGROHE Rapido SmartBox 35 600 000metal wall escutcheon with GROHE QuickFix (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustableGROHE StarLight chrome finishSmartControl push for ON-OFF, turn for volume adjustment from EcoJoy to Full Flowexchangeable symbolscartridge for temperature mixingmultiple outlets can be run simultaneouslywithout roughing-in-setflow performance: outlet B = 23 l/min outlet C = 25 l/min

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

04/05/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_65_54_95_88
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome-Polished
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelGrohtherm - Smart Control Thermostatic Mixer
Model NumberGrohtherm - 29148000
NBS DescriptionThermostatic mixing valves
NBS Object NameThermostatic mixing valves
NBS Reference90-10-90/370
Production Year2016
Type CommentsGrohtherm - 29148000
Type NameGrohtherm - Smart Control Thermostatic Mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
