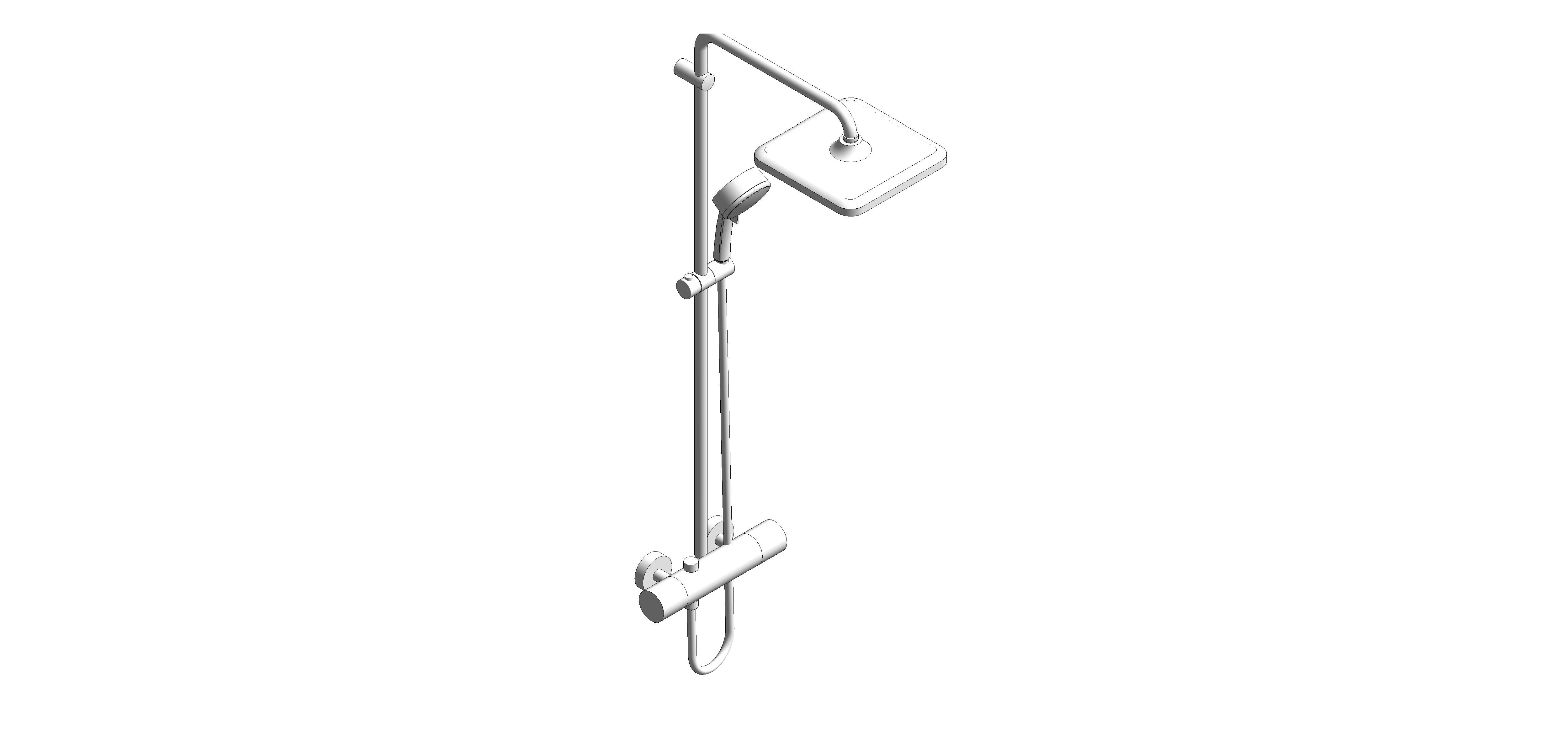

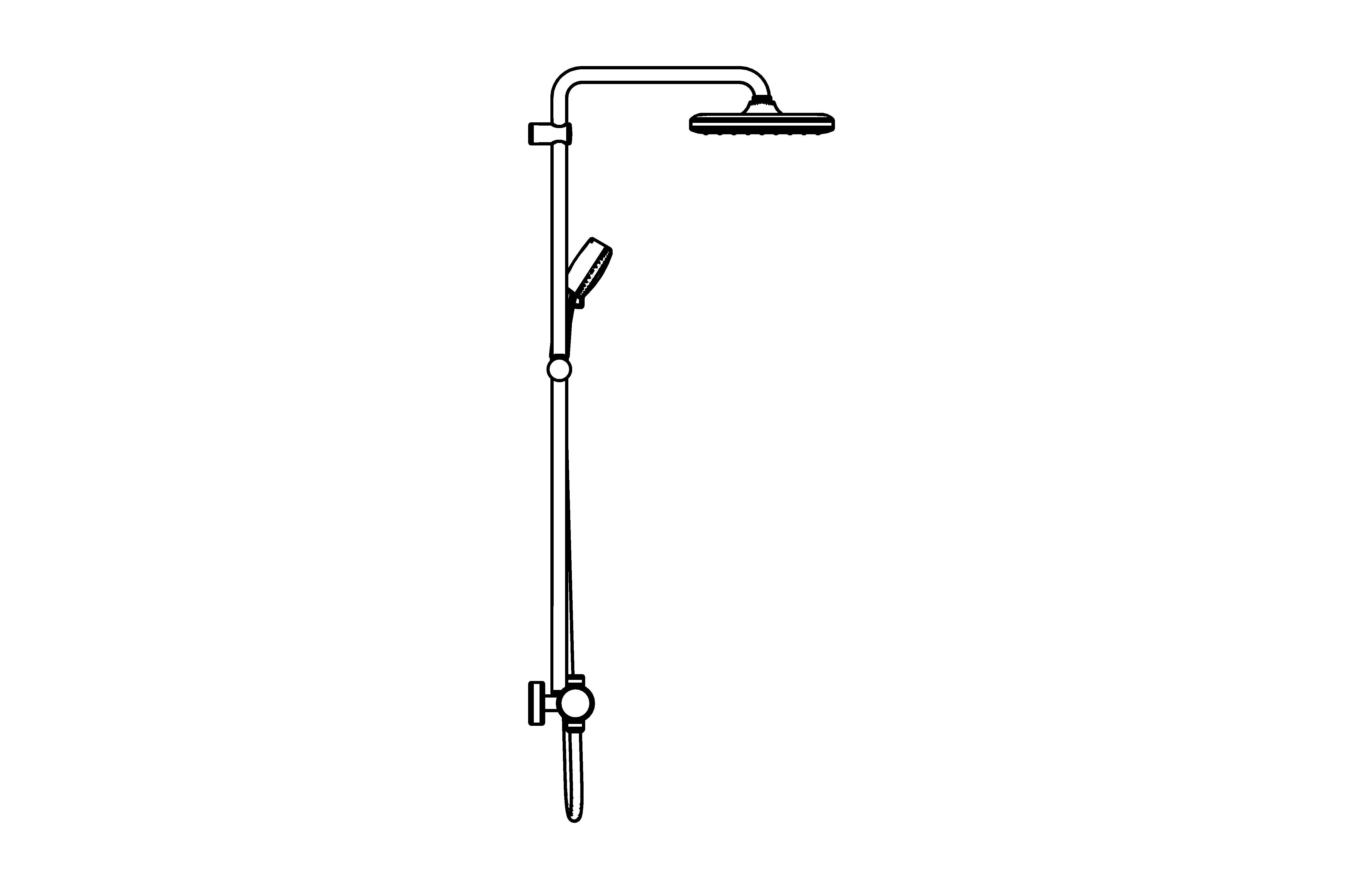

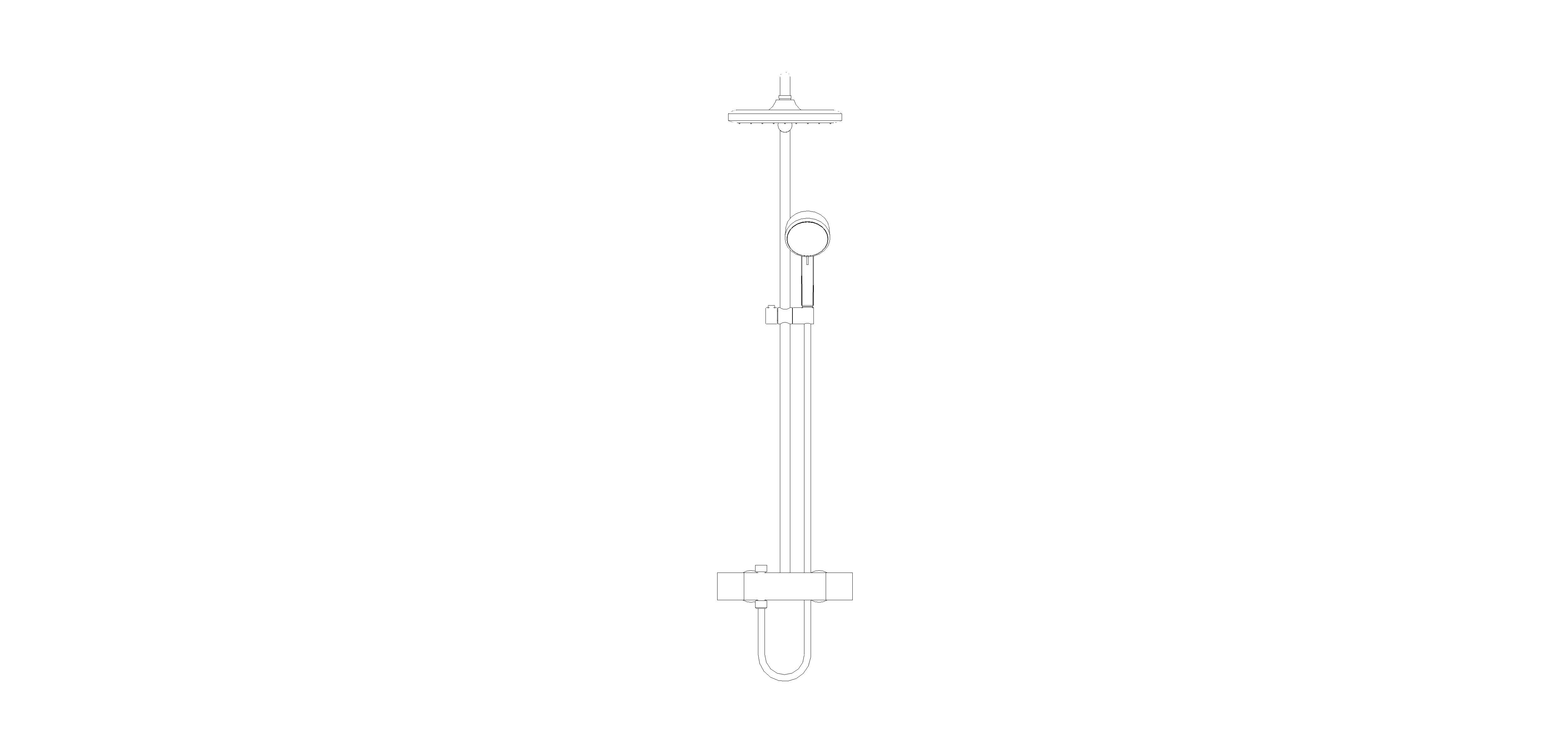

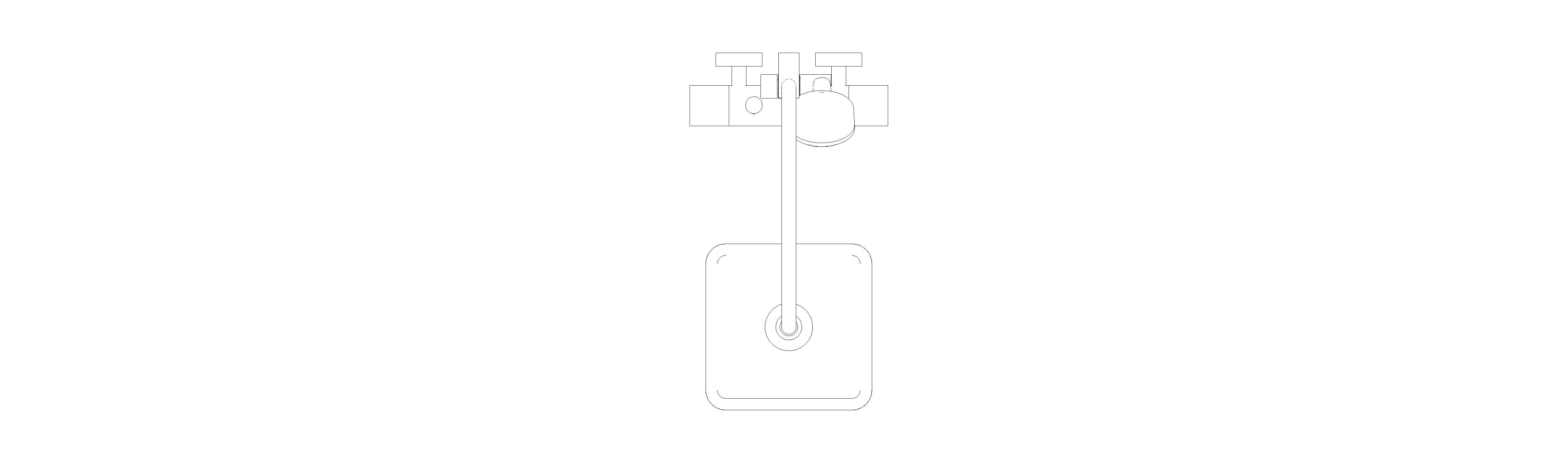

TEMPESTA COSMOPOLITAN SYSTEM 250 CUBE Shower system with thermostat for wall mounting (26689000)

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co
• Accessibility Performancen/a
• ADA CompliantNo
• Assembly CodeD2010710
• Asset TypeFixed
• BIM Object NameGrohe_PlumbingFixture_TempestaSystem250_Cube_ShowerSystem_26689000
• Classification NameUniclass 2015
• Classification ValuePr_40_20_87_76
• Code Performancen/a
• Cold Water Connection Diameter10 mm
• Colorn/a
• Constituentsn/a
• Contact Groheinfo-uk@grohe.com
• Created Byinfo-uk@grohe.com
• Created On2020-06-01T09:00:00
• CWFU4.5
• Default Elevation0 mm
• DescriptionShower system with thermostat for wall mounting. consisting of: horizontal swivable 390 mm shower arm. exposed thermostat with Aquadimmer function. allows change between: head shower Tempesta 250 Cube (26 685). spray pattern: Rain. head shower with white rear cover. with ball joint. rotation angle ± 10°. GROHE EcoJoy 9.5 l/min flow limiter. Hand shower Tempesta Cosmopolitan 100 (27 571). 2 spray patterns: Rain, Jet. GROHE EcoJoy 5.7 l/min flow limiter. adjustable in height with gliding element. Rotaflex shower hose 1750 mm 1/2" x 1/2" (28 410). GROHE EcoJoy technology for less water and perfect flow. GROHE TurboStat compact cartridge with wax thermoelement. GROHE SafeStop safety button at 38°C. GROHE SafeStop Plus optional temperature limiter at 43°C included. GROHE DreamSpray perfect spray pattern. GROHE StarLight chrome finish. SpeedClean anti-lime system. Inner WaterGuide for a longer life. Twistfree to prevent hose from twisting. suitable for instantaneous heaters from 18 kW/h. minimum flow rate 7 l/min. min. recommended pressure 1.0 bar. optional upgrade: GROHE EasyReach tray (26 362), sold separately.
• Documentation Certificateswww.bimstore.co
• Documentation Installation Guidewww.bimstore.co
• Documentation Literaturewww.bimstore.co
• Documentation Maintenancewww.bimstore.co
• Documentation Technicalwww.bimstore.co
• Duration UnitYears
• EcojoyYes
• Expected Life0
• Faucet MaterialGrohe-Chrome
• FeaturesShower system with thermostat for wall mounting. consisting of: horizontal swivable 390 mm shower arm. exposed thermostat with Aquadimmer function. allows change between: head shower Tempesta 250 Cube (26 685). spray pattern: Rain. head shower with white rear cover. with ball joint. rotation angle ± 10°. GROHE EcoJoy 9.5 l/min flow limiter. Hand shower Tempesta Cosmopolitan 100 (27 571). 2 spray patterns: Rain, Jet. GROHE EcoJoy 5.7 l/min flow limiter. adjustable in height with gliding element. Rotaflex shower hose 1750 mm 1/2" x 1/2" (28 410). GROHE EcoJoy technology for less water and perfect flow. GROHE TurboStat compact cartridge with wax thermoelement. GROHE SafeStop safety button at 38°C. GROHE SafeStop Plus optional temperature limiter at 43°C included. GROHE DreamSpray perfect spray pattern. GROHE StarLight chrome finish. SpeedClean anti-lime system. Inner WaterGuide for a longer life. Twistfree to prevent hose from twisting. suitable for instantaneous heaters from 18 kW/h. minimum flow rate 7 l/min. min. recommended pressure 1.0 bar. optional upgrade: GROHE EasyReach tray (26 362), sold separately.
• FinishChrome
• Graden/a
• Hot Water Connection Diameter13 mm
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Industry Standardsn/a
• KeynoteN13
• LEED Creditn/a
• Low Emitting MaterialNo
• ManufacturerGrohe
• Manufacturer NameGrohe
• Masterformat Number01 52 19
• Masterformat TitleSanitary Facilities
• Materialn/a
• ModelTempesta System 250 Cube
• Model Number26689000
• Model ReferenceTempesta System 250 Cube
• NBS DescriptionShower heads
• NBS Object NameGrohe - Shower heads
• NBS Office Master Tagn/a
• NBS Reference45-35-70/333
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Percentage Of Recycled Contentn/a
• Pipe MaterialGroheLimited-Pipework
• Product Documentation Linkn/a
• Production Year2020
• Product Page URLn/a
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsinfo-uk@grohe.com
• Type Comments26689000
• Type Name26689000
• URLwww.grohe.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
• WFU0
