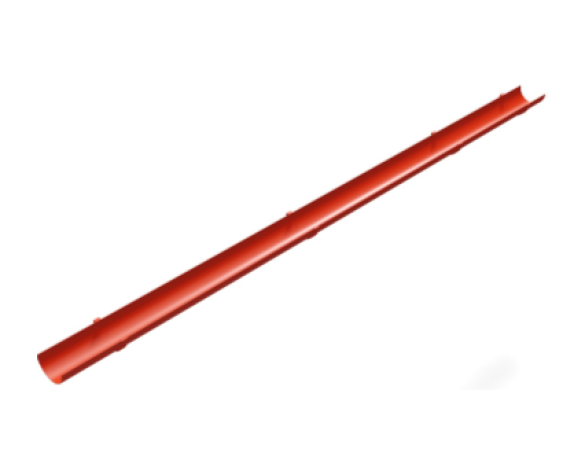

Half Round System

Object metadata

• _AuthorTechnical Dept
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.Guttercrest.co.uk
• _Current Revision1
• _Distributed Bywww.Bimstore.co.uk
• Accessibility Performancen/a
• Assembly Coden/a
• Asset TypeFixed
• Available Colourswww.guttercrest.co.uk/images/lib/guttercrest-colour-chart.pdf
• Bar CodePlease Record On Commissioning
• BIM Object NameGutter_RainWaterSystem_HalfRoundSystem
• Bracket Height 340 mm
• Bracket Offset9 mm
• Bracket Start150 mm
• Brkt Height61 mm
• Brkt Height 228 mm
• Brkt Rad54 mm
• Brkt Width115 mm
• Classification NameUniclass2015
• Classification ValuePr_65_50_35_06
• Code Performancen/a
• ColorAny RAL, BS or Heritage (Textured) Colour
• ConstituentsFascia Brackets
• Created ByInfo@Guttercrest.co.uk
• Created On2018-04-05T00:00:00
• Default Elevation0 mm
• DescriptionOur Aluminium Half Round Gutters are inspired by 19th Century cast iron guttering, offering the beautiful traditional look of cast iron with all the benefits of aluminium guttering, such as being lightweight and easier to maintain.
• Documentation Certificatesn/a
• Documentation Installation Guidewww.Guttercrest.co.uk
• DocumentationLink URLwww.Guttercrest.co.uk
• Documentation Maintenancen/a
• Documentation Technicalwww.Guttercrest.co.uk
• Duration UnitYear
• Expected Life0

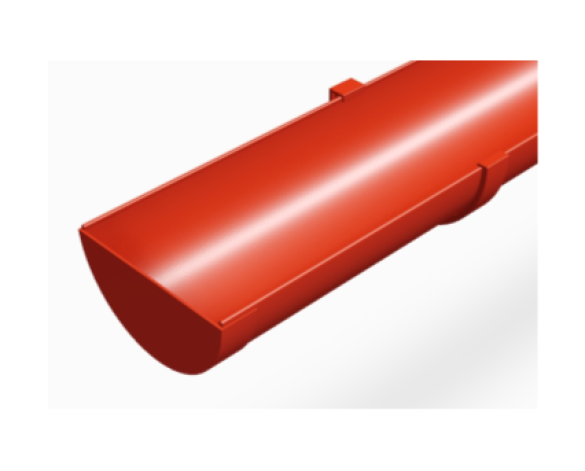

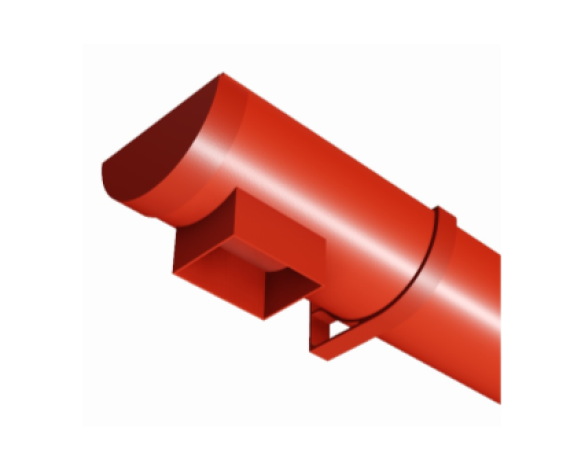

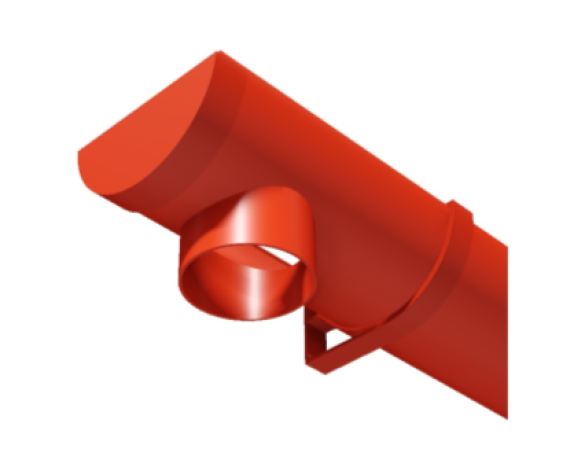

• FeaturesCorners, Stopends & Outlets
• FinishMill Finish or Polyester Powder Coated
• Grade1050
• Gutter Depth50 mm
• Gutter Size100 mm
• Ifc Export AsAluminium Gutter System
• Ifc Export TypeIfcBuildingElement
• Installation DatePlease Record On Commissioning
• Is ExternalYes
• KeynoteR10/350
• LH Outlet Offset75 mm
• ManufacturerGuttercrest Limited
• Manufacturer NameGuttercrest Limited
• MaterialAluminium
• Material Grade<By Category>
• ModelHalf Round Gutter
• Model NumberHR1
• Model ReferenceHalf Round
• NBS DescriptionAluminium Gutter System
• NBS Object NameGuttercrest - Aluminium Gutter System
• NBS Office Master Tagn/a
• NBS Reference90-05-35/320
• Production Year2018
• Product Page Linkwww.guttercrest.co.uk/aluminium-cast-half-round-gutters-guttering-gutter-rainwater-goods.html
• Referenced StandardBS 9101:2017
• Replacement Cost0
• RH Outlet Offset75 mm
• Serial NumberPlease Record On Commissioning
• Spare Partsn/a
• Type CommentsHR1 Aluminium Half Round Gutter
• Type NameAluminium Gutter System
• URLwww.Guttercrest.co.uk
• Warranty DescriptionInfo@Guttercrest.co.uk
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor PartsInfo@Guttercrest.co.uk
