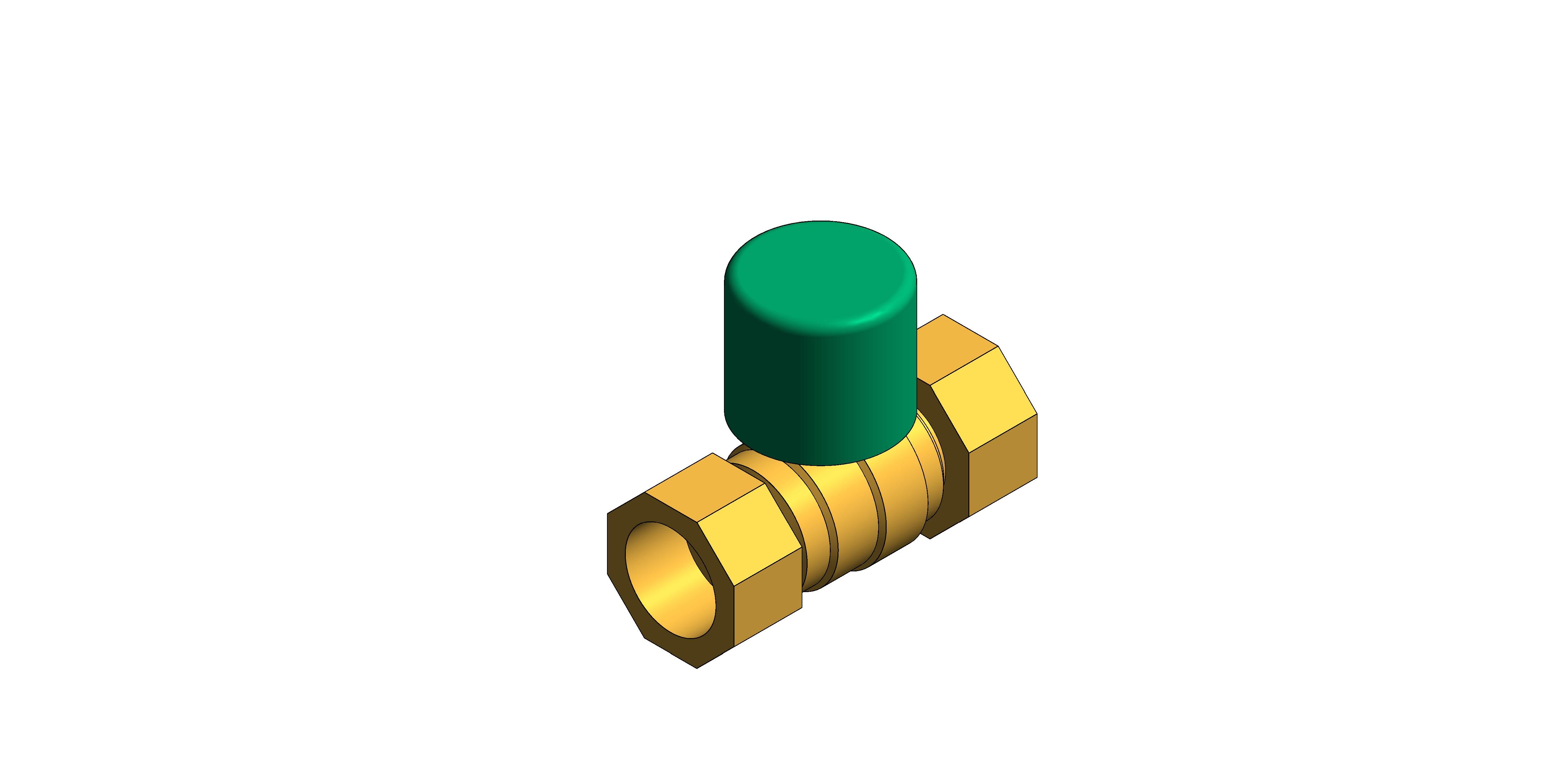

Ball Valves - DZR Brass

Fig. 100CLS

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.

Size	15mm to 54mm
Pressure Rating	PN16
Product Material	DZR Brass
End Connections	Compression ends to BS EN 1254-2:1998

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100cls/document/object-user-guide
15mmYes
22mmNo
28mmNo
35mmNo
42mmNo
54mmNo
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_WithLockshield_100CLS
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size15 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100CLS - Ball Valves - DZR Brass
Dim X8 mm
Dim XX10 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100cls/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100cls/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100cls/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100cls/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100cls/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Calc9 mm
Hmm42 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient4
KeynoteS
L1mm16 mm
Lmm67 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100CLS - Ball Valves - DZR Brass
Model NumberFig. 100CLS
Model ReferenceFig. 100CLS - Ball Valves - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Sizemm8 mm
Spare Partsn/a
Type CommentsFig. 100CLS - Ball Valves - DZR Brass
Type NameFig. 100CLS - Ball Valves - DZR Brass
URLwww.hattersley.com/
Valve Hax Calc 225 mm
Valve Hex Calc23 mm
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
