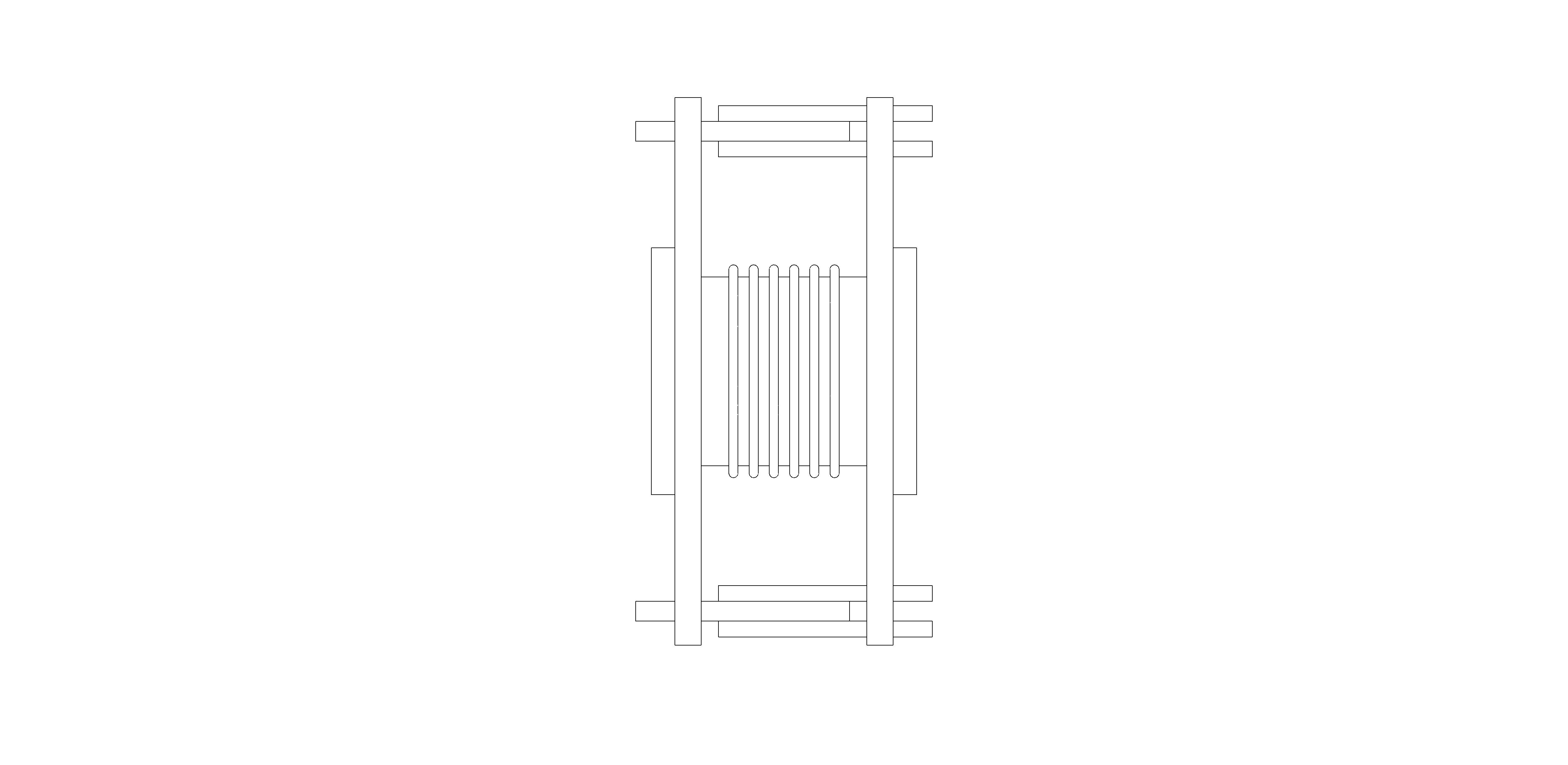

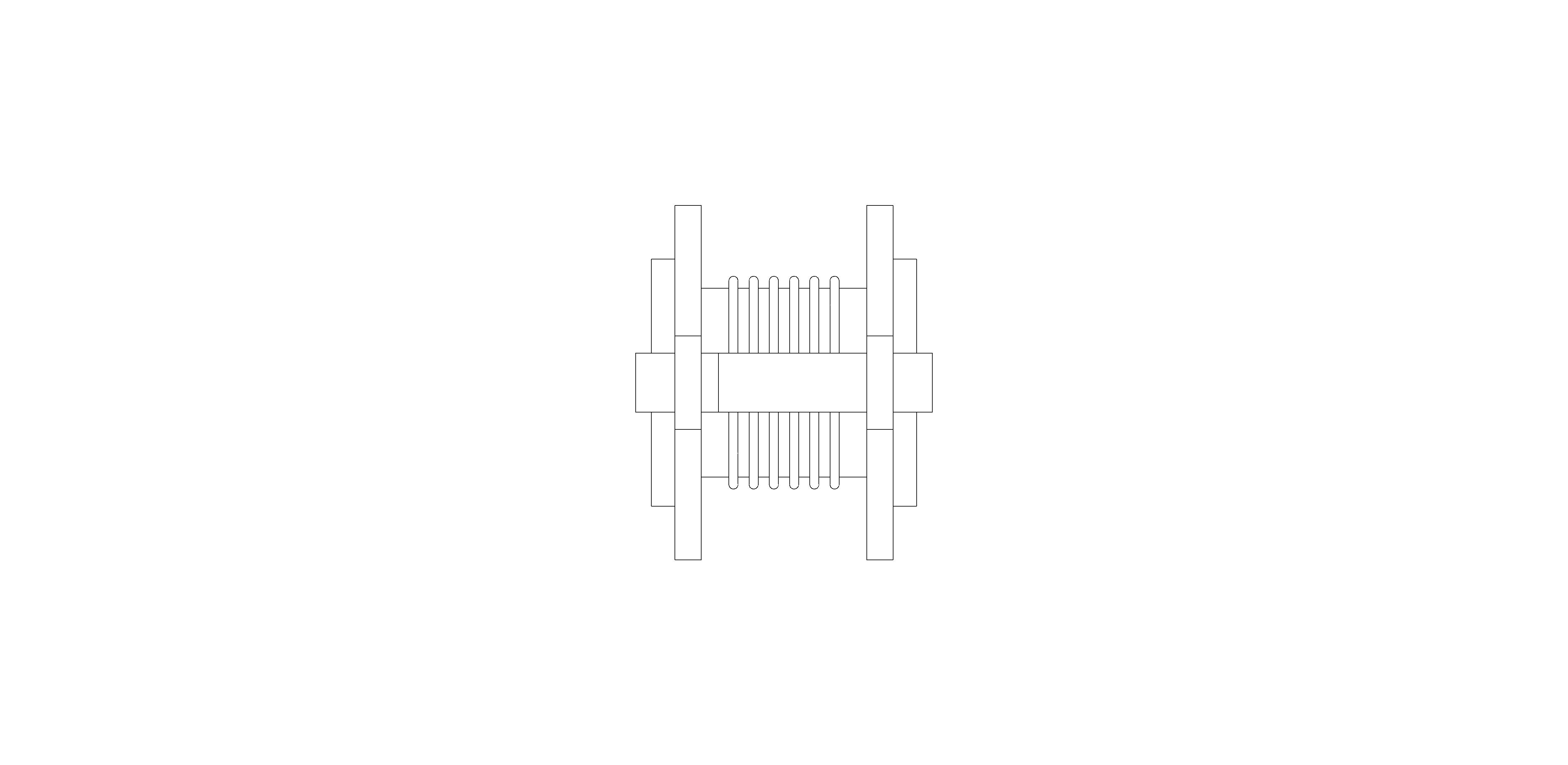

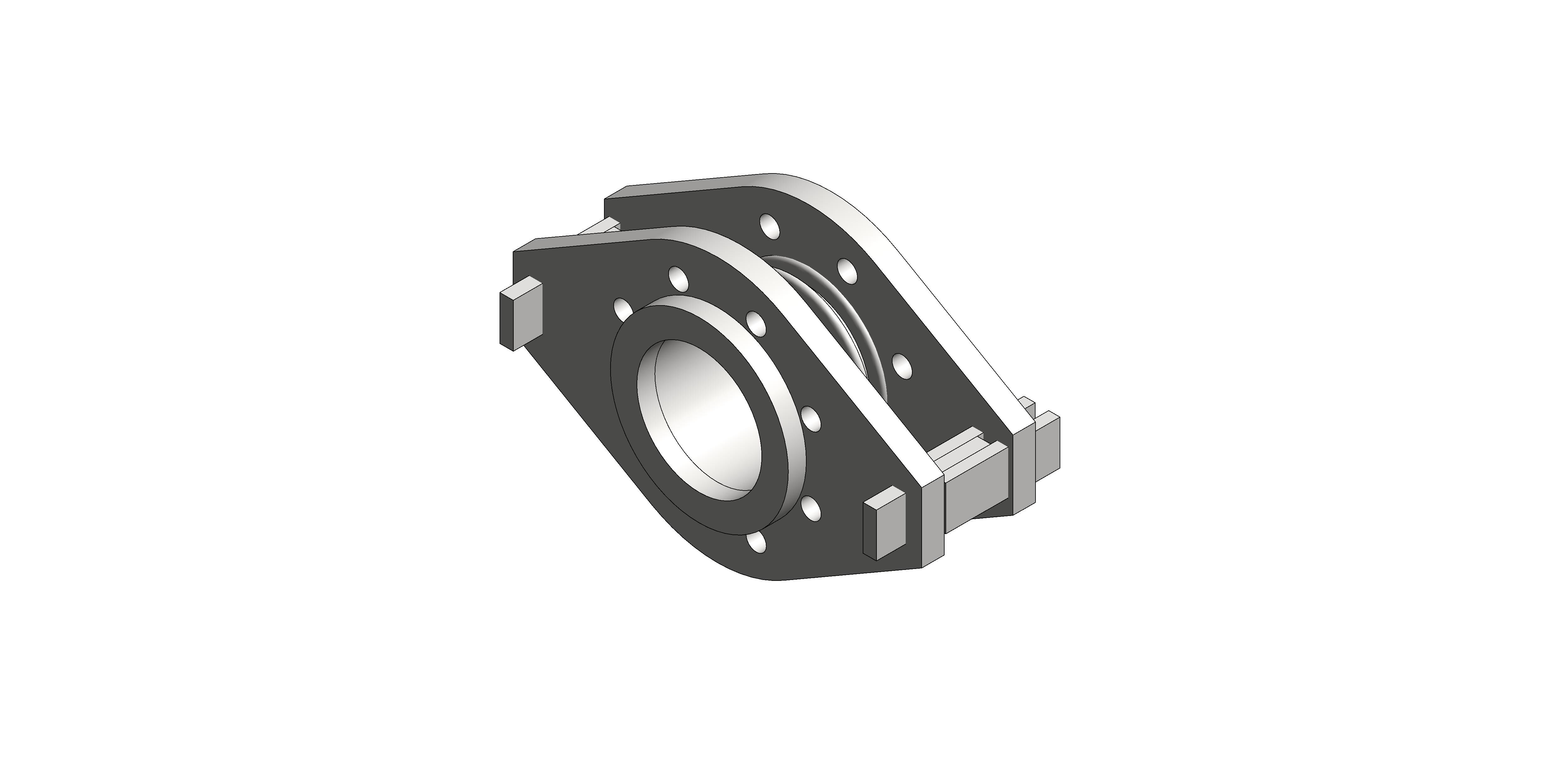

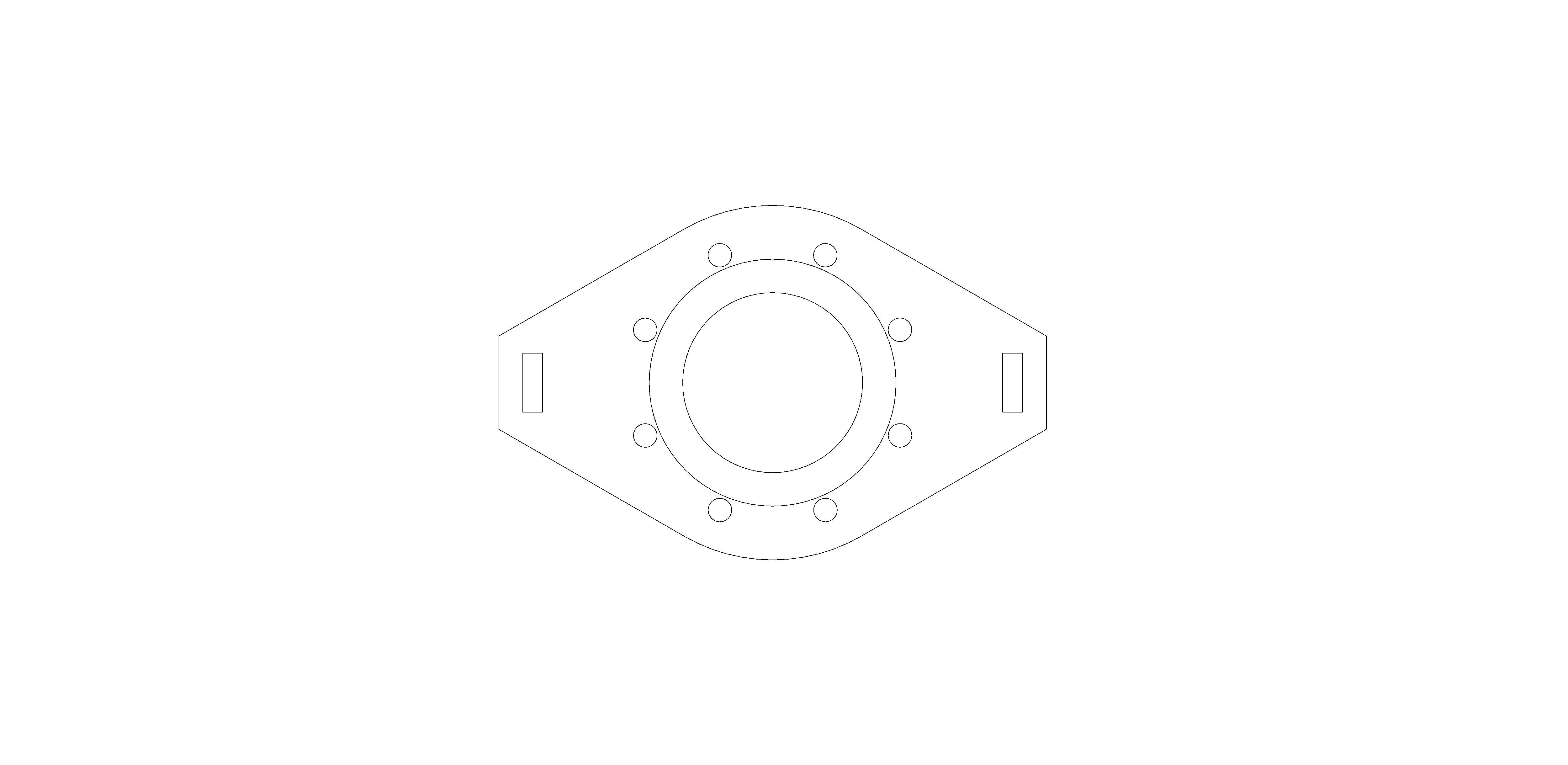

JP122 Angular Expansion Joint Flanged

Now Available With Precision Fit Flexible Lagging Jackets To Suit JP122.

Specification

Single hinged angular expansion bellows consisting of stainless steel grade 321 bellows fitted with carbon steel flanges and hinge assembly drilled to BS 4504 NP16.

Application

Stourflex single hinged angular expansion joints are used in sets of two or three and are generally installed in changes in pipework direction. They will accommodate lateral movement in only one plane. This movement occurs due to thermal expansion or contraction or building settlement. They are suitable for use on L.T.H.W. M.T.H.W.,H.T.H.W., steam and other hot liquids and gases.

Maximum working temperature 300ºC.
Maximum working Pressure 16 bar at 120ºC.
Stourflex angular expansion joints should not be used at both their maximum working temperature and pressure respectively.
Maximum test pressure = 1.5 x working pressure or 1.5 x flange rating whichever the lower.

Lagging

Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems. Please ask for pricing or more information.

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/stourflex-jp122/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
Bar 1 Width12 mm
Bar 2 Width10 mm
Bar Height20 mm
Bar Length102 mm
Bar Offset25 mm
Bellow Inside Diameter117 mm
Bellow L167 mm
Bellow Outside Diameter140 mm
Bellow Width7 mm
BIM Object NameStourflex_LateralExpansionJoint_JP120
Classification NameUniclass 2015
Classification ValuePr_65_52_28_46
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byinfo@stourflex.co.uk
Created On2024-12-02T09:00:00
Default Elevation0 mm
DescriptionJP122 Angular Expansion Joint Flanged
DN100 mm
Documentation Certificateswww.bimstore.co/products/stourflex-jp122/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/stourflex-jp122/document/installation-guide
Documentation Literaturewww.bimstore.co/products/stourflex-jp122/document/product-literature
Documentation Maintenancewww.bimstore.co/products/stourflex-jp122/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/stourflex-jp122/document/technical-data-sheet
Duration UnitYears
End Piece Offset56 mm
Expected Life0
Featuresn/a
Finishn/a
Flange End Diameter158 mm
Flange Length20 mm
Graden/a
Hinge Bar Centre Width311 mm
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L116 mm
Length133 mm
ManufacturerStourflex
Manufacturer NameStourflex
Materialn/a
ModelJP122 Angular Expansion Joint Flanged
Model NumberJP122
Model ReferenceAngular Joints
NBS DescriptionAngular expansion compensators
NBS Noten/a
NBS Object NameStourflex - Angular expansion compensators
NBS Office Master Tagn/a
NBS Reference90-10-60/330
No Bellow5
Nominal Depth370 mm
Nominal Height235 mm
Nominal Length363 mm
Pipe Inside Diameter111 mm
Pipe Inside Radius56 mm
Pipe Outside Diameter117 mm
Pipe Outside Radius59 mm
Primary MaterialStourflex - Stainless Steel Grade 321
Production Year2024
ReducedNo
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsinfo@stourflex.co.uk
StandardYes
Type CommentsJP122 Angular Expansion Joint Flanged
Type NameJP122 Angular Expansion Joint Flanged
URLstourflex.co.uk/products/jp122/
Wall Thickness3 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stourflex.co.uk
Warranty Guarantor Partsinfo@stourflex.co.uk
Width370 mm
