Ball Valves - DZR Brass

Fig. 100TH

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.

Size	1/4" to 2"
Pressure Rating	PN25
Product Material	DZR Brass
End Connections	BS EN 10226-2:2005 formerly BS21 Taper
Test Pressure	25 bar pneumatic

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100th/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed

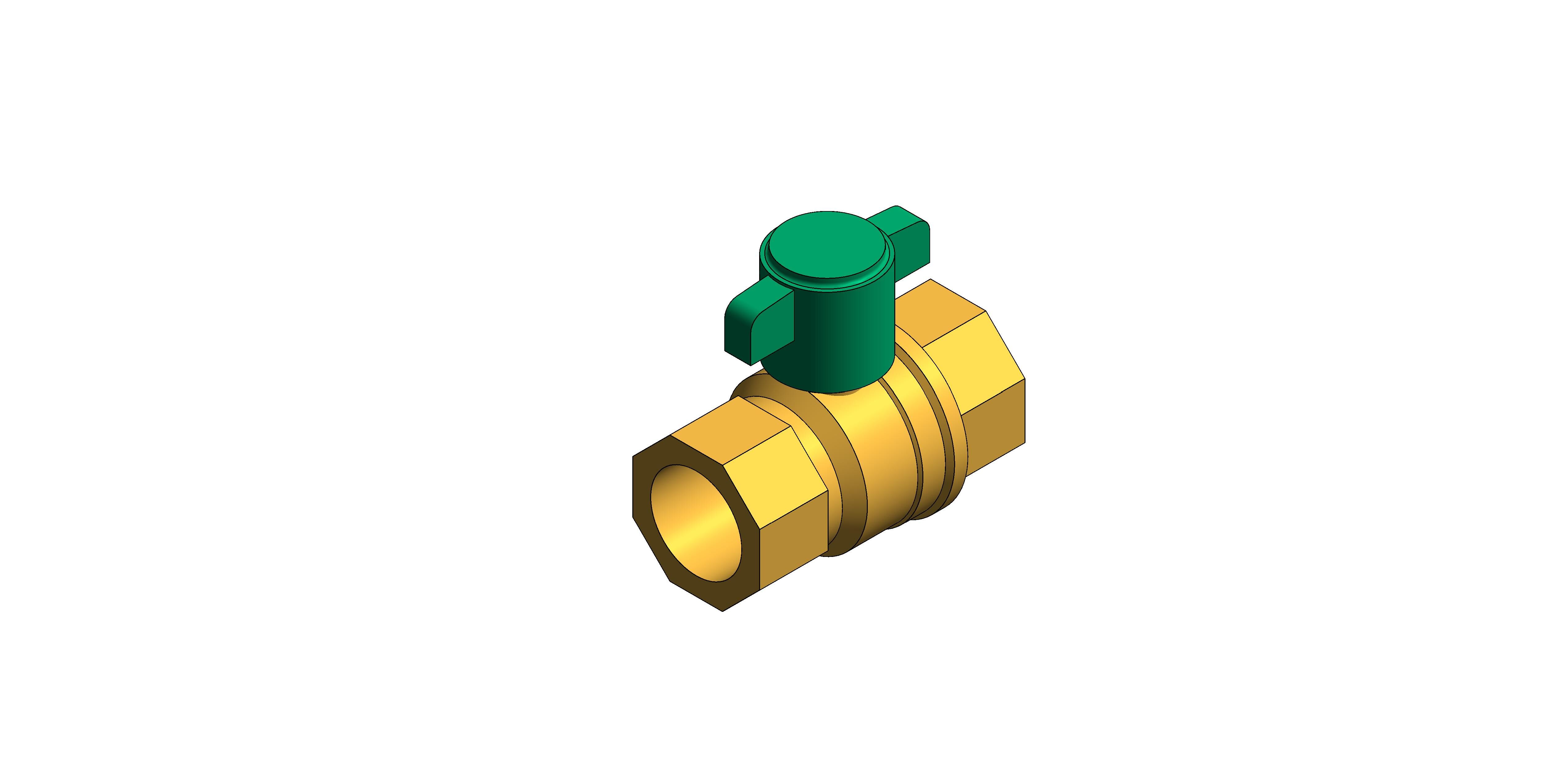

BIM Object NameHattersley_BallValve_WithTHandle_100TH
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size42 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100TH - Ball Valves - DZR Brass
Dim X15 mm
Dim XX17 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100th/document/product-certificates

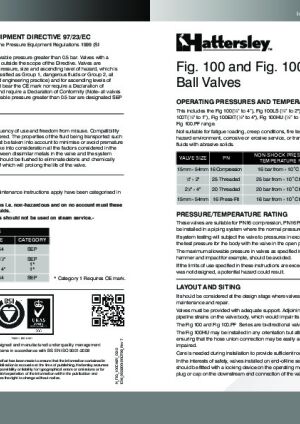

Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100th/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100th/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100th/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100th/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Half InchNo
Handle Calc17 mm
Handle Turning Calc41 mm
Hmm67 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L1mm23 mm
L2mm82 mm
Lmm102 mm
Loss MethodNot Defined
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100TH - Ball Valves - DZR Brass
Model NumberFig. 100TH
Model ReferenceFig. 100TH - Ball Valves - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
One And Half InchYes
One And Quarter InchNo
One InchNo
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Sizemm21 mm
Spare Partsn/a
Three Quarter InchNo
Two InchNo
Type CommentsFig. 100TH - Ball Valves - DZR Brass
Type NameFig. 100TH - Ball Valves - DZR Brass
URLwww.hattersley.com/
Valve Hax Calc 259 mm
Valve Hex Calc57 mm
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
