HeatMaster TC Condensing Boilers

Description

The HeatMaster® TC series combines ACV's "Tank-in-Tank" concept with a double primary circuit to reach the high performance of a TOTAL CONDENSATION, double-circuit boiler.

The HeatMaster® models are always delivered with an ACV air/gas premix BG 2000-M burner, with low NOx emissions. During operation, the burner starts automatically as soon as the boiler temperature gets lower than the preset temperature and stops as soon as the preset temperature is reached. The appliance is fitted with a built-in low water pressure switch that blocks the appliance when

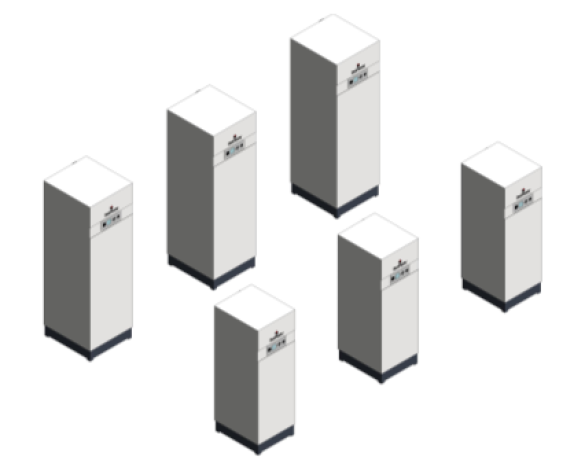

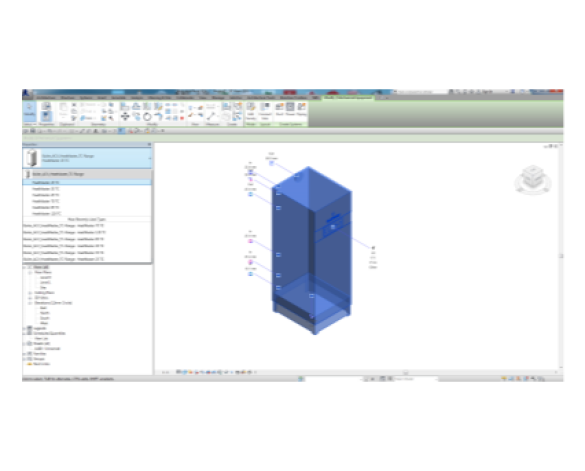

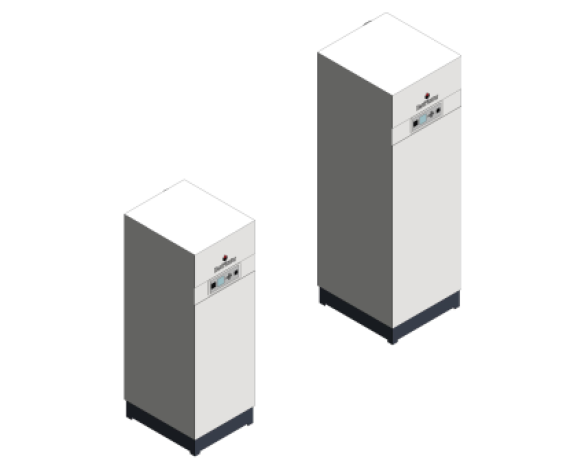

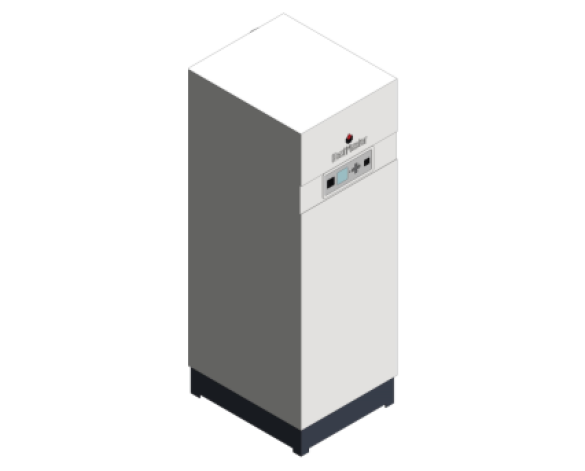

This download is for the ACV HeatMaster TC range of Revit boiler components and includes the following range types;

HeatMaster 25 TC, 35 TC, 45 TC, 70 TC, 85 TC & 120 TC.

Rev 02 - URL's & PDT information updated. Connectors Positions and geometry updated
