Heavy Duty Planar Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

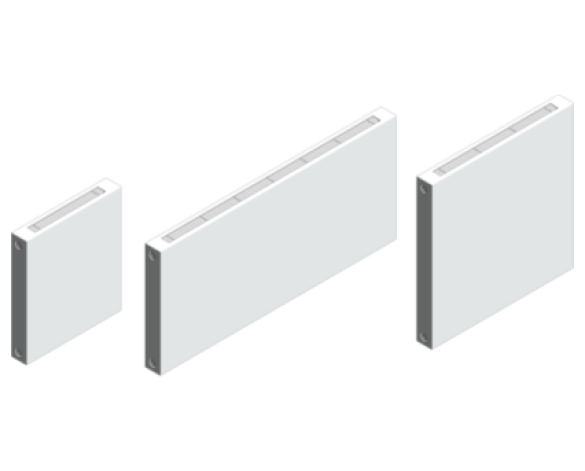

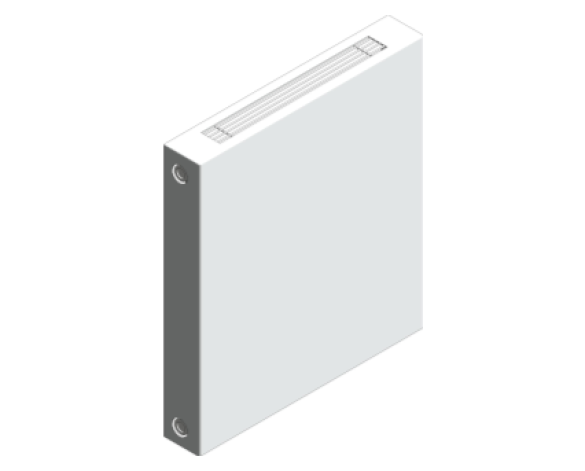

Stelrad’s standard Planar design radiator has rapidly become a favourite within the commercial market. The new heavy duty version offers the same slim, flat fronted good looks and exceptional performance as the standard Planar that has in particular been a big hit with commercial buildings.

But this Heavy Duty Planar, is supplied with a one section, 2mm thick integrated steel fascia, with side panels and top grille, designed to survive in a busy commercial area.

Available in K1 and K2 variations with available heights 450mm, 600mm and a range of lengths from 400mm up to 2000mm

This download includes all available lengths for the Stelrad Heavy Duty Planar radiator

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID0
_created byKris Atkinson
_current revision1
_distributed bywww.bimstore.co.uk
A150.000000000000 mm
Access Clearance Bottom0.000000000000 mm
Access Clearance Front0.000000000000 mm
Access Clearance Left0.000000000000 mm
Access Clearance Rear0.000000000000 mm
Access Clearance Right0.000000000000 mm
Access Clearance Top0.000000000000 mm
Air VentYes
Assembly CodeD3020
Asset TypeFixed
B60.000000000000 mm
Box Depth101.000000000000 mm
C17.000000000000 mm
Casing MaterialMild Steel
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
ColorWhite (RAL 9016)
ColourWhite (RAL 9016)
Connector Dia15.000000000000 mm
Connector Dia Calc7.500000000000 mm
Created Byinfo@stelrad.com
Created OnFeb16
D555.000000000000 mm
DescriptionIt looks stylish, yet it’s robust enough to withstand the knocks of heavy traffic in commercial environments.
Documentation Certificateswww.stelrad.com/support-information/dop/

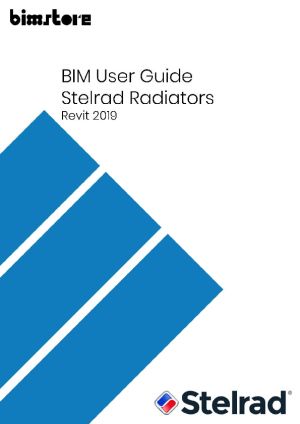

Documentation Installation Guidewww.stelrad.com/support-information/dop/
Documentation Literaturewww.stelrad.com/plumbers-installers/product-overview/designer-collection/heavy-duty-planar/
Documentation Maintenanceinfo@stelrad.com
Documentation Technicalinfo@stelrad.com
Drain TapNo
Duration UnitYears
Expected Life0
FeaturesThe one section 2mm thick integrated steel fascia.
FinishAntibacterial powder paint
FinnedYes
GradeK1
Grille Length1000.000000000000 mm
Gross Weight32.76
Heat Emitter MaterialMild Steel
Heat Output Btu/hr2292
Heat Output Watts672
Heat reflectorNo
Heat Transfer MediumConvection
Height450.000000000000 mm
Height From Floor150.000000000000 mm
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
K1 RadiatorYes
KeynoteT30/350
Length1000.000000000000 mm
Location of ManufacturerRotherham, S64 8BN, United Kingdom
ManufacturerStelrad Ltd
MaterialMild Steel
Maximum Operating Pressure8
Maximum Operating TemperatureN/A
Maximum Test Pressure10.5
Middle Mounting BracketNo
ModelStelrad Heavy Duty Planar
Model NumberStelrad Heavy Duty Planar
Mount Height82.500000000000 mm
Mount Length585.000000000000 mm
Mounting TypeWall Mounted
NBS Object NameRadiators
NBS Reference90-40-35/405
Number of PanelsN/A
Number of SectionsN/A
Offset from wall to CL66.000000000000 mm
Outlet GrilleYes
Overall Height450.000000000000 mm
Overall Length1000.000000000000 mm
Pipe Connections Size15mm
Possible Connections PositionsTBOE
Product Literaturewww.stelrad.com/plumbers-installers/product-overview/designer-collection/heavy-duty-planar/
Product Model Number141263
Product RangeStelrad Heavy Duty Planar
Production Year2016
Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
Seam TypeSeam Weld
ShapeRectangular (Horizontal)
Shipping WeightN/A
Size450 x 1000mm
Thermal Output672
TypeFinned Panel
Type CommentsK1 - 450x1000mm
Type NameK1 - 450x1000mm
UIN141263
URLwww.stelrad.com/
Wall BracketsYes
Wall Mount Offset133.000000000000 mm
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Water Content2.57
