High Back Cleaners Sink

by Trade Washrooms

Download Add to collection

Description

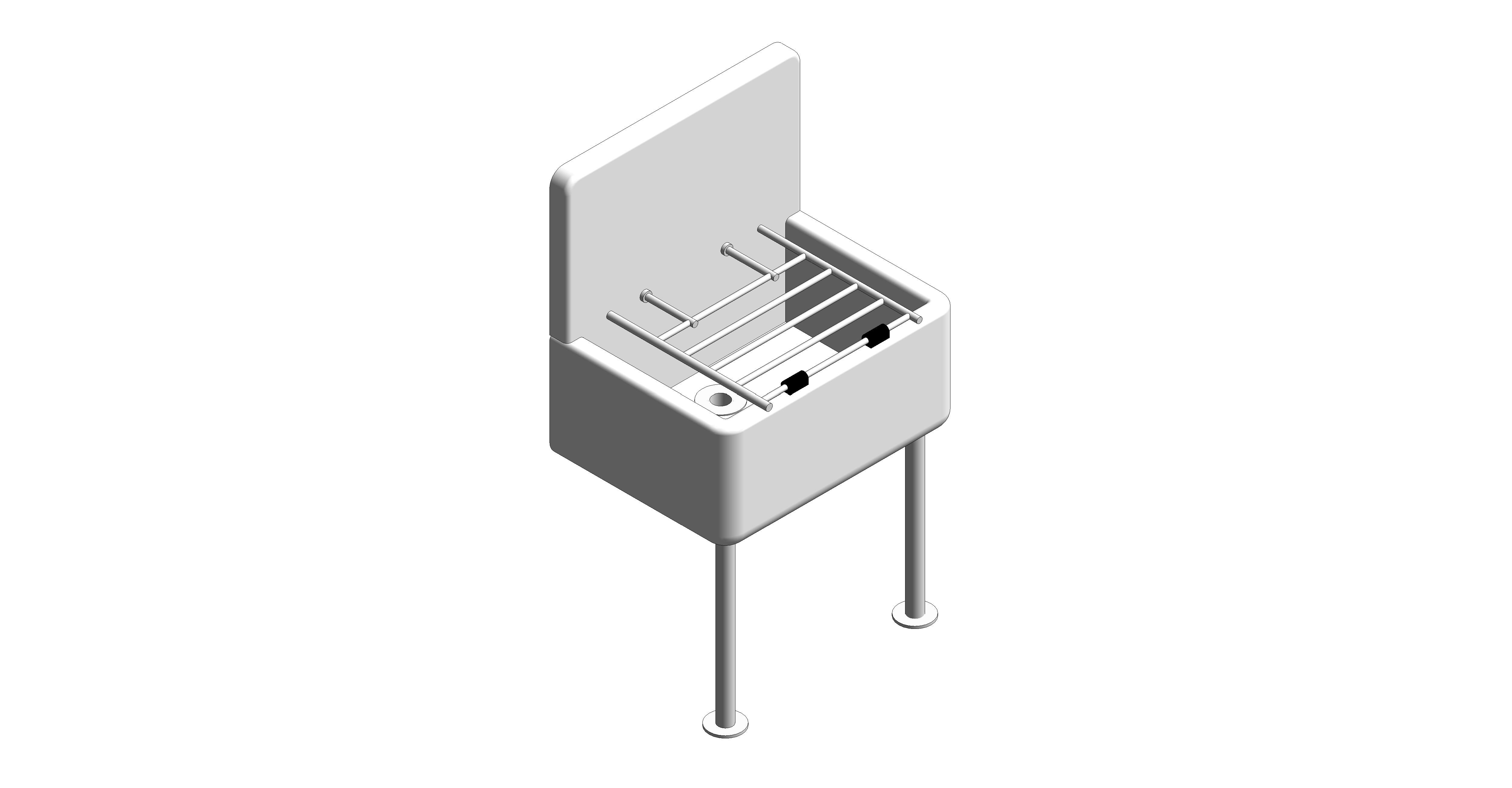

A practical 510mm x 380mm high-back cleaners sink designed to withstand heavy use in hospitals, schools and other commercial applications. In addition to the cleaners sink, this complete pack includes; a built-in bucket grate, legs and brackets (360mm high), lever action bib taps (pair), wall elbows, slotted waste and trap.

Object Data

1 Revision

Last Updated

05/11/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

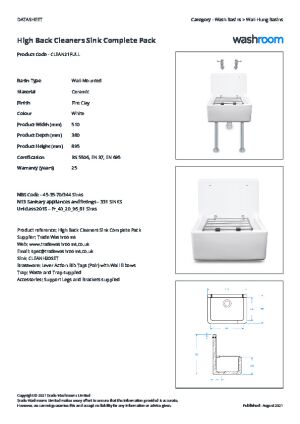

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010400
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_CleanersSink_HighBack
CategoryPr_40_20_96_81:Sinks
Classification NameUniclass2015
Classification ValuePr_40_20_96_81
Code PerformanceBS 5506
ColorWhite
ConstituentsCleaners sink, built-in bucket grate, support legs kit and basin waste.
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionNo
CWFU0
DescriptionA practical high back cleaners sink designed to withstand heavy use. Supplied with built-in bucket grate, support legs kit and basin waste.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/high-back-cleaners-sink/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/high-back-cleaners-sink/
Duration UnitYears
Expected Life25
FeaturesBuilt-in bucket grate
FinishFire Clay
Graden/a
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCeramic
ModelHigh Back Cleaners Sink
Model NumberCLEANH20SET
Model ReferenceHigh Back Cleaners Sink
NameHigh Back Cleaners Sink
NBS DescriptionSinks
NBS Object NameTrade Washrooms - Sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/344
Nominal Depth380 mm
Nominal Height895 mm
Nominal Length510 mm
Plug MaterialTrade Washrooms - Chrome - Polished
Production Year2020
Referenced StandardBS 5506, EN 37, EN 695
Replacement Costn/a
Shapen/a
Sink Height535 mm
Size510 x 380 x 895mm
Spare Partsn/a
Sustainability PerformanceEN 37, EN 695
Type CommentsCLEANH20SET
Type NameHigh Back Cleaners Sink
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description25-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
