Hob - FTGH G641D HA

by Hotpoint

Download Add to collection

Description

In an elegant black glass finish, the Hotpoint Built-In Gas Hob uses cast iron supports to keep your pans safe and stable, with a combination of fast, semi-fast and standard burners to accommodate all your cooking needs.

Object Data

1 Revision

Last Updated

25/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

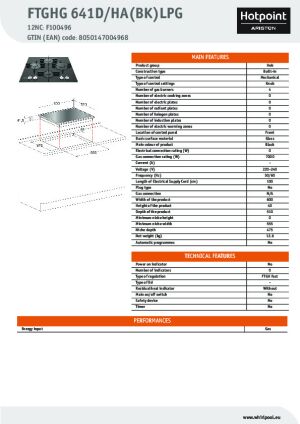

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorwww.bimstore.co.uk
_Authorized Bywww.bimstore.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Apparent Load0 VA
Assembly CodeE1090300
Asset TypeFixed
BIM Object NameHotpoint_SpecialtyEquipment_Hob_(FTGH-G641D-HA)
ChromeSteel, Chrome Plated
Classification NameUniclass2015
Classification ValuePr_40_70_24_09
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bywww.hotpointservice.co.uk/contact
Created On2018-06-22T00:00:00
Cutout Depth475 mm
Cutout Height42 mm
Cutout Length555 mm
Default Elevation0 mm
DescriptionIn an elegant black glass finish, the Hotpoint Built-In Gas Hob uses cast iron supports to keep your pans safe and stable, with a combination of fast, semi-fast and standard burners to accommodate all your cooking needs.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2640
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2640
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Glossy BlackBlack Glass
Graden/a
Ifc Export AsIfcElectricAppliance
Ifc Export TypeIfcElectricApplianceTypeEnum.ELECTRICCOOKER
KeynoteN11
ManufacturerHotpoint
Manufacturer NameHotpoint
MaterialSteel
Matt BlackSteel, Paint Finish, Dark Gray, Matte
ModelHob
Model NumberFTGHG 641D/HA(BK)LPG
Model ReferenceHob
NBS DescriptionBuilt-in gas hobs
NBS Object NameHotpoint - Built-in gas hobs
NBS Office Master Tagn/a
NBS Reference45-35-15/472
Nominal Depth510 mm
Nominal Height40 mm
Nominal Length600 mm
Overall Depth510 mm
Overall Length600 mm
Pressure Drop0.0 Pa
Production Year2018
Radius10 mm
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size40mm(h) x 600mm(w) x 510mm(d)
Spare Partsn/a
Type CommentsFTGHG 641D/HA(BK)LPG
Type NameFTGHG 641D/HA(BK)LPG
URLwww.hotpoint.co.uk/
Voltage0 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.hotpointservice.co.uk/contact
Warranty Guarantor Partswww.hotpointservice.co.uk/contact
