Bimstore - Vaillant - Home Domestic Boilers

65.4k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

12/01/2017

Download BIM

Add to collection

Available for:

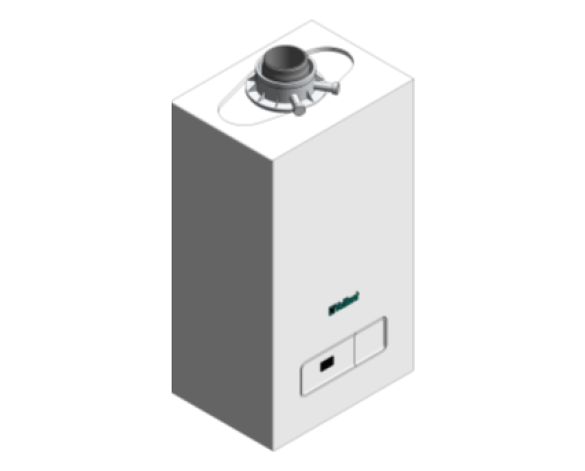

Vaillant has developed a range of ErP ‘A’ rated boilers, specifically created for the new build market. The Home boiler range provides the highest ever SAP efficiency levels: significantly exceeding building regulations and offering opportunities to lower your overall build costs.

Home has been designed with simplicity in mind, making it easier for developers to comply with SAP, ensuring that you can hit your DER targets in the most cost-effective way possible.

This Download Includes:

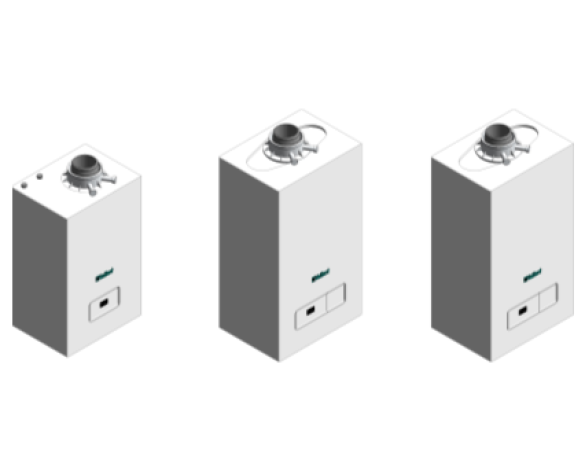

Home Combi - 25, 30, 35kW
Home System - 12, 15, 18, 25kW
Home Regular - 12, 15, 18, 25, 30kW
and additional applicable accessories

_AuthorPeter Winterburn
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accent MaterialVaillant Black
Accessibility Performancen/a
Assembly CodeD3060600
Asset TypeFixed
BIM Object NameMEP_Vaillant_VRC_Multiproduct
Casing MaterialVaillant White
Classification NameUniclass 2015
Classification ValuePr_75_50_76_73
Code Performancen/a
ColorWhite
Constituentsn/a
Controlle Power Consumption4 VA
Controller Protection ClassIII
Created Bytechnical@vaillant.co.uk
Created On2016
Default Elevation1219 mm
DescriptionWired remote control unit. Communication takes places over a 2-core eBUS line.
Duration UnitYears
Expected Life0
FeaturesYou can only operate the remote control unit in combination with the VRC 700 controller. This means that it is also necessary to read through the operating instructions for the VRC 700 controller.
Finishn/a
Graden/a
KeynoteV32
Level Of ProtectionIP 20
ManufacturerVaillant
MaterialPlastic
Maximum Anbient Temperature50 °C
ModelVR 91 Control Unit
Model NumberVR 91 Control Unit
NBS DescriptionAir temperature sensors
NBS Noten/a
NBS Object NameVaillant_VRC_Multiproduct
NBS Office Master Tagn/a
NBS Reference90-65-50/380
Nominal Height50 mm
Nominal Length115 mm
Nominal Width147 mm
Operating Voltage24 V
Production Year2016
Referenced Standardn/a
Replacement Costn/a
ShapeRectangluar
Size105x83x26mm
Spare Partsn/a
Type CommentsVR 91
Type NameVR 91
URLwww.vaillant.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@vaillant.co.uk
