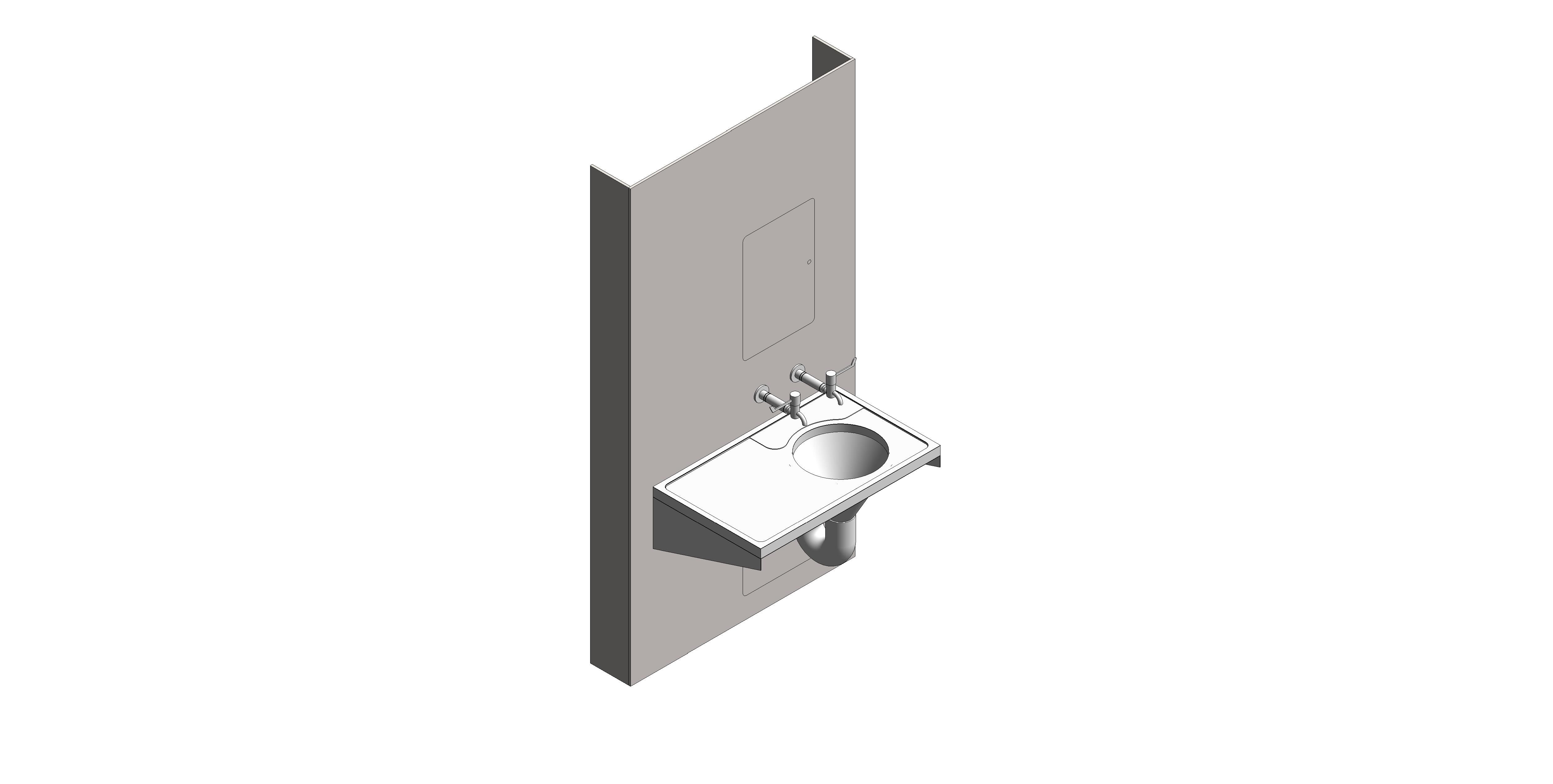

Hospital Disposal Unit [HBN DU H] IPS Panel Assembly

by Trade Washrooms

Download Add to collection

Description

A pre-assembled IPS panel unit for dirty utilities in hospitals and medical centres, specifically design DU H to dispose of solid and liquid waste.

Hospital Disposal Units designed and manufactured by Trade Washrooms help you specify and procure a complete assembly, as the Department of Health recommends in Health Building Notes (HBN).

Object Data

1 Revision

Last Updated

17/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_IPS_HospitalDisposalUnit_HBNDUH
Bowl Offset425 mm
CategorySs_25_25_45_25:Duct and wall panel lining systems
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
ColorBlue, Dark Grey, Grey, White
ConstituentsIPS, Disposal Unit and Tap
Created Byspec@tradewashrooms.co.uk
Created On2023-04-13T09:00:00
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionHospital Disposal Unit IPS Panel Assembly [HBN DU H]
Documentation Certificateswww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hospital-disposal-unit-hbn-du-h-ips-panel-assembly/document/technical-data-sheet
Duration UnitYears
Expected Life10
FeaturesA pre-assembled IPS panel unit for dirty utilities in hospitals and medical centres, specifically design DU H to dispose of solid and liquid waste.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
LHYes
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompacMEL Plus
Material Thickness12 mm
ModelHospital Disposal Unit IPS Panel Assembly
Model NumberDU1250 LH
Model ReferenceHospital Disposal Unit [HBN DU H] IPS Panel Assembly
NameHospital Disposal Unit [HBN DU H] IPS Panel Assembly
NBS DescriptionPre-plumbed installation frames
NBS Object NameTrade Washrooms - Pre-plumbed installation frames
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth225 mm
Nominal Height2400 mm
Nominal Length1250 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
RHNo
Shapen/a
Size2400 x 1250 x 225mm
Spare Partsn/a
Sustainability PerformanceCompacMel saves up to 80% of the emission of greenhouse gases compared to traditional solid grade laminates, and the material is fully recyclable.
Type CommentsDU1250 LH
Type NameHospital Disposal Unit IPS Panel Assembly
URLwww.tradewashrooms.co.uk/panel-systems/ips-panels/hospital-disposal-unit-ips-panel-assembly-hbn-du-h/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
