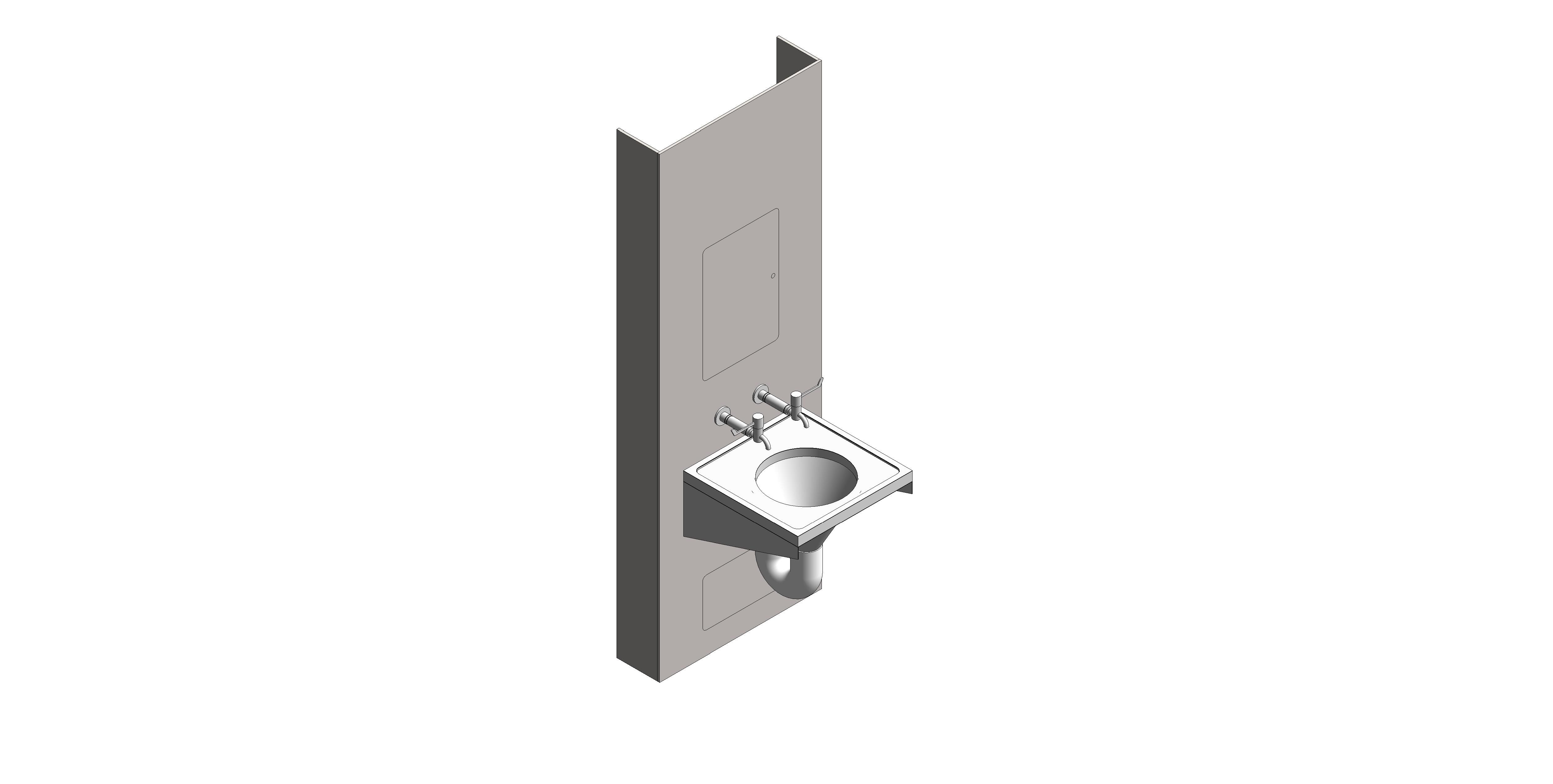

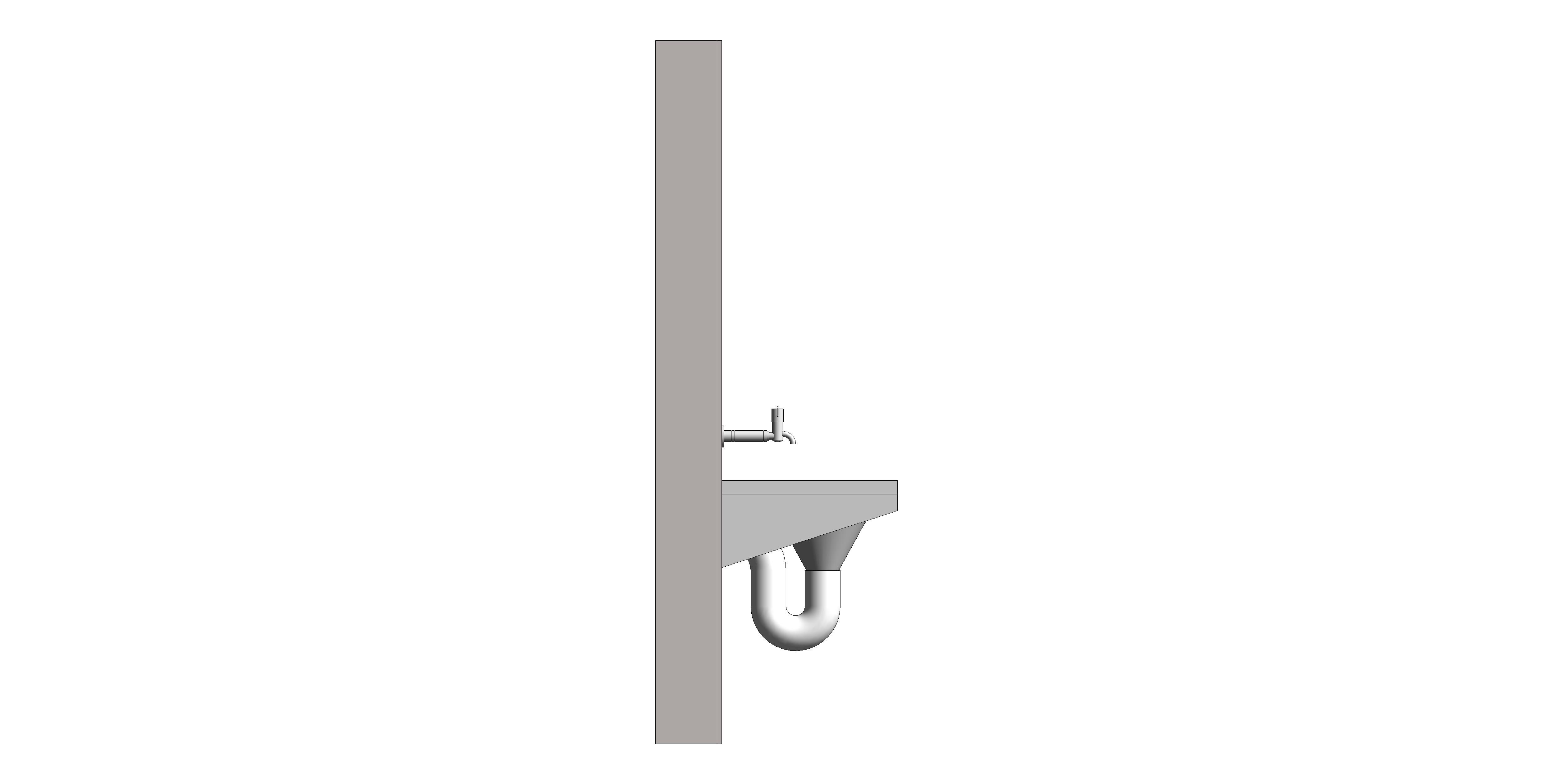

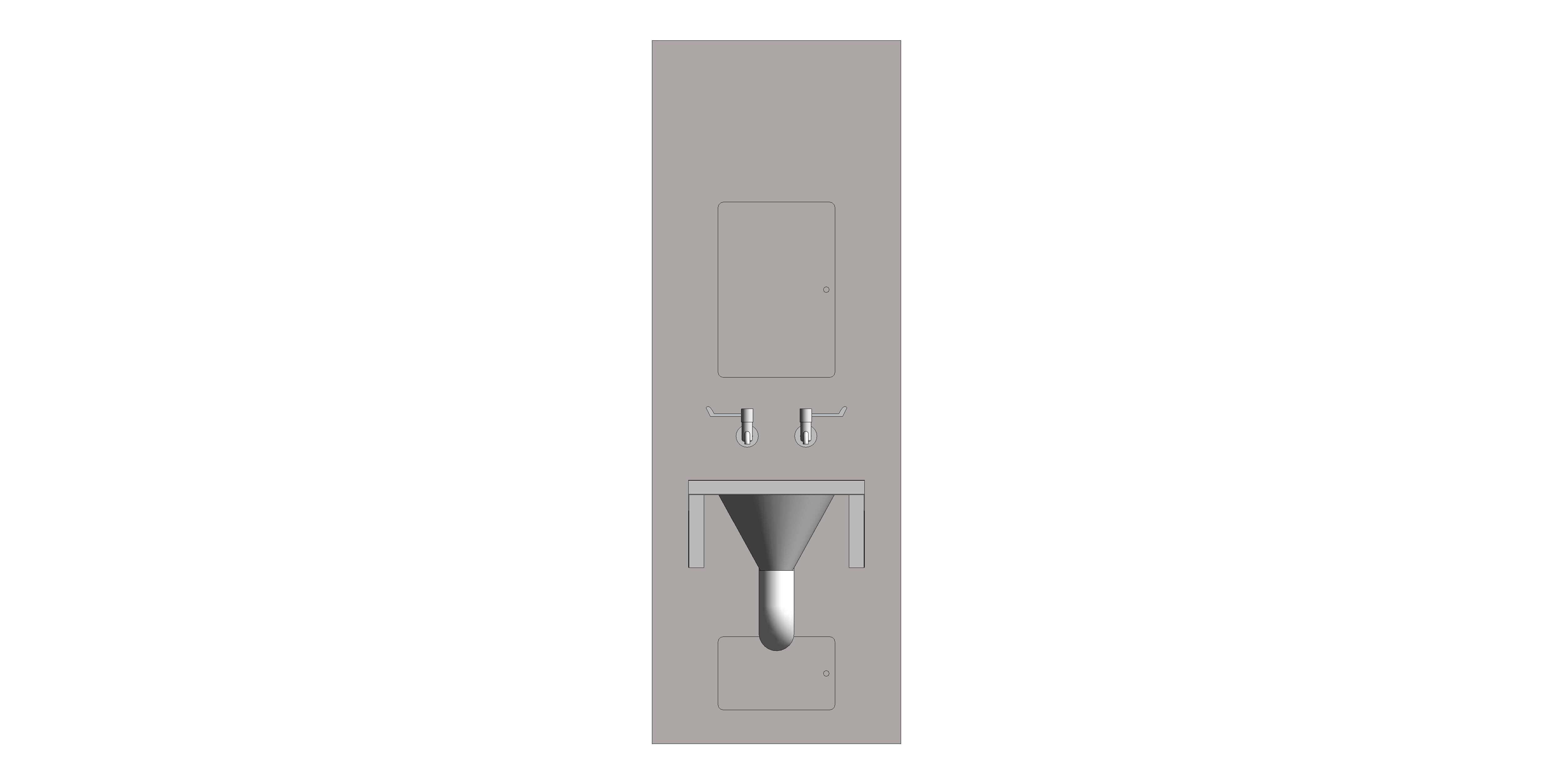

Hospital Disposal Unit [HBN DU] IPS Panel Assembly

by Trade Washrooms

Download Add to collection

Description

A pre-assembled IPS panel unit for use in dirty utilities and clinical areas, specifically design DU to dispose of solid and liquid waste.

Hospital Disposal Units designed and manufactured by Trade Washrooms help you specify and procure a complete assembly, as the Department of Health recommends in Health Building Notes (HBN).

Object Data

1 Revision

Last Updated

17/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

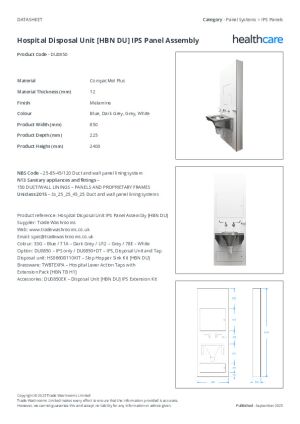

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_IPS_HospitalDisposalUnit_HBNDU
CategorySs_25_25_45_25:Duct and wall panel lining systems
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
ColorBlue, Dark Grey, Grey, White
ConstituentsIPS, Disposal Unit and Tap
Created Byspec@tradewashrooms.co.uk
Created On2023-04-13T09:00:00
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionHospital Disposal Unit IPS Panel Assembly [HBN DU]
Documentation Certificateswww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hospital-disposal-unit-hbn-du-ips-panel-assembly/document/technical-data-sheet
Duration UnitYears
Expected Life10
FeaturesA pre-assembled IPS panel unit for use in dirty utilities and clinical areas, specifically design DU to dispose of solid and liquid waste.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompacMEL Plus
Material Thickness12 mm
ModelHospital Disposal Unit IPS Panel Assembly
Model NumberDU0850
Model ReferenceHospital Disposal Unit [HBN DU] IPS Panel Assembly
NameHospital Disposal Unit [HBN DU] IPS Panel Assembly
NBS DescriptionPre-plumbed installation frames
NBS Object NameTrade Washrooms - Pre-plumbed installation frames
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth225 mm
Nominal Height2400 mm
Nominal Length850 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size2400 x 850 x 225mm
Spare Partsn/a
Sustainability PerformanceCompacMel saves up to 80% of the emission of greenhouse gases compared to traditional solid grade laminates, and the material is fully recyclable.
Type CommentsDU0850
Type NameHospital Disposal Unit IPS Panel Assembly
URLwww.tradewashrooms.co.uk/panel-systems/ips-panels/hospital-disposal-unit-ips-panel-assembly-hbn-du/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
