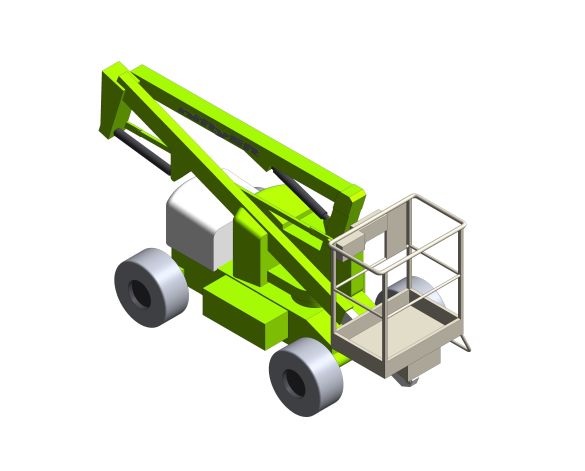

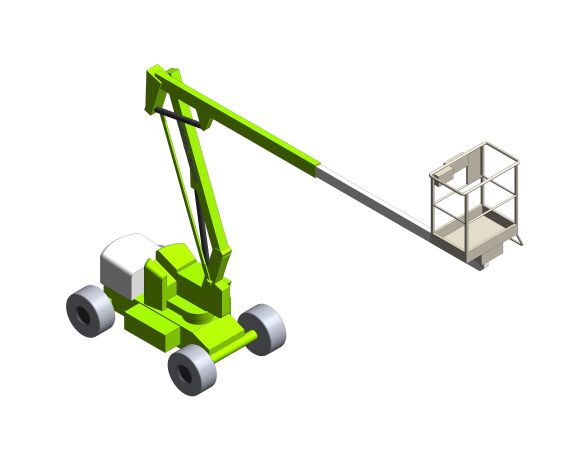

HR12 4x4 | 12.2m Self Propelled

by Niftylift

Download Add to collection

Description

With its compact dimensions and class-leading working envelope, the HeightRider 12 has always been versatile and reliable. Add to this a low weight chassis and a powerful four-wheel-drive system and you've got the HeightRider 12 4x4 (HR12 4x4) - one of the most complete 12m (40ft) self-propelled boom lifts available.

Its telescopic upper boom provides increased accuracy when positioning the platform and 6.10m outreach make the HR12 4x4 self-propelled boom lift perfect for reaching up and over all kinds of obstacles.

The HR12 4x4 self-propelled boom lift's deep tread rough terrain tyres provide extra grip even on soft ground.

Nifty's trade-mark 'Bi-Energy' option allows the HR12 4x4 self-propelled boom lift to work in a wide range of environments.

For more information regarding the HR12 4x4 or any other self-propelled boom lift, including the HR12N and HR15 4x4, please contact us.

HR12 4x4 Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Bi-Energy Available

Optimising utilisation

Slide-Out Canopy

Faster, easier access to engine

Weight Under 3.5 Tonnes

Low cost transportation

HR12 4x4 Specifications

Working Height (A)

12.2m (40ft)

Working Outreach (C)

6.1m (20ft)

Platform Height (B)

10.2m (33ft 6in)

Machine Width (F)

1.6m (5ft 3in)

Machine Height (D)

1.95m (6ft 5in)

Machine Length (J)

4.1m (13ft 5in)

Travel Speed

3.7km/h (2.2mph)

Gradeability

30%

Gradeability

17°

Turning Radius

4.3m (14ft 1in)

Minimum Weight

3470kg (7650lbs)

Safe Working Load

200kg (440lbs)

Cage Width

1.1m (3ft 7in)

Cage Depth

0.65m (2ft 2in)

Power Options

Diesel only
Bi-Energy (Engine & Battery)

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

27/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_SelfPropelledBoomLift_HR12_4x4
Cage Size1100 x 650 mm
Classification NameUniclass2015
Classification ValueTE_30_30_60_50
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionWith its compact dimensions and class-leading working envelope, the HeightRider 12 has always been versatile and reliable. Add to this a low weight chassis and a powerful four-wheel-drive system and you've got the HeightRider 12 4x4 (HR12 4x4) - one of the most complete 12m (40ft) self-propelled boom lifts available. Its telescopic upper boom provides increased accuracy when positioning the platform and 6.10m outreach make the HR12 4x4 self-propelled boom lift perfect for reaching up and over all kinds of obstacles. The HR12 4x4 self-propelled boom lift's deep tread rough terrain tyres provide extra grip even on soft ground. Nifty's trade-mark 'Bi-Energy' option allows the HR12 4x4 self-propelled boom lift to work in a wide range of environments.
Documentation Certificateswww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/installation-guide

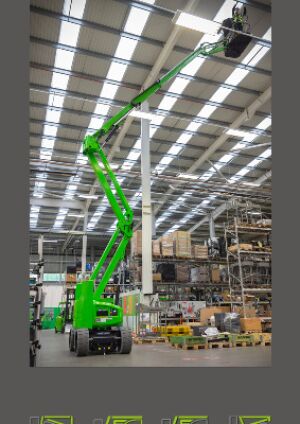

Documentation Literaturewww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/maintenance-information

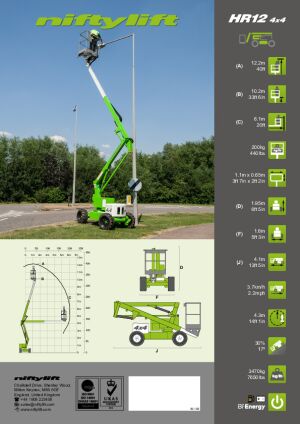

Documentation Technicalwww.bimstore.co/products/hr12-4x4-12-2m-self-propelled/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesTelescopic Upper Boom - Greater accuracy when positioning platform Bi-Energy Available - Optimising utilisation Weight Under 3.5 Tonnes - Low cost transportation Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain Slide-Out Canopy - Faster, easier access to engine
FinishPainted Steel
Graden/a
Gradeability30% (17°)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight3470 kg
ModelSelf Propelled Boom Lift
Model NumberHR12 4x4
Model ReferenceSelf Propelled Boom Lift
NBS DescriptionSelf-propelled platforms
NBS Object NameNiftylift - Self-propelled platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1600 mm
Nominal Height1950 mm
Nominal Length4100 mm
Platform Height10200 mm
Power OptionsDiesel
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load200 kg
Shapen/a
Size1.6m (5ft 3in) [W] x 1.95m (6ft 5in) [H] x 4.1m (13ft 5in) [L]
Spare Partsn/a
Travel Speed3.7 km/h
Turning Radius3400 mm
Type CommentsHR12 4x4
Type NameSelf Propelled Boom Lift
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach6100 mm
