Hudevad P5

by Stelrad Radiators Ltd

Download Add to collection

Description

The Hudevad P5 is a true Danish heating icon which stands out because it fits in.

Sleek, modern and functional high heat output radiators embodying true Scandinavian quality design from the original specification designers.

A beautiful flat front to provide a modern stylish design to suite any interior.

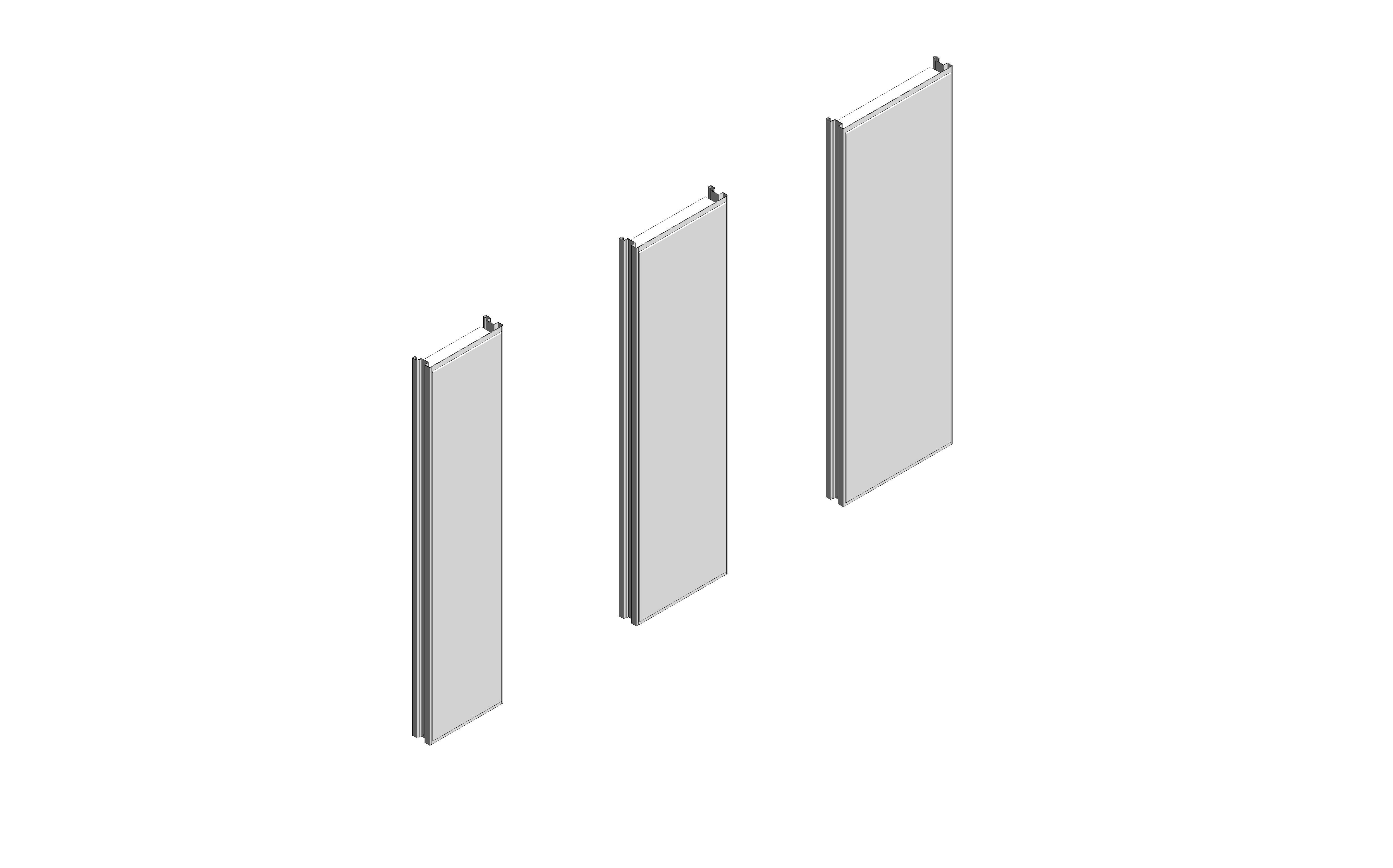

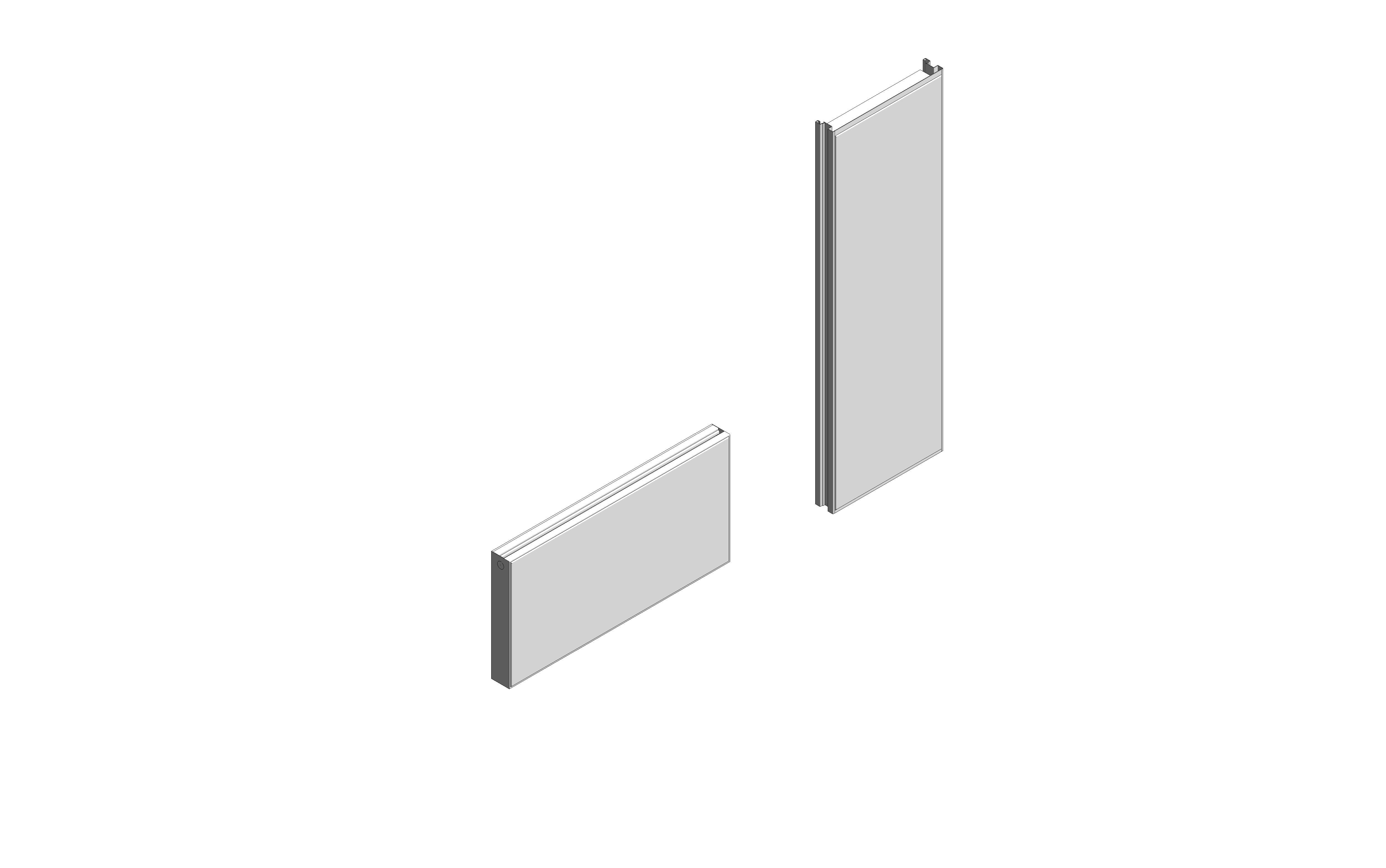

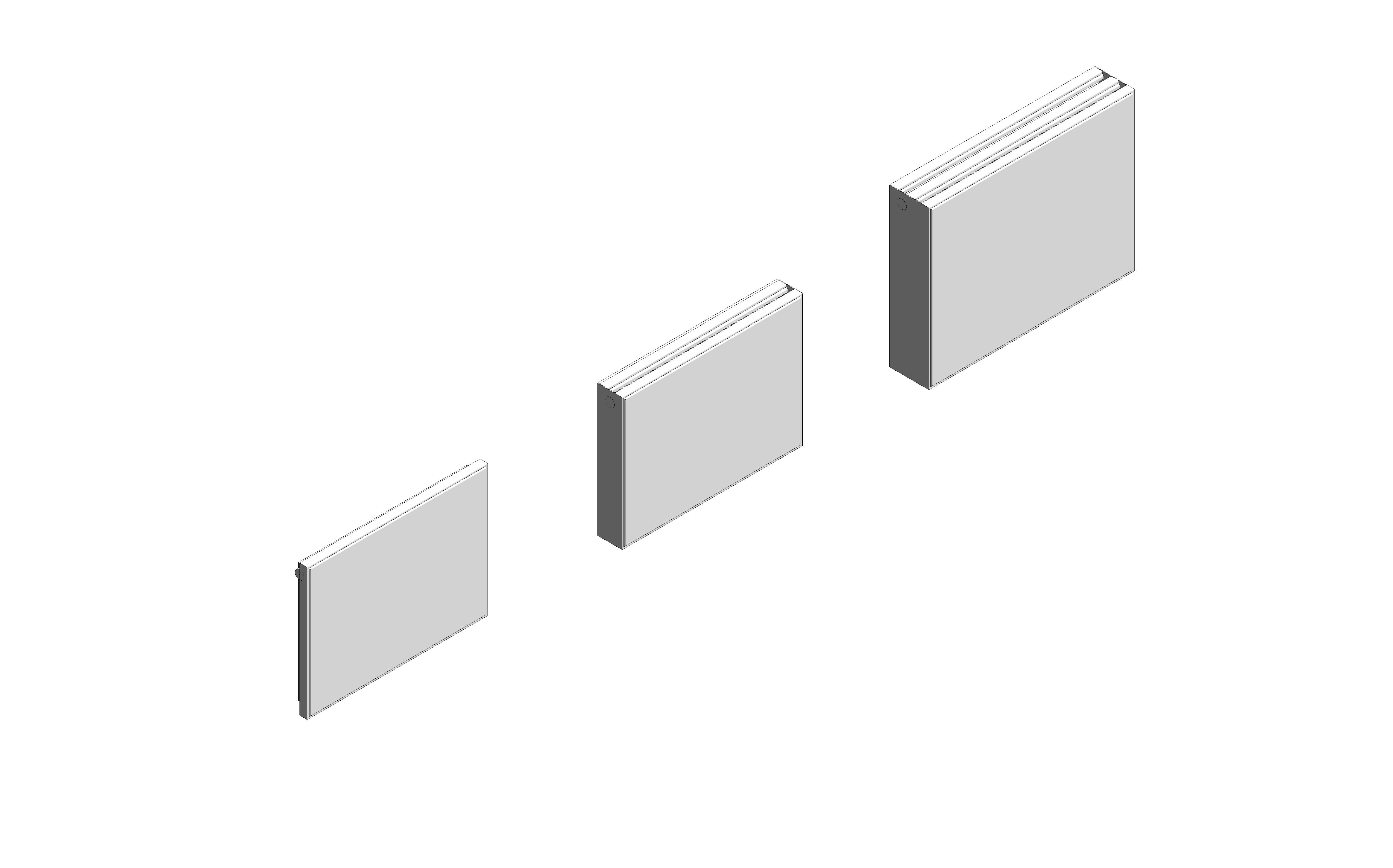

This download includes all size variations for: Hudevad P5 Honizontal K1 / K2 / K3 and Hudevad P5 Vertical K1

Object Data

1 Revision

Last Updated

11/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorinfo@stelrad.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@stelrad.com
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hudevad-p5/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
Back Panel ProfileNo
BIM Object NameStelrad_Radiator_HudevadP5_Horizontal
Central Panel ProfileNo
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite
Constituentsn/a
Created Byinfo@stelrad.com
Created On2024-12-5T09:00:00
Default Elevation0.00 mm
Delta Rating50
Depth62.00 mm
DescriptionP5 Horizontal H500 T11 L1000 ABCD (10) RAL 9016
Documentation Certificateswww.bimstore.co/products/hudevad-p5/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hudevad-p5/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hudevad-p5/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hudevad-p5/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hudevad-p5/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Heated Surface Area0.00 m²
Heat Output2539
Heat Output Power744
Height500.00 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
KeynoteT
Left ThermostatNo

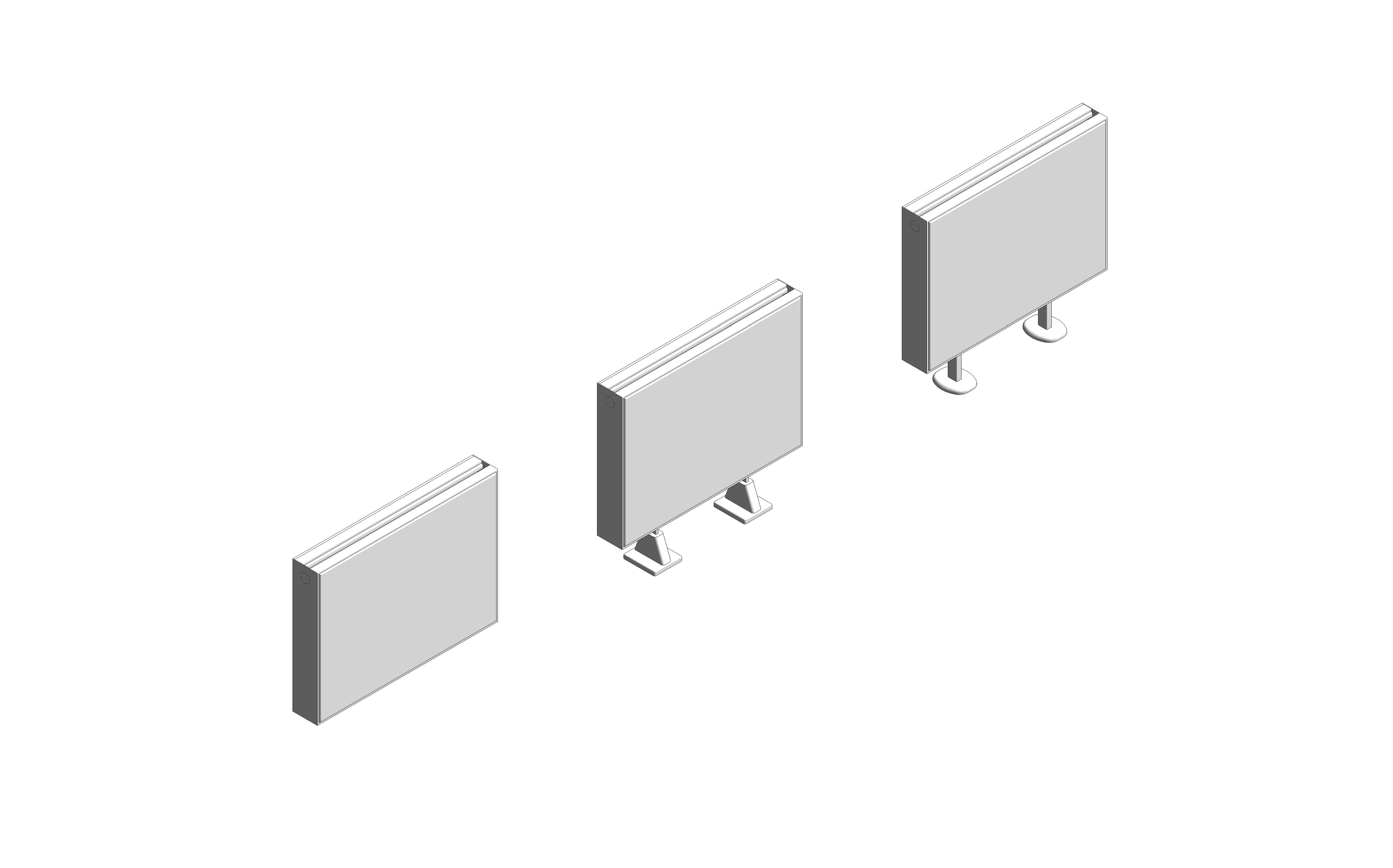

Legs Height150.00 mm
Legs MaterialHudevad coating
Legs Feet Offset8.00 mm
Legs Mounting Feet Offset21.00 mm
ManufacturerStelrad
Manufacturer NameStelrad
Materialn/a
ModelHudevad P5
Model NumberP5 Horizontal H500 T11 L1000 ABCD (10) RAL 9016
Model ReferenceHorizontal K1
n=coefficients1.2691
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth62.00 mm
Nominal Height500.00 mm
Nominal Length1000.00 mm
Production Year2024
Radiator Type11
Referenced Standardn/a
Replacement Costn/a
Right ThermostatNo
ShapeRectangular
Side Panels Depth29.90 mm
SizeK1 - 500(H) x 1000(W)
Spare Partsn/a
Surface MaterialHudevad coating
Tapping Dual_Center Center Distance50.00 mm
Tapping In Diameter35.00 mm
Tapping Offset Back27.00 mm
Tapping Offset Bottom29.50 mm
Tapping Offset Down38.00 mm
Tapping Offset Side0.50 mm
Tapping Offset Top40.50 mm
Tapping Out Diameter35.00 mm
Tapping Placement Thickness10.00 mm
Thermostat MaterialThermostat
Type CommentsK1 - 520(H) x 1010(W)
Type NameK1 - 520(H) x 1010(W)
URLwww.stelrad.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Water Contents3 L/s
Weight21.81 kg
Width1000.00 mm
