The SPC range of industrial air curtains are high powered air barriers designed for industrial or heavy commercial applications intended to blow a jet of air across an open doorway to help prevent loss of conditioned air and to heat any air which enters.

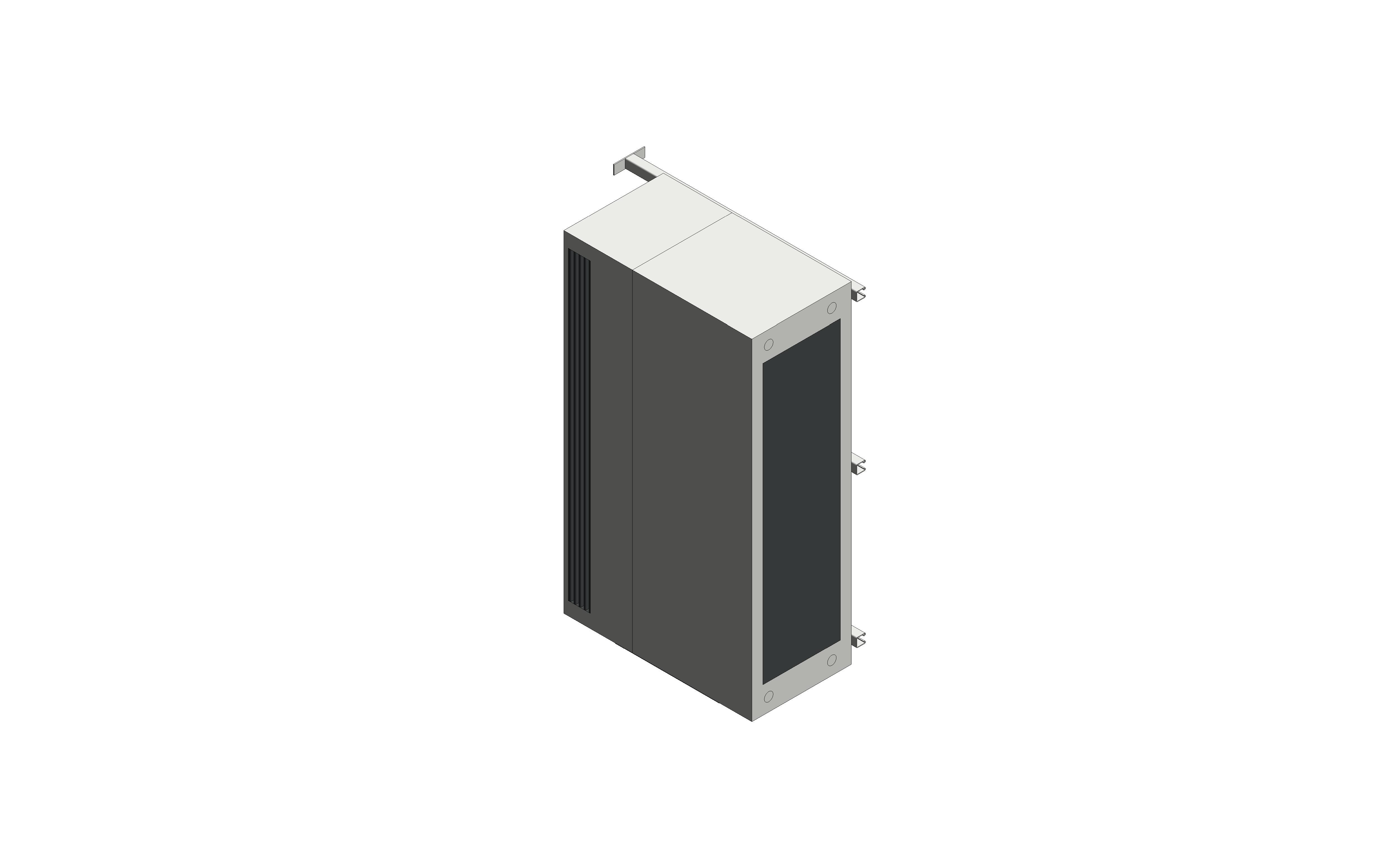

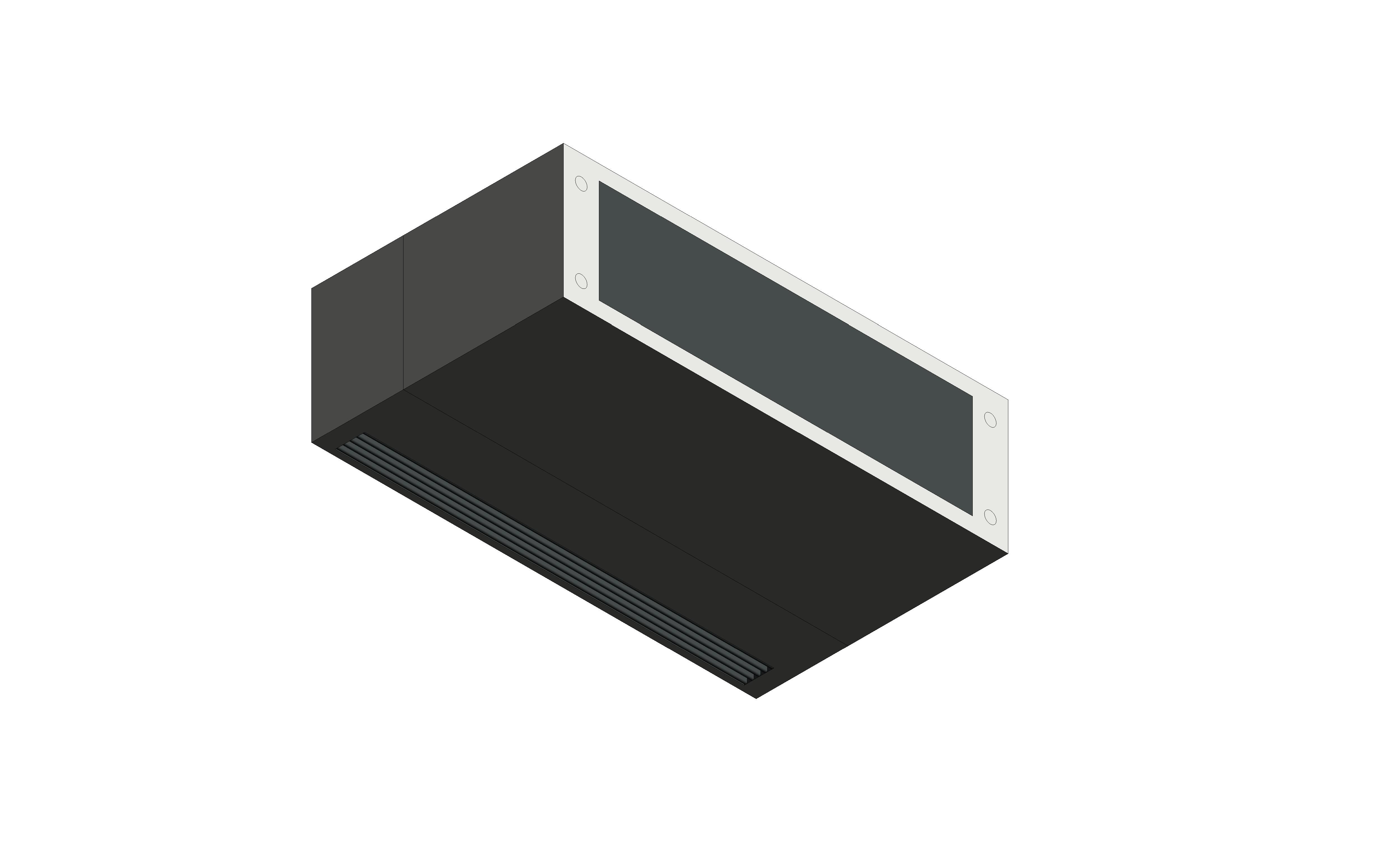

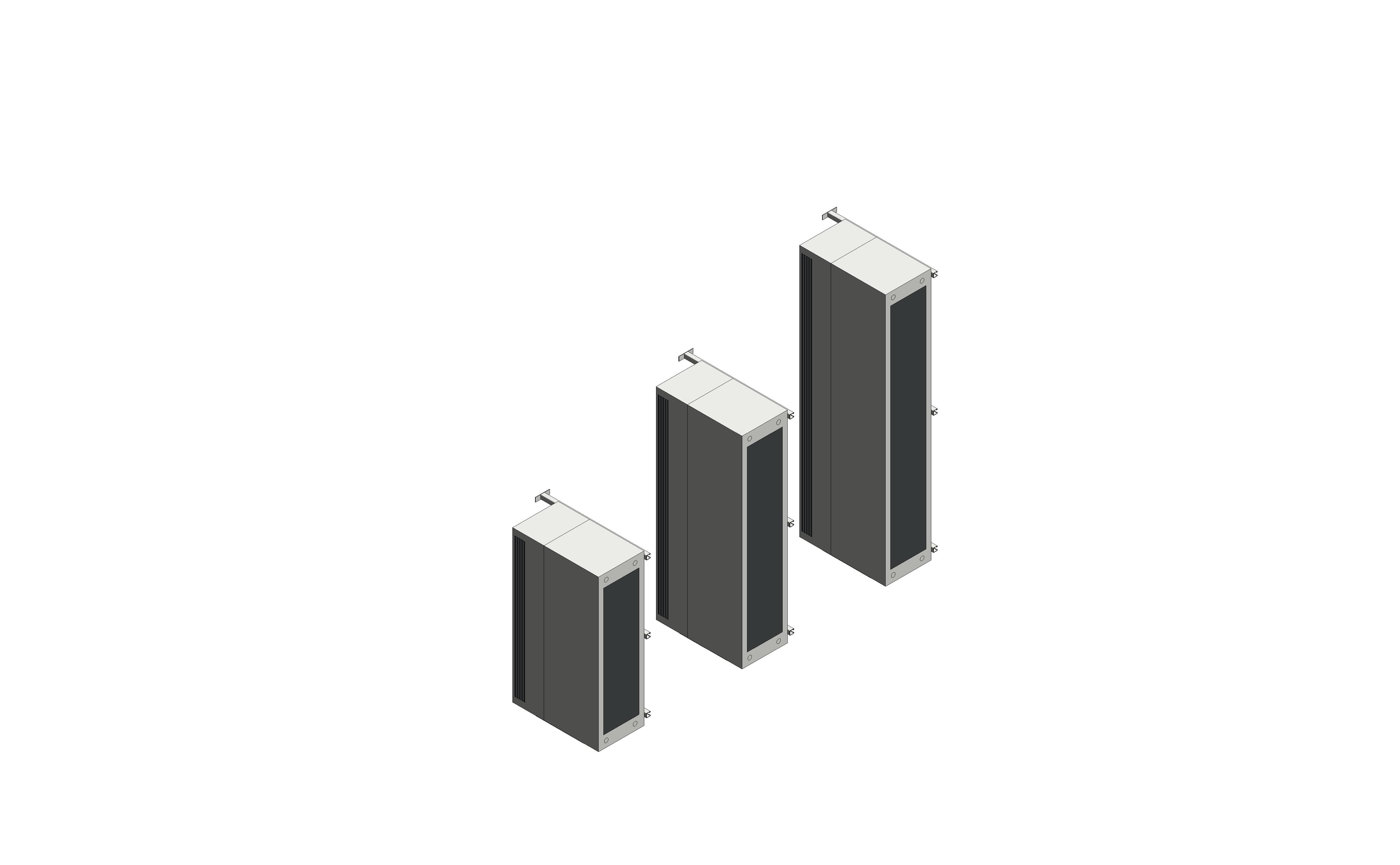

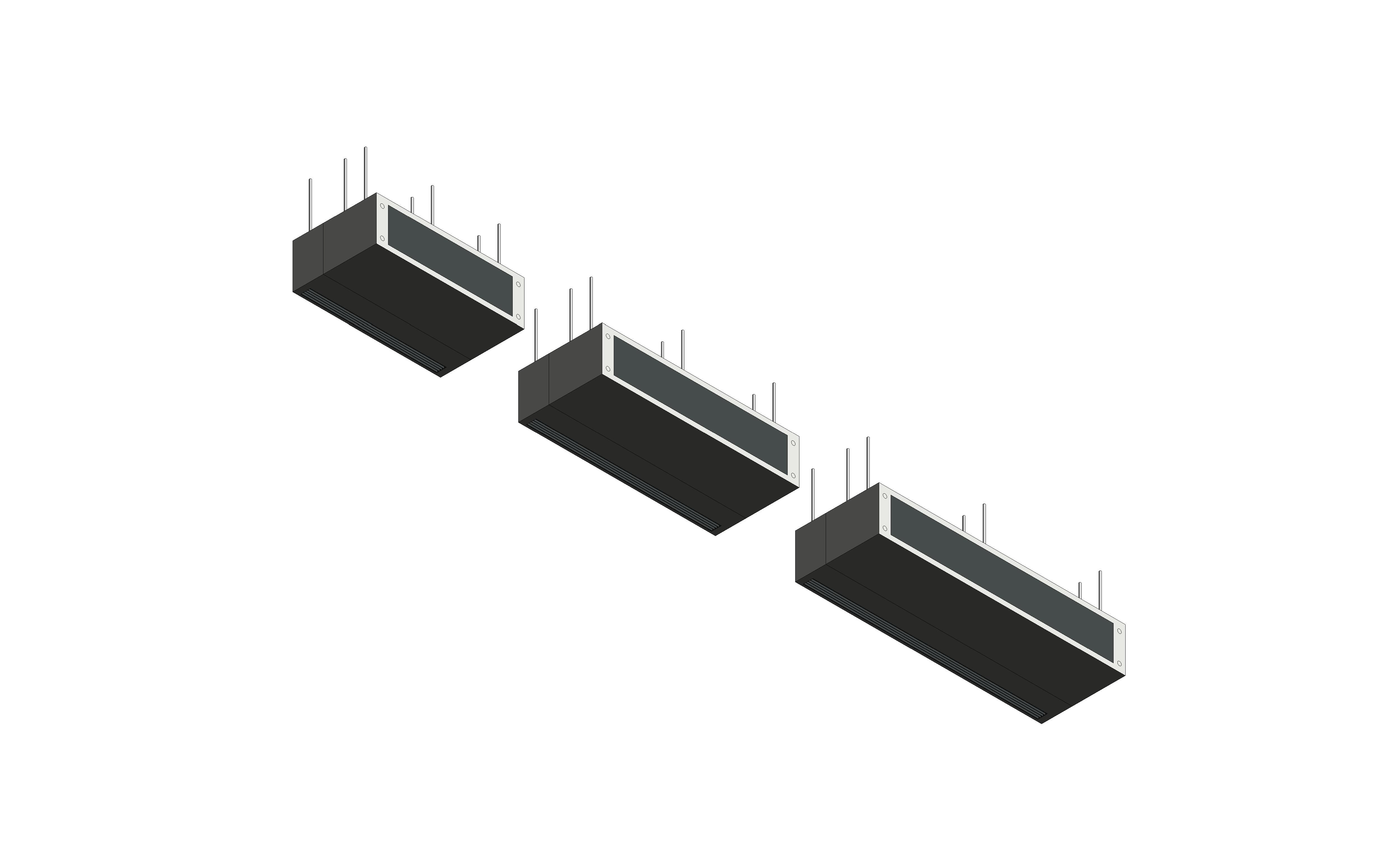

The units are designed to offer protection to doorways with heights of up to 6m and can be fitted either horizontally above the door or vertically along the sides of the door. Units are available in widths of 1.5, 2.0 and 2.5m. Horizontal units can be fitted side by side to provide coverage of doorways of any length. Vertical units can be fitted on either the left hand side, right hand side or both sides of the doorway and may be stacked.
Versions are available without heat exchangers (ambient units), with electric heating elements or with low pressure hot water coil heat exchangers. The latter can be supplied as standard with a 2 row coil to suit conventional boiler temperatures or with an enhanced 3 row coil to suit lower water temperatures associated with condensing boilers or heat pumps.
The air curtains are equipped with a series of powerful forward curved blowers which generate a high momentum jet of warm or ambient air extending to the floor or across the door. The motors are EC type allowing complete control over the rotational speed of the blowers and corresponding control of the rate of airflow and momentum of the air jet. Higher velocity/ momentum jets suit higher mounting heights/door widths.
Casings are from heavy gauge, powder coated steel and the units can be supplied with a range of mounting and control options.
