bimstore - Ideal Boilers - Imax Xtra Floor Standing Condensing Boiler

15.9k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

3 Revision

Last Updated

29/09/2016

Download BIM

Add to collection

Available for:

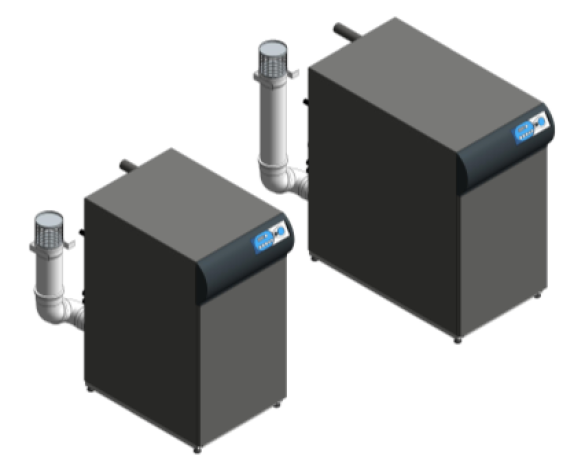

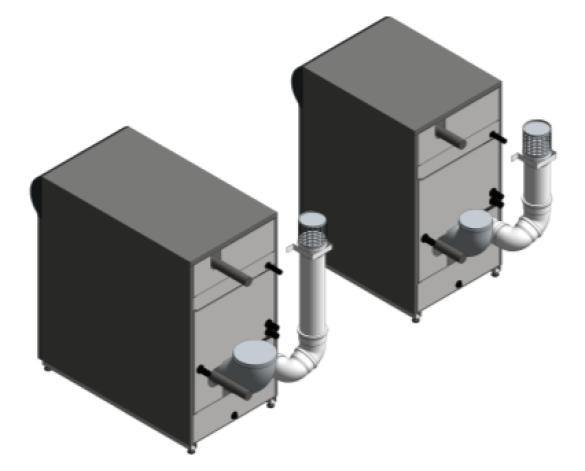

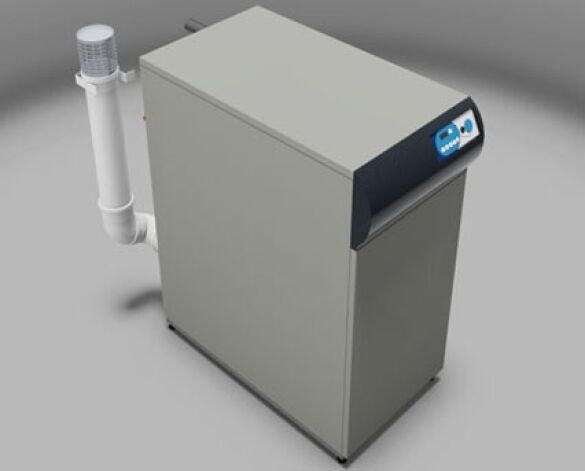

The Imax Xtra range of condensing boilers is offered in six models with outputs from 80 to 280 kW suitable for floor standing application in either single or multiple applications.

Features and benefits

Robust cast aluminium silicon alloy heat exchanger
In-built commissioning and fault diagnostics
Volt free contacts and BMS operation standard
Meets Building Regulations (Part L2)
Compact size - small footprint
High 5:1 turndown
Up to 107.5% nett efficiency (fully condensing)
Fits through standard doorways
Conventional or room sealed flue options
Direct weather compensation option
NOx <40mg/kWh (Class 5)
2 year parts and labour warranty

This download includes all Imax Xtra versions available from Ideal Commercial Boilers from 80 - 280 kW

_BIMspec_GUID0
_created byAndy Smart
_current revision1
_distributed bywww.bimstore.co.uk
2nd Module VisibilityNo
Air Duct Assembly TypeAir Duct Assembly : Air Duct Assembly 590
Air Inlet (optional) - O/Dmm110.000000000000 mm
Assembly CodeD3020100
Asset TypeMovable
Boiler Depth847.000000000000 mm
Boiler dry weight (unpacked exc. headers) - kg150
Boiler Electricity Supply230V - 50 Hz
Boiler Fuse RatingExternal: 3A* Internal: 2AT, 4AT
Boiler Height1150.000000000000 mm
Boiler Input Max Rate - Gross Btu/hr454800
Boiler Input Max Rate - Gross kW133.3
Boiler Input Max Rate - Nett Btu/hr409450
Boiler Input Max Rate - Nett kW120
Boiler Input Min Rate - Gross Btu/hr90750
Boiler Input Min Rate - Gross kW26.6
Boiler Input Min Rate - Nett Btu/hr81900
Boiler Input Min Rate - Nett kW24
Boiler Output (condensing) Mean 40 degree C Max Btu/hr421050
Boiler Output (condensing) Mean 40 degree C Max kW123.4
Boiler Output (condensing) Mean 40 degree C Min Btu/hr88000
Boiler Output (condensing) Mean 40 degree C Min kW25.8
Boiler Output (non-condensing) Mean 70 degree C Max Btu/hr398900
Boiler Output (non-condensing) Mean 70 degree C Max kW116.9
Boiler Output (non-condensing) Mean 70 degree C Min Btu/hr79500
Boiler Output (non-condensing) Mean 70 degree C Min kW23.3
Boiler Width600.000000000000 mm
Clearance - Front600.000000000000 mm
Clearance - Left Side450.000000000000 mm
Clearance - Rear1000.000000000000 mm
Clearance - Right Side450.000000000000 mm
Clearance - Top500.000000000000 mm
Condensate Drain - mm21.500000000000 mm
Created Bycommercial_heating@idealheating.com
Created On4/10/2013
DescriptionThe Imax Xtra range of condensing boilers is offered in ten models with outputs from 80 to 560 kW suitable for floor standing application in either single or multiple applications.
Duration UnitYears
Expected Life0
Flow & Return Tail Length157.000000000000 mm
Flow Connection (in. BSP)2
Flue Base Height509.999999999999 mm
Flue Centre Line888.000000000000 mm
Flue Clearance Offset908.000000000000 mm
Flue Exit Diameter150.000000000000 mm
Flue Exit Radius75.000000000000 mm
Flue Size Dia - mm150.000000000000 mm
Flue Dia D150.000000000000 mm
Frost protectionFrost protection is built into the boiler control, if the boiler sensor falls below 7 degrees C, this will result in the appliance firing.
Gas Supply2H - G20 - 20mbar
Gas Supply Connection (in. BSP)1
Horizontal Air Duct Assembly TypeAir Duct Assembly : Warning text
Hydraulic Resistance @ 20 degree C (with optional water header pack fitted) mbar0
Hydraulic Resistance at 11 degree C - mb281
Hydraulic resistance at 20 degree C - in. w.g.40
Hydraulic resistance at 20 degree C - mb85
ManufacturerIdeal Commercial Heating
Max Flue Resistance - Pa100
Max Press (sealed system) bar (psi)6 bar (87 psi)
Maximum design flow temp82 degrees C (180F) (This is adjustable to 90 degrees C at the control panel)
Maximum Static Head - m (ft)61 metres (200 feet)
Maximum working pressure6 bar (87 psi)
ModelImax Xtra F120
Model NumberImax Xtra F120
Module Depth796.000000000000 mm
Natural GasYes
No. Of Modules1
NOx with 02 = 0% - mg/kWh26
NOx with 02 = 0% - ppm15
Overall Depth1024.000000000000 mm
Power Consumption (boiler only) - W250
Pump overrunPump overrun is provided as standard, and a period of 5 minutes must be allowed for in system design.
Return Connection (in. BSP)2
Seasonal Boiler Efficiency (Bulding Regs L2) %95.1
Type NameF120
Uniclass 2WR-90-87-08
URLwww.idealcommercialheating.com/index.php
URL - Product Documentationwww.idealcommercialheating.com/downloads/pdf/imax_xtra_80-280_manual.pdf
URL - Product Pagewww.idealcommercialheating.com/products/imax-xtra.php
Warranty Duration Labor2 years
Warranty Duration Parts2 years
Water Content - l (gal)14.3 (3.2)
Water flow rate temperature difference 20 degree C (36 degree F) - l/s1.47
