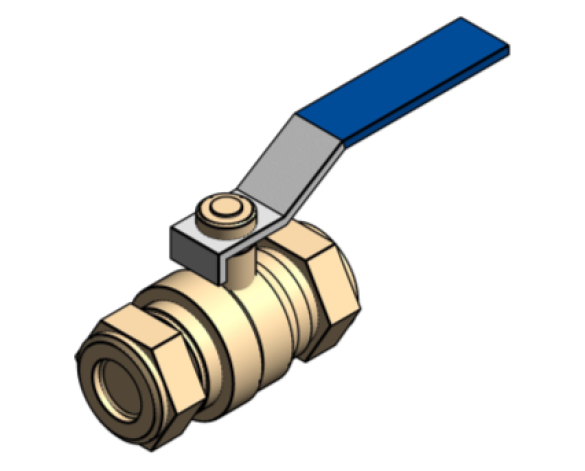

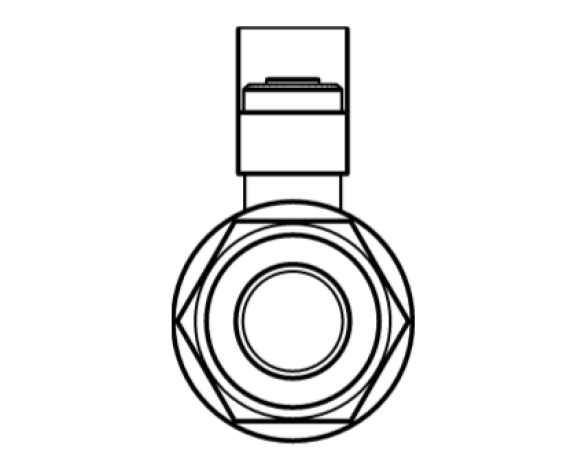

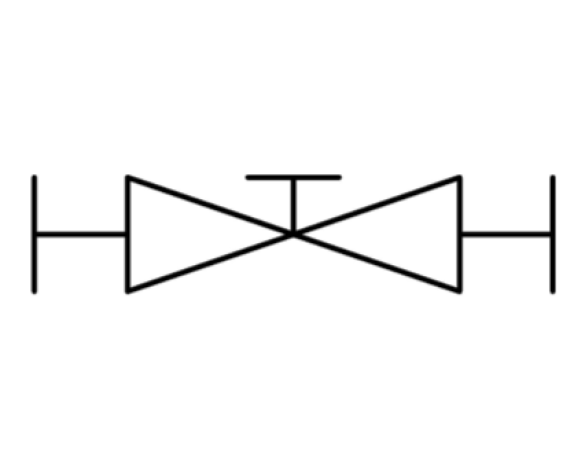

Intaball Lever Ball Valve - Blue Handle

Unapproved This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

10.9k
0
4 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

13/07/2016

Download BIM

Add to collection

Available for:

Application

The Altecnic Intaball lever ball valve with compression ends is the ideal isolation valve for use in copper pipe systems. Ideal for isolating individual outlets, ‘Y’ pattern strainers or control valves, should maintenance be required.

In larger systems they can provide isolation on heating, chilled and the primary side of HWS services on zones, branches or floors.

Design

The Intaball brass ball valves are lever operated through 90°, with bi-directional flow. The hard chrome plated ball provides increased wear resistance.

Compact design, with PTFE body seats for reliable isolation. The valves are designed for high flow rates with minimum pressure drops.

This download contains

1 Pipe Accessory Family with six types;AI-373B15 - 15mm CompressionAI-373B22 - 22mm CompressionAI-373B28 - 28mm CompressionAI-373B35 - 35mm CompressionAI-373B42 - 42mm CompressionAI-373B54 - 54mm Compression

Blue Handle to indicate cold water

COBie and NBSCreate Parameters

Altecnic BIM Userguide

_authorized byKris Atkinson
_BIMspec_GUID1
_created byPeter Winterburn
_current revision1
_distributed bywww.bimstore.co.uk
15Yes
22No
28No
35No
42No
54No
A15 mm
Accessibility Performancen/a
Assembly CodeD2090800
Asset TypeFixed
B15 mm
C68 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_16
Code Performancen/a
ColorSilver
Constituentsn/a
Created Bytechnical@altecnic.co.uk
Created On2016
D9 mm
DescriptionEstablished near Stafford in 1988, we’ve built our reputation on supplying what our customers need now, while our dedicated technical team works on what you’ll need in the future. Development work by our European manufacturing partners Caleffi constantly anticipates new regulations and market trends.
Duration UnitYears
E43 mm
Expected Life0
F90 mm
FeaturesThe Altecnic Intaball lever ball valve with compression ends is the ideal isolation valve, for use in copper pipe systems
FinishNickel Plated
Graden/a
Inlet 1_Diameter15 mm
KeynoteS12
ManufacturerAltecnic
Manufacturer AddressAltecnic Ltd, Mustang Drive, Stafford, Staffordshire, ST16 1GW
Manufacturer Fax+44 (0)1785 218201
Manufacturer Tel+44 (0)1785 218200
MaterialDZR Brass
Max. Temperature99 °C
Max. Temperature at 10 bar65 °C
Max. Temperature at 16 bar30 °C
Max. Temperature at 5 bar120 °C
Max. Temperature at 6 bar110 °C
Max. working pressure25.0 bar
Min. Temperature20 °C
ModelIntaball Lever Ball Valve Blue Handle
Model NumberPlease record on commissioning
NBS DescriptionBall stop valves;
NBS Object Name90-20-80/325 Ball stop valves;
NBS Reference90-20-80/325;
Nominal Height57 mm
Nominal Length68 mm
Nominal Width27 mm
Production Year2016
Ref. noAl-373R15
Referenced StandardCEN/TS 13547, BS EN 1254-2, Supplied with compression ends complying with BS EN 1252-2 for use with R250 (half hard) copper tube.
Replacement Costn/a
Shapen/a
Size150 x 41.3 x 100mm
Spare Partsn/a
Type NameIntaball Lever Ball Valve Blue Handle
URLwww.altecnic.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
