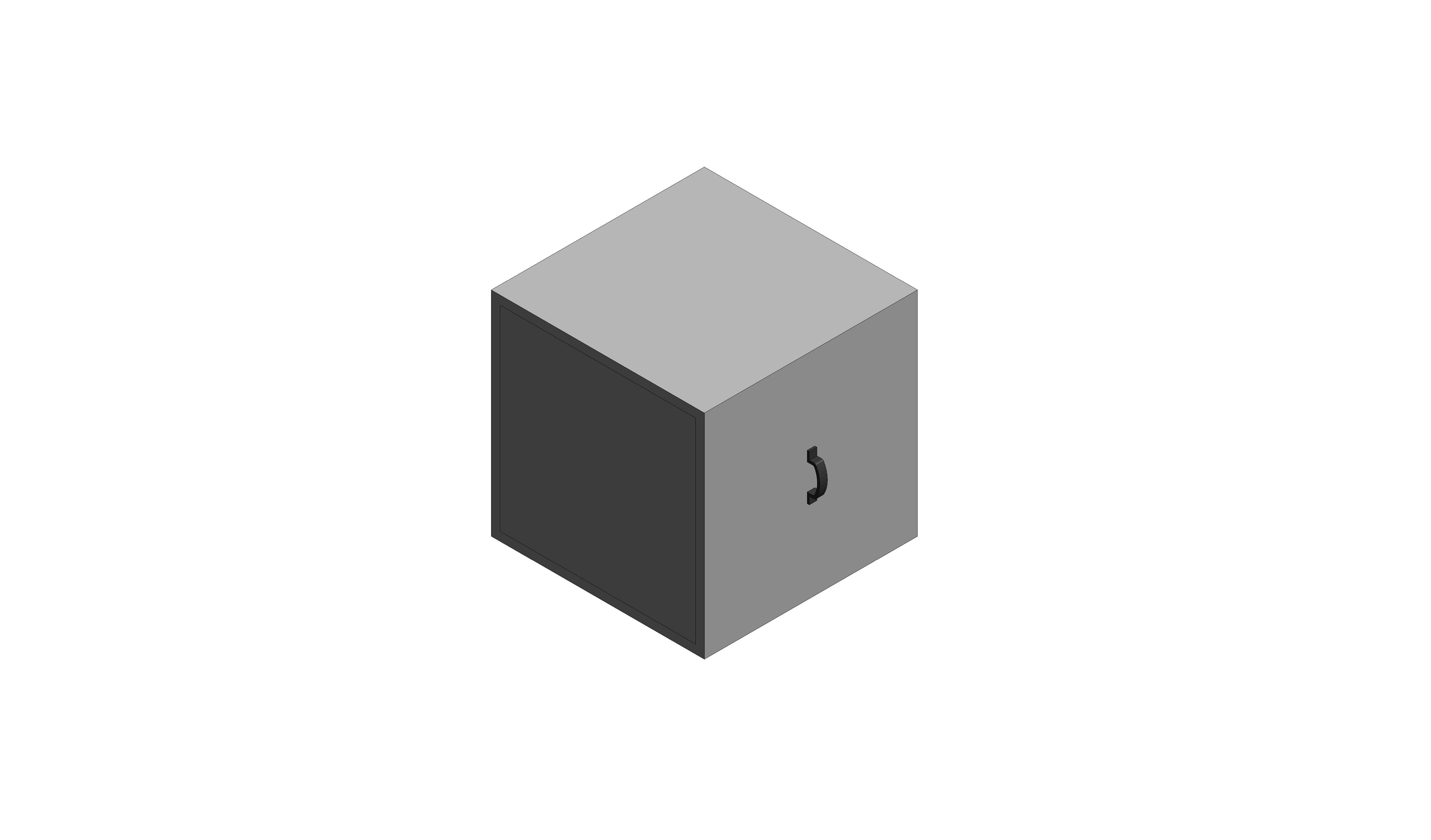

ISO-V EC - Centrifugal Fan

by Blauberg UK Limited

Download Add to collection

Description

Extract ventilation systems installed in various premises.
Roof mounting.
For any types of roofs or vertical ventilation shafts.
High efficiency EC Motor

Objects Included:

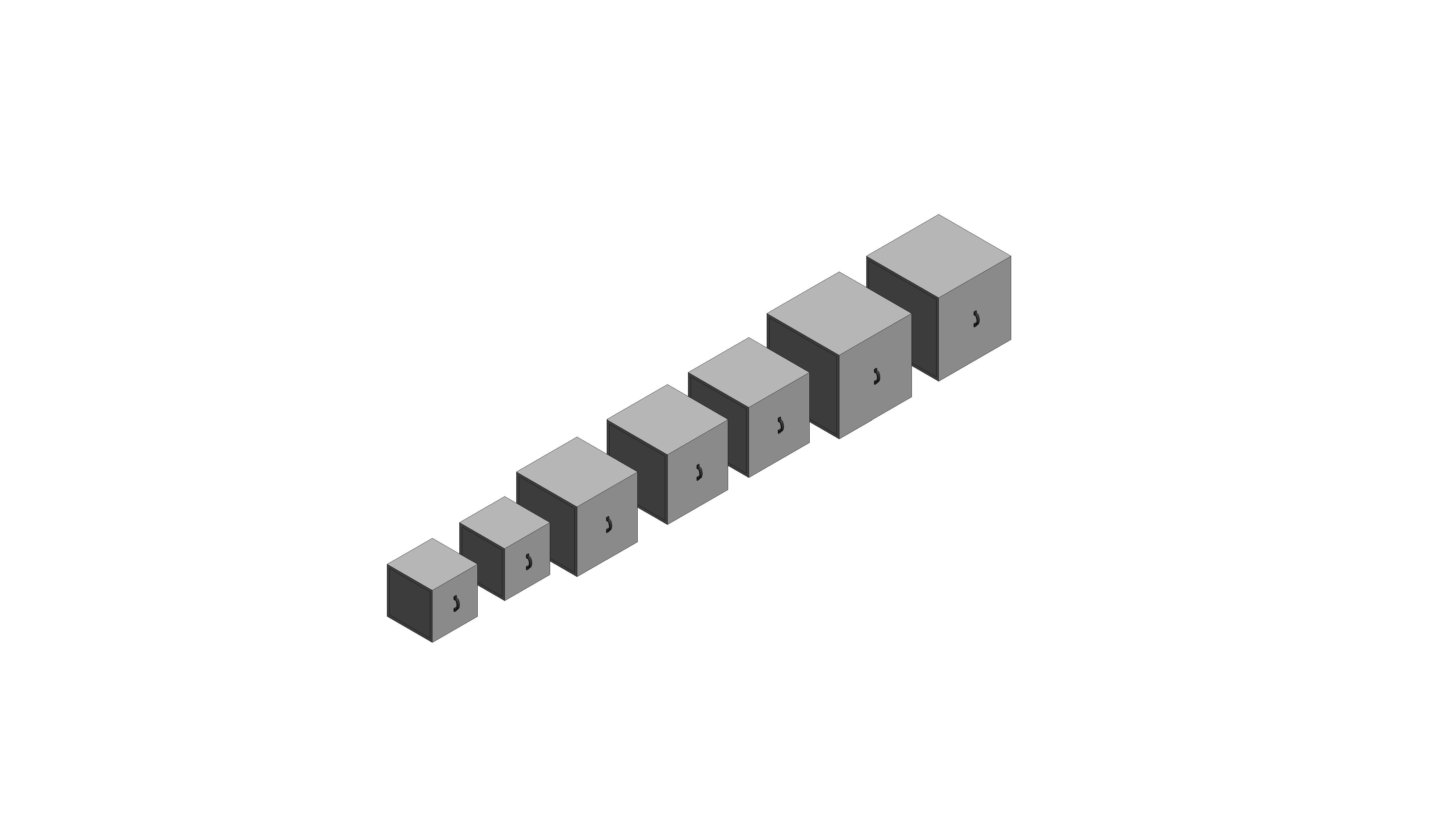

ISO-V 630 ЕС, ISO-V 560 ЕС, ISO-V 500 ЕС, ISO-V 450 ЕС, ISO-V 400 ЕС, ISO-V 355 ЕС, ISO-V 315 ЕС

Object Data

1 Revision

Last Updated

30/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.blauberg.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/iso-v/document/object-user-guide
A500 mm
Accessibility Performancen/a
Apparent Power150 VA
Asset TypeFixed
BIM Object NameBlauberg_MechanicalEquipment_ISO-V-EC
Casing MaterialFan Zinc
Classification NameUniclass2015
Classification ValuePr_30_59_96
Code Performancen/a
Colorn/a
con A250 mm
Connection H445 mm
Connection W445 mm
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-09-22T09:00:00
Current1 A
DescriptionInline centrifugal fan in sound insulated casing
Din250 mm
Documentation Certificateswww.bimstore.co/products/iso-v/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/iso-v/document/installation-guide
Documentation Literaturewww.bimstore.co/products/iso-v/document/product-literature
Documentation Maintenancewww.bimstore.co/products/iso-v/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/iso-v/document/technical-data-sheet
Duration UnitYears
e H80 mm
e L80 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
gs D250 mm
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRHANDLER
Load ClassificationHVAC
Maintenance Zone Depth500 mm
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg UK
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow Directly2252 m³/h
Maximum Air Flow Perpendicularly2370 m³/h
ModelISO-V 315 ЕС
Model NumberV315ЕС
Model ReferenceV315ЕС
NBS DescriptionWall Venting Products
NBS Object NameBlauberg UK - Wall Venting Products
NBS Office Master Tagn/a
NBS Reference90-45-30/320
Noise Level At 3m D Ba35
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Plastic MaterialPolypropylene Black
Power150 W
Power Factor1
Production Year2021
Protection RatingIPX4
Referenced Standardn/a
Replacement Costn/a
RP Mmin 11600
Shapen/a
Sizen/a
Spare Partsn/a
Transported Air Temperature Degrees C-40...+80
Type CommentsInline centrifugal fan
Type NameISO-V 315 ЕС
URLwww.blauberg.co.uk/catalogsearch/result/?q=ISO-V+EC
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight25.7 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
