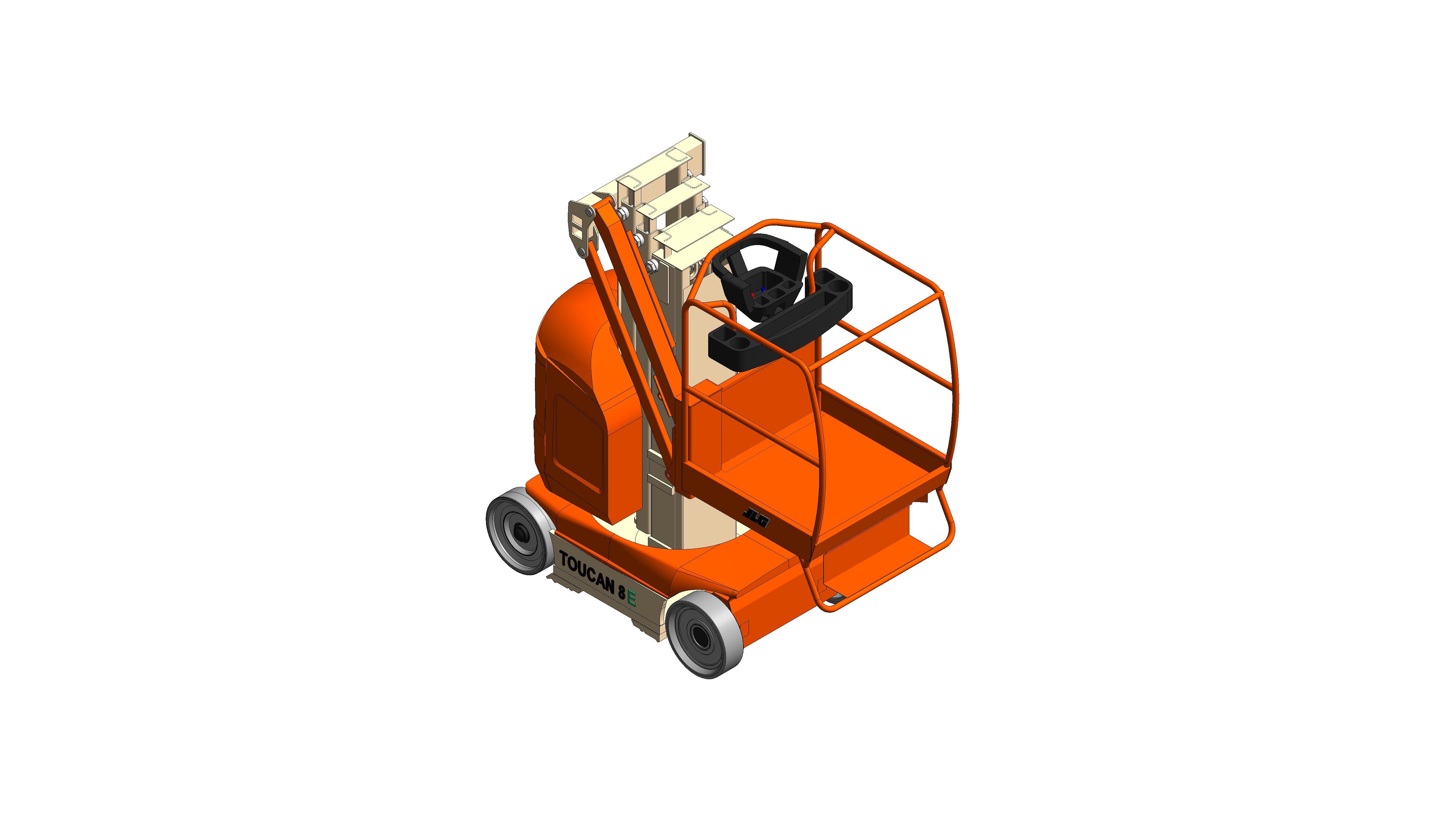

bimstore - JLG - T8E / T20E - Toucan® Mast Boom Lift

2.9k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/02/2021

Download BIM

Add to collection

Available for:

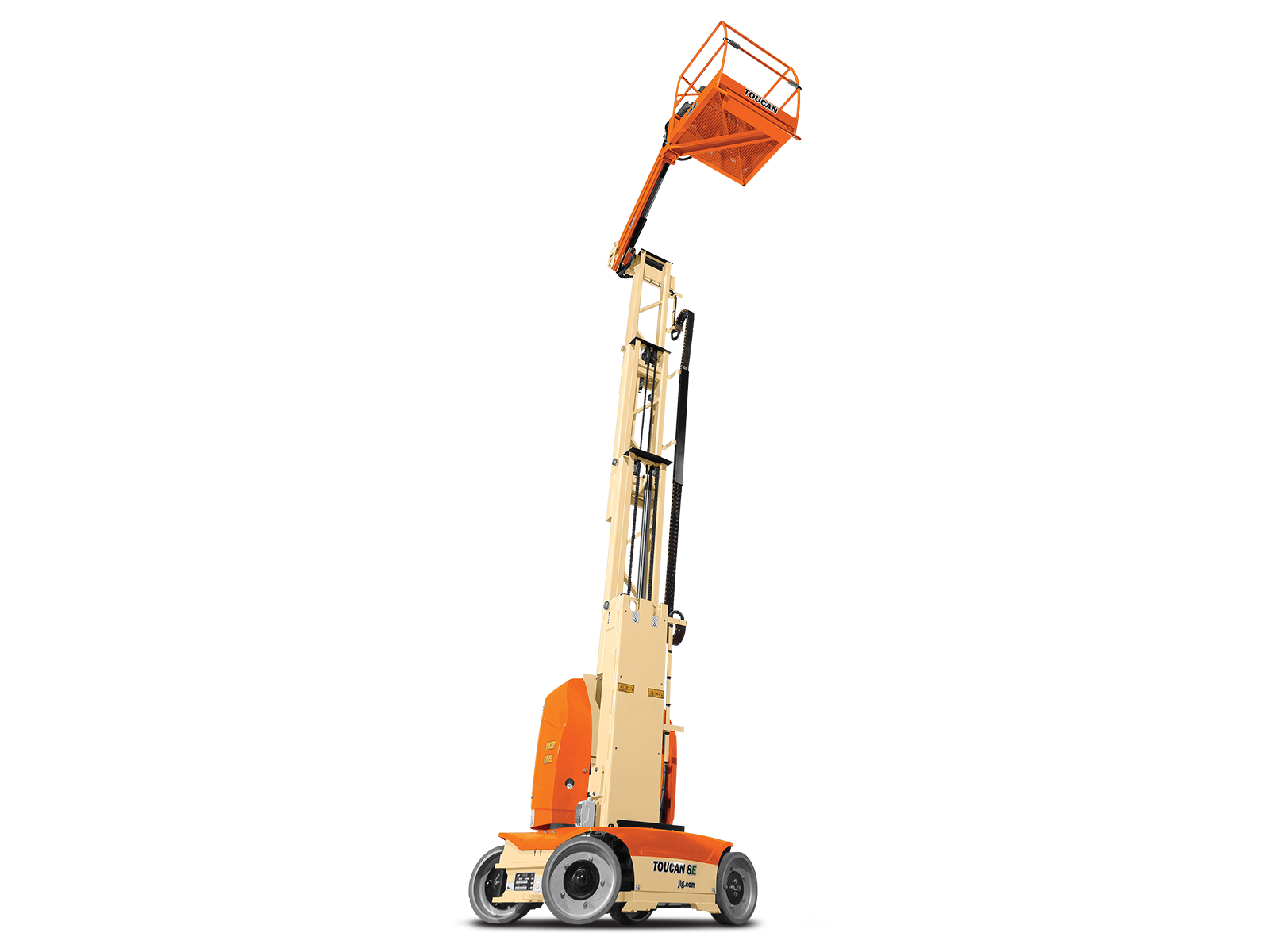

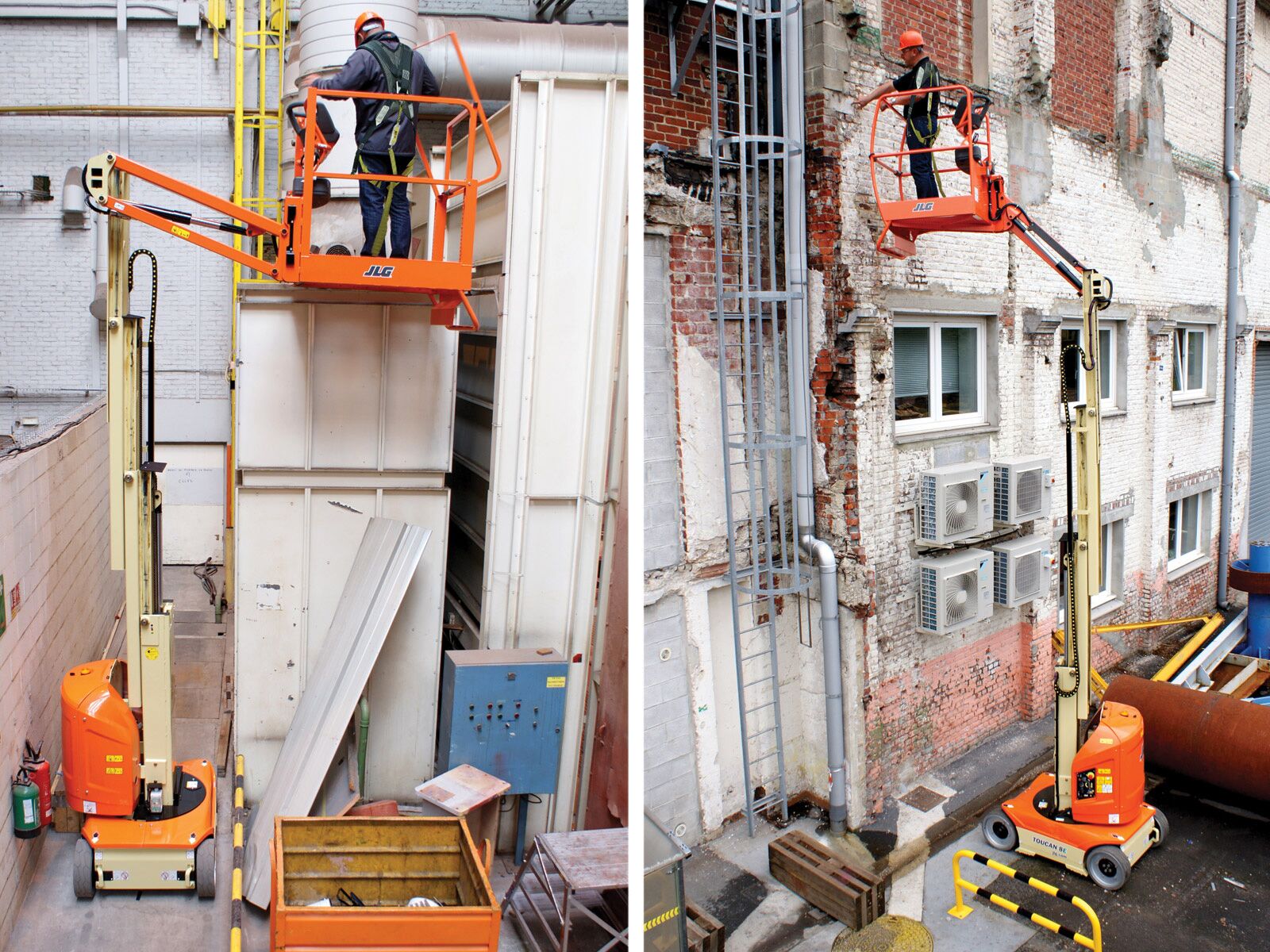

With the JLG Toucan® vertical mast lift, you can meet your overhead challenges head-on. Work up, over and around assembly lines, shelving, ductwork or partitions more easily and without interference. These mast boom lifts feature thick rubber non-marking tyres, clean and efficient electrical power and 25% gradeability.

Key Specs

Platform Capacity: 200 kg / 440.9 lb
Up and Over Height: 5.10 m / 16.7 ft

Key Features

25% gradeability and improved ground clearance
Direct electric drive with brushless AC motors
Lower maintenance & running costs
Simplified controls with super smooth operation
Reduced machine weight with compact dimensions

This machine may also be known as: Cherry Pickers, Platforms, Spider Lifts, Toucans, Cranes, Lifts, AWP, MEWP, IPAF 3a, 3b

_AuthorJLG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.jlg.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
Axle OscillationFIXED AXLES
BIM Object NameJLG_Site_ToucanMastBoomLift_T8E
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
Colorn/a
Constituentsn/a
Control System24v
Created Bywww.jlg.com/
Created On2020-12-01T09:30:00
Descriptionn/a
Documentation Certificateswww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/installation-guide
Documentation Literaturewww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/product-literature
Documentation Maintenancewww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/jlg-t8e-t20e-toucan-r-mast-boom-lift/document/technical-data-sheet
Drive Speed Lowered6.75 kph (4.19 mph)
Duration UnitYears
Electrical Pump Motor3kW, 24v
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Gradeability25%
Height2038 mm
Horizontal Outreach2.00 m (6 ft 6.75 in)
Hydraulic System6 L (1.59 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja59.75 °
Ja 1120.25 °
Jib Overall Length1.17 m (3 ft 10 in)
KeynoteX
Machine Weight CE2100 kg (4630 lbs)
ManufacturerJLG
Manufacturer NameJLG
MaterialSteel
Max Ground Bearing Pressure CE17.2 kg/cm2 (244.6 psi)
ModelToucan Mast Boom Lift - T8E
Model Name Toucan 8E
Model NumberToucan Mast Boom Lift - T8E
Model ReferenceToucan Mast Boom Lift
NBS DescriptionLift platforms
NBS Object NameJLG - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
P Ha59.75 °
P Ha 1239.75 °
Platform Capacity CE200 kg (440 lbs)
Platform Size0.92 m x 0.85 m (3 ft 0 in x 2 ft 9.5 in)
Production Year2020
Raised Platform Height6.2m (20 ft 4 in)
Reach1
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Tilt Alarm Indicator Light2.5 Degrees
Turning Radius Inside0.55m (1 ft 10 in)
Turning Radius Outside1.99 m (6 ft 6.25 in)
Type CommentsHeight=1.00m(3'-3")_Reach=1.00m(3'-3")
Type NameHeight=1.00m(3'-3")_Reach=1.00m(3'-3")
Tyres Non Marking Solid125x406 (non-marking)
Unique Model Reference FAPL1001220000
Up And Over Height5.08 m (16 ft 8 in)
URLwww.jlg.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.jlg.com/
Warranty Guarantor Partswww.jlg.com/
