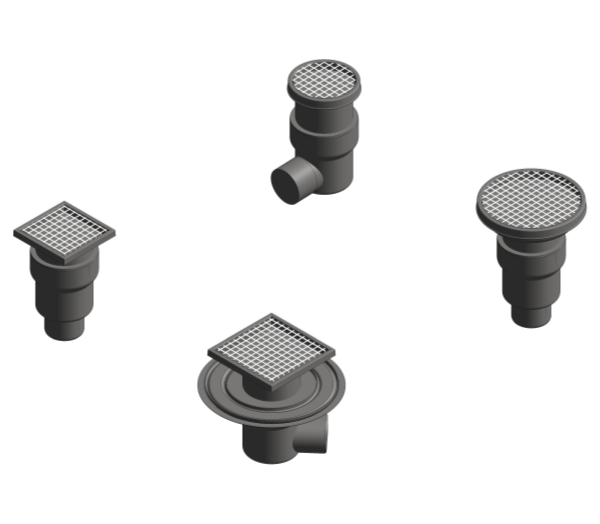

Two part Kitchen drain – Tile / Resin / Concrete
25.4k
0
5 / 5Rate this product
Available for:
Drains & Upper Parts with Square Top (774.40 / 710.403) or Circular Top (774.502 / 710.503) : Upper part-No membrane

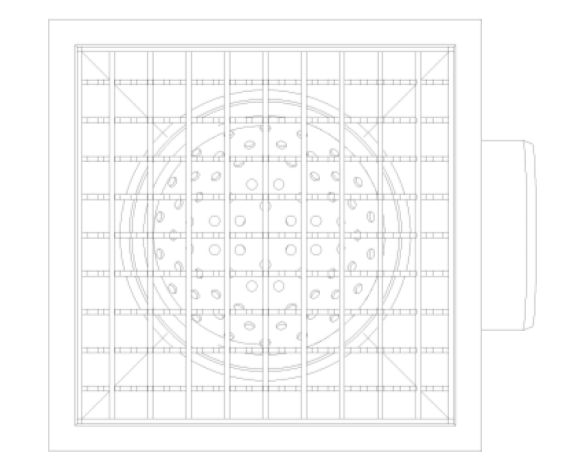

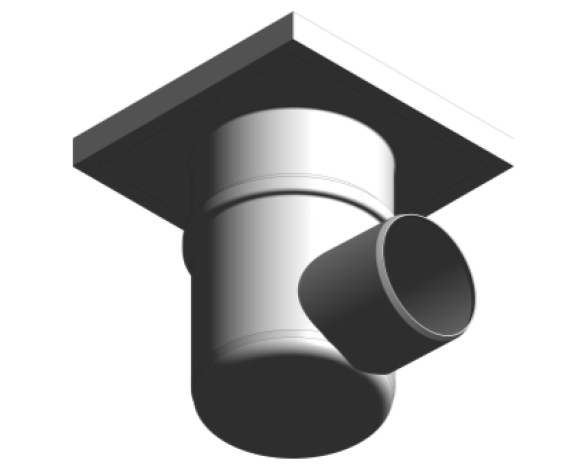

Square Top (774.40 / 710.403)
- With supporting ring for water trap
- Floor: concrete and tiled
- Frame: 200/250/300 mm
- Stainless steel: AISI304/EN1.4301
Circular Top (774.502 / 710.503)
- Floor: resin
- Stainless steel: AISI304/EN1.4301
- Frame: Ø200 and Ø300mm
Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.
- Horizontal and Vertical outlet, height adjustable, 75 / 110mm
- With and without membrane and for concrete, tiled and resin floors.
- Upper part models Square 774.401/402 / 710.403 and Round 774.502 / 710.503
- Lower part models 760.002 / 760.160. / 763.002 / 763.042 / 769 / 771 / 774 / 775
- The product is made from 1.5 mm acid-pickled stainless steel.
- Grating with non-slip, 2 types
- Designed in accordance with EN1253.
Key Component Features:
- User selectable Channel
- User selectable Gratings
- User selectable Lower Parts
- User selectable Water trap
- User selectable Filter Basket
- 360 degree Lower Part
- Height adjustment
- Automated product codes
- Pre-selected concrete cut out / base concrete slab option for installation purpose
