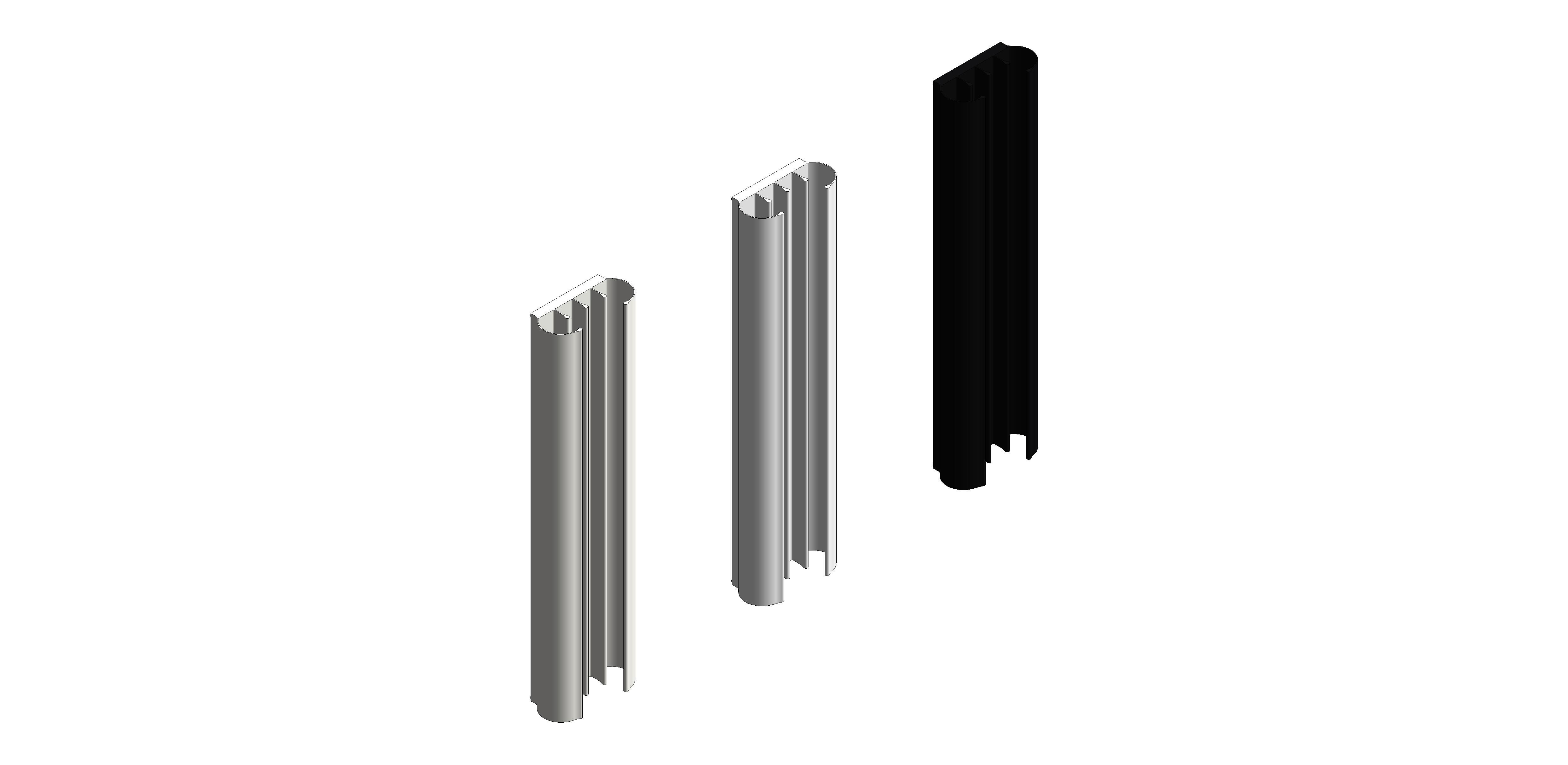

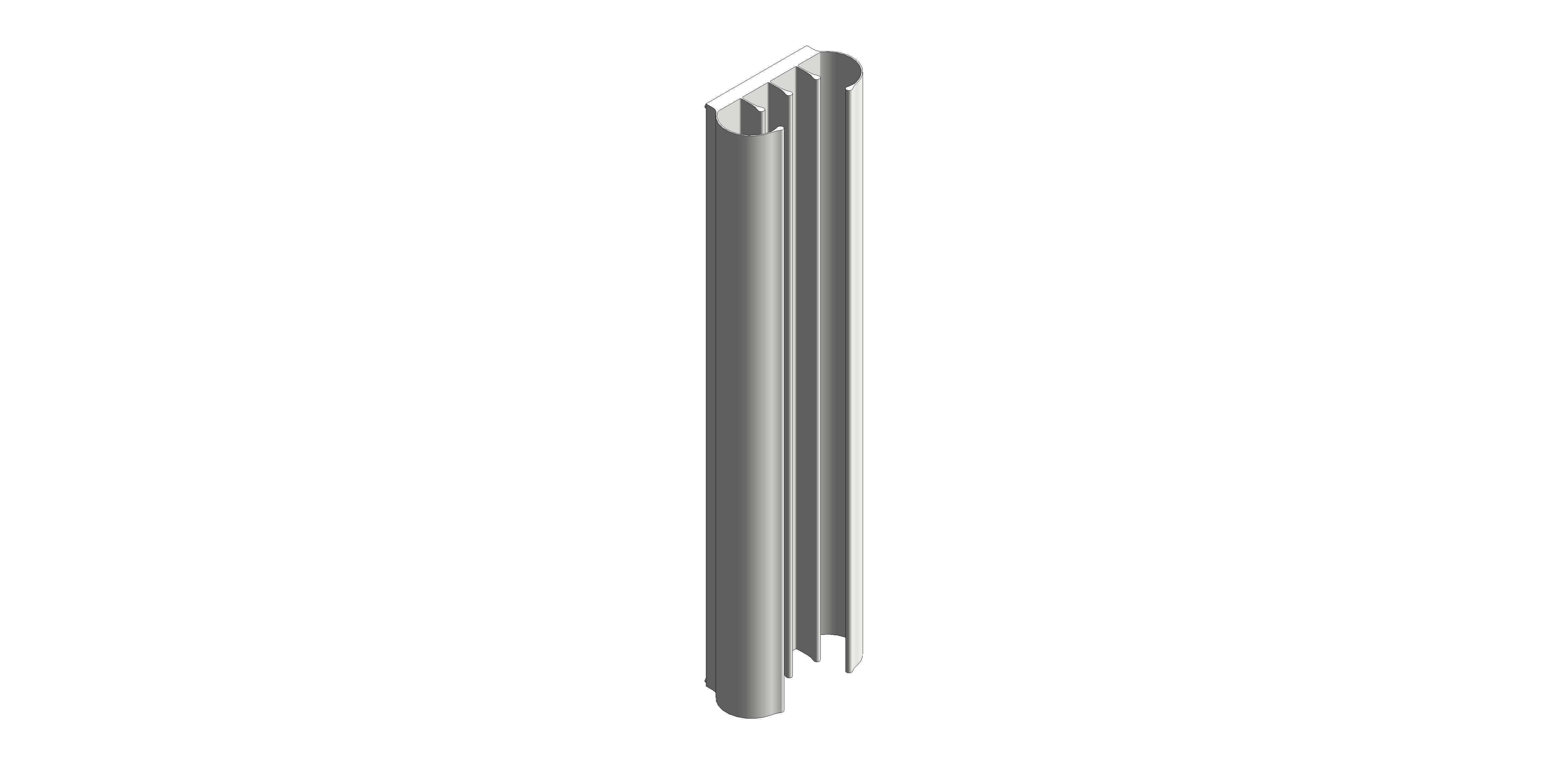

bimstore - Eskimo - Loop Heated Towel Rail

63
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/10/2024

Download BIM

Add to collection

Available for:

Loop does more than just warm up and flash-dry towels. Reduce loads of washing, extend the life of your towels, save space in your bathroom, and protect your towels with Loop.

Specifications
Power Supply	240v AC (compatible with auto timing switch)
Materials	100% recyclable aluminium with non-slip textured finish
Specifications	1000mm (H) x 230mm (W) x 132mm (D)
Energy	200w output (average $0.04 cents per hour)
Installation	Wall-mounted bracket
Compliance	RCM, Electrical safety AS/NZS 60334.2.43:2005
IP Rating	IP 44 bathroom electrical zone 2 and above
Warranty	3 years

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/loop-heated-towel-rail/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
BIM Object NameEskimo_TowelRail_LoopHeat
Bracket MaterialStainless Steel, Brushed
Classification NameUniclass2015
Classification ValuePr_70_60_36_26
Code PerformanceRCM, Electrical safety AS/NZS 60334.2.43:2005
ColorBlack
Constituentsn/a
Created Byhello@eskimodesign.co.uk
Created On2024-07-26T09:00:00
Default Elevation0.00 mm
Depth120.70 mm

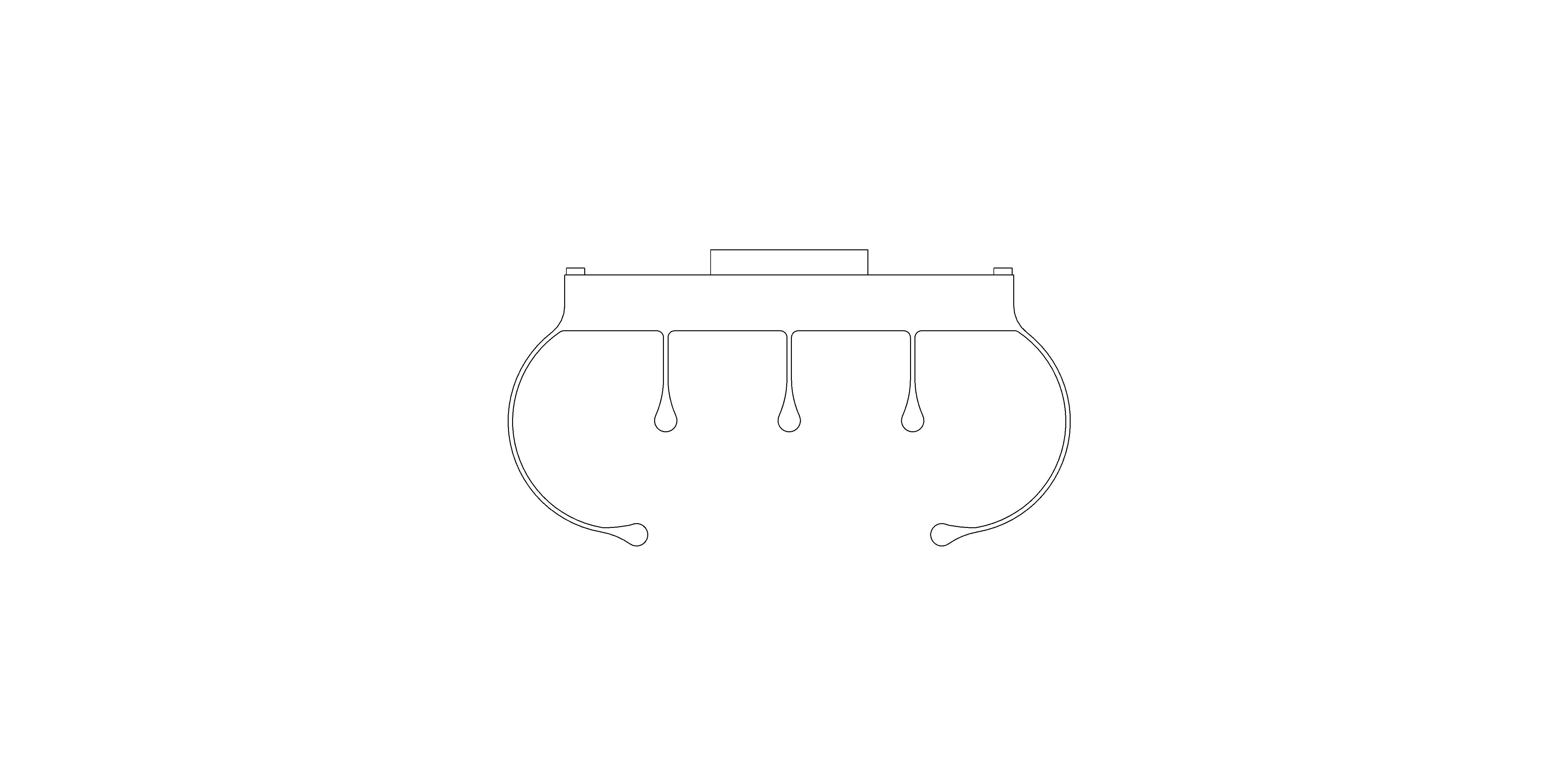

DescriptionA natural progression of our flagship Gordon Heated Towel Rail, Loop draws on our original design principles plus the additional aesthetic of two front curved fins. Increased heated surface area due to the curves and more heat being directed inwards towards the towels are the benefits. Love curves? Love Loop.
Documentation Certificateswww.bimstore.co/products/loop-heated-towel-rail/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/loop-heated-towel-rail/document/installation-guide
Documentation Literaturewww.bimstore.co/products/loop-heated-towel-rail/document/product-literature
Documentation Maintenancewww.bimstore.co/products/loop-heated-towel-rail/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/loop-heated-towel-rail/document/technical-data-sheet
Duration UnitYear
Energy200w output (average $0.04 cents per hour)
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height1000.00 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
InstallationWall-mounted bracket
IP RatingIP 44 bathroom electrical zone 2 and above
KeynoteT
ManufacturerEskimo
Manufacturer NameEskimo
Material100% recyclable aluminium with non-slip textured finish
ModelLoop Heated Towel Rail
Model Number1000mm (H) x 250mm (W) x 132mm (D) - Black
Model ReferenceLoop Heated Towel Rail
NBS DescriptionElectric heated towel rails
NBS Noten/a
NBS Object NameEskimo - Electric heated towel rails
NBS Office Master Tagn/a
NBS Reference90-40-35/385
Nominal Depth132.00 mm
Nominal Height1000.00 mm
Nominal Length250.40 mm
Offset From Wall132.00 mm
Power Supply240v AC (compatible with auto timing switch)
Production Year2024
Radiator MaterialEskimo Heat - Black
Referenced Standardn/a
Replacement Costn/a
Size1000mm (H) x 230mm (W) x 132mm (D)
Spare Partsn/a
Type Comments1000mm (H) x 250mm (W) x 132mm (D) - Black
Type Name1000mm (H) x 250mm (W) x 132mm (D) - Black
URLwww.eskimodesign.co.uk/products/p/the-loop
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts3
Warranty Duration UnitYear
Warranty Guarantor Laborhello@eskimodesign.co.uk
Warranty Guarantor Partshello@eskimodesign.co.uk
Width250.40 mm
