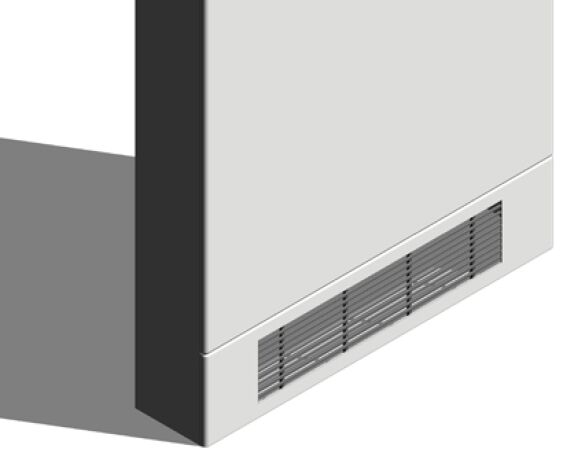

LST Plus Vertical Radiator

9.7k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

20/02/2024

Download BIM

Add to collection

Available for:

Every Stelrad LST radiator is supplied with an attractive, flat panel outer casing, which is totally reversible to allow piping flexibility. Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorised access to the emitter accommodated inside. And for added protection, the smooth surface is coated in anti-bacterial paint.

Controlled independent laboratory testing ensures that each emitter is guaranteed to perform to a maximum working pressure of 116 psi (8 bar) and conform to BS EN 442, the European Standard for radiators.

This download is for the LST Plus Vertical Radiator.

Click here to view our interactive brochure

_authorized byKris Atkinson
_BIMspec_GUID0
_created byIan Holmes
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeD3020
Asset TypeFixed
Casing Depth132.000000000000 mm
Casing Height2110.000000000000 mm
Casing Length560.000000000000 mm
Classification NameUniclass1.4
Classification ValueL75621
ColorRal 9016
Connector Dia15.000000000000 mm
Created Byinfo@stelrad.com
Created OnMay 2015
Delta Rating50?
DescriptionStelrad’s range of low surface temperature radiators is the most comprehensive in the UK and has been designed to simplify product selection, with sizes and models to suit all applications. Installation has been made as easy as possible and all the components required are included in one robust pack. They meet NHS Guidance for ‘Safe hot water and surface temperature’ and come with anti-bacterial paint as standard - making them the No.1 choice for safety critical environments.
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/867
Documentation Literaturespecifi.bimstore.co.uk/document/share/867
Documentation Maintenancespecifi.bimstore.co.uk/document/share/867
Documentation Technicalspecifi.bimstore.co.uk/document/share/867
Dry Weight Kg35.52
Duration UnitYears
Emitter Height1800.000000000000 mm
Emitter Length400.000000000000 mm
Expected Life0
FinishAntibacterial Paint
Heat Output Btu/hr4336
Heat Output Watts1271
Height From Floor149.000000000000 mm
K2 RadiatorYes
KeynoteT32
ManufacturerStelrad Ltd
ModelStelrad LST Plus Vertical
Model Number142241
Production Year2015
Radiator Offset18.000000000000 mm
ShapeRectangle
Side Dial Height703.333333333333 mm
SizeLST Plus Vertical (K2) 2110mm High 560mm Length
Surface Area m2/m12
Total Weight of Casing and Emitter57kg
Type CommentsLST Plus Vertical (K2) 2110mm High 560mm Length
Type NameMechanical_Equipment-Radiators-Stelrad-LST_Plus_Vertical
UIN142241
Uniclass 2Pr_70_60_36_73
URLwww.stelrad.com/
Warranty DescriptionPlease note that all LST products come with a 5 year warranty on casing, and a 10 year warranty on emitter.
Warranty Duration Labor1 Year
Warranty Duration Parts1 Year
Warranty Duration UnitYears
Water Content Litres7.5
