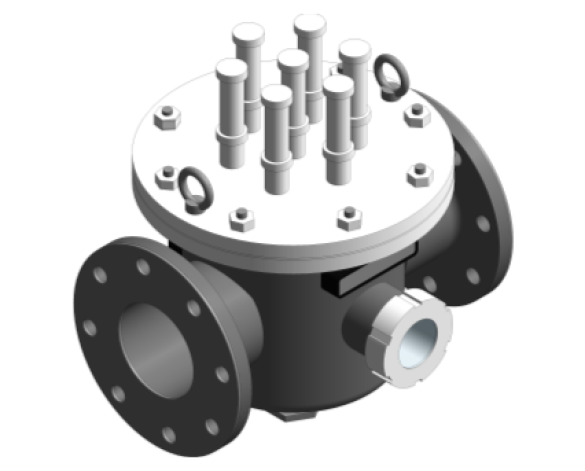

Magna Clean - Commercial

Object metadata

• _Authorinfo@adey.com
• _Authorized ByIan Holmes
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Byinfo@adey.com
• _Current Revision2
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Asset TypeFixed
• BIM Object NameAdey_PipeAccessories_MagnaClean_Commercial_2Inch
• Calculation RefIND-06-00878
• ClassificationTABLE 4 SEP
• Classification NameUniclass2015
• Classification ValuePr_60_55_97
• Code Performancen/a
• ColorBlack
• Constituentsn/a
• ContentsLIQUID
• Corrosion Resistancen/a
• Created Byinfo@adey.com
• Created On2018-02-01:T00:00:00

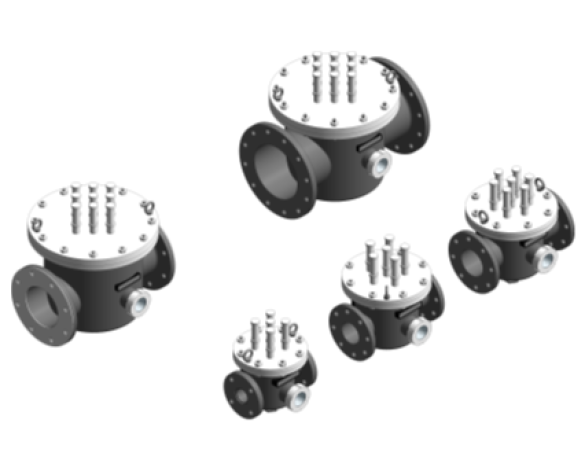

• DescriptionMagnaClean Commercial is a powerful range of magnetic filters designed to protect and maintain demanding light commercial heating systems through to heavy industrial applications
• Design CodeBS EN 13445:2009
• Design Pressure10.0 bar
• Design Temp105 °C
• Documentation Certificatesn/a
• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2414
• Documentation Literaturespecifi.bimstore.co.uk/document/share/2414
• Documentation Maintenancen/a
• Documentation Technicalspecifi.bimstore.co.uk/document/share/2414
• Drain Valve ClearanceYes
• Drain Valve Clearance Distance250 mm
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finishn/a
• Flange Distance262 mm
• Flow Flange Bolt Size And QtyM16 x 4 - OFF
• Flow Flange Gasket Material And ThicknessPN16 EDPM 3MM THICK 70 SHORE
• Flow Flange Pcd125 mm
• Fluid Density1000.00 kg/m³
• Graden/a
• Group2
• Hydrotest22.3 bar
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.MIXING
• Installation ClearanceYes
• KeynoteS12
• Magnet Service Height200 mm
• ManufacturerAdey
• Manufacturer NameAdey
• MaterialStainless steel
• Max Operating Temperature100 °C
• Max Working Pressure10.0 bar
• ModelMagnaClean Commercial
• Model NumberMagnaClean Commercial
• Model Reference2"
• NBS DescriptionWater treatment products
• NBS Object NameAdey - Water treatment products
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nde NdtSPOT
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Overall Height348 mm
• Pressure Test CertificateON APPLICATION
• Production Year2018
• P Sx V33 BAR LITRES
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size2"
• Spare Partsn/a
• Surface Finish ExternalPAINTED TO ADEY SPEC.
• Surface Finish InternalNATURAL
• Torque SettingsYes
• To Suit Pipe SizeDN 50
• Type Comments2"
• Type Name2"
• URLwww.adey.com
• Vessel DutyWATER
• Vessel Volume3.3 L
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts2
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@adey.com
